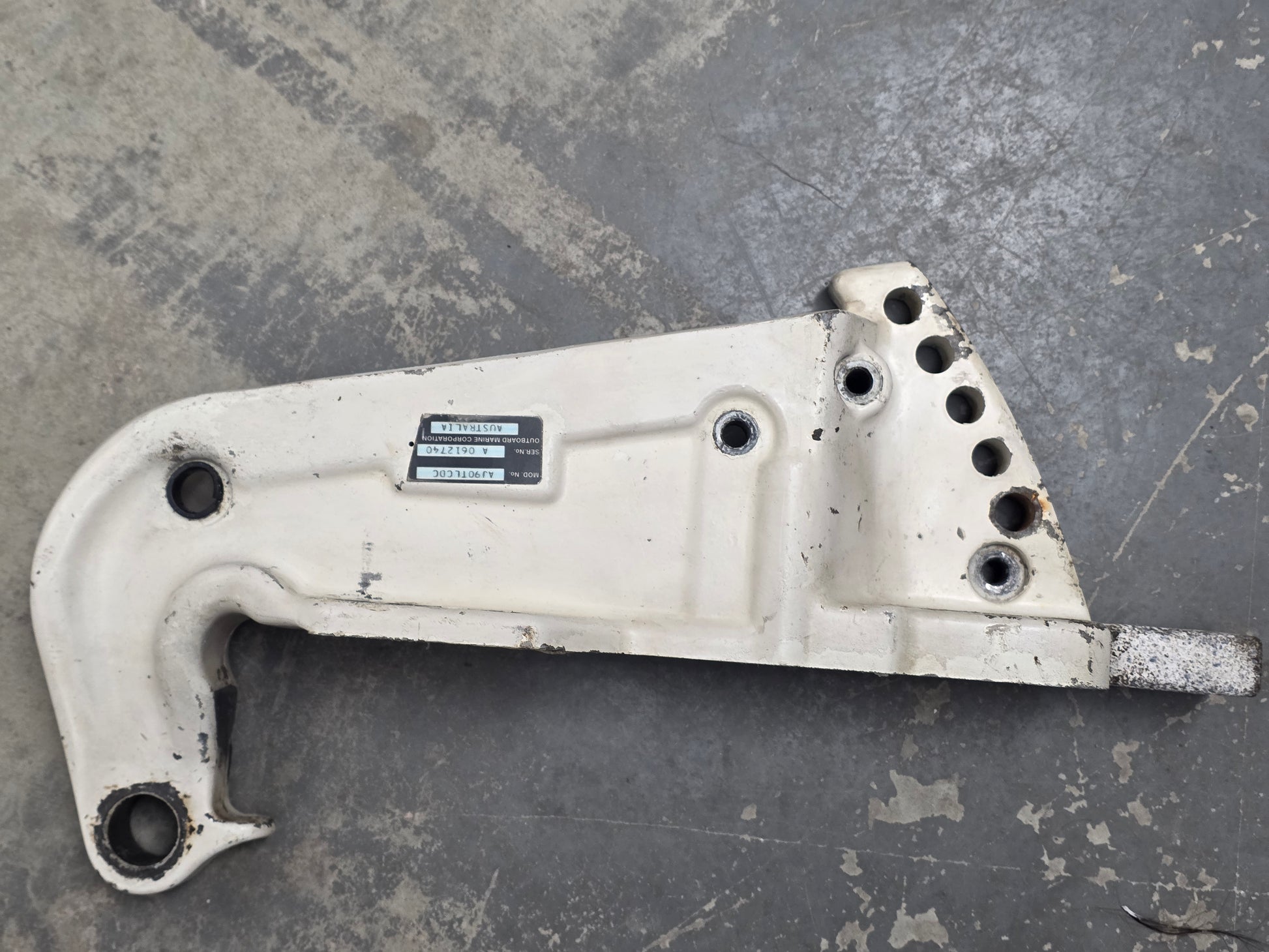

• 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part

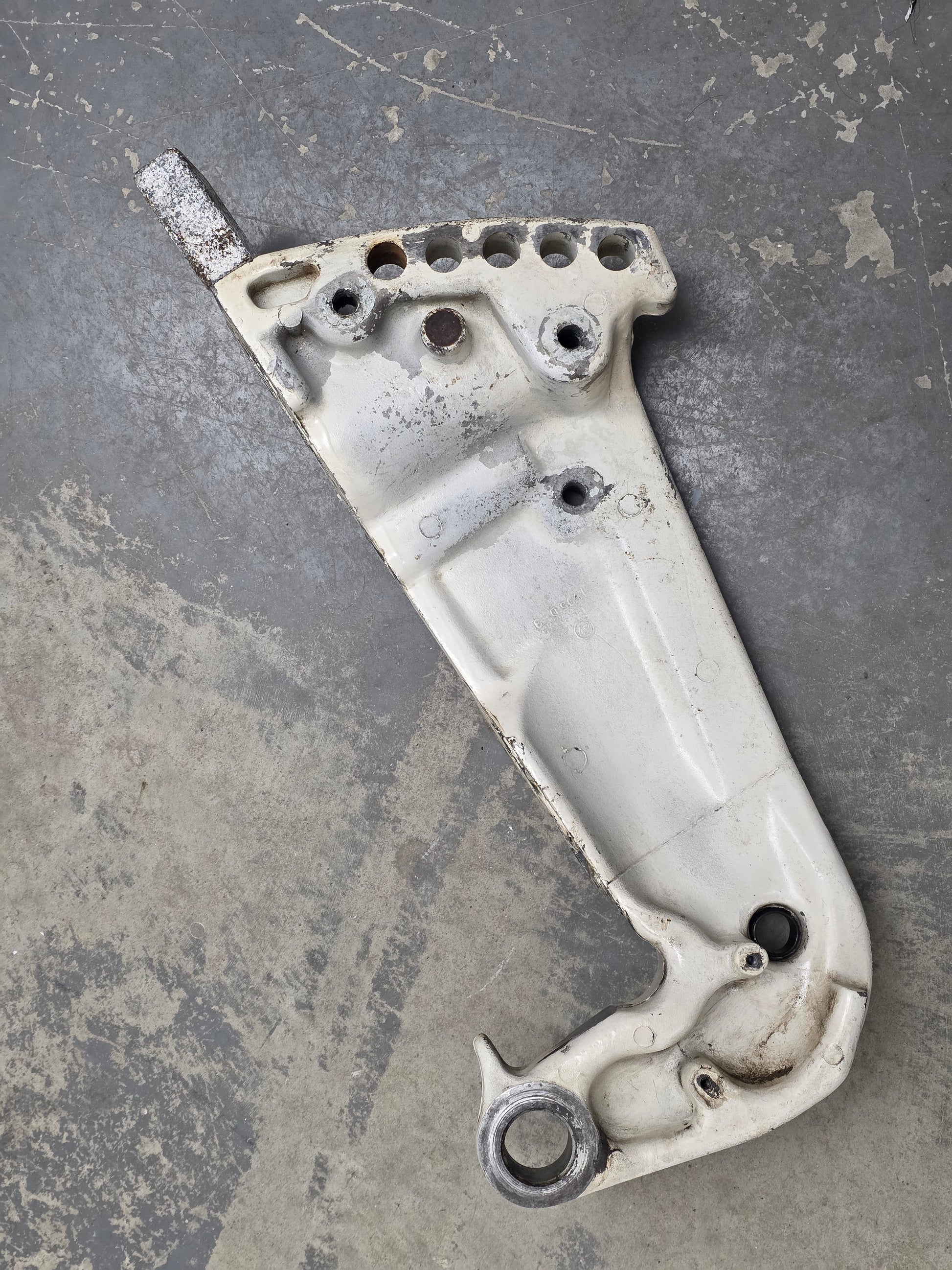

  • 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part - photo 2 of 6

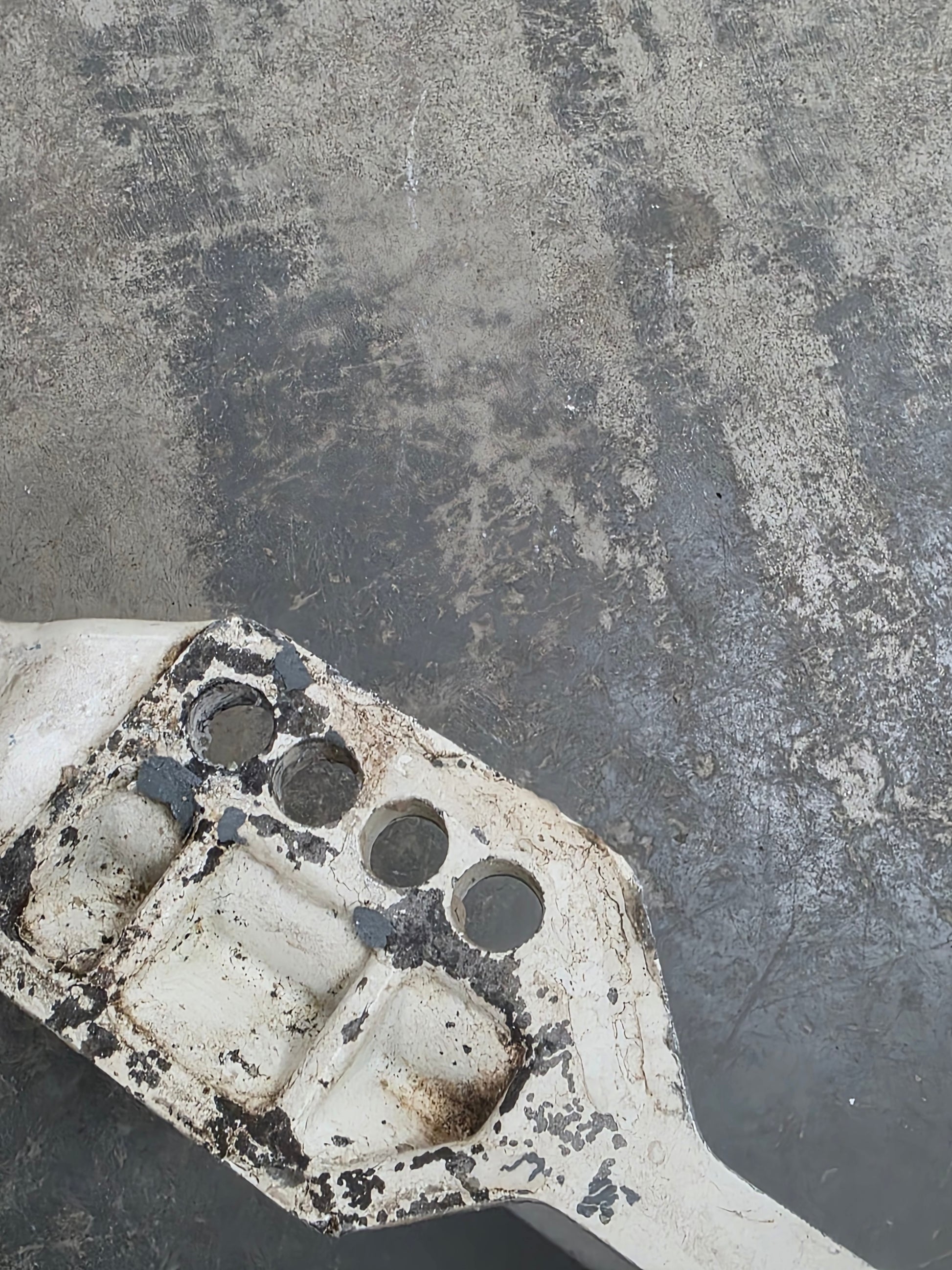

  • 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part - photo 3 of 6

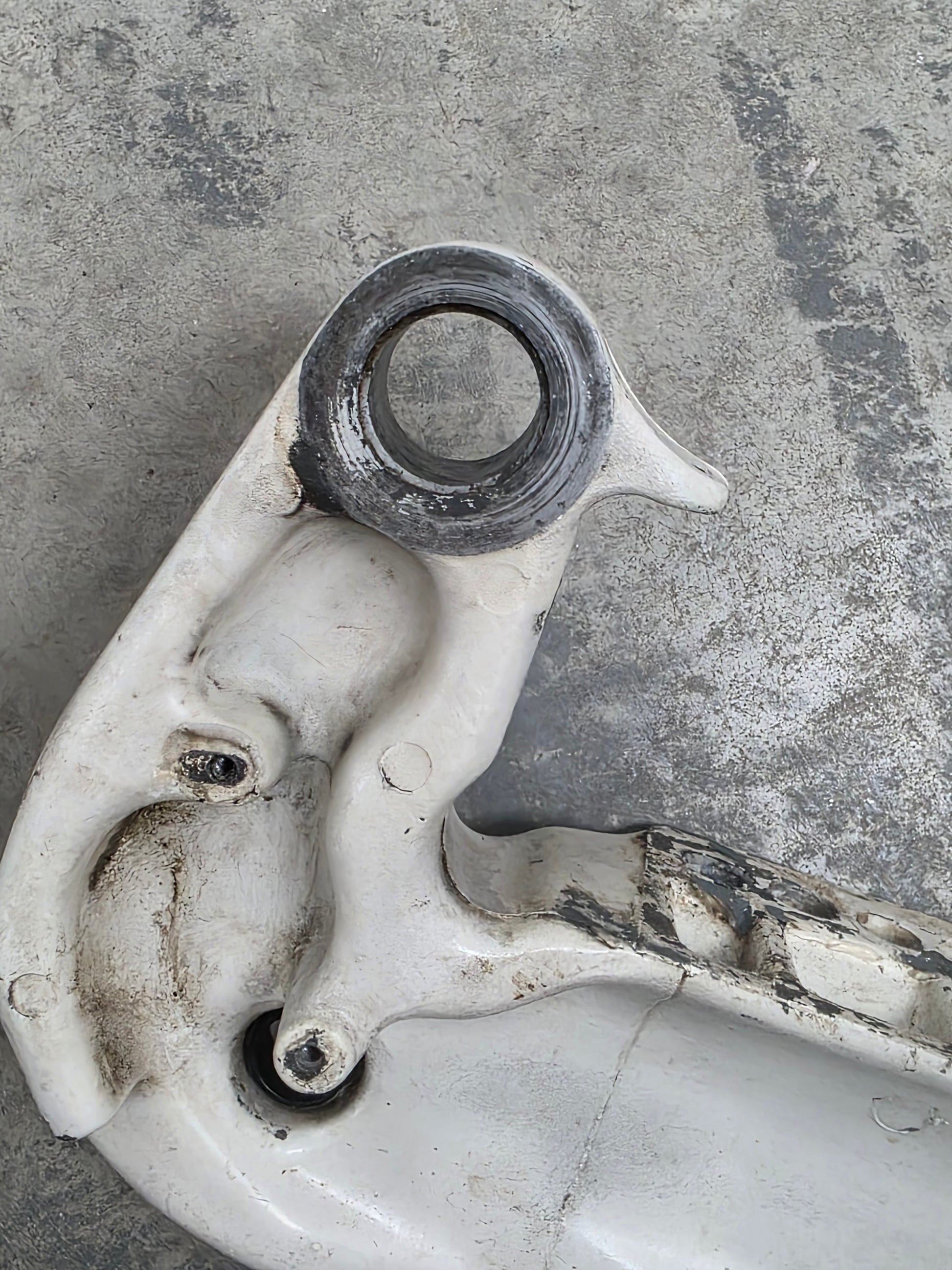

  • 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part - photo 4 of 6

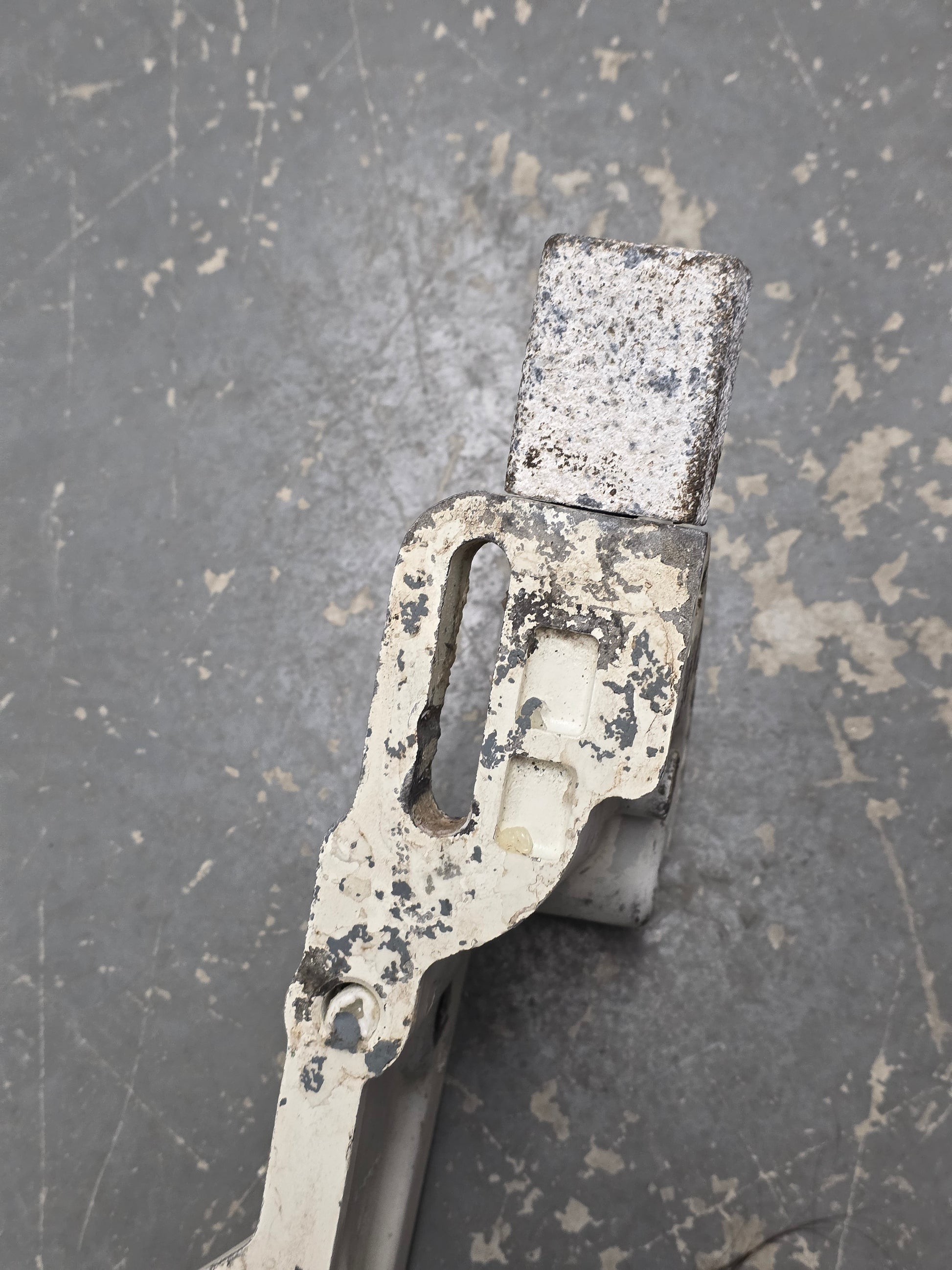

  • 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part - photo 5 of 6

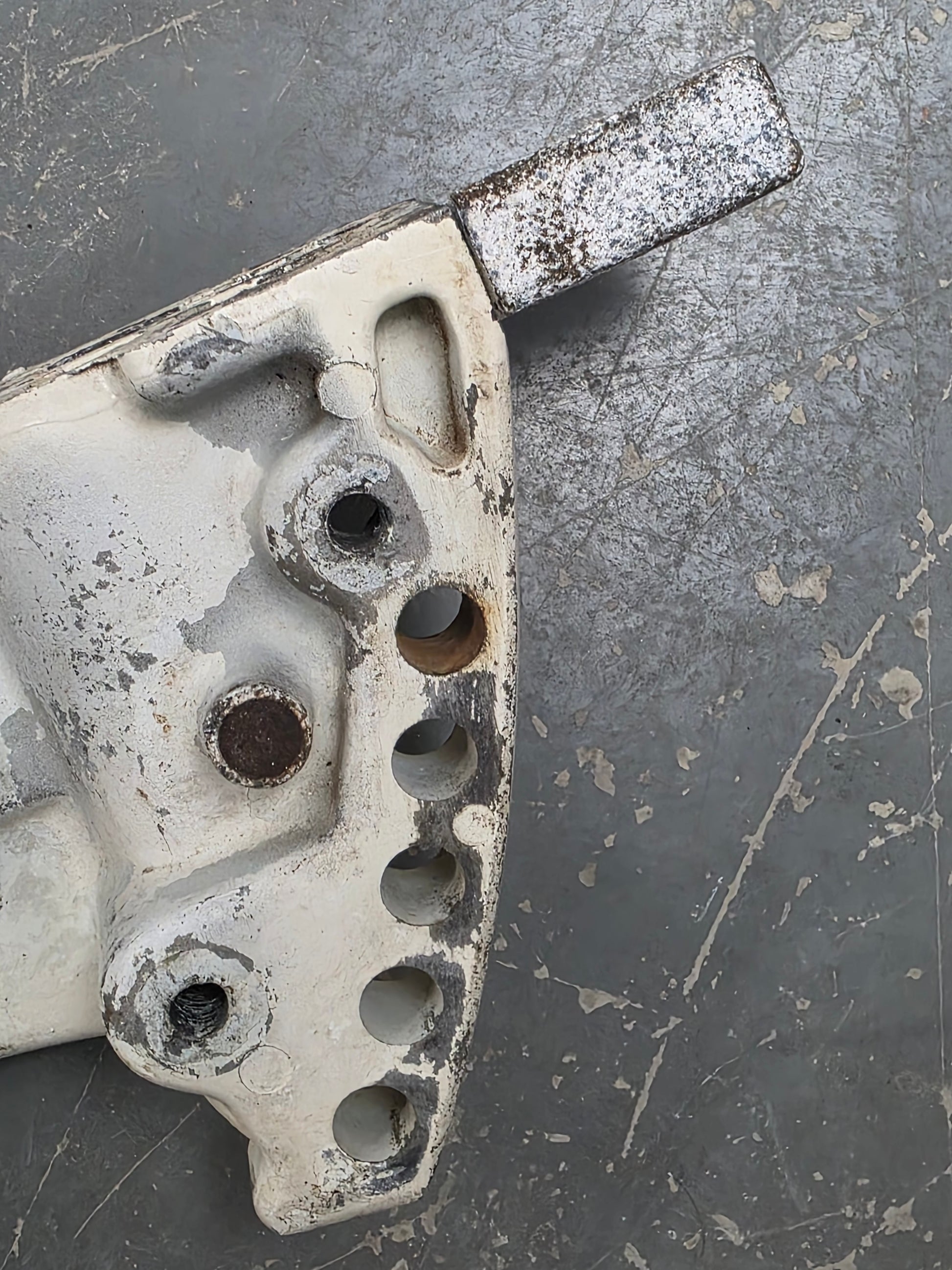

  • 0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part - photo 6 of 6
1 6

0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part

0396309 Johnson 90HP Stern Bracket (Port) | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$75.00 AUD
$150.00 AUD $75.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Johnson Evinrude Port Stern Bracket Assembly - Part Number: 0396309

A genuine OMC port-side stern bracket assembly for selected 50HP to 235HP Johnson and Evinrude outboards.

The assembly forms the left-hand transom clamp and commonly includes or supports the stern-bracket anode. Part number 0396309 is associated with earlier 0395843 and casting 331595.

⚙️ Key Features

  • Genuine OMC port stern-bracket assembly
  • Correct part number 0396309 / 396309
  • Related earlier reference 0395843
  • Heavy-duty V4 and V6 transom bracket
  • Supports tilt tube, clamp and anode
  • Common 1985-2001 application

🚤 Compatibility

Documented approximately 1985-2001 on selected

  • 50HP-70HP engines
  • 85HP-115HP V4 engines
  • 120HP-140HP V4 engines
  • 150HP-175HP V6 engines
  • Selected 185HP-235HP engines
  • Johnson 90HP applications
  • Engine Type: Johnson / Evinrude carburetted two-stroke outboard
  • Fitment Requirement: Confirm tilt tube, clamp screw and trim-system arrangement

🔌 Function

The port bracket clamps the engine to the transom and supports steering, tilt and trim loads on the left side of the swivel assembly.

⚠️ Common Signs of Failure

  • Casting is cracked or corroded
  • Clamp threads are damaged
  • Anode mounting area is wasted
  • Tilt-tube bore is worn
  • Bracket is bent from impact

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0396309 later port-bracket assembly
  • 0395843 related earlier assembly
  • 331595 documented casting number

OEM / Related Numbers

  • 0396309
  • 396309
  • 0395843
  • 395843
  • Casting 331595
  • 0397948 / 0395844 matching starboard bracket family
  • Related anode, tilt tube and clamp screw

Aftermarket / Verified Equivalents

  • Specialist used 0396309 / 0395843 bracket
  • Used complete stern-and-swivel assembly
  • No verified direct aftermarket casting

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
  • Inspect anode area and structural casting before installation
