• 0396701 Evinrude Johnson Carby Gasket Kit | Genuine OEM BRP Outboard Part
1 1

0396701 Evinrude Johnson Carby Gasket Kit | Genuine OEM BRP Outboard Part

0396701 Evinrude Johnson Carby Gasket Kit | Genuine OEM BRP Outboard Part

$61.17 AUD
$61.17 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

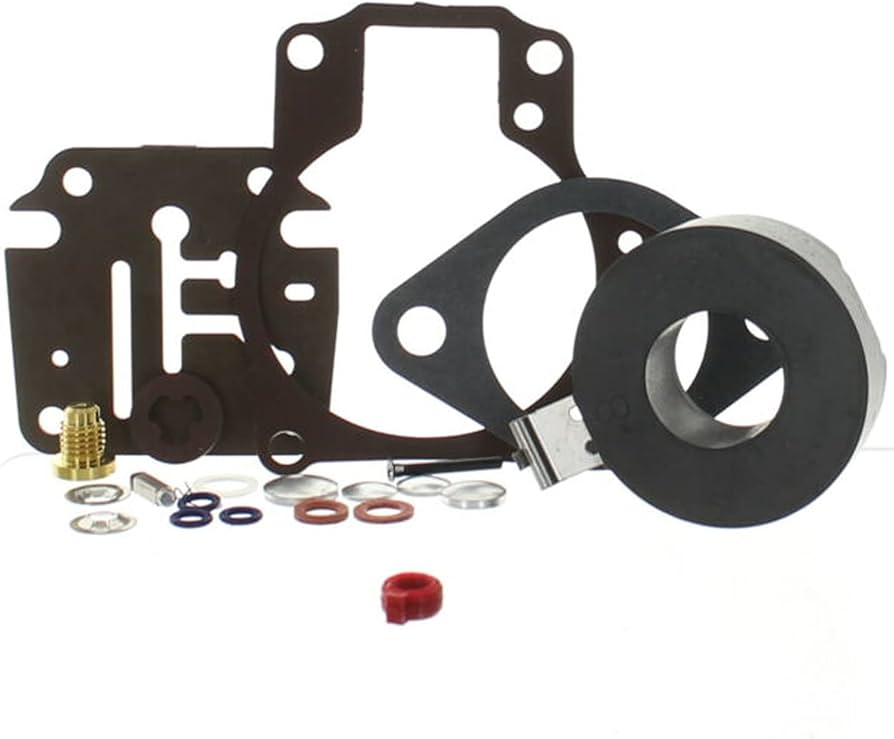

Genuine BRP Evinrude Johnson Carburettor Repair Kit with Float - Part Number: 0396701

A genuine BRP carburettor service kit for a broad range of twin- and three-cylinder Evinrude and Johnson carburetted outboards.

Although sometimes listed as a gasket kit, OEM catalogues identify 0396701 as a carburettor kit with float. The kit normally includes gaskets, O-rings, float, inlet needle and seat components and other service items for one compatible carburettor.

⚙️ Key Features

  • Genuine BRP OEM carburettor repair kit
  • Correct OEM part number 0396701
  • Commonly supplied with carburettor float
  • Services one compatible carburettor
  • Broad 18HP-70HP application family
  • Sierra, EMP, Mallory and independent alternatives available

🚤 Compatibility

Commonly used on selected

  • 18HP
  • 20HP
  • 25HP
  • 28HP
  • 30HP
  • 35HP
  • 40HP
  • 45HP
  • 48HP
  • 50HP
  • 55HP
  • 60HP
  • 65HP
  • 70HP carburetted engines

Representative application families

  • 18HP, 20HP and 25HP engines from approximately 1969 onward
  • 28HP, 30HP and 35HP engines from approximately 1976 onward
  • Twin-cylinder 40HP-55HP engines
  • Selected three-cylinder 60HP-70HP engines
  • Application extends into the early 2000s on selected models

Important fitment note

  • One kit services one carburettor.
  • Confirm the carburettor body, float style and inlet-needle design.
  • Some aftermarket kits are sold without the float despite sharing related cross-reference numbers.

🔌 Function

The kit restores fuel metering, float control and sealing.

Common symptoms requiring service

  • Fuel leaks from the bowl
  • Carburettor floods
  • Engine will not idle
  • Lean hesitation
  • Difficult starting
  • Fuel level is incorrect
  • Float absorbs fuel or becomes distorted
  • Needle sticks in the seat
  • Gaskets shrink or crack

Installation considerations

  • Clean all jets and passages
  • Do not force wire through calibrated orifices
  • Set float level and float drop
  • Inspect the throttle shaft for wear
  • Service all carburettors on multi-carb engines
  • Synchronise throttle plates after installation
  • Confirm the fuel pump and primer system operate correctly

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 0396701
  • 396701
  • 0392061
  • 392061
  • 0398729
  • 398729

Aftermarket / Verified Equivalents

  • Sierra: 18-7222 - kit with float
  • Sierra: 18-7042 - related kit configuration
  • EMP: 1300-01432
  • Mallory: 9-37107
  • Aftermarket 396701 carburettor kits with float

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Kit contents may vary with BRP production packaging
  • Supplied in genuine or equivalent protective packaging
