0433226 Aftermarket Bombardier Power Trim | Sawley's Select Marine Parts

🔧 Product Description

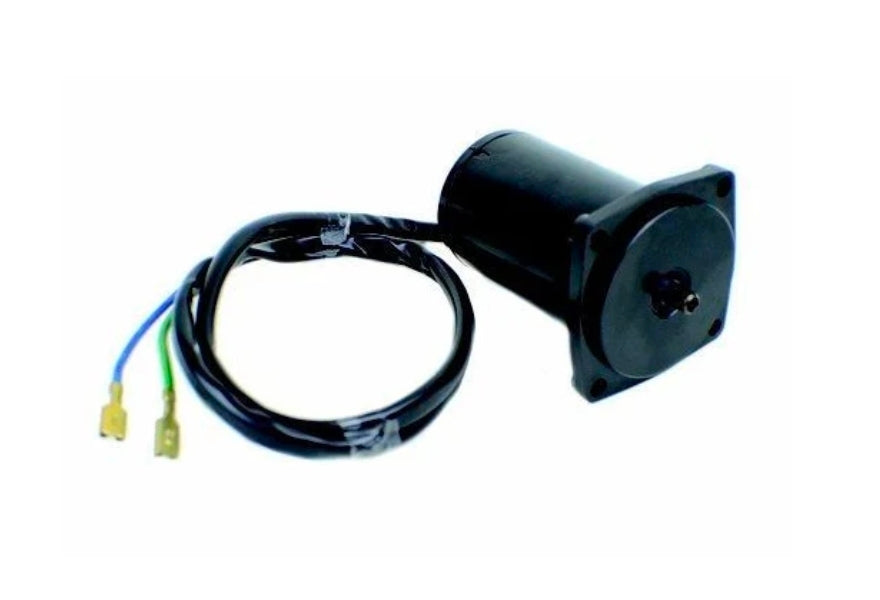

Aftermarket replacement Two-Wire Trim & Tilt Motor - Replaces Part Number: 0433226

New aftermarket reversible trim/tilt motor replacing OMC 0433226/433226. It is the compact two-wire, four-hole motor with an internal female-hex drive used on selected 40HP, 48HP and 50HP Johnson/Evinrude outboards.

⚙️ Key Features

• Direct replacement for OMC 0433226 and 433226

• 12-volt reversible two-wire motor

• Four unthreaded mounting holes

• Approximately 63.6mm motor diameter and 124mm overall length

• Internal female-hex drive for the matching hydraulic pump

🧰 Kit / Assembly Contents

• 1 × Complete trim/tilt motor - P/N 0433226

• 1 × Integrated two-wire lead and terminals

• Motor-to-pump O-ring or mounting seal - supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0433226 / 433226 (OMC OEM reference)

OEM / Related Numbers:

• 433226

• ARCO 6243

• Sierra 18-6285

• Prestolite replacement family

Aftermarket / Verified Equivalents:

• ARCO: 6243

• Sierra: 18-6285

• DB Electrical/Motor City: 430-22025 / TRM0070 family

• Recmar: REC0433226

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude small and mid-range outboards with the 2-wire SHOWA-style trim motor

Typically suits:

• Engine / Drive models:

• 40HP, 48HP and 50HP 1989-1992 applications using OMC 433226

• E40EC 1989 and matching model-code derivatives

• Honda 35HP-50HP applications only where the original motor cross-references 36120-ZV5-821/822

• HP / Drive Range: 35HP - 50HP on the documented cross-reference family

• System Type: Outboard hydraulic power trim and tilt system

• Year Range: Principally 1989 - 1992 for the OMC application

• Serial / Component Identification: Confirm two wires, four mounting holes, male-spade terminals and the female-hex pump drive.

🔌 Function

The reversible 12-volt trim/tilt motor drives the hydraulic pump in both directions. The pump then raises or lowers the outboard or sterndrive while hydraulic valves hold the selected position.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Hydraulic pump works only when the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
