0434517 BRP Pinion & Shaft | Genuine Used Part
0434517 BRP Pinion & Shaft | Genuine Used Part
Low stock: 2 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

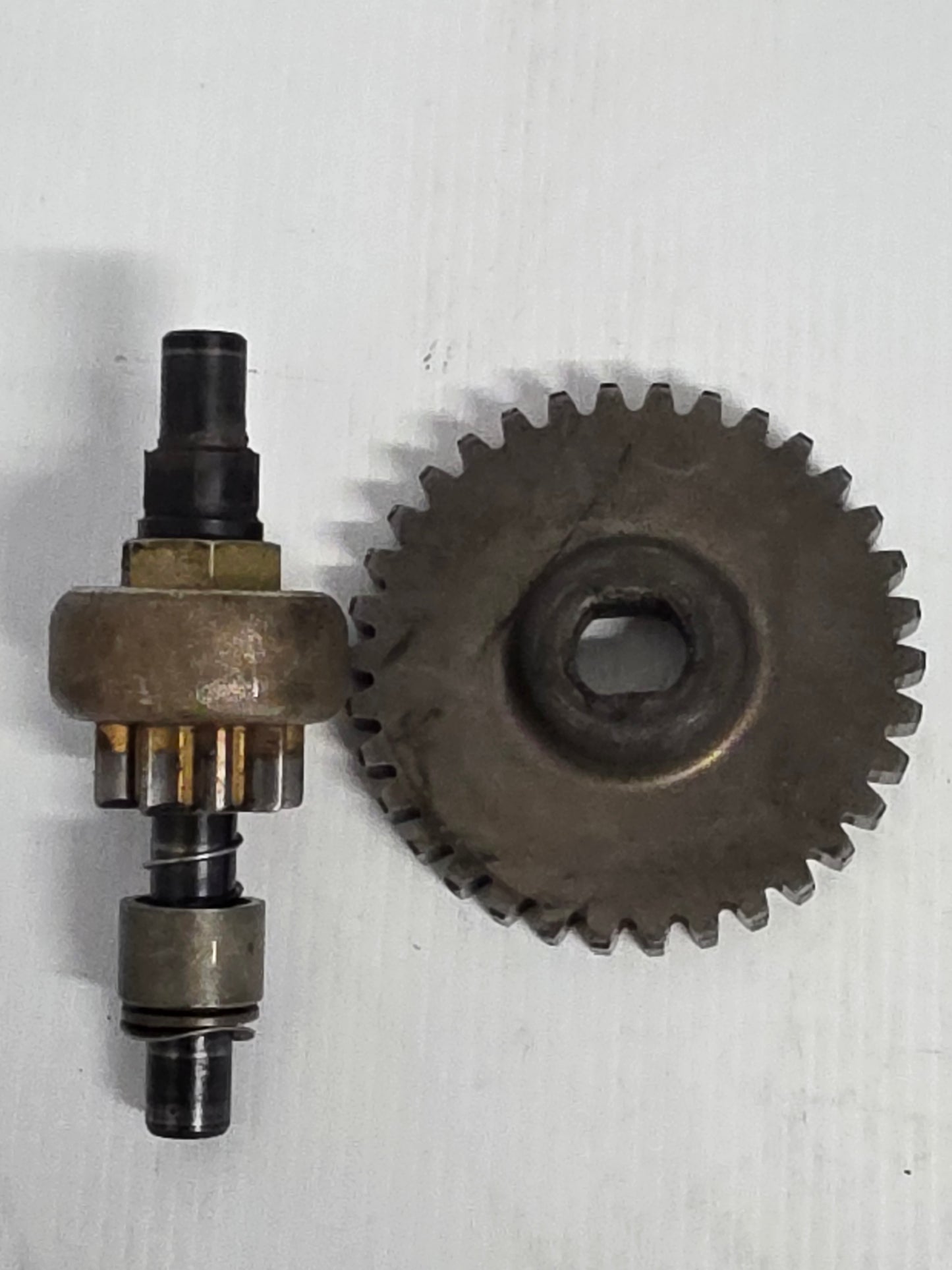

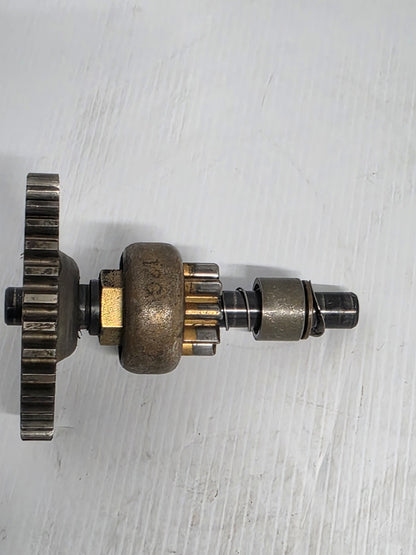

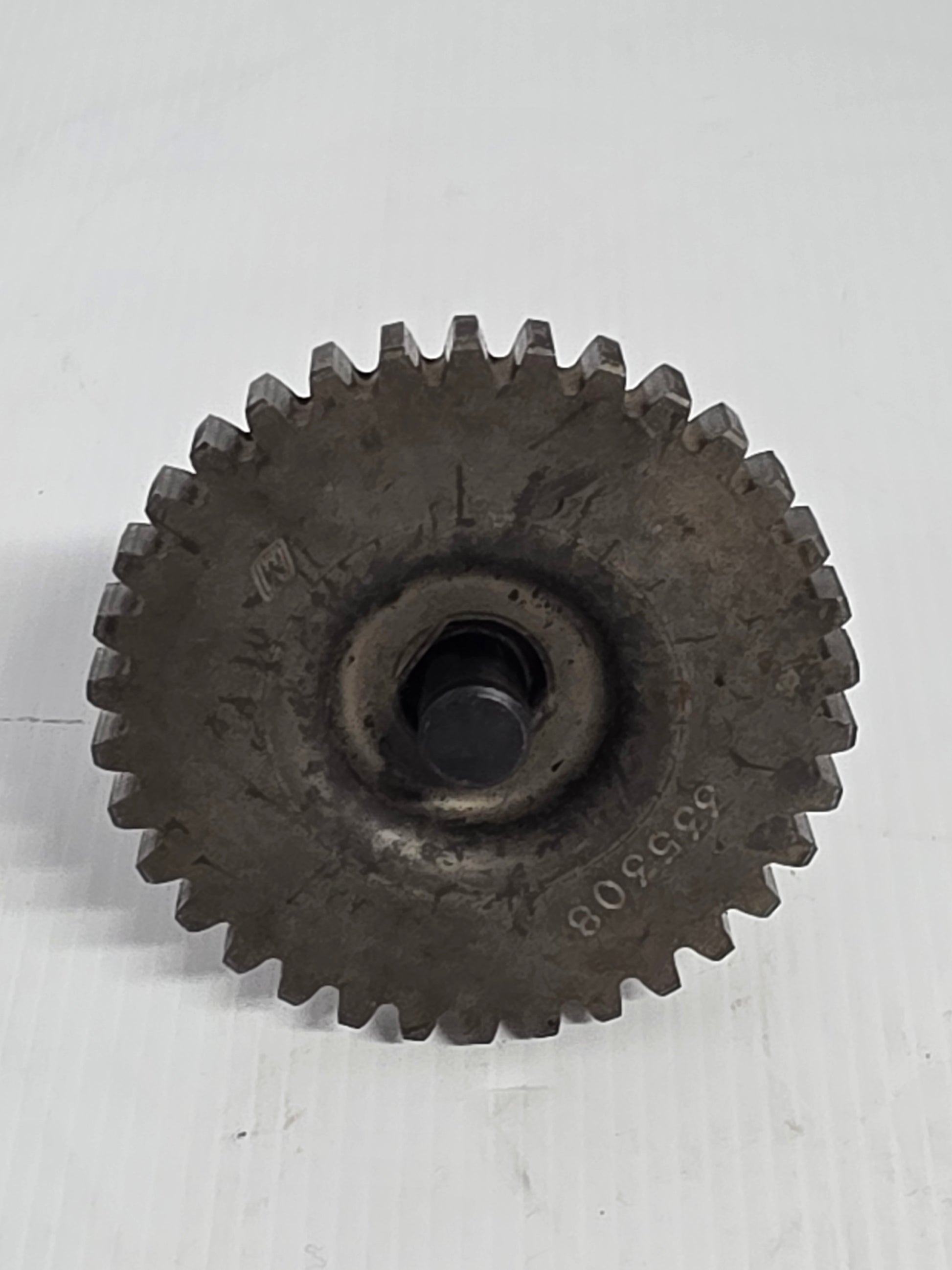

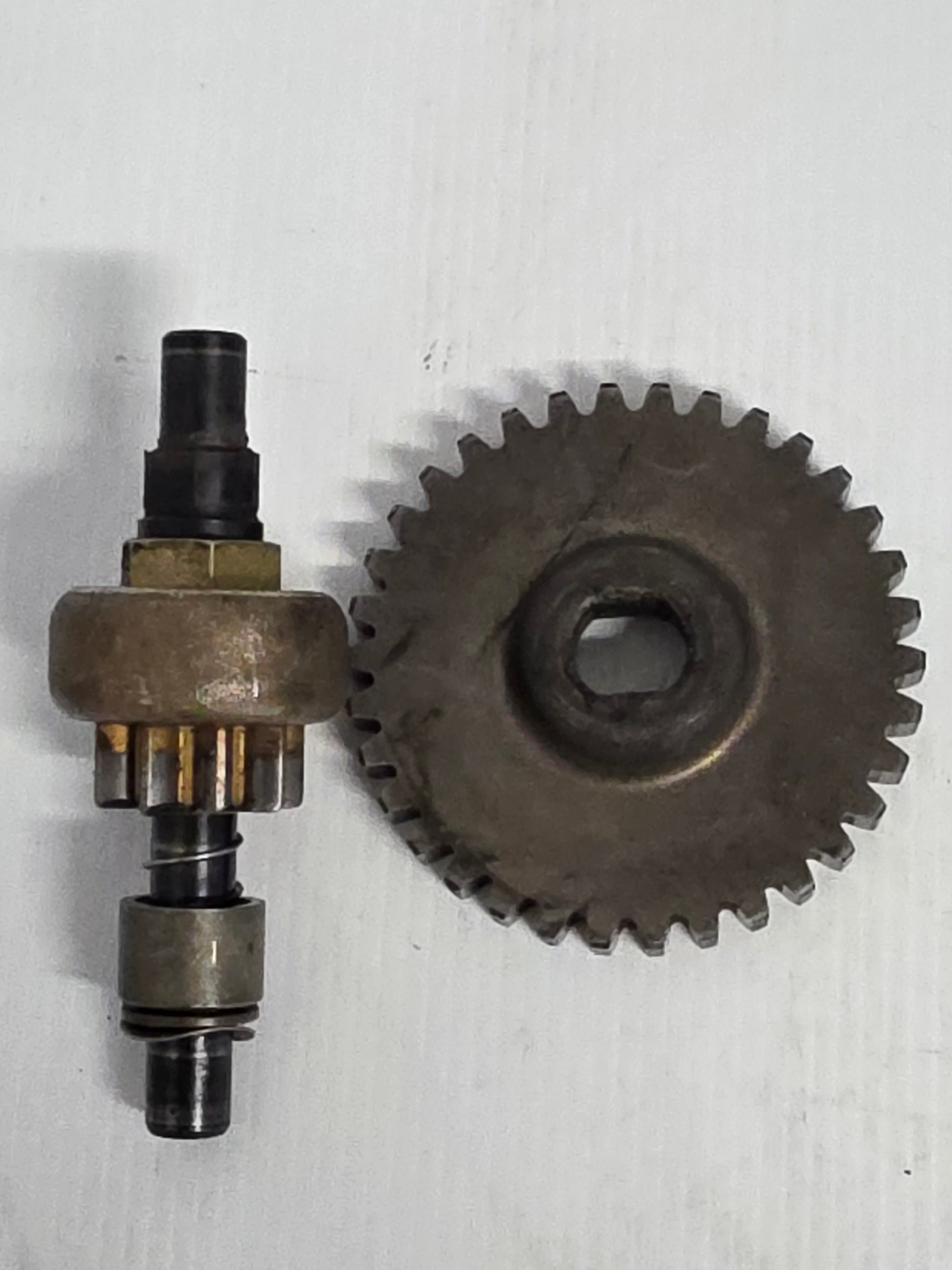

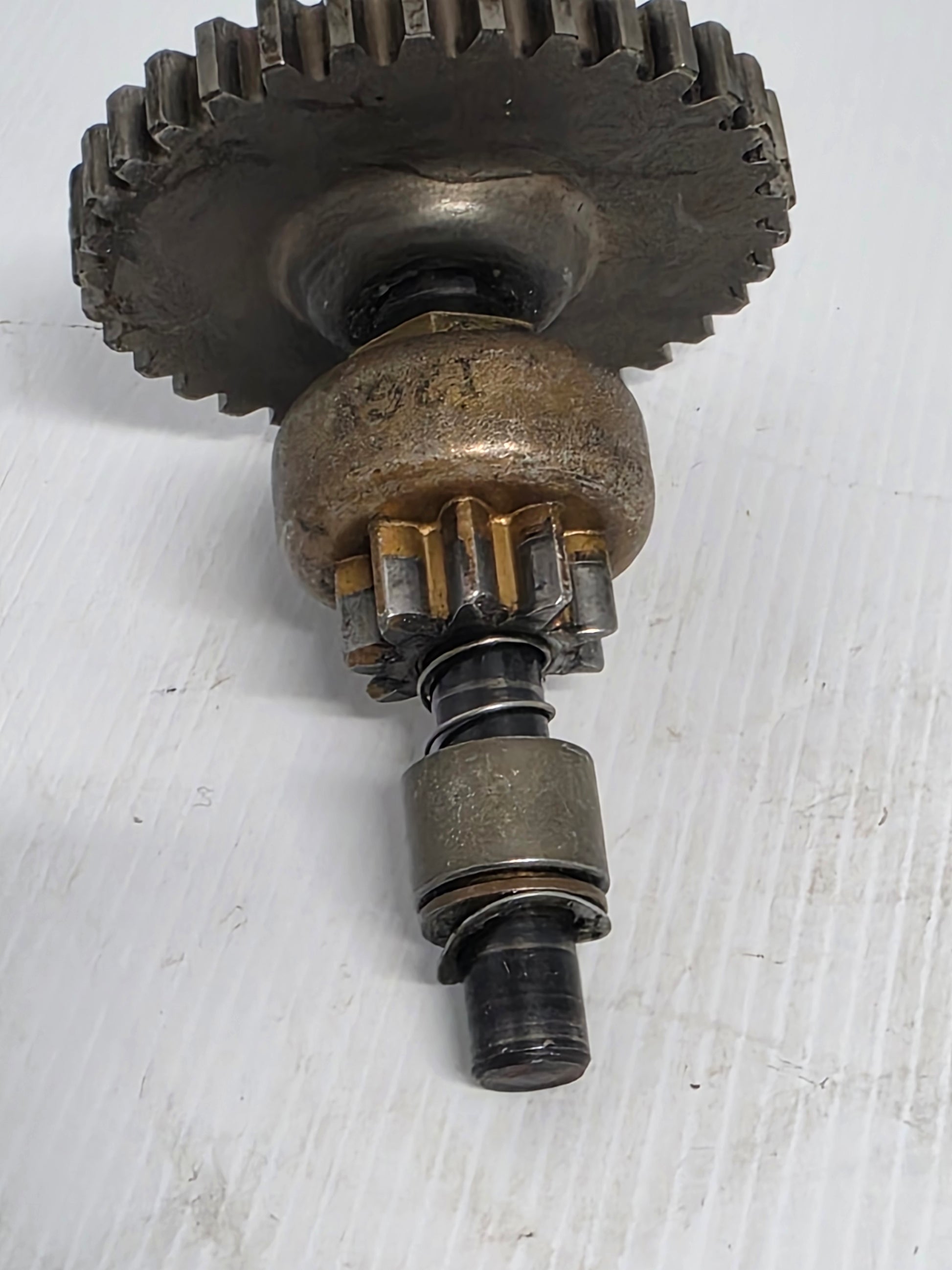

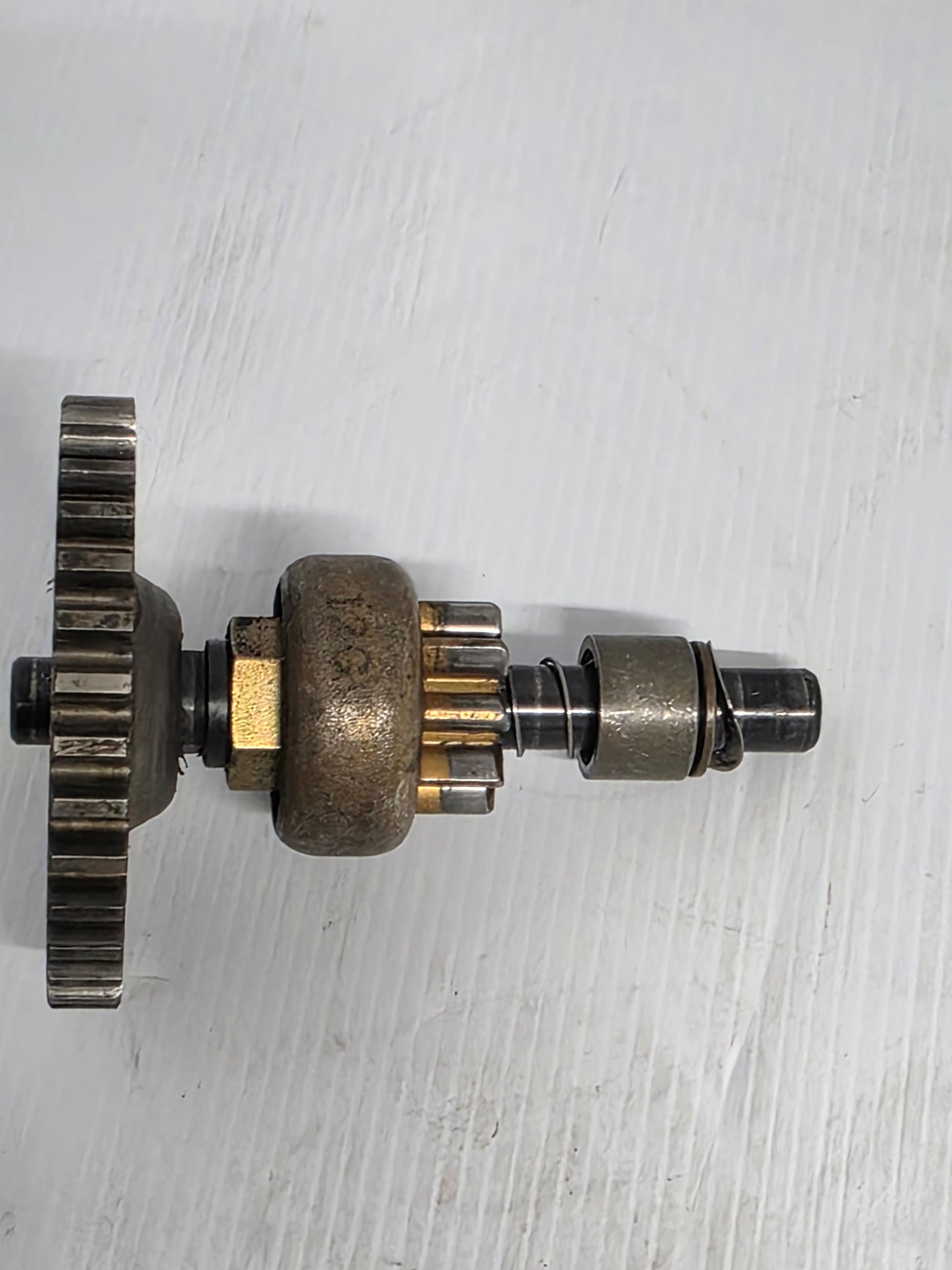

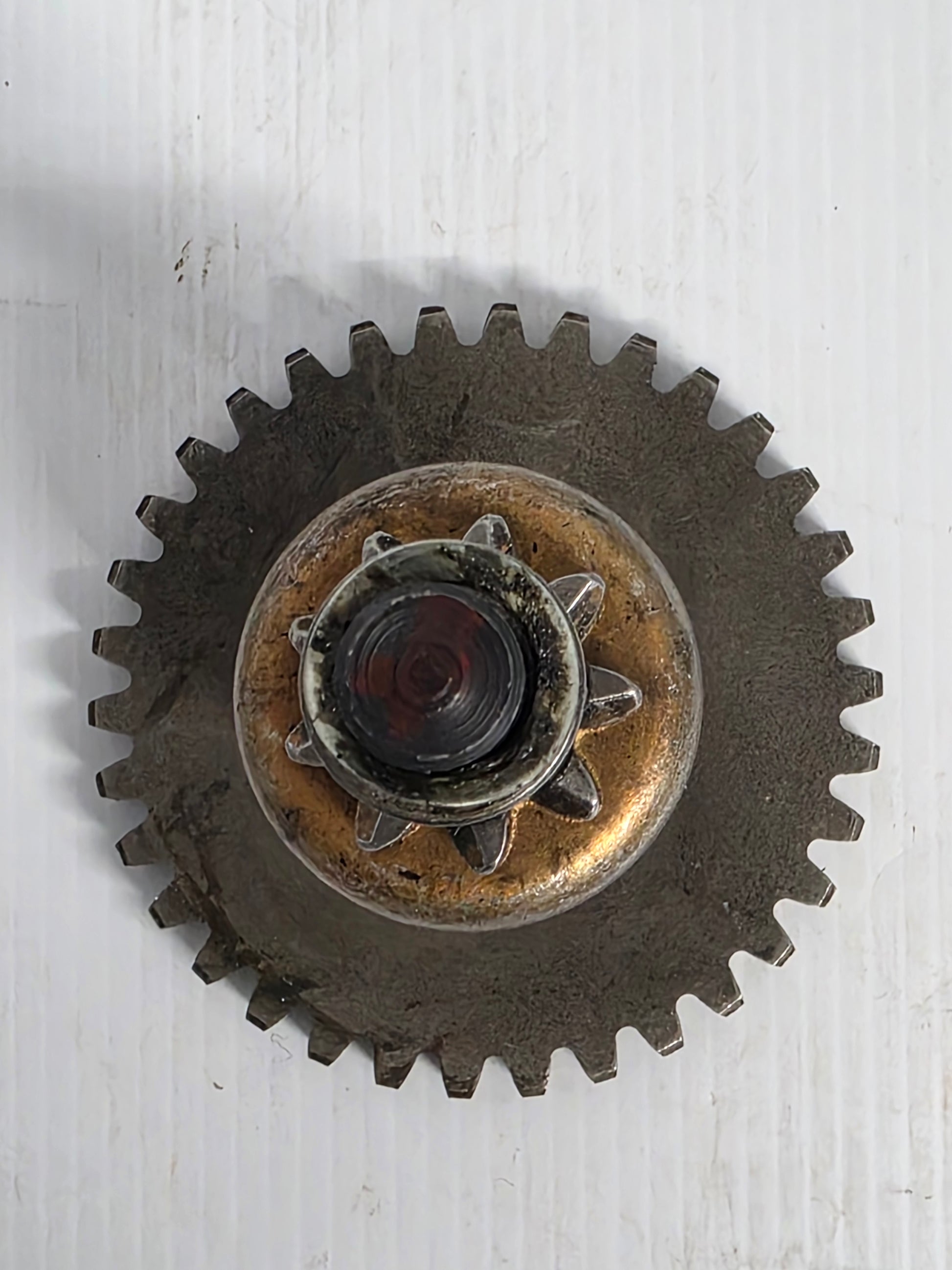

Genuine BRP / Evinrude Johnson Starter Pinion & Shaft Assembly - Part Number: 0434517
A genuine BRP / Evinrude Johnson starter pinion and shaft assembly used in electric starter assemblies on 60-degree V4 and V6 two-stroke outboards. This 9-tooth pinion and shaft assembly transfers starter motor rotation into the flywheel ring gear during cranking.
⚙️ Key Features
- Genuine BRP / Evinrude Johnson starter pinion and shaft assembly
- Correct OEM part number 0434517
- 9-tooth starter pinion assembly
- Related to 0434518 and 0778281 starter pinion references
- Used on 60-degree V4 and V6 starter systems
🚤 Compatibility
Commonly used on
- Johnson / Evinrude 60° V4 starter assemblies
- Johnson / Evinrude 60° V6 starter assemblies
- 9-tooth starter drive systems on carbureted OMC outboards
Typically suits
- Engine models:
- Johnson 90HP 60° V4 carbureted starter systems
- Johnson 100HP / 105HP 60° V4 starter systems where 0434517 is specified
- Johnson 115HP 60° V4 starter systems, including 1997-2004 model families
- Johnson 150HP 60° V6 starter systems where 0434517 is specified
- Johnson 175HP 60° V6 starter systems where 0434517 is specified
- Evinrude 90HP 60° V4 carbureted starter systems
- Evinrude 100HP / 105HP 60° V4 starter systems where 0434517 is specified
- Evinrude 115HP 60° V4 starter systems where 0434517 is specified
- Evinrude 150HP 60° V6 starter systems, including 1991-1998 model families
- Evinrude 175HP 60° V6 starter systems where 0434517 is specified
- HP Range: commonly 90HP - 175HP
- Engine Type: Johnson / Evinrude 60° V4 and V6 carbureted two-stroke outboard
- Year Range: approximately 1991-2006 depending on model and starter assembly
- Starter Type: 9-tooth pinion and shaft assembly
🔌 Function
The pinion and shaft assembly allows the starter motor to engage the flywheel ring gear, crank the engine and then retract once the engine starts.
⚠️ Common Signs of Failure
- Starter motor spins but flywheel does not turn
- Grinding noise at starter engagement
- Worn or chipped pinion teeth
- Pinion sticking on the shaft
- Starter gear not retracting after cranking
- Visible wear on shaft, gear or retaining hardware
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 0778281 later related starter pinion / shaft reference
- 0434518 related starter pinion / shaft reference
- 0434517 starter pinion and shaft assembly reference
OEM / Related Numbers
- 0434517
- 434517
- 0434518
- 434518
- 0778281
- 778281
Aftermarket / Verified Equivalents
- ARCO: JSA517
- Recmar: 9-tooth Johnson / Evinrude starter pinion and shaft replacement
- Aftermarket reference: 0434517 / 0434518 / 0778281 9-tooth pinion and shaft
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
