0434632 Evinrude Johnson Mount Assembly-Rubber | Genuine OEM BRP Outboard Part

🔧 Product Description

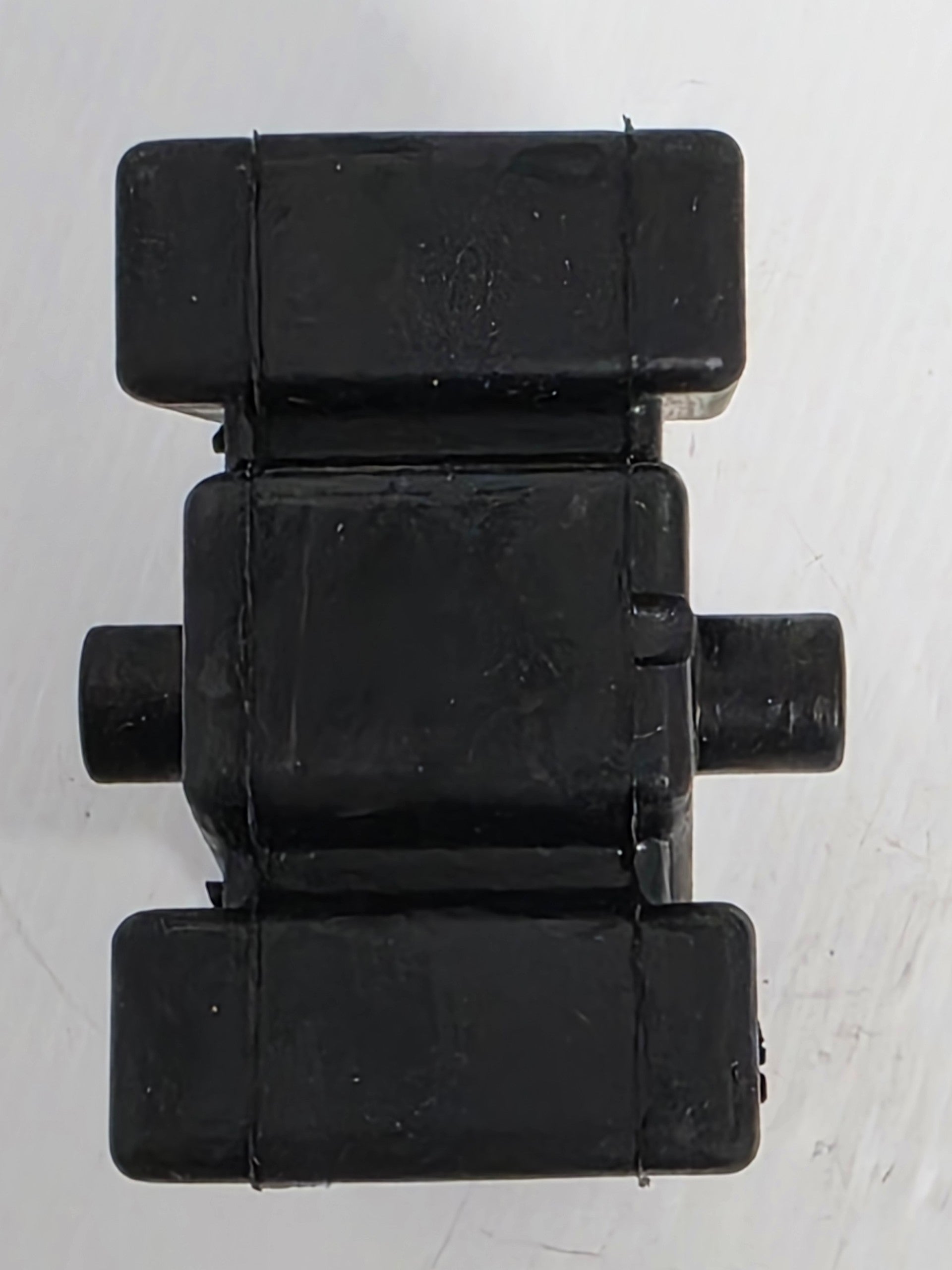

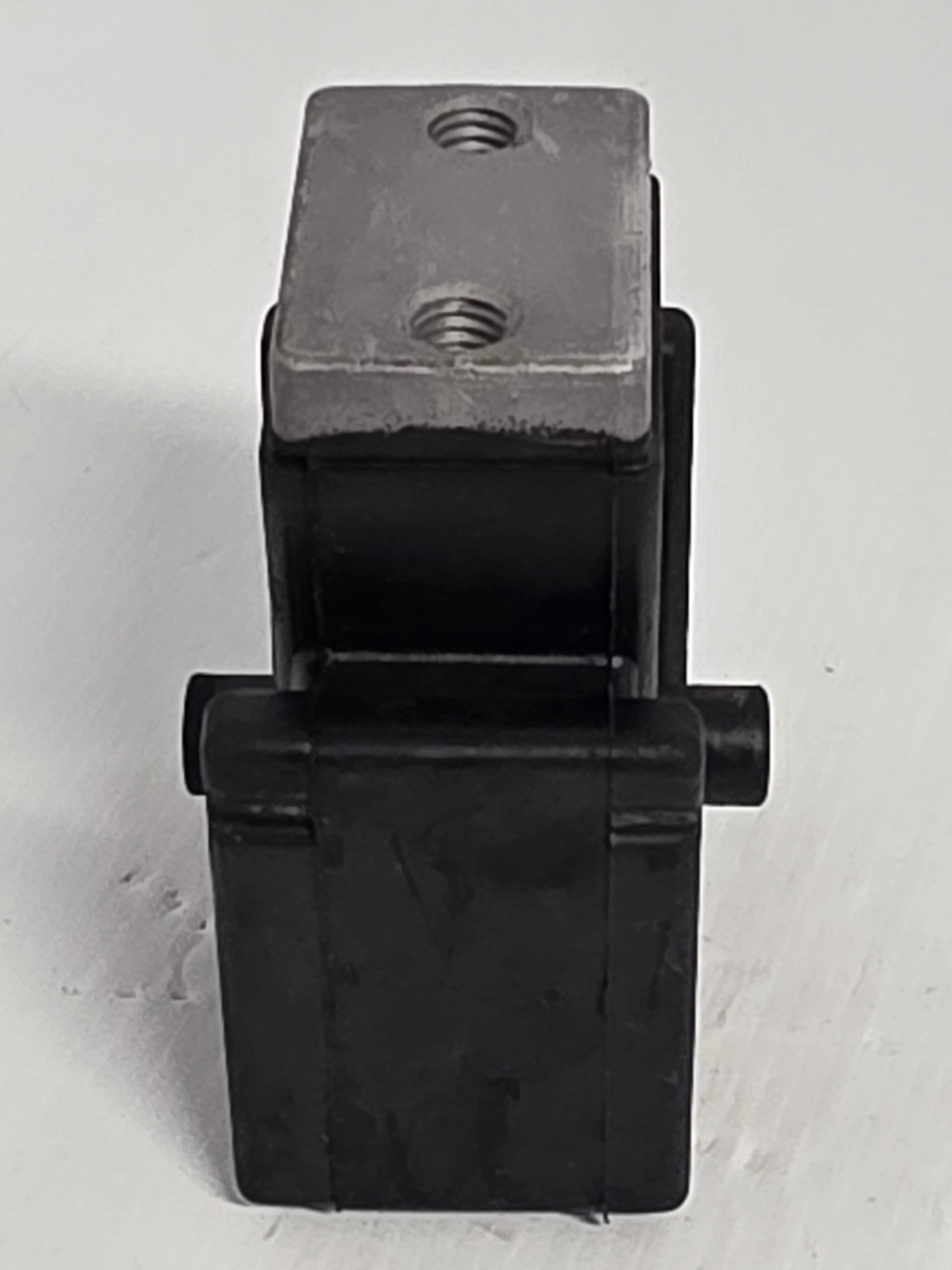

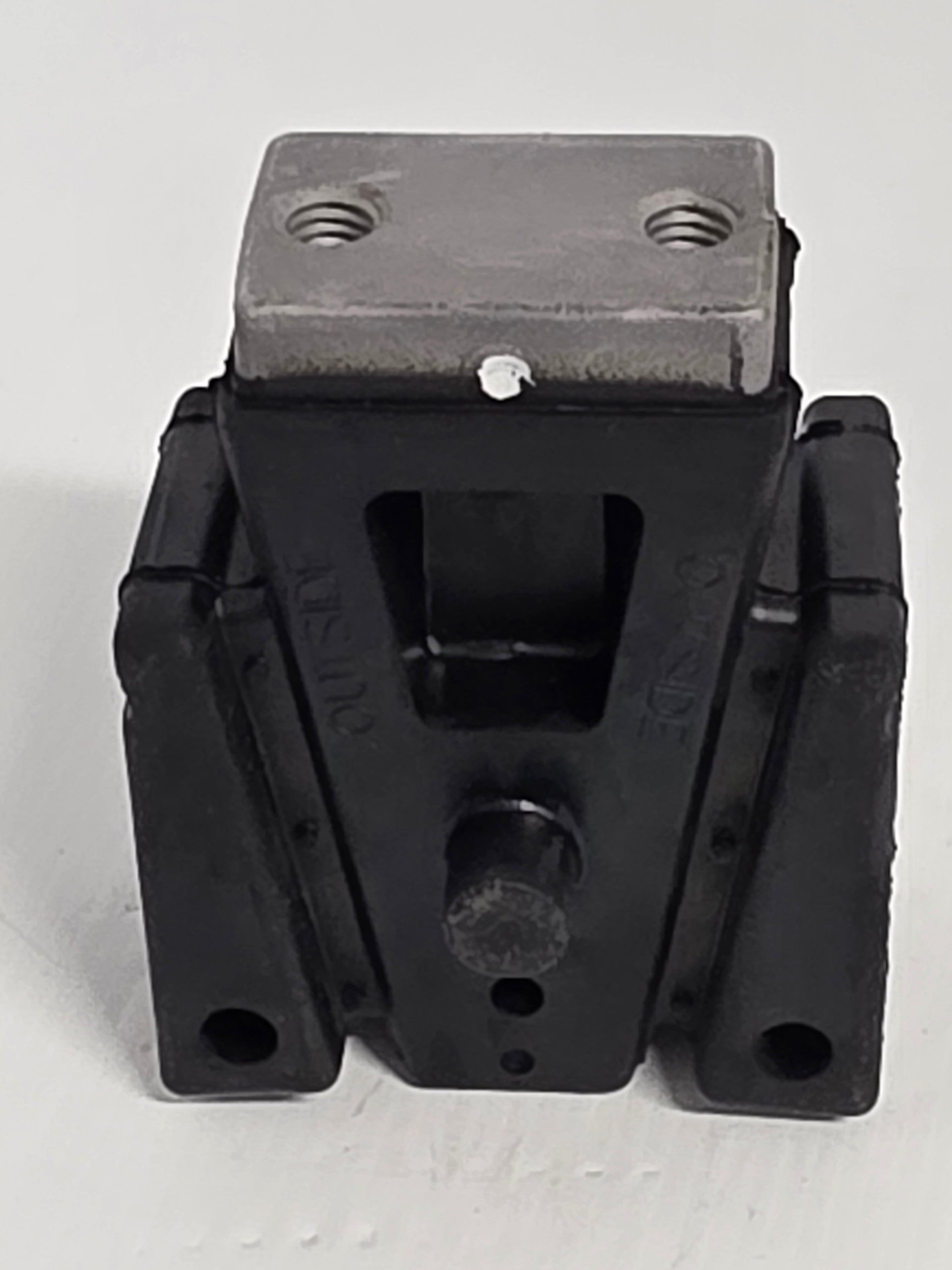

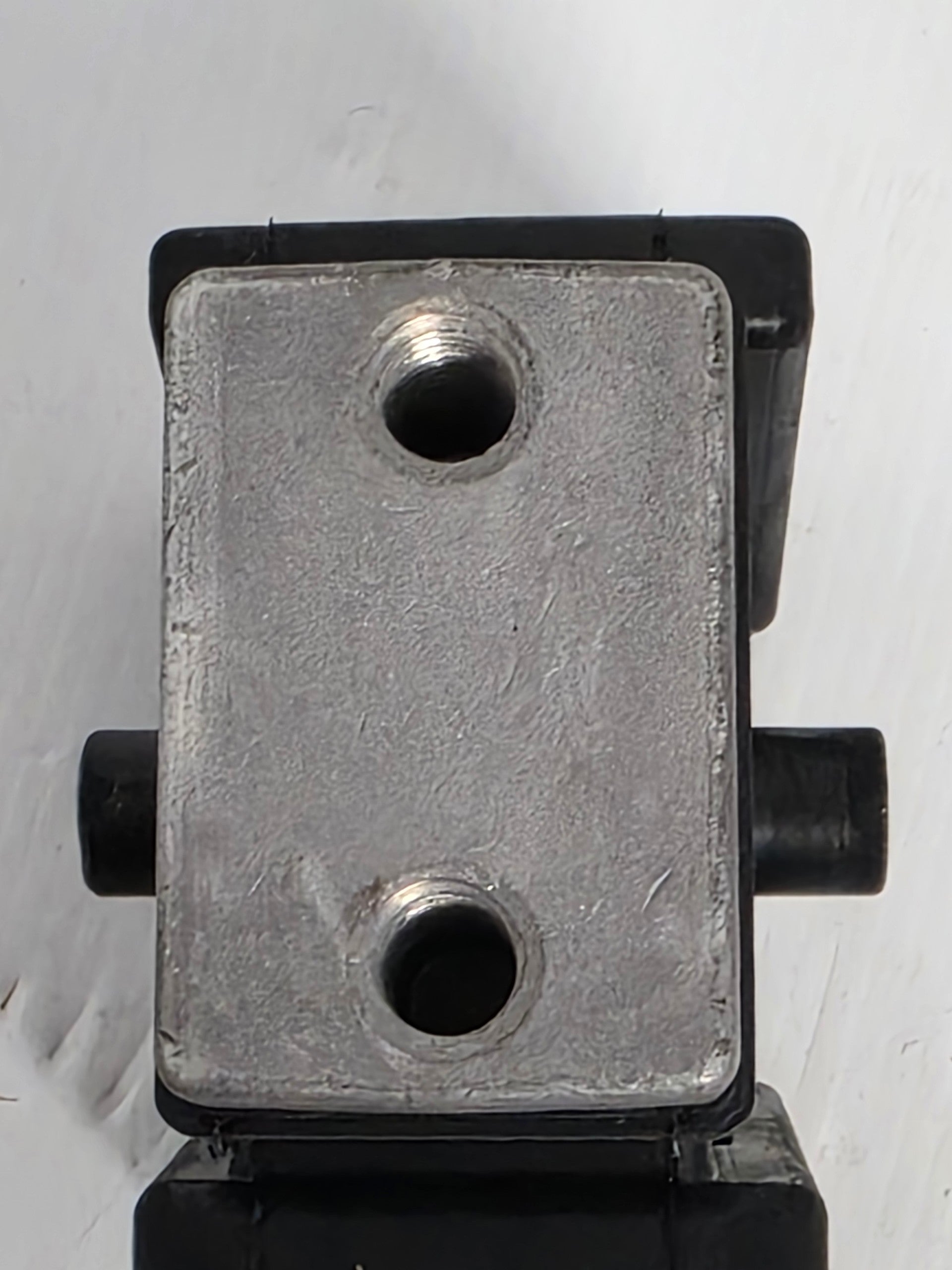

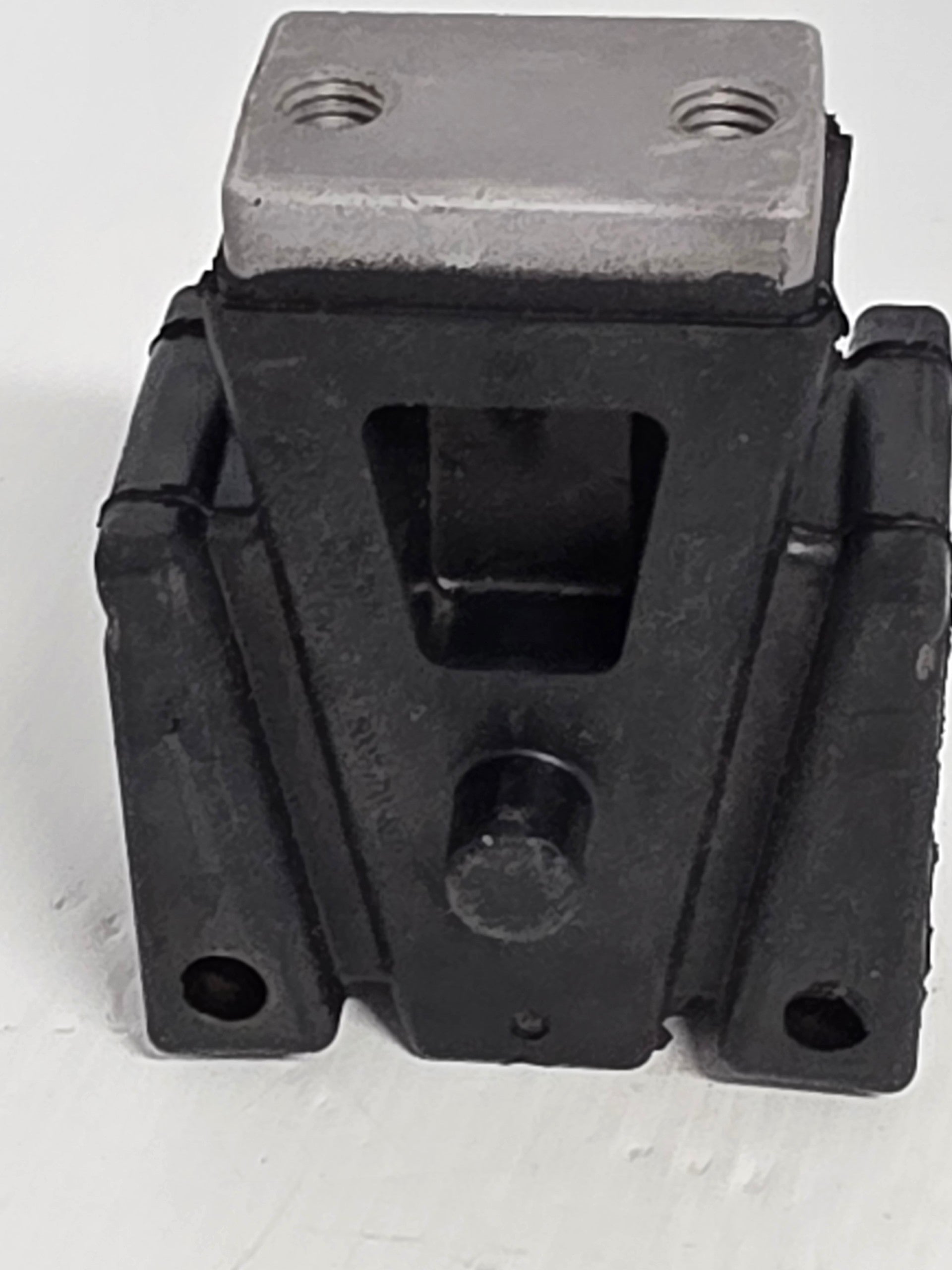

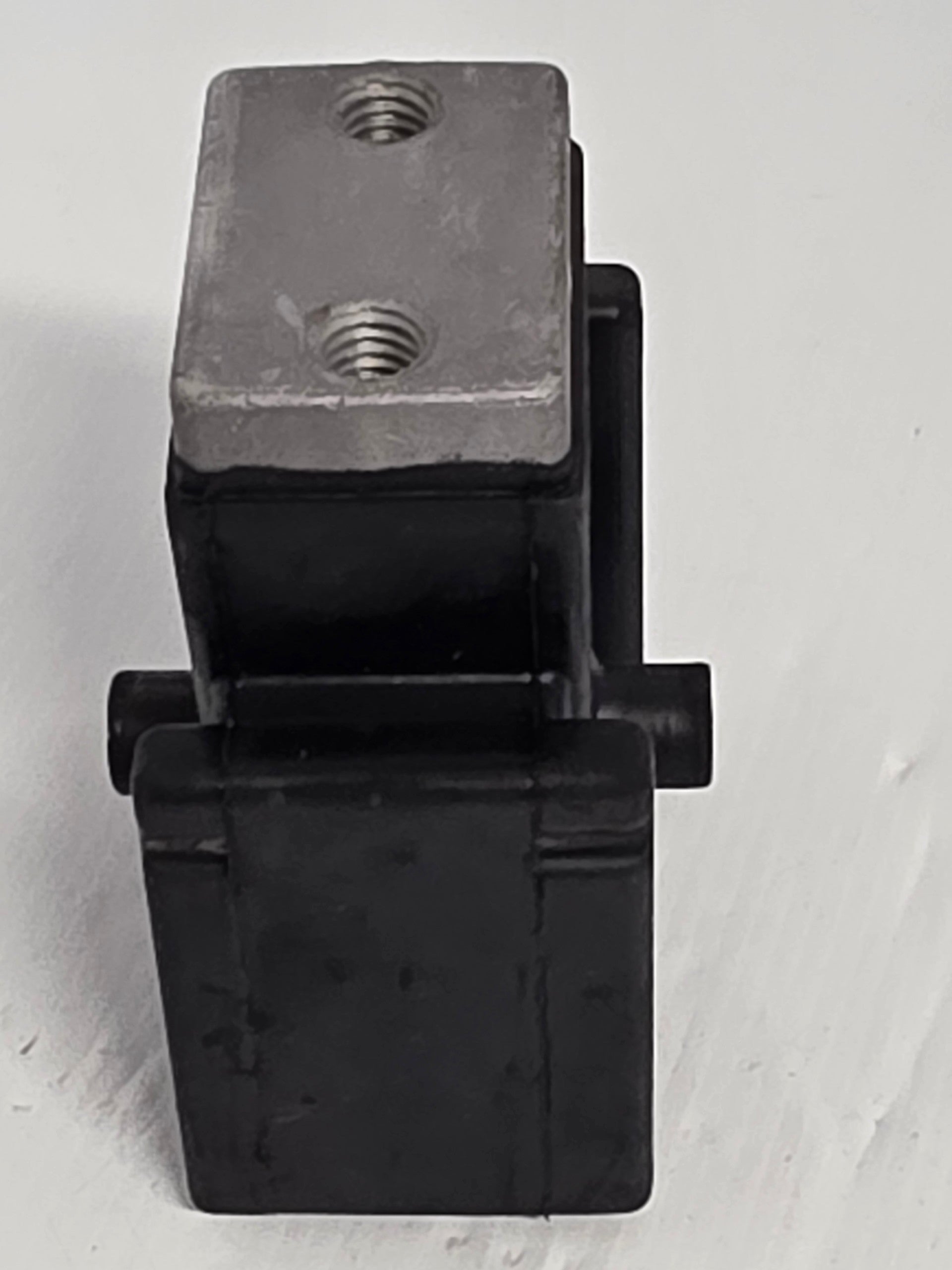

Genuine BRP Evinrude Johnson Lower Rubber Engine Mount Assembly - Part Number: 0434632

A genuine BRP lower rubber engine-mount assembly for selected Evinrude and Johnson 75HP-300HP outboards.

The mount is installed between the exhaust housing and the steering or swivel-bracket structure. Its bonded rubber-and-metal construction controls engine movement while isolating normal powerhead vibration and absorbing propulsion loads, gear-selection shock and impacts transmitted through the lower unit.

Most compatible installations use two lower mounts, with one fitted to each side of the exhaust housing.

⚙️ Key Features

• Genuine BRP Evinrude Johnson OEM engine mount

• Correct OEM part number 0434632

• Common unprefixed number 434632

• Lower exhaust-housing mount position

• Bonded rubber-and-metal construction

• Helps control fore-and-aft and lateral engine movement

• Reduces vibration transferred to the steering and transom brackets

• Suitable for selected carburetted, FICHT and E-TEC outboards

• Commonly requires two mounts per engine

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0391710

• 391710

• 0434632

• 434632

OEM / Related Numbers:

• 0767508

• 767508

• OEM Description: Mount Assembly, Rubber

• Alternate Description: Rubber Mount, Lower

• Alternate Description: Lower Engine Mount

• Related lower-mount covers and retaining screws vary by engine model

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

Service alternatives:

• Genuine new-old-stock BRP mounts

• Serviceable used OEM mounts with intact rubber-to-metal bonding

• Professionally sourced OEM replacement pairs

Important cross-reference note:

• Parts catalogues use both standard and high-performance descriptions for mounts within this family.

• Select the mount by the exact OEM number and engine parts diagram rather than by stiffness description alone.

• Part number 0434629 belongs to a separate lower-mount family and is not an automatic substitute for 0434632.

🚤 Compatibility

Commonly used on selected:

• 75HP three-cylinder outboards

• 90HP V4 outboards

• 100HP and 105HP outboards

• 115HP and 130HP V4 outboards

• 135HP-175HP V6 outboards

• 185HP-235HP V6 outboards

• 250HP and 300HP high-horsepower outboards

• Carburetted two-stroke engines

• FICHT direct-injection engines

• Selected Evinrude E-TEC engines

• 20-inch, 25-inch and 30-inch exhaust-housing applications where 0434632 is specified

Verified application examples include selected:

• 1980s V4 and V6 carburetted engines

• 1990s 90HP-300HP Evinrude and Johnson outboards

• 2000-2003 75HP FICHT engines

• 2003 135HP FICHT engines

• 2005-2007 175HP and 225HP E-TEC engines

• Later 90HP and 150HP E-TEC exhaust-housing assemblies

Important fitment note:

• Confirm the full engine model number, shaft length and exhaust-housing diagram.

• Many applications require two mounts per engine.

• Do not mix different mount part numbers or stiffness specifications on opposite sides unless the BRP parts diagram specifically permits it.

• Mount covers, retaining screws, washers and lockwashers are separate unless specifically included.

🔌 Function

The lower mounts connect the exhaust housing to the swivel-bracket structure while allowing controlled rubber movement.

They help:

• Maintain powerhead and gearcase alignment

• Limit excessive engine movement during acceleration

• Absorb shock when forward or reverse gear is selected

• Reduce vibration transferred into the transom

• Stabilise steering response

• Protect the exhaust housing and mounting brackets from impact loads

Common signs of mount failure:

• Excessive engine movement inside the swivel bracket

• Clunk during acceleration or deceleration

• Engine shifts noticeably when selecting gear

• Steering feels loose or inconsistent

• Rubber separates from the metal plates

• Rubber is cracked, swollen or compressed

• Lower mount covers are damaged

• Mounting screws loosen or corrode

• Exhaust housing sits unevenly

• Increased vibration is transmitted to the boat

• Propeller thrust causes visible midsection movement

Installation considerations:

• Support the outboard securely before removing mount hardware

• Inspect both lower mounts and the upper mount

• Replace lower mounts as a matched pair where practical

• Check the mount covers for cracks or corrosion

• Inspect mounting screws, washers and threaded holes

• Remove corrosion and scale from the mount pockets

• Do not damage the bonded rubber during installation

• Do not apply petroleum-based lubricant to the rubber

• Use the specified marine corrosion protection on approved metal surfaces

• Follow the correct tightening sequence and torque specifications

• Confirm unrestricted steering and tilt movement after installation

• Recheck engine movement before returning the boat to service

📦 Condition

• Genuine BRP Evinrude Johnson OEM part

• Brand new

• Supplied as one lower rubber mount assembly

• Two mounts may be required for a complete engine installation

• Mounting covers and hardware included only when specifically stated

• Supplied in genuine or equivalent protective packaging
