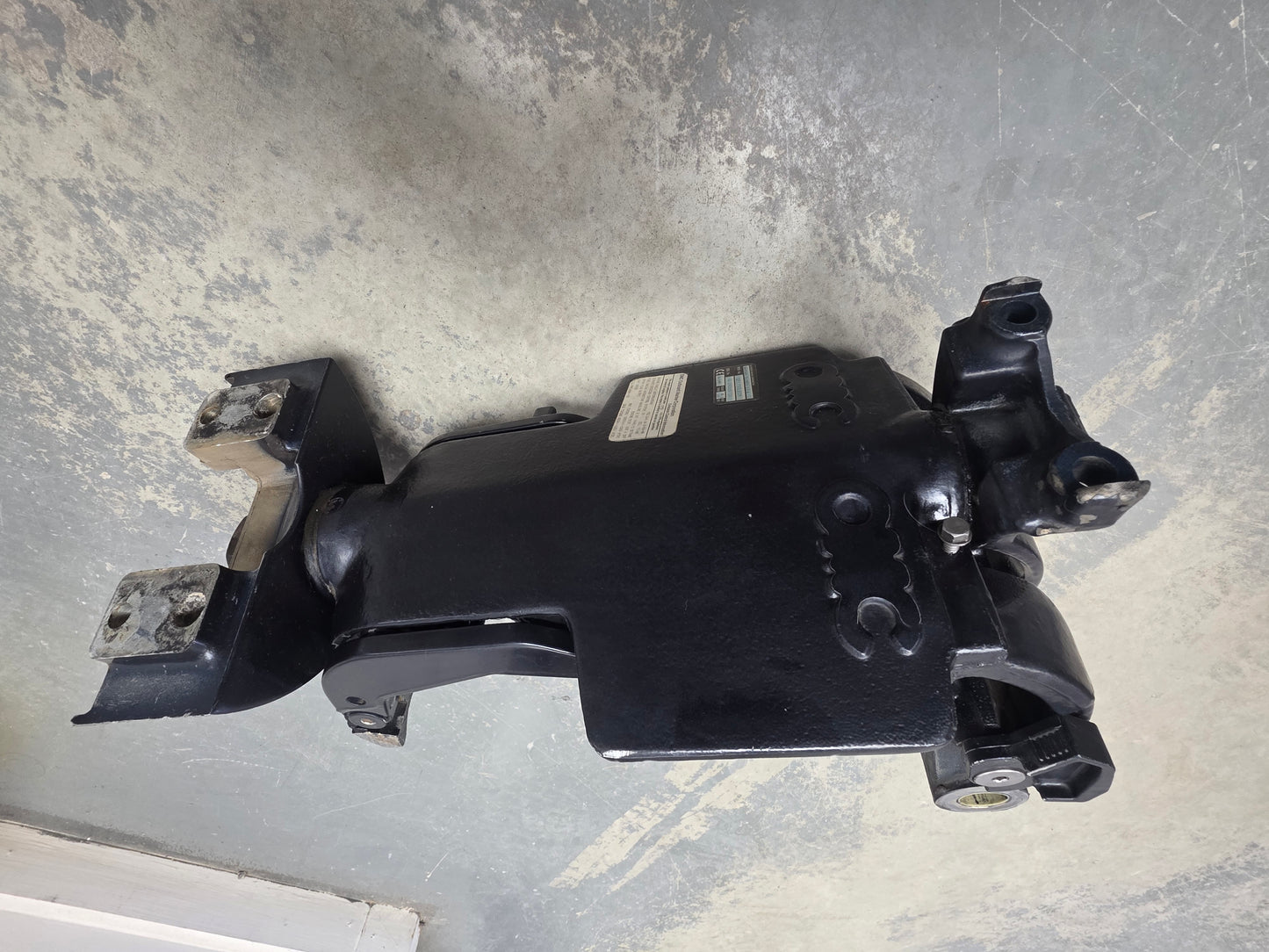

0434691 0340006 0436983 Evinrude Swivel Bracket Assembly | Genuine Used Part

🔧 Product Description

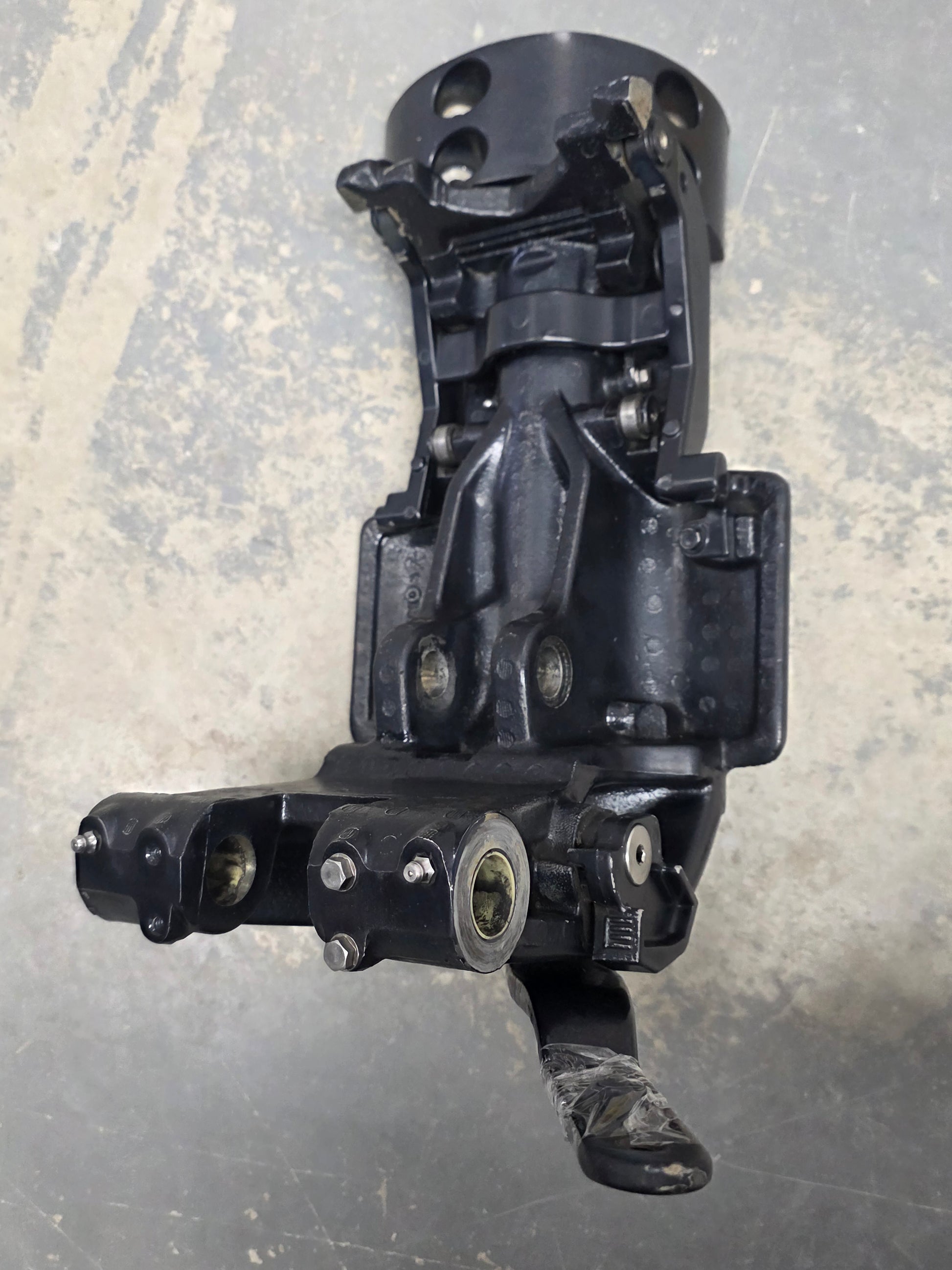

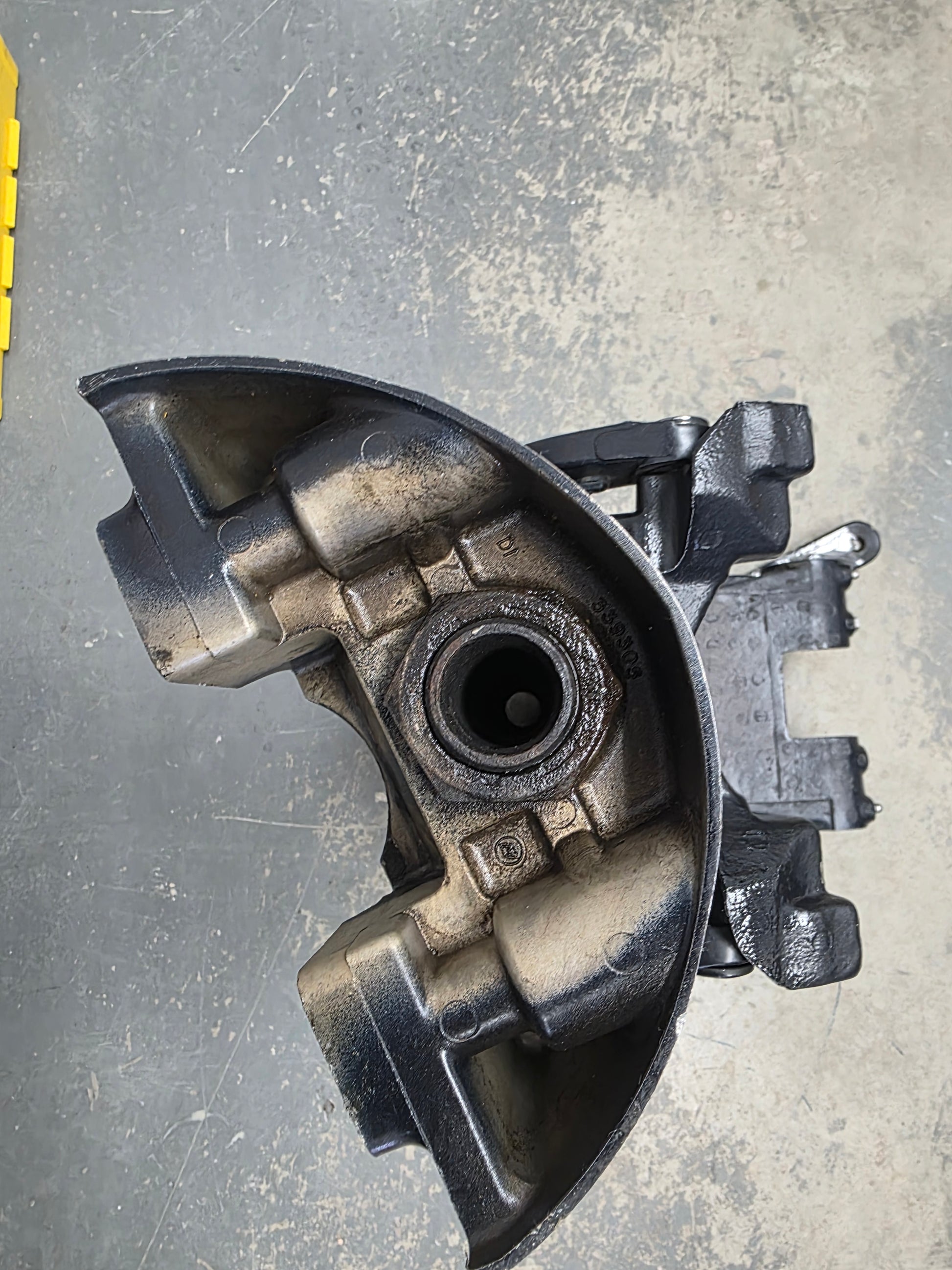

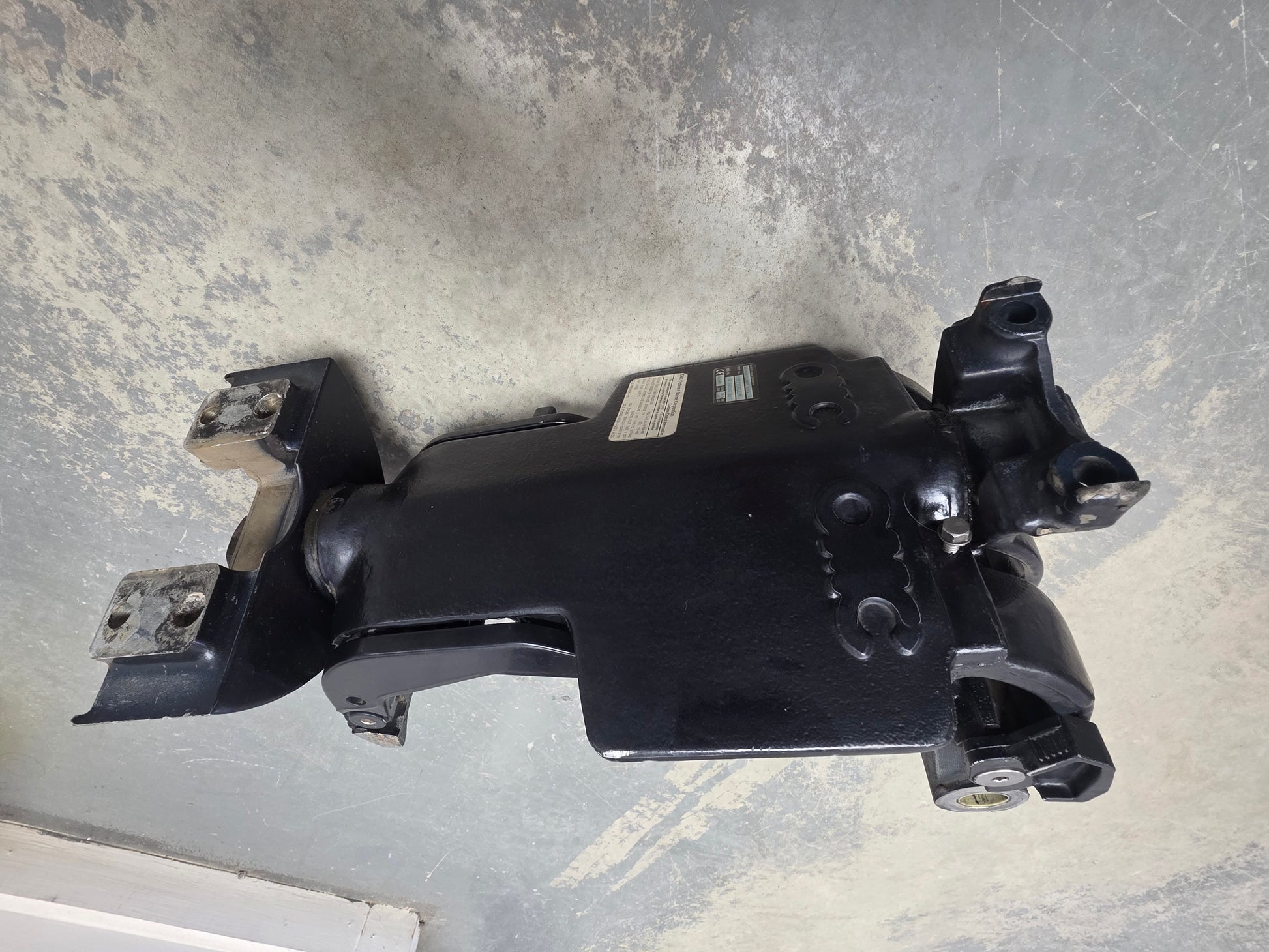

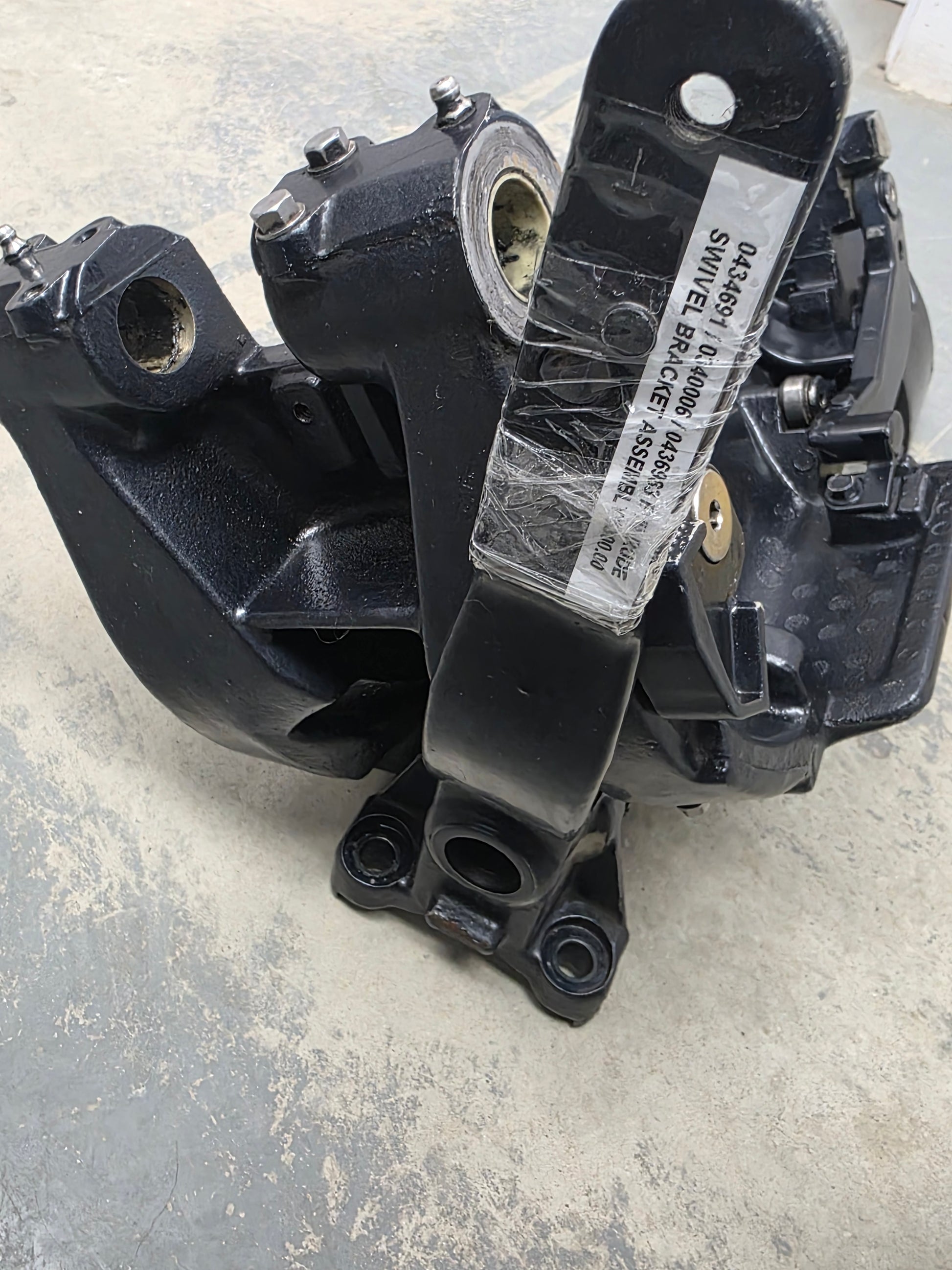

Genuine Evinrude 20-Inch Swivel Bracket and Steering Arm Assembly - Part Numbers: 0434691 / 0340006 / 0436983

A genuine OMC / BRP complete 20-inch swivel-bracket assembly supplied with the applicable lower mount bracket and steering arm.

Part number 0434691 identifies the complete swivel bracket assembly, 0340006 identifies the 20-inch lower mount bracket and 0436983 identifies the steering-arm assembly. These numbers are related components, not a supersession chain.

⚙️ Key Features

• Genuine OMC / BRP complete swivel assembly

• Complete assembly part number 0434691

• Includes or uses mount bracket 0340006

• Includes or uses steering arm 0436983

• Designed for selected 20-inch midsections

• Supports steering, tilt and lower engine mounting

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0434691 current documented 20-inch swivel-bracket assembly

• 0436983 related steering-arm assembly, superseding selected earlier arm numbers

• 0340006 related 20-inch mount bracket

OEM / Related Numbers:

• 0434691

• 434691

• 0340006

• 340006

• 0436983

• 436983

• 0433283 related earlier steering arm

• 0435006 related swivel bracket on selected engines

• Related tilt tube, bushings and stern brackets

Aftermarket / Verified Equivalents:

• Specialist used complete 0434691 swivel assembly

• Reconditioned steering-arm and swivel-bracket assembly

• No verified direct aftermarket complete casting assembly

🚤 Compatibility

Documented on selected:

• 75HP-175HP 20-inch engines

• 90HP and 115HP V4 models

• 105HP commercial / work models

• 150HP and 175HP V6 models

• Approximately 1994-2000 swivel assemblies

• 1999 Evinrude 115HP Ficht donor applications

• Selected 2004-2012 E-TEC 90HP midsections using the 0434691 swivel family

• Shaft Length: 20 inch

• Fitment Requirement: Confirm steering-arm and exhaust-housing combination

🔌 Function

The assembly connects the engine midsection to the transom brackets, allows steering around the vertical pivot and supports tilt movement through the tilt tube.

Common signs of failure:

• Steering-arm splines or shaft are worn

• Swivel bores have excessive play

• Lower mount bracket is cracked

• Corrosion restricts steering movement

• Grease passages are blocked

📦 Condition

• Genuine used assembly

• Supplied with the fitted components shown or stated

• Removed from running engine where applicable

• In good working condition unless otherwise stated
