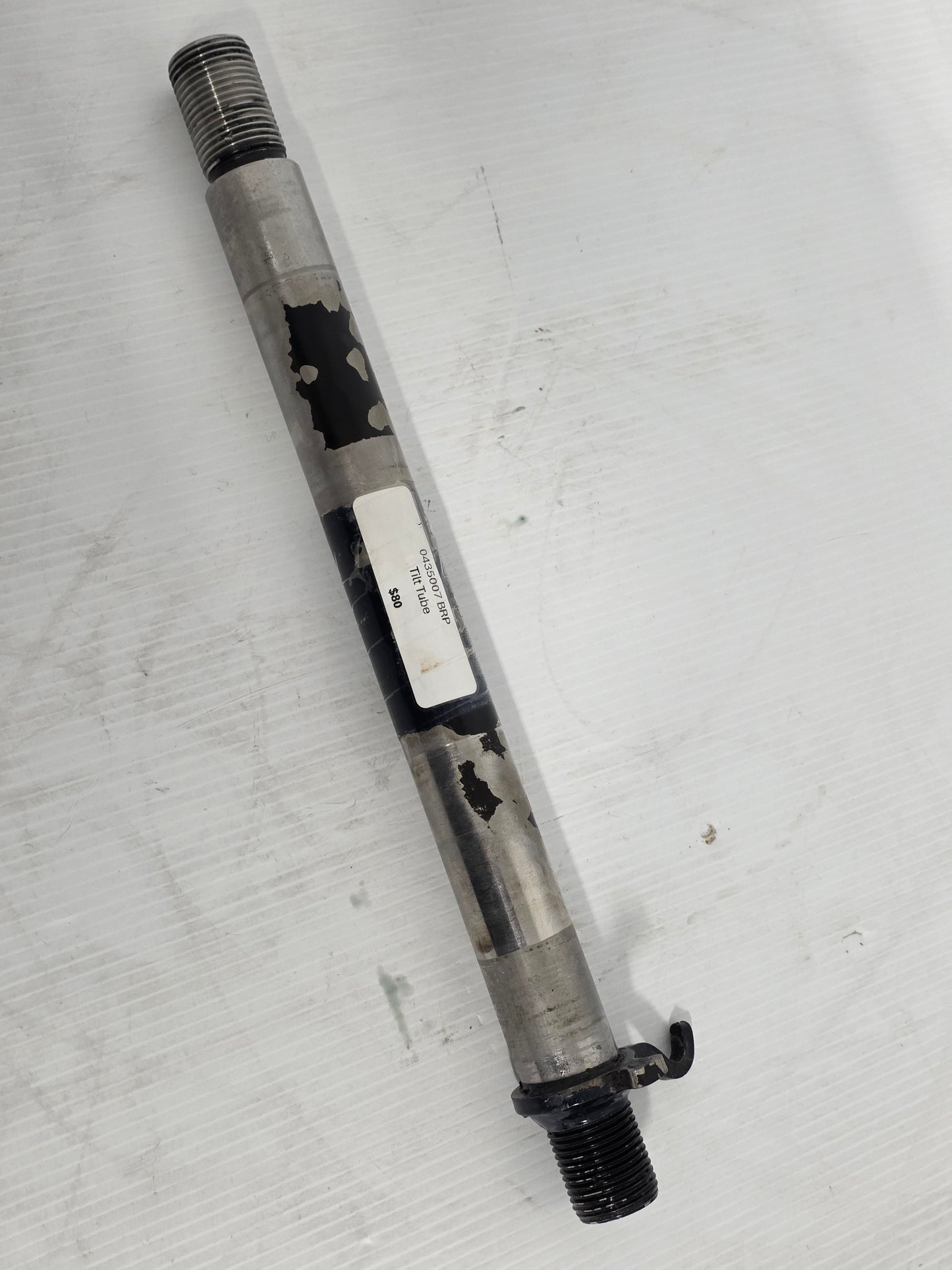

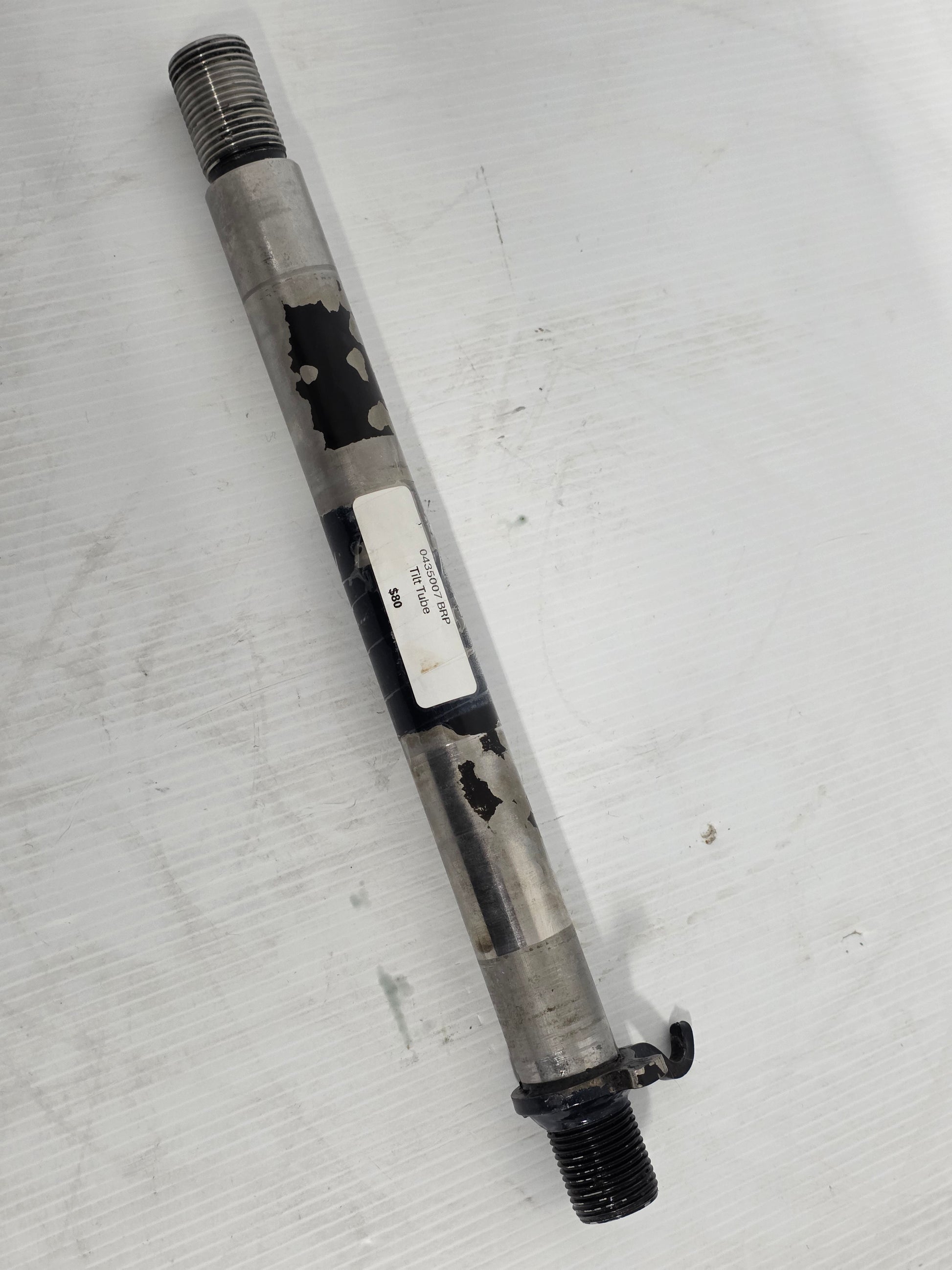

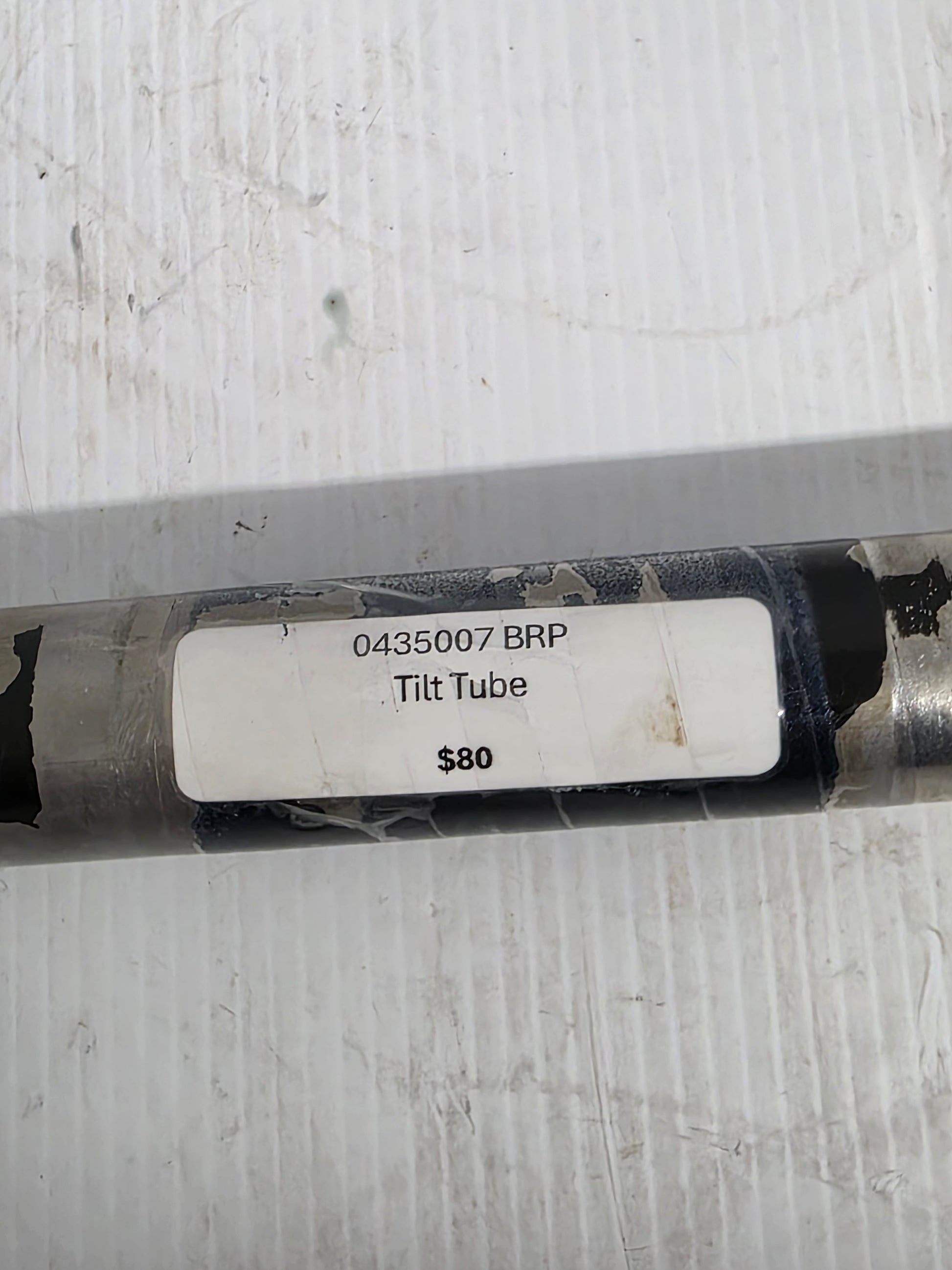

0435007 BRP Tilt Tube | Genuine Used Part

🔧 Product Description

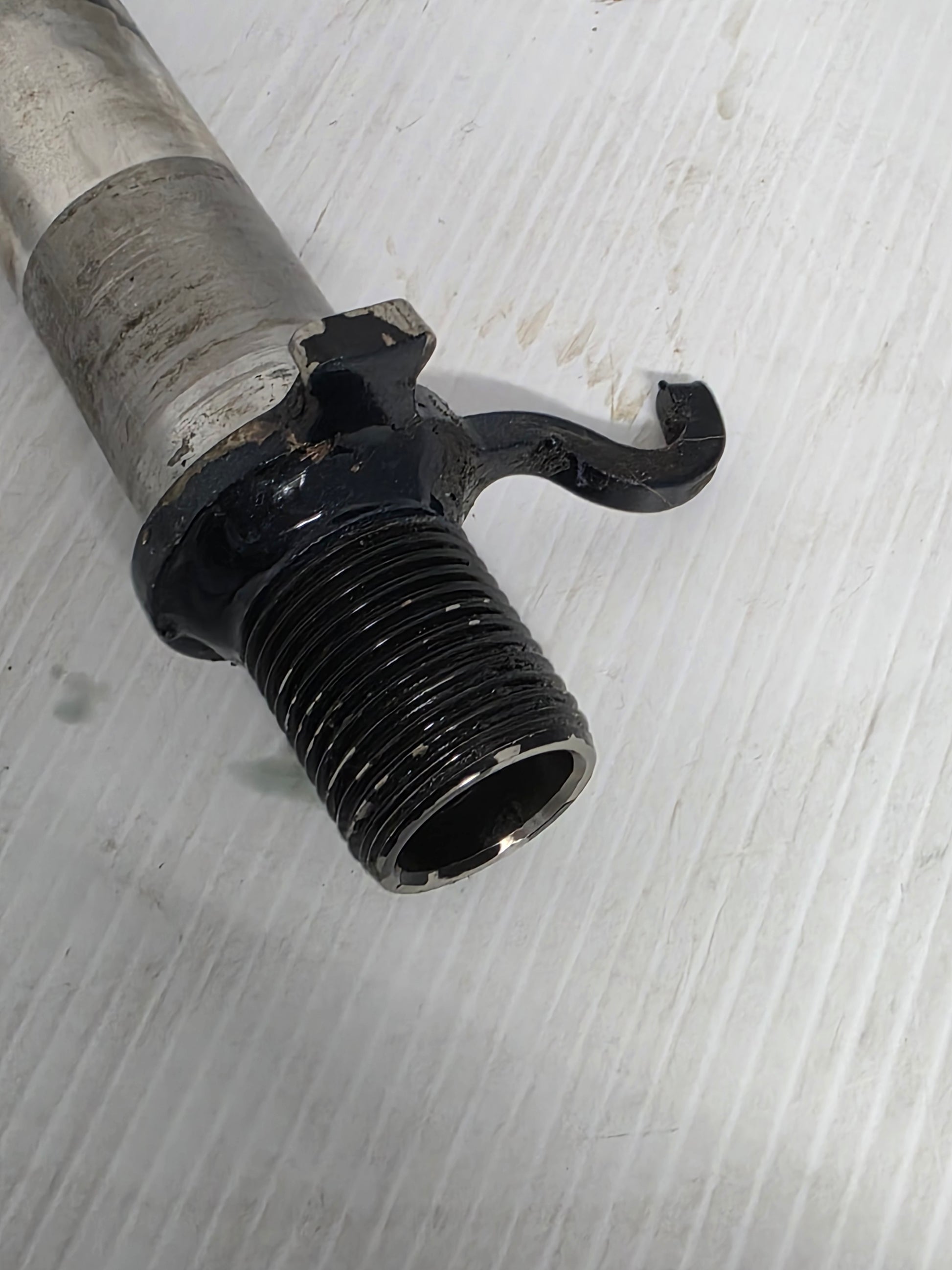

Genuine BRP Johnson / Evinrude Steering and Tilt-Tube Assembly - Part Number: 0435007

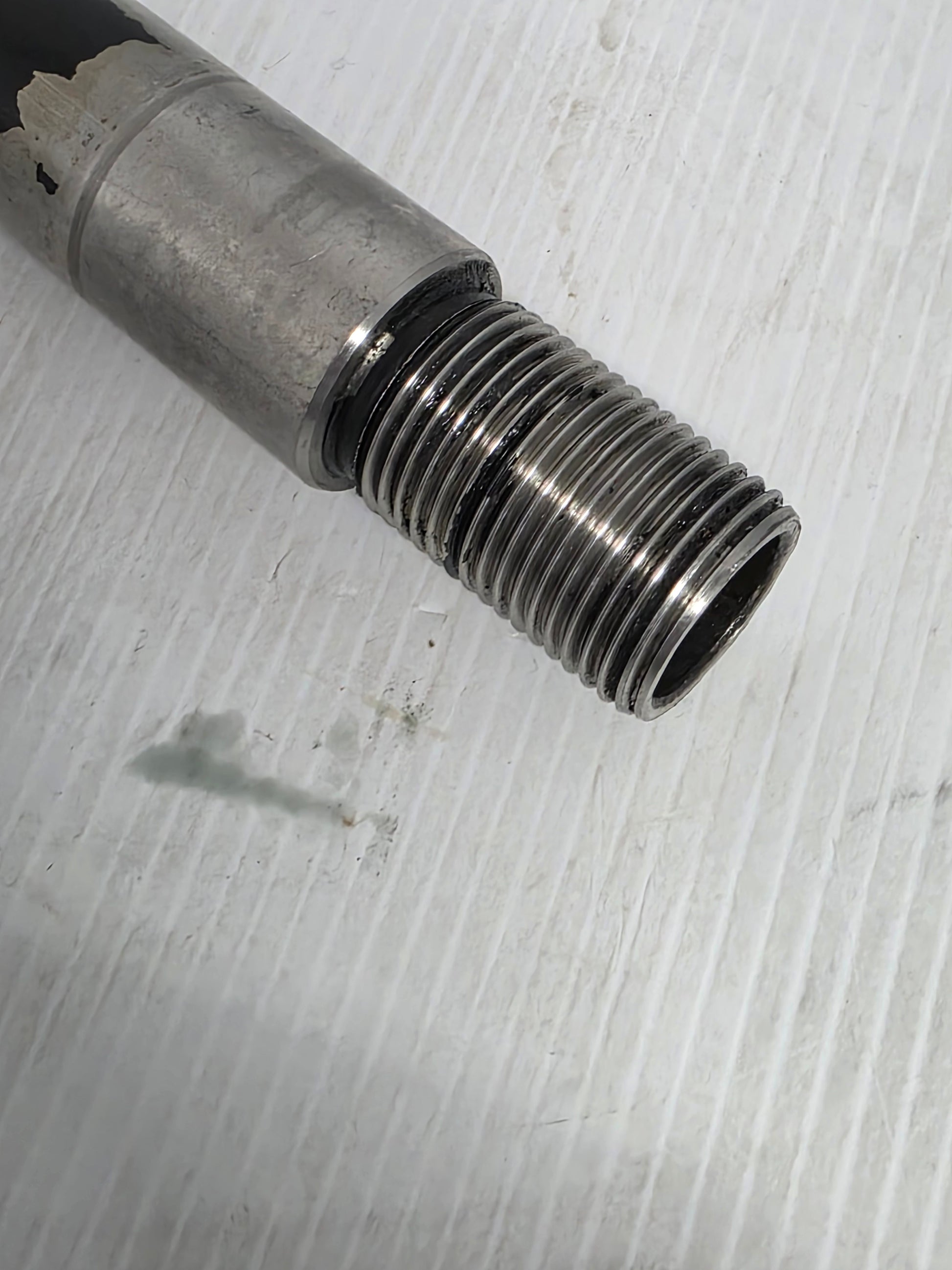

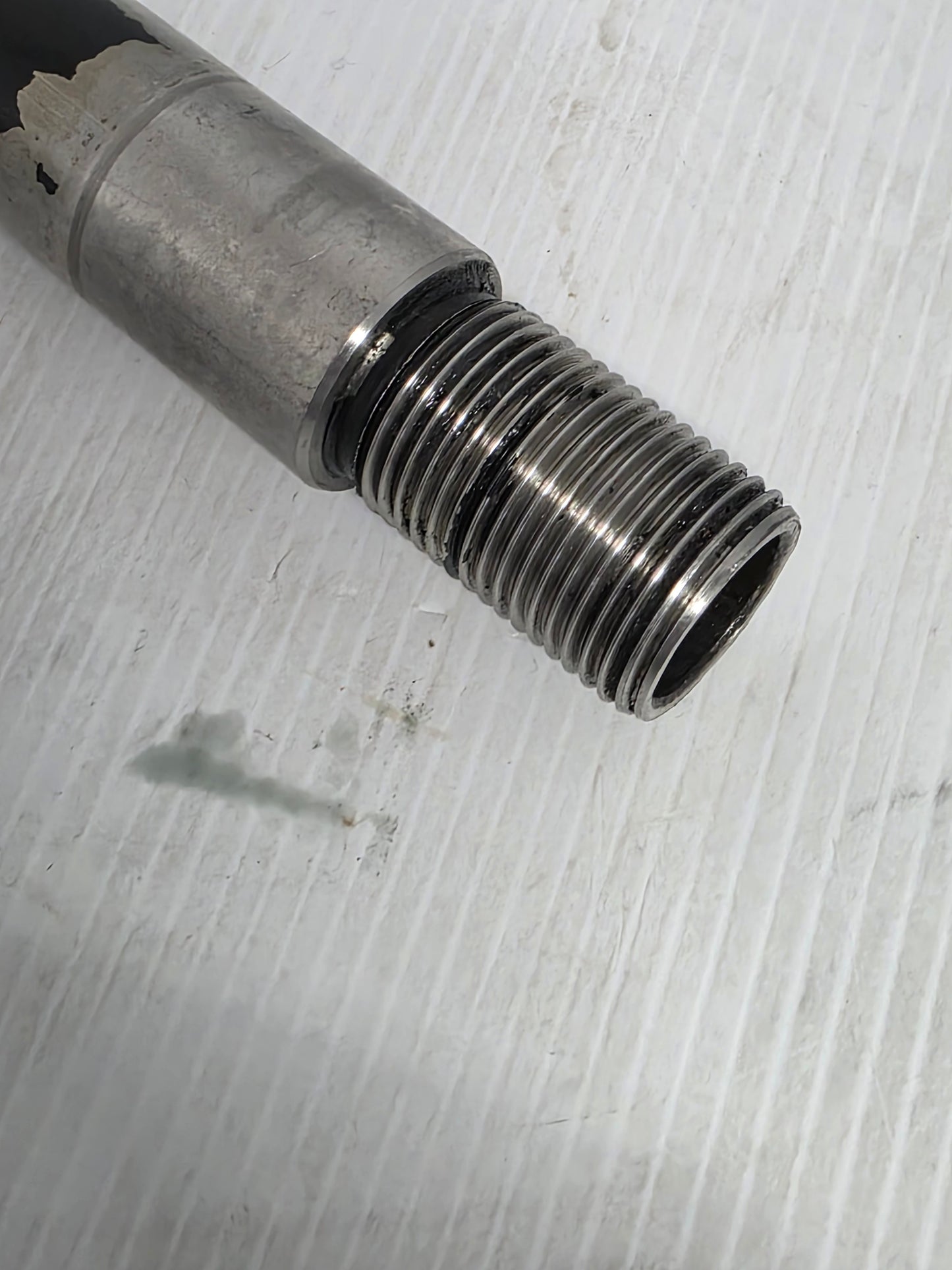

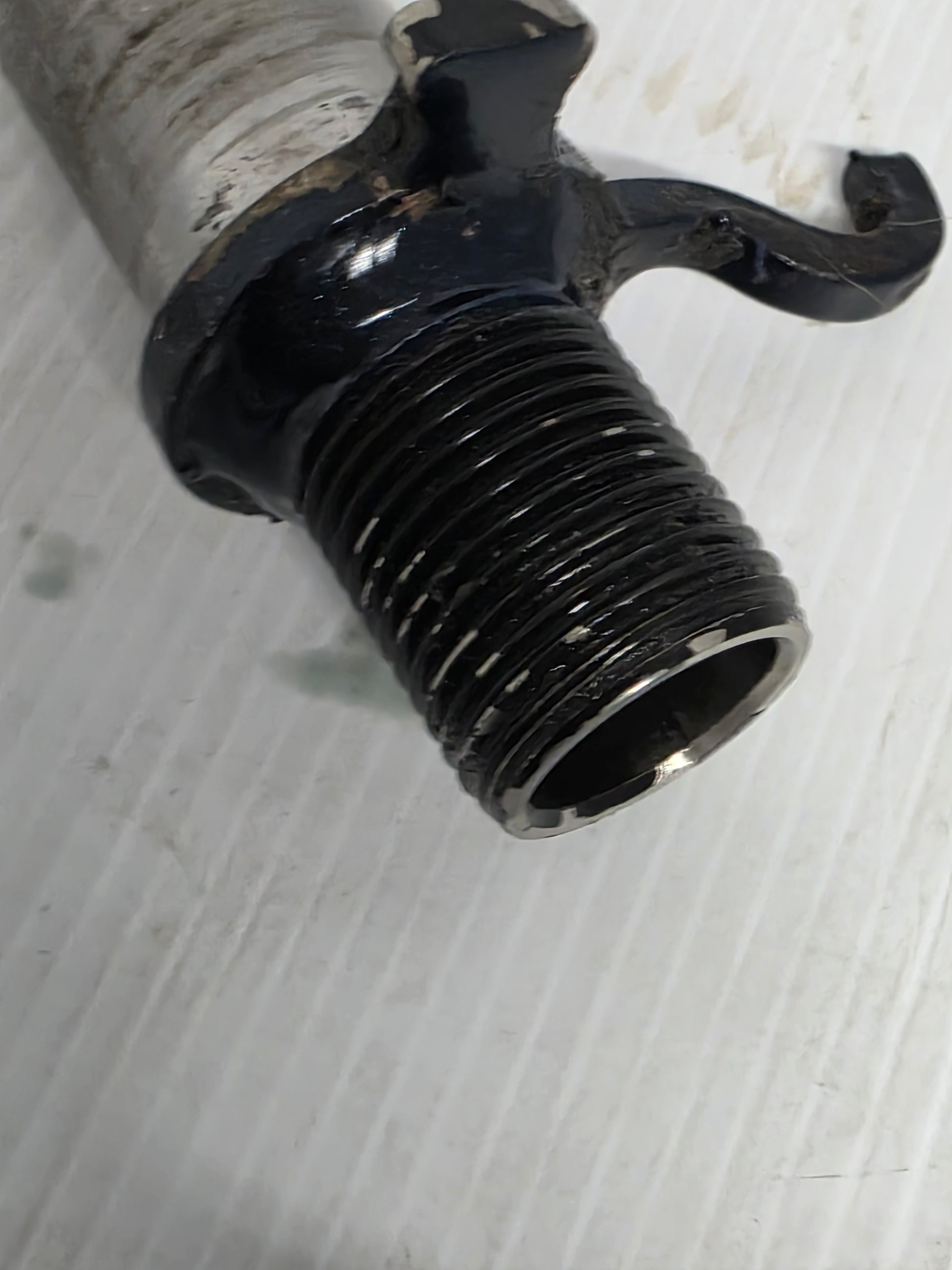

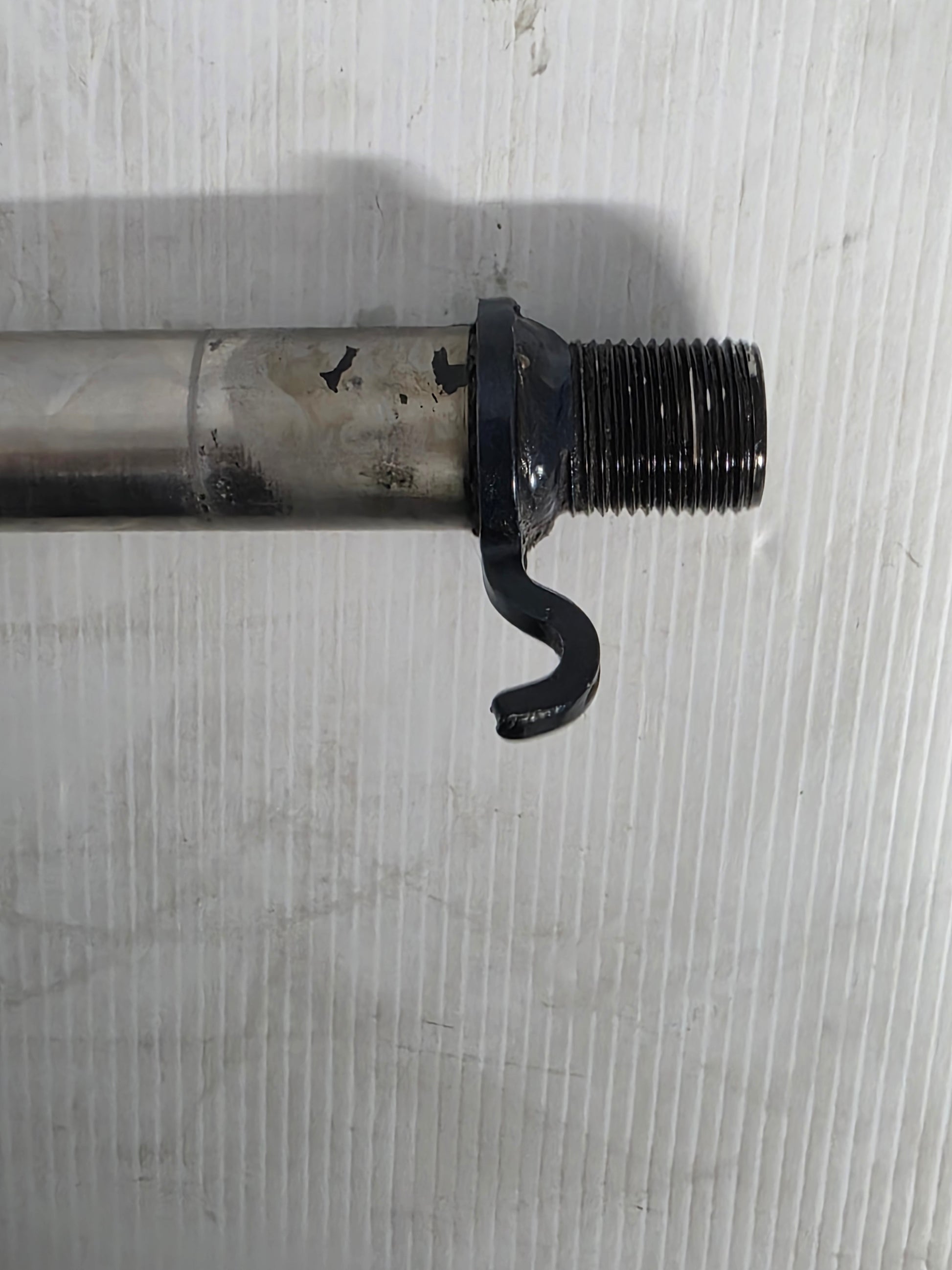

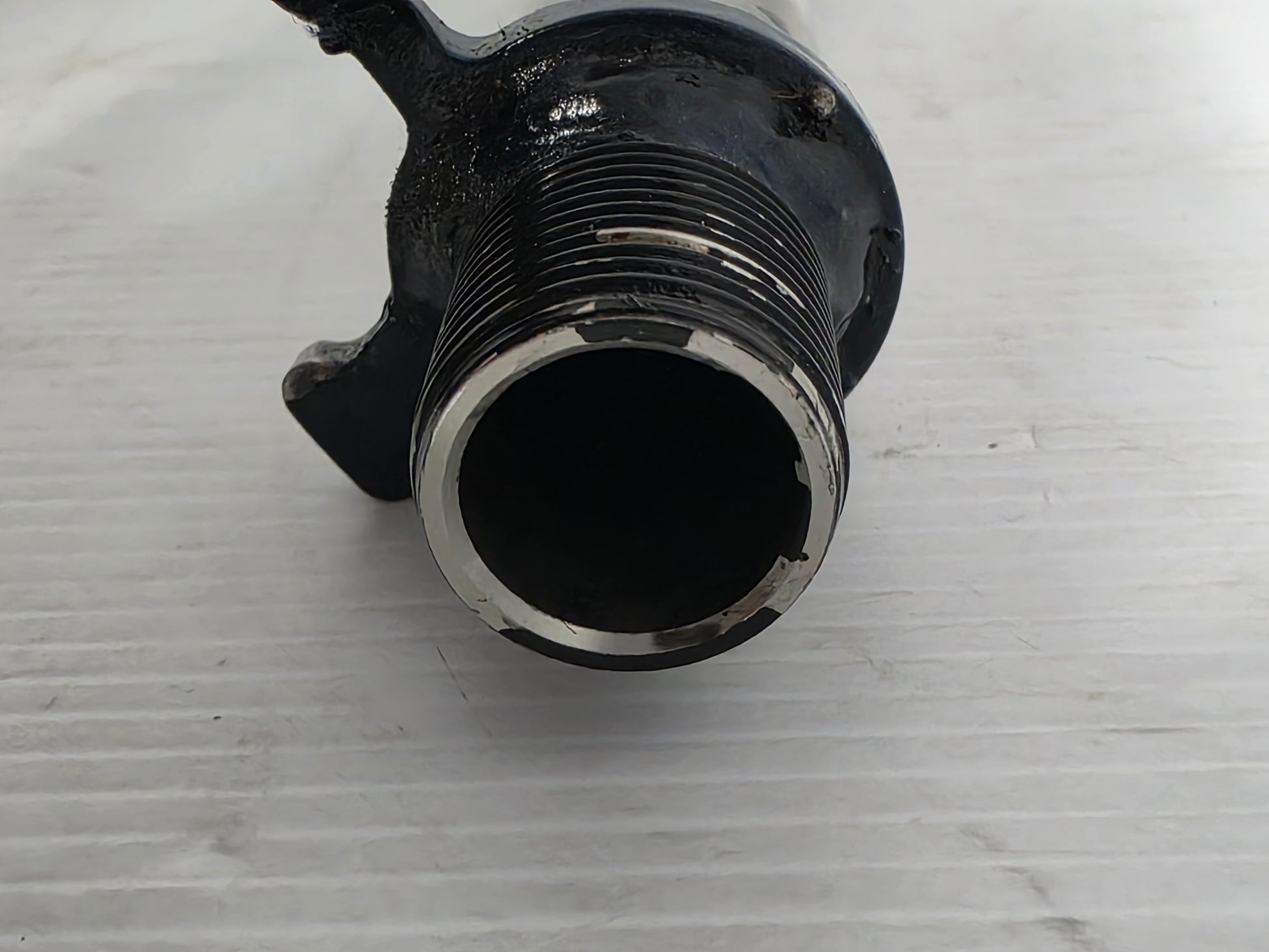

A genuine BRP steering and tilt-tube assembly used across numerous Johnson and Evinrude mid- and high-horsepower outboards. The tube spans the stern brackets, forms the horizontal tilt pivot and provides the threaded mounting passage for the steering cable.

⚙️ Key Features

• Genuine BRP / OMC tilt-tube assembly
• Correct part number 0435007
• Supersedes earlier 0433592 and 0335622
• Used across broad V4 and V6 applications
• Supports steering cable and engine tilt axis

🚤 Compatibility

• Johnson / Evinrude 90HP, 100HP, 105HP and 115HP model families
• Johnson / Evinrude 120HP, 130HP and 140HP families
• Johnson / Evinrude 150HP, 175HP, 200HP and 225HP families
• Broader service-family coverage can extend from approximately 75HP to 300HP where 0435007 is listed
• Documented application period: approximately 1992-2012 and later service support
• Exact fitment depends on stern-bracket width and steering system

🔌 Function

The tube forms the engine's horizontal tilt pivot and secures the steering cable so steering force is transferred into the swivel bracket.

⚠️ Common Signs of Failure

• Steering cable seizes
• Threads are damaged
• Tube bends or corrodes
• Tilt-axis play develops
• Bushings wear
• Grease fittings become blocked

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0435007 → Supersedes 0433592
• 0435007 also replaces earlier 0335622 in applicable catalogues
• 435007, 433592 and 335622 are unprefixed OMC formats

OEM / Related Numbers

• 0435007 / 435007
• 0433592 / 433592
• 0335622 / 335622
• Related steering-cable nut, bushings, washers and grease fittings
• Related stern brackets and trim assembly

Aftermarket / Verified Equivalents

• No verified branded direct complete equivalent for every 0435007 application
• Used genuine BRP 0435007 assemblies are the direct replacement
• Aftermarket stainless tilt tubes are available but must match exact length, diameter and thread

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
