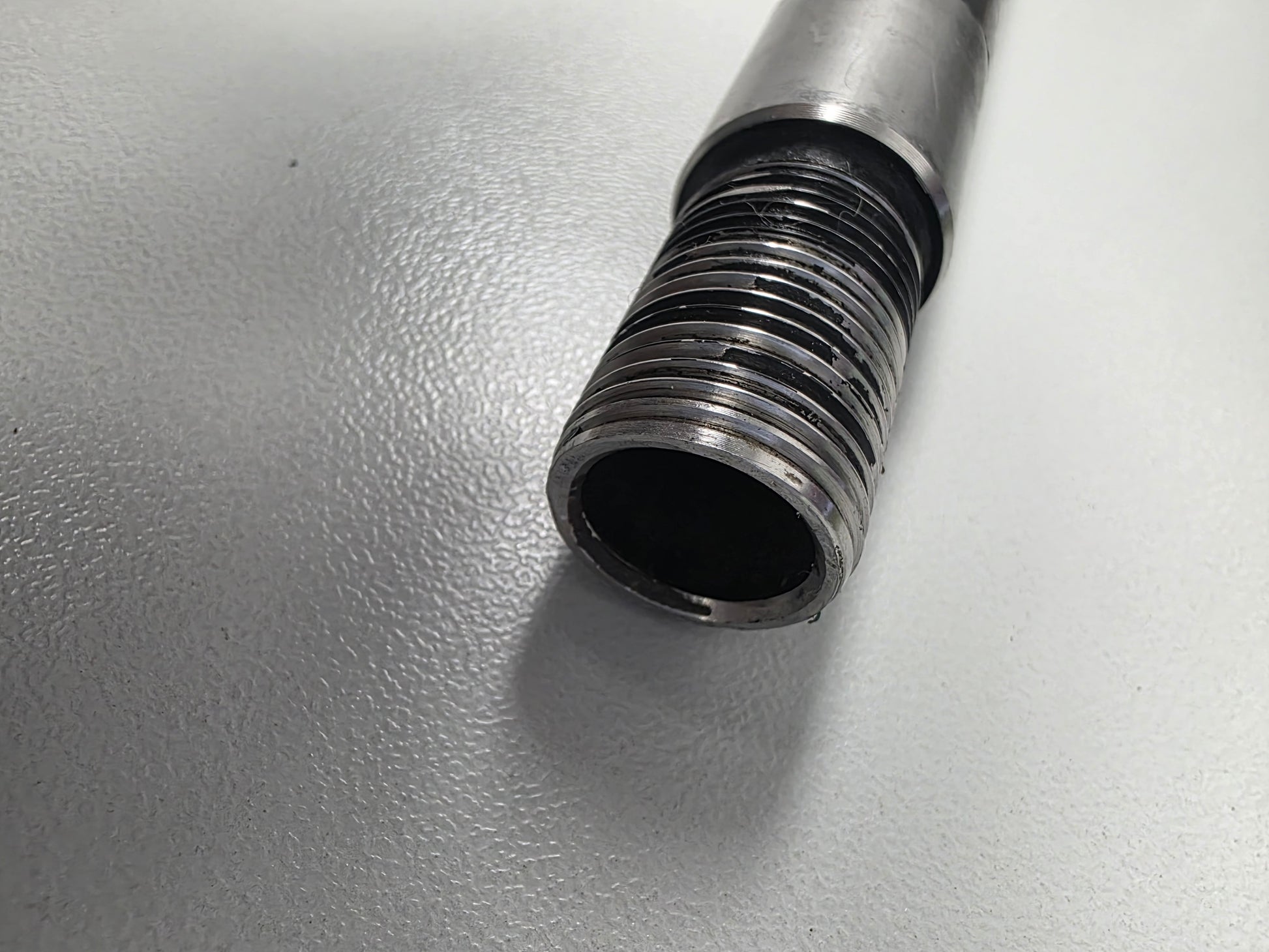

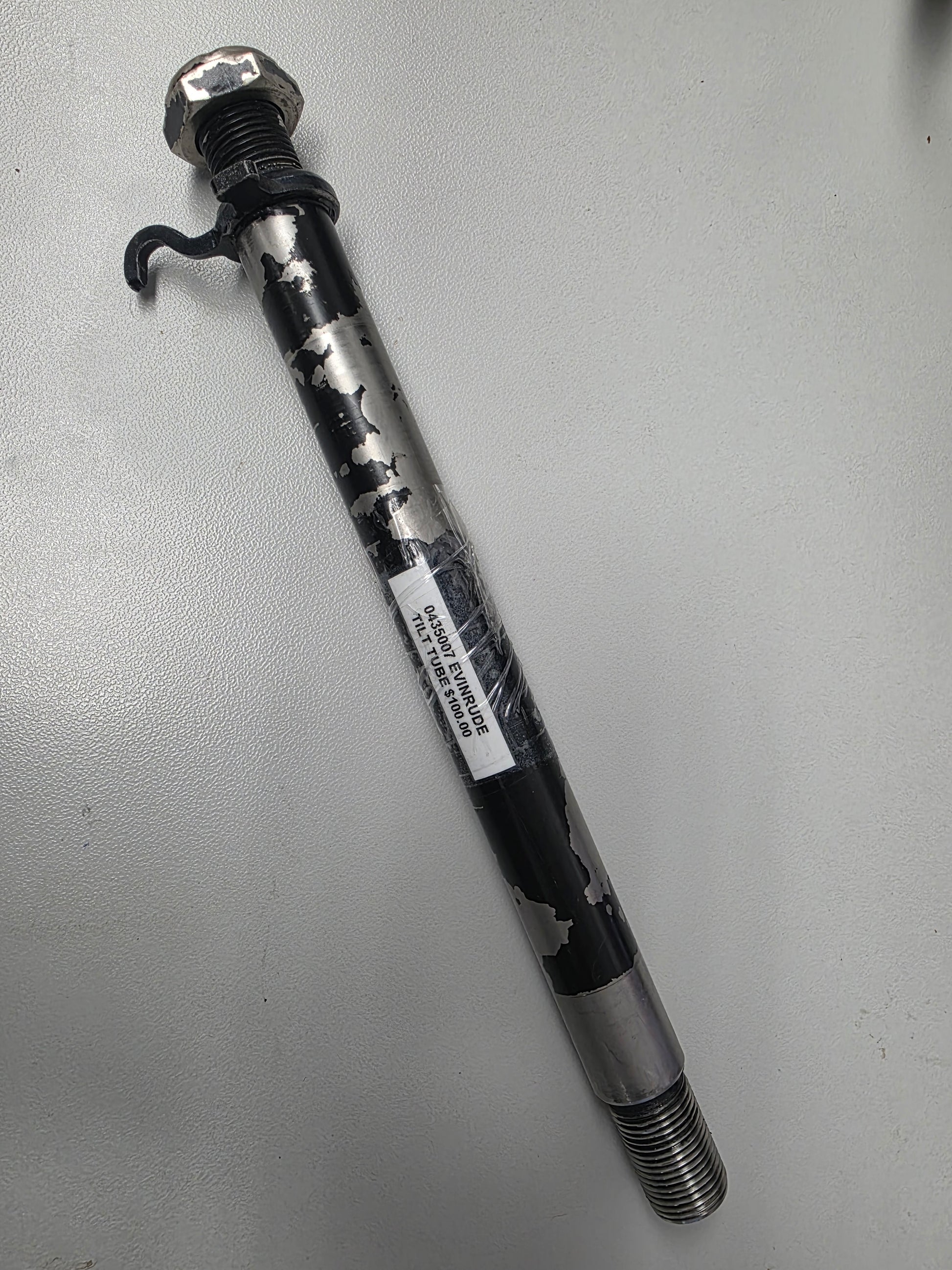

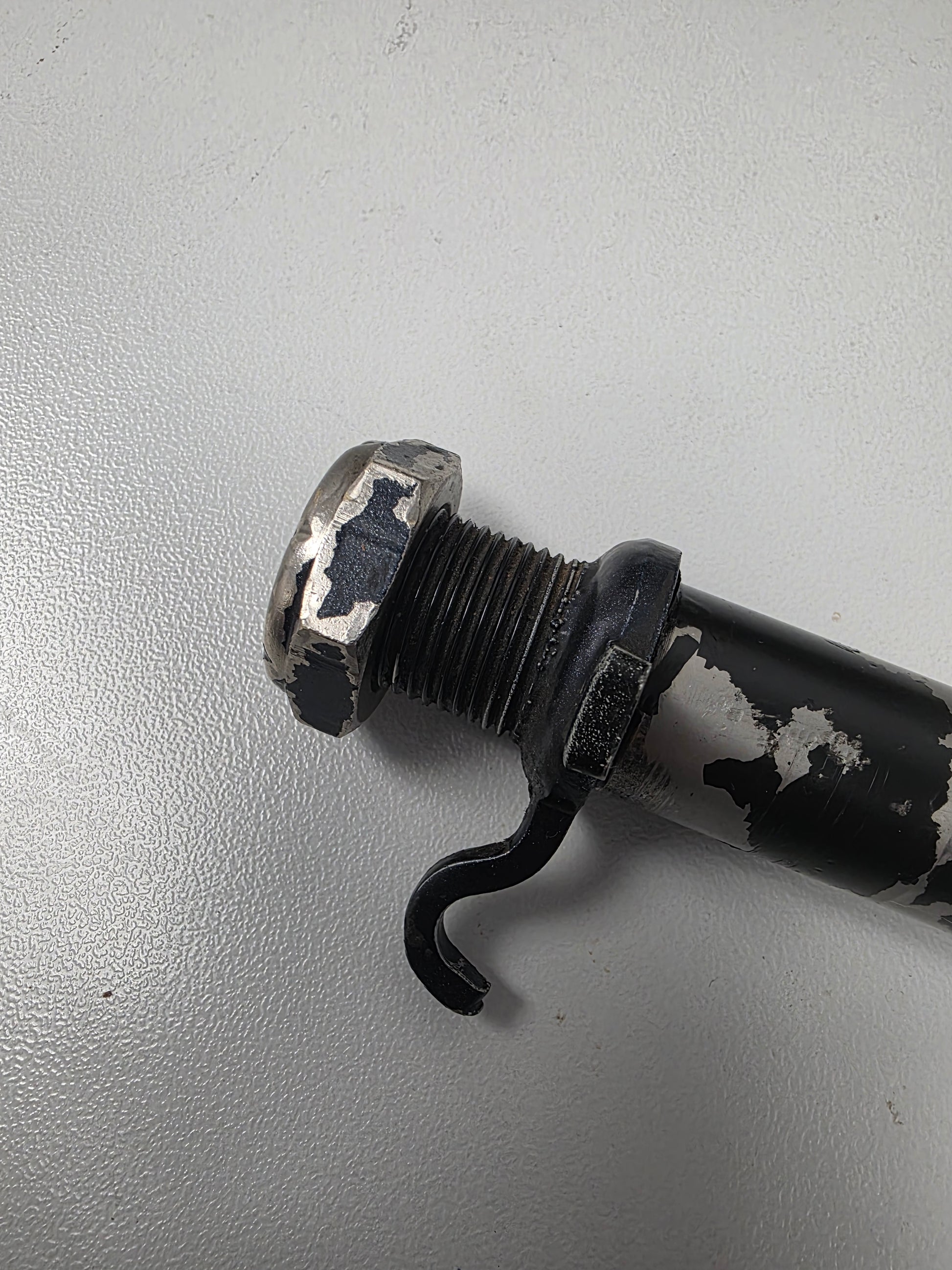

0435007 Evinrude Tilt Tube | Genuine Used Part

🔧 Product Description

Genuine Evinrude / Johnson Steering and Tilt-Tube Assembly - Part Number: 0435007

A genuine Evinrude and Johnson steering tilt tube used between the port and starboard stern brackets on a wide range of V4 and V6 outboards. It acts as the engine's horizontal pivot and as the threaded support for a mechanical steering cable.

⚙️ Key Features

• Genuine Evinrude / Johnson tilt tube
• Correct part number 0435007
• Replaces 0433592 and 0335622
• Marine steering-cable mounting threads
• Broad 90HP-225HP application family

🚤 Compatibility

• Evinrude / Johnson 90HP, 100HP, 105HP and 115HP outboards
• Evinrude / Johnson 120HP, 130HP and 140HP outboards
• Evinrude / Johnson 150HP, 175HP, 200HP and 225HP outboards
• Selected 75HP-300HP model families whose stern-bracket diagram lists 0435007
• Approximate application period: 1992-2012
• Mechanical and hydraulic steering arrangements using the same tilt tube

🔌 Function

The tube supports engine tilting and provides the fixed threaded housing through which the steering cable or steering hardware is mounted.

⚠️ Common Signs of Failure

• Cable is frozen inside the tube
• Threaded ends are damaged
• Tube is bent
• Corrosion causes steering stiffness
• Bracket bushings are loose
• Grease does not reach the pivot

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0435007 → Supersedes 0433592
• 0435007 also replaces 0335622 where specified
• The complete tube length and bracket spacing must match the donor engine

OEM / Related Numbers

• 0435007 / 435007
• 0433592 / 433592
• 0335622 / 335622
• Related tilt-tube bushings, nuts and grease fittings
• Related steering drag link and cable

Aftermarket / Verified Equivalents

• No verified universal aftermarket replacement by this exact service number
• Used genuine 0435007 tubes are the direct replacement
• Aftermarket stainless tubes can only be used after confirming dimensions and thread pitch

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
