🔧 Product Description

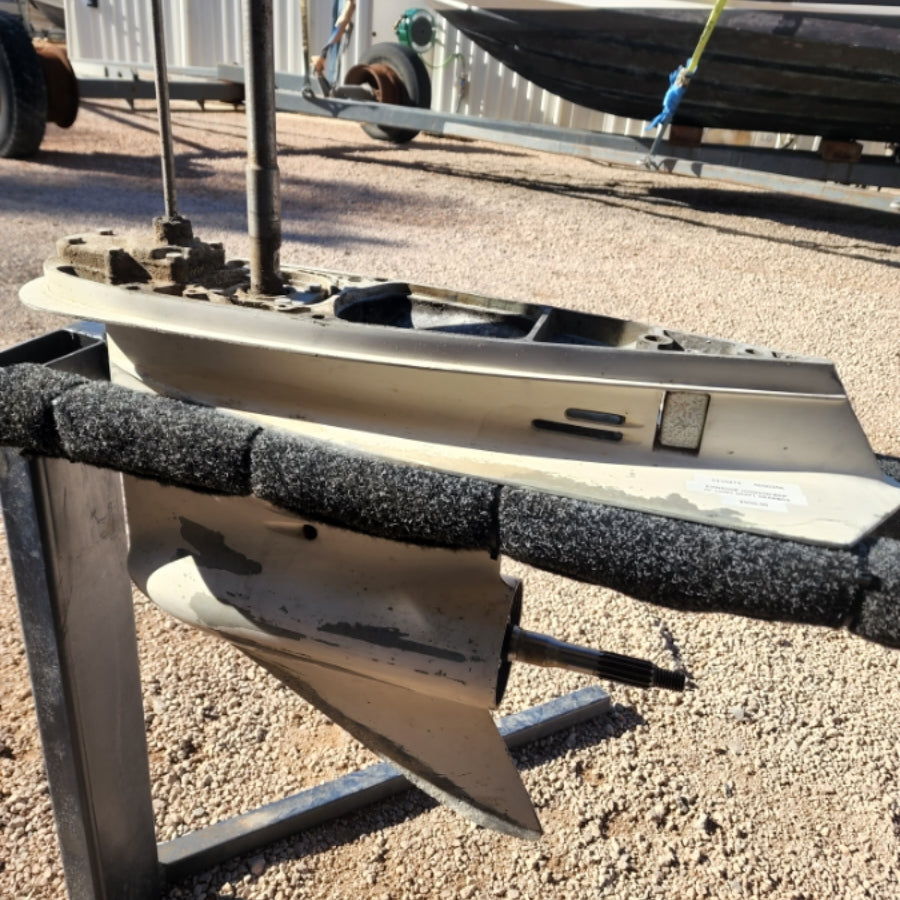

Genuine Johnson Evinrude V4 20-Inch Complete Gearcase - Part Numbers: 0435474 / 5000356

A genuine OMC / BRP standard-rotation complete lower unit for selected 85HP to 140HP V4 outboards.

Complete gearcase 0435474 was superseded by 5000356. The assembly uses the V4 90-degree small gearcase with a 2.00:1 reduction ratio and is one of the better-supported OMC gearcases for new aftermarket replacement assemblies.

⚙️ Key Features

  • Genuine OMC / BRP complete V4 gearcase
  • Original part number 0435474
  • Current replacement reference 5000356
  • 20-inch long-shaft configuration
  • Standard rotation
  • 2.00:1 gear ratio
  • Mechanical shift and through-prop exhaust

🚤 Compatibility

Documented on selected

  • Johnson / Evinrude 85HP
  • 88HP
  • 90HP
  • 100HP
  • 112HP and 115HP
  • 120HP, 125HP and 140HP
  • V4 90-degree crossflow engines approximately 1978-1998
  • Selected V4 60-degree engines from approximately 1995 onward where 5000356 is specified
  • 1990 120TL / 140TL and related 20-inch gearcase diagrams
  • 1993-1998 88HP, 90HP and 115HP model families
  • Standard-rotation 20-inch installations
  • Shaft Length: 20 inch
  • Gear Ratio: 2.00:1
  • Rotation: Standard
  • Fitment Requirement: Confirm upper driveshaft, water intake and shift-rod arrangement

🔌 Function

The unit reduces engine speed by 2.00:1, transfers power to the propeller shaft and selects forward, neutral or reverse through the clutch dog.

⚠️ Common Signs of Failure

  • Unit jumps out of gear
  • Gear oil contains water or metal
  • Propeller shaft is bent
  • Driveshaft spline or pinion bearings are worn
  • Housing is cracked near the skeg or carrier
  • Water-pump output is reduced

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0435474 → Superseded by 5000356
  • 5000784 related service assembly also replaced by 5000356
  • BRP remanufactured reference 0765398 / 765398

OEM / Related Numbers

  • 0435474
  • 435474
  • 5000356
  • 5000784
  • 0765398
  • 765398
  • 5006373 related complete gearcase seal kit
  • 0434421 related water-pump kit
  • 5001594 related later water-pump kit
  • 0436746 forward gear set reference
  • GLM 22630 related V4 gear set

Aftermarket / Verified Equivalents

  • Sierra 18-4801 complete lower-unit assembly
  • GLM 28210 complete gearcase replacing 5000356
  • GLM 22630 replacement gear set
  • SEI SE304 / 90-304-A early V4 replacement gearcase
  • BRP remanufactured 0765398 / 765398
  • Professionally rebuilt 0435474 / 5000356 gearcase

📦 Condition

  • Genuine used complete gearcase
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
  • Pressure, vacuum and shift testing is recommended
  • Confirm whether the upper driveshaft is included
