• 0436195 Evinrude Johnson Thermostat | Genuine OEM BRP Outboard Part
1 1

0436195 Evinrude Johnson Thermostat | Genuine OEM BRP Outboard Part

0436195 Evinrude Johnson Thermostat | Genuine OEM BRP Outboard Part

$32.52 AUD
$32.52 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

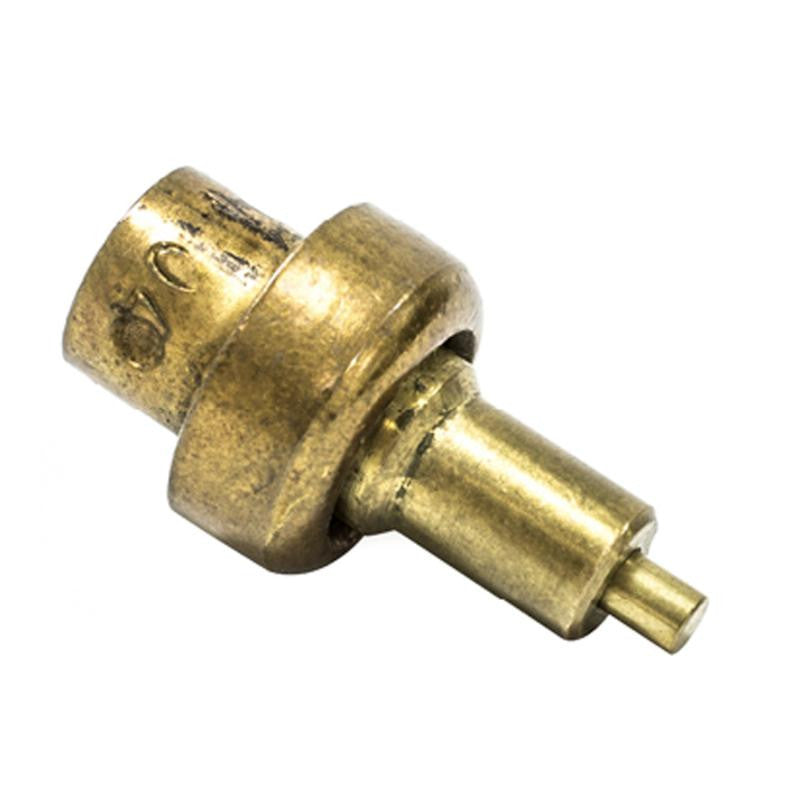

Genuine BRP Evinrude Johnson 143°F Cooling Thermostat - Part Number: 0436195

A genuine BRP 143°F thermostat used across selected small, midrange and high-horsepower Evinrude and Johnson outboard cooling systems.

The thermostat controls cooling-water flow according to engine temperature, allowing a controlled warm-up before opening to maintain the correct operating range.

⚙️ Key Features

  • Genuine BRP Evinrude Johnson OEM thermostat
  • Correct OEM part number 0436195
  • Common unprefixed number 436195
  • Approximately 143°F / 62°C rating
  • Used across several two-stroke and four-stroke engine families
  • Sierra replacement available

🚤 Compatibility

Used on selected

  • 5HP and 6HP engines
  • 8HP, 9.9HP and 15HP engines
  • 25HP, 30HP and 35HP engines
  • 40HP, 48HP, 50HP, 55HP, 60HP and 70HP engines
  • 90-degree V4 90HP-140HP applications
  • Loop-charged 120HP-140HP engines
  • Selected 250HP and 300HP E-TEC cooling systems where 0436195 is specified

Important fitment note

  • The broad horsepower range does not mean universal interchangeability.
  • Confirm 0436195 in the exact engine diagram.
  • Some engines use thermostat 0435491 instead.
  • The sealing grommet and thermostat cover must match the engine design.

🔌 Function

The thermostat maintains a controlled engine temperature by opening and closing the cooling-water passage.

Installation considerations

  • Test the thermostat in heated water where required
  • Confirm opening temperature
  • Replace the sealing grommet
  • Clean the thermostat cavity
  • Inspect the pressure-relief components
  • Install in the correct direction
  • Verify water flow and engine temperature after repair

⚠️ Common Signs of Failure

  • Engine overheats
  • Engine remains too cold
  • Poor idle quality after extended running
  • Thermostat is stuck with salt deposits
  • Thermostat frame is corroded
  • Rubber sealing surface is damaged
  • Temperature warning activates
  • Cooling-water discharge changes unexpectedly

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 0436195
  • 436195
  • OEM Description: Thermostat, 143 Degrees
  • Alternate Description: Thermostat Assembly
  • Temperature Rating: Approximately 143°F / 62°C

Aftermarket / Verified Equivalents

  • Sierra: 18-3561
  • Aftermarket 62°C / 143°F thermostat replacing 0436195
  • Generic thermostat cross-referenced to 436195

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Supplied in genuine or equivalent protective packaging
