🔧 Product Description

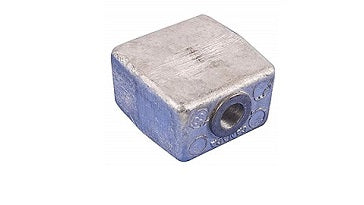

Genuine BRP Evinrude Johnson Aluminium Gearcase Anode and Insert Assembly - Part Number: 0436745

A genuine BRP sacrificial aluminium anode and insert assembly for selected Evinrude and Johnson outboard gearcases.

The anode corrodes preferentially to the surrounding aluminium gearcase, helping protect the bearing housing, lower-unit casting and underwater hardware from galvanic corrosion.

⚙️ Key Features

  • Genuine BRP OEM gearcase anode
  • Correct OEM part number 0436745
  • Common unprefixed number 436745
  • Aluminium sacrificial-anode material
  • Insert-style gearcase mounting
  • Suitable for selected V4, V6 and E-TEC gearcases
  • Sierra and independent aftermarket replacements available

🚤 Compatibility

Commonly used on selected

  • V4 outboard gearcases from approximately 1982 onward
  • V6 outboard gearcases from approximately 1982 onward
  • Evinrude E-TEC 40HP-300HP gearcases from approximately 2004 onward
  • Standard- and counter-rotation gearcases where 0436745 is specified
  • Selected 40HP-300HP two-stroke lower units

Important fitment note

  • Confirm whether the housing uses a self-tapping screw or threaded bolt.
  • The mounting fastener is not normally supplied with the anode.
  • Anodes must have clean metal-to-metal contact with the gearcase.
  • Do not paint the anode or its contact surface.

🔌 Function

The anode acts as the most electrically active metal in the underwater assembly and sacrifices itself to reduce corrosion of more valuable components.

Installation considerations

  • Remove paint and corrosion from the contact surface
  • Use the correct mounting screw or bolt
  • Do not apply insulating sealant between the anode and housing
  • Confirm electrical continuity
  • Inspect all other engine and transom anodes
  • Select anode material appropriate to the operating water
  • Replace rather than cleaning a heavily depleted anode

⚠️ Common Signs of Failure

  • More than approximately half the anode has eroded
  • Anode is deeply pitted
  • Mounting insert is loose
  • Anode is painted or insulated
  • Gearcase corrosion appears despite the anode
  • Incorrect anode material has been installed
  • Fastener is corroded or cannot maintain contact

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 0436745
  • 436745
  • 0393023
  • 393023
  • 0191255
  • 191255
  • Self-tapping screw: 0341219
  • Washer: 0307161
  • Threaded mounting bolt: 0328096

Aftermarket / Verified Equivalents

  • Sierra: 18-6024A
  • Aftermarket aluminium anode replacing 0436745
  • Generic anode assembly replacing 0393023 / 0436745

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new sacrificial anode
  • Mounting fastener included only when supplied in the OEM package
  • Supplied in genuine or equivalent protective packaging
