🔧 Product Description

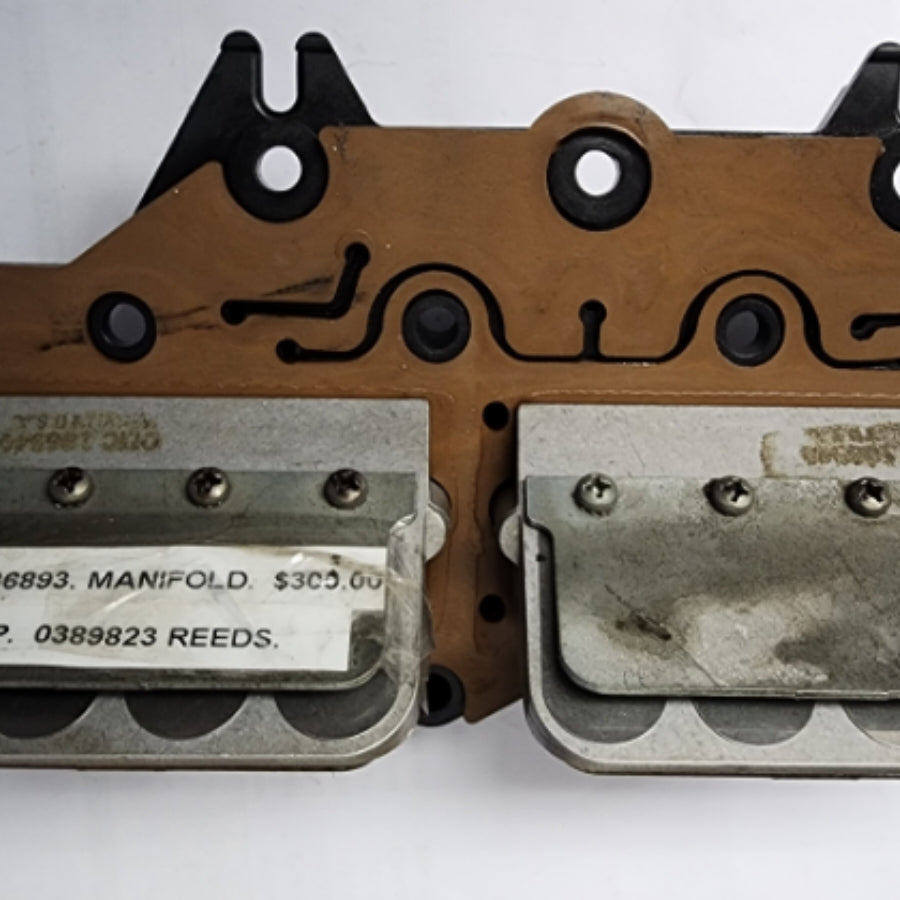

Genuine BRP / OMC Port Intake Manifold and Reed Assembly - Part Numbers: 0436893 / 0389823

A genuine port-side intake manifold fitted with reed-valve assemblies for selected Johnson and Evinrude 60-degree V4 two-stroke outboards.

The manifold distributes the carburetted air-and-fuel mixture to the port cylinder bank. The reed valves open as crankcase pressure falls and close as pressure rises, preventing mixture from flowing back through the carburettors.

⚙️ Key Features

• Genuine BRP / OMC port intake manifold

• Correct manifold part number 0436893

• Fitted with reed assembly part number 0389823

• Used on 60-degree V4 90HP to 115HP engines

• Controls one-way intake flow to the port cylinder bank

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0436893 current port manifold reference

• 0389823 current reed / leaf-plate assembly reference

OEM / Related Numbers:

• 0436893

• 436893

• 0389823

• 389823

• 0436894 matching starboard manifold assembly

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude 60-degree V4 carburettor and reed-block assemblies

Typically suits:

• Engine models:

• Johnson / Evinrude 90HP 60-degree V4

• Johnson / Evinrude 100HP Commercial V4

• Johnson / Evinrude 105 Jet V4

• Johnson / Evinrude 115HP V4

• Evinrude Intruder 90HP and 115HP

• Johnson Fast Strike 90HP and 115HP

• Evinrude Ocean Pro and Johnson OceanRunner 90HP and 115HP

• HP Range: 90HP - 115HP

• Engine Type: Johnson / Evinrude 60-degree V4 carburetted two-stroke outboard

• Year Range: Approximately 1995-2001, dependent on model

🔌 Function

The manifold directs the fuel-and-air mixture from the port carburettor bank into the crankcase passages. The reeds act as one-way valves, allowing mixture into the crankcase while preventing reverse flow.

Common signs of failure:

• Reed petals are chipped, cracked or no longer seal flat

• Engine spits fuel back through the carburettor

• Poor idle, difficult starting or reduced low-speed torque

• Intake manifold is cracked or has damaged sealing faces

• One cylinder bank runs lean because of an intake leak

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
