0436894 0436893 BRP Intake Manifold Set | Genuine Used Part

🔧 Product Description

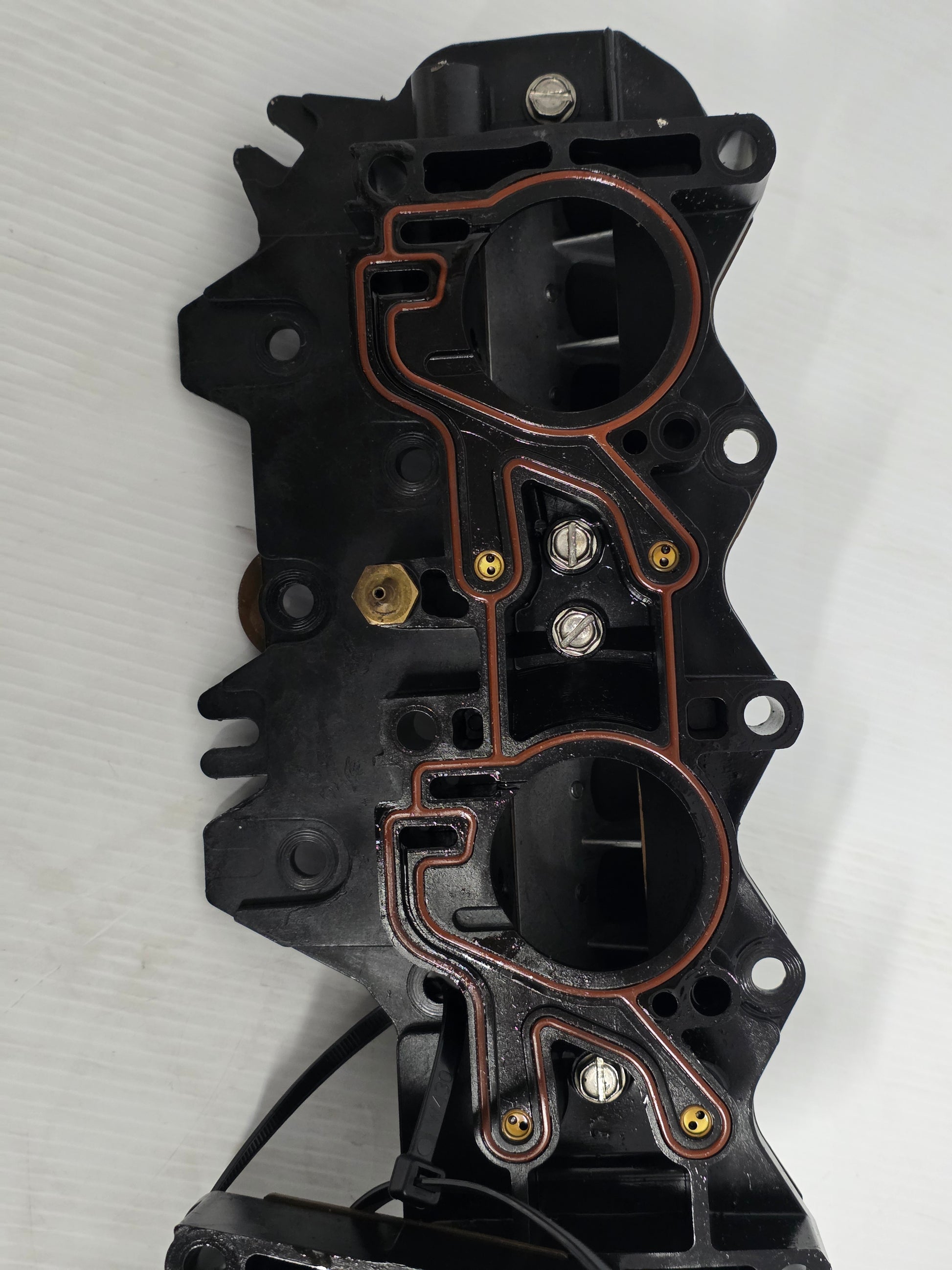

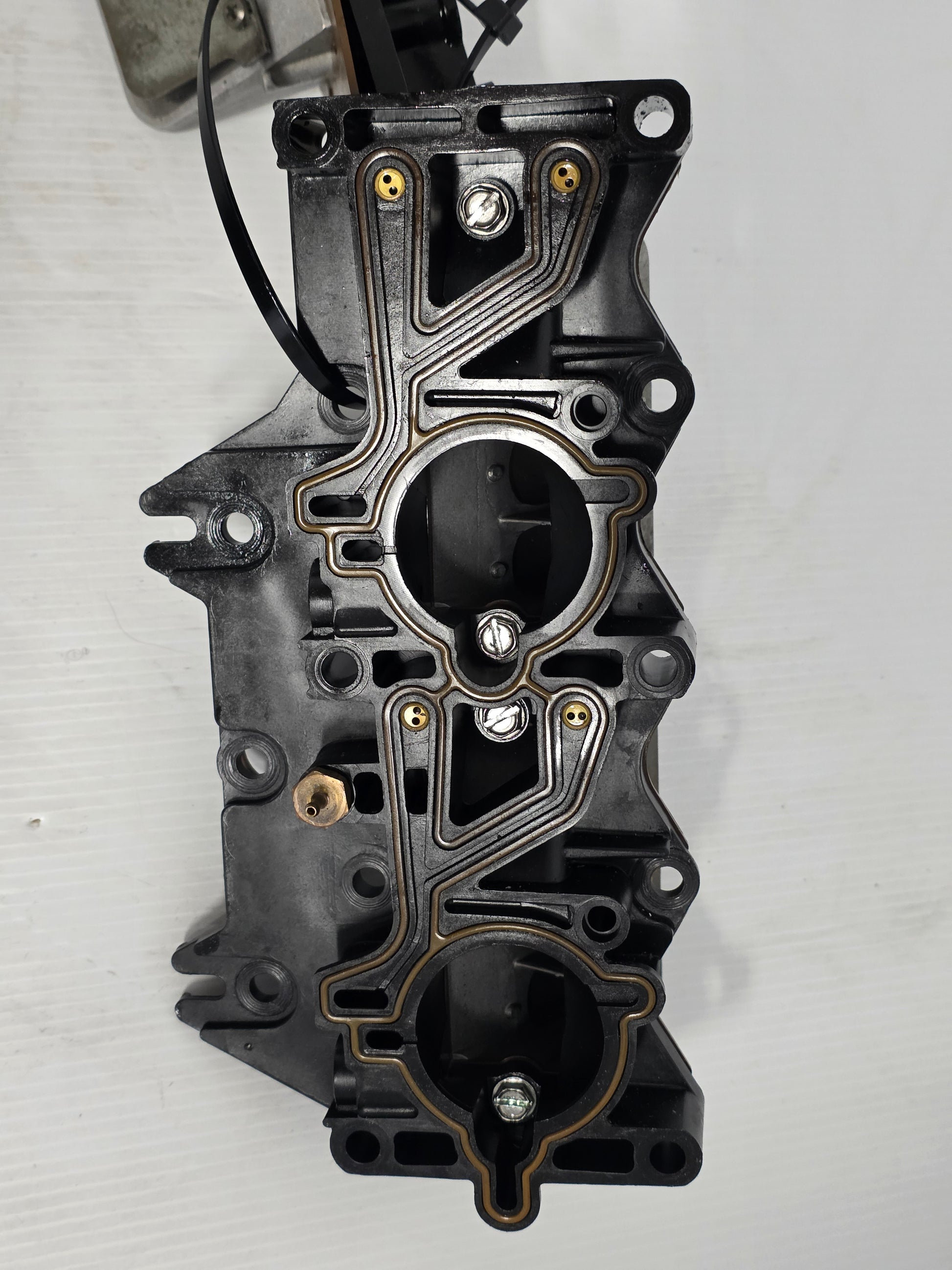

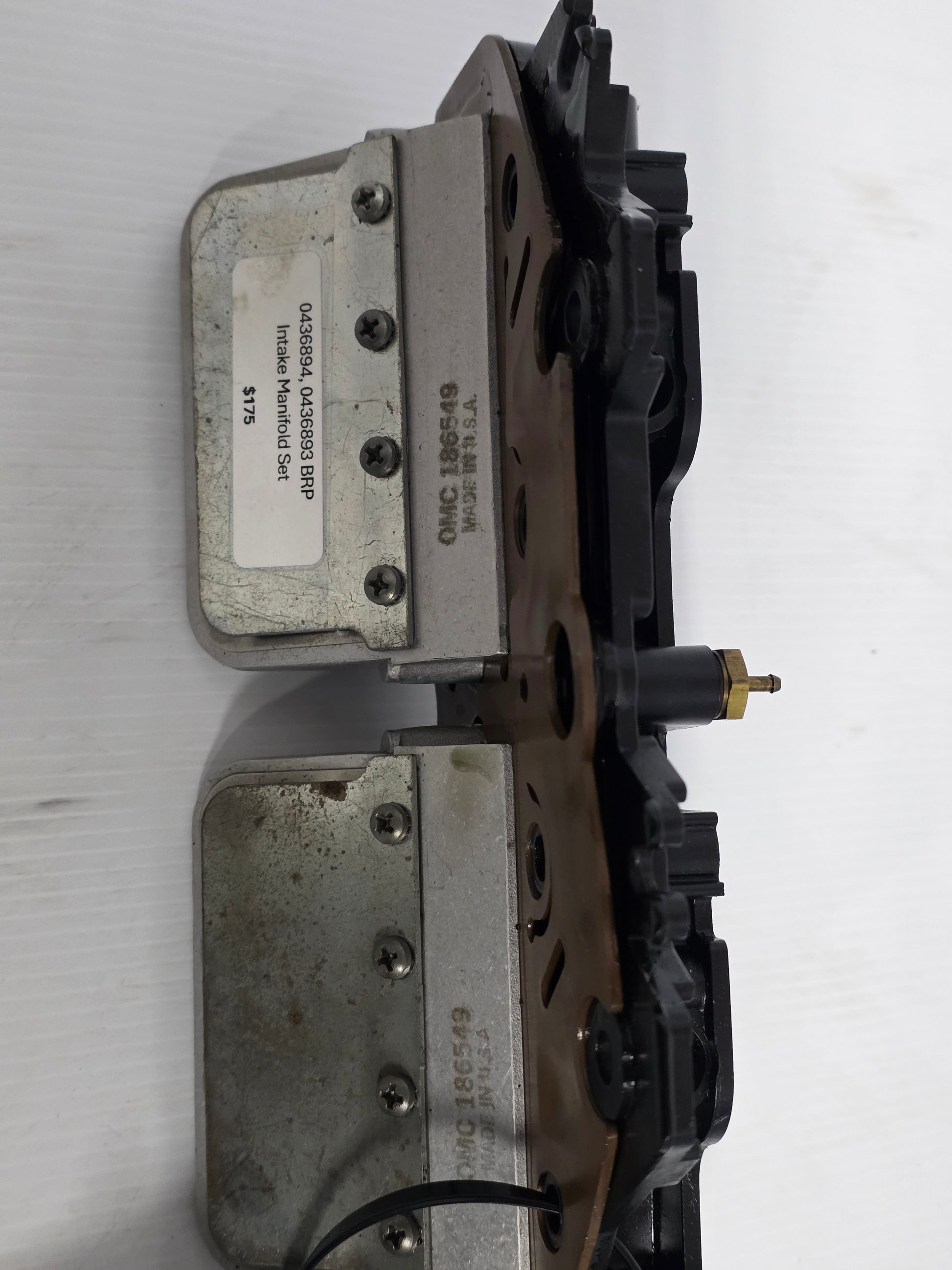

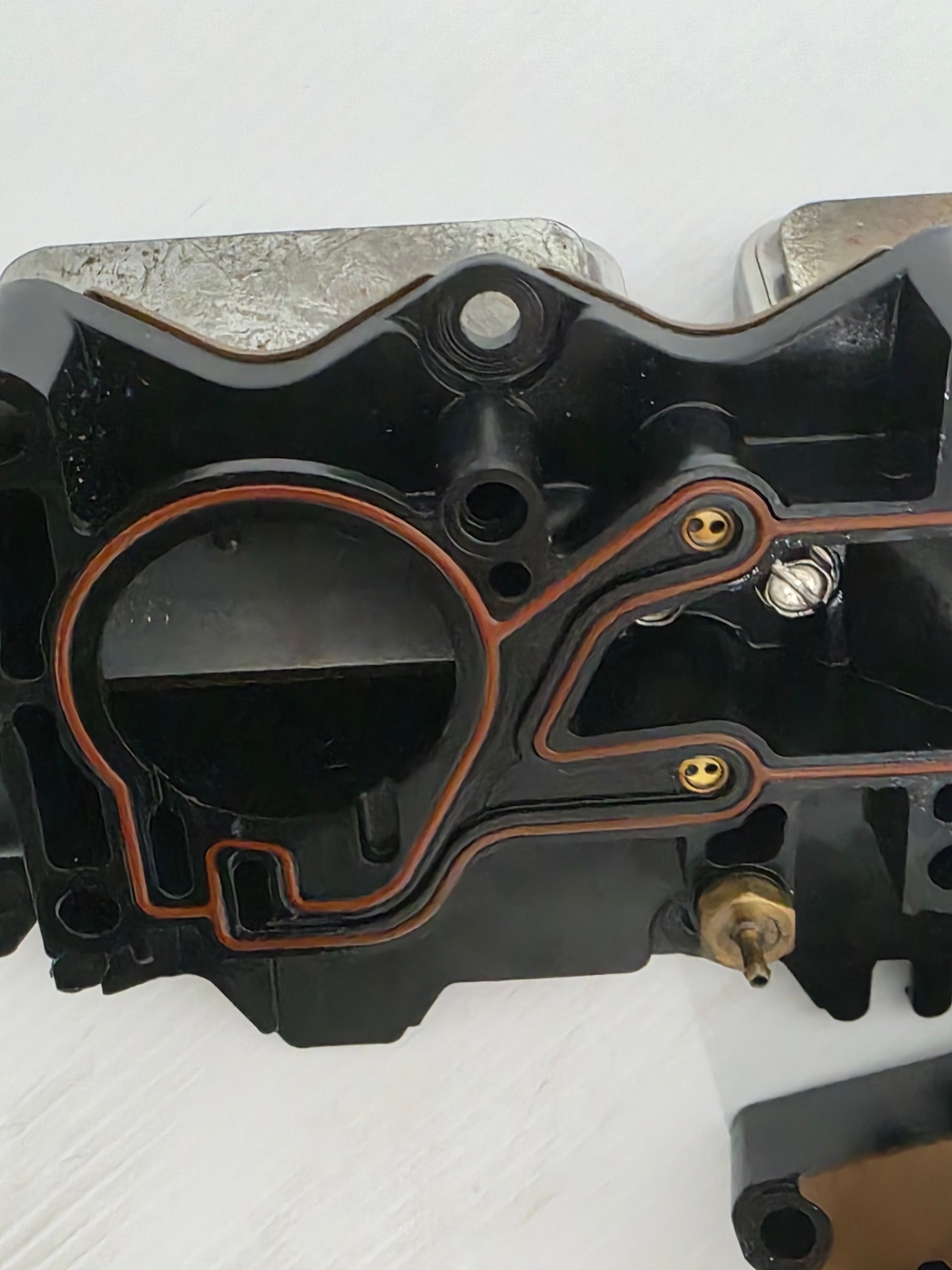

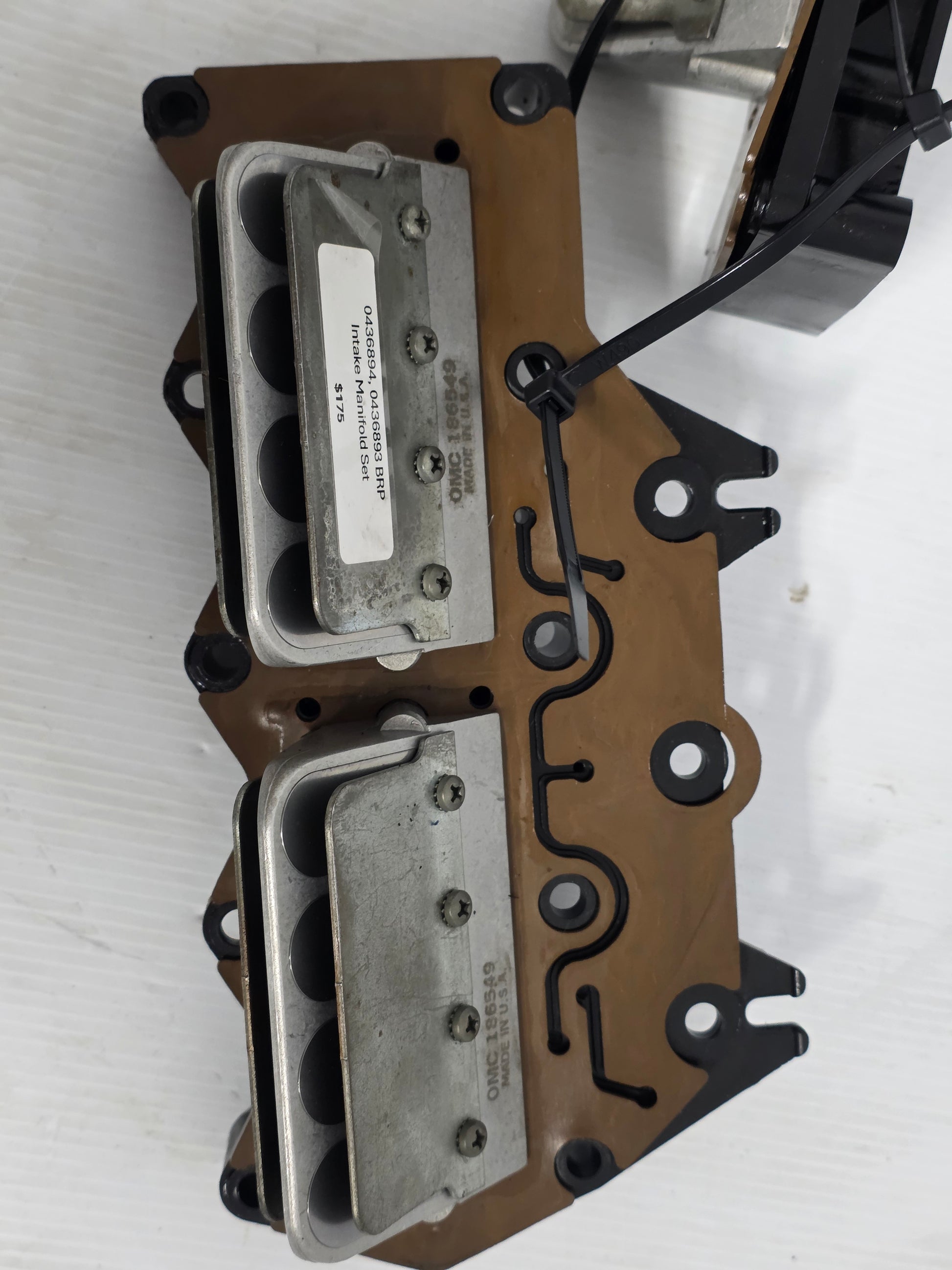

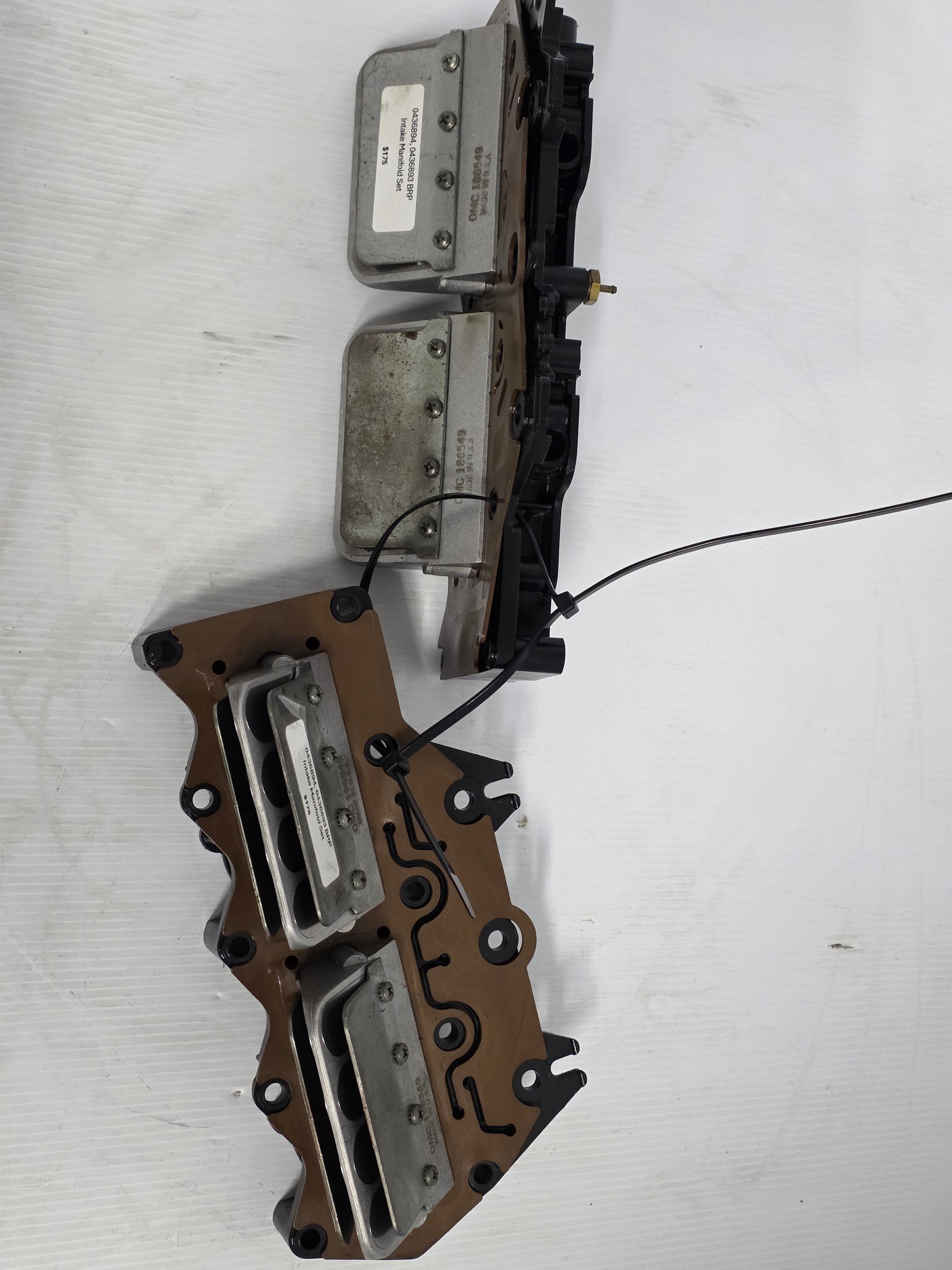

Genuine BRP Johnson / Evinrude 60-Degree V4 Port and Starboard Intake Manifold Set - Part Numbers: 0436893 / 0436894

A genuine matched pair of intake-manifold assemblies for selected Johnson and Evinrude 60-degree V4 loop-charged two-stroke outboards. Part number 0436893 is the port manifold and 0436894 is the starboard manifold. Each assembly supports the corresponding throttle-body or carburettor section and reed-cage intake path.

⚙️ Key Features

• Genuine BRP / OMC matched manifold pair
• Port manifold 0436893
• Starboard manifold 0436894
• Designed for 60-degree V4 loop-charged engines
• Suitable for carburetted and applicable Ficht-era configurations listed by OEM

🚤 Compatibility

• Johnson / Evinrude 90HP V4
• Johnson / Evinrude 100HP V4
• Johnson 105HP commercial V4
• Johnson / Evinrude 115HP V4
• Approximate year range: 1995-2006
• Includes carburetted 60-degree models and only those Ficht configurations whose catalogue lists 0436893 / 0436894

🔌 Function

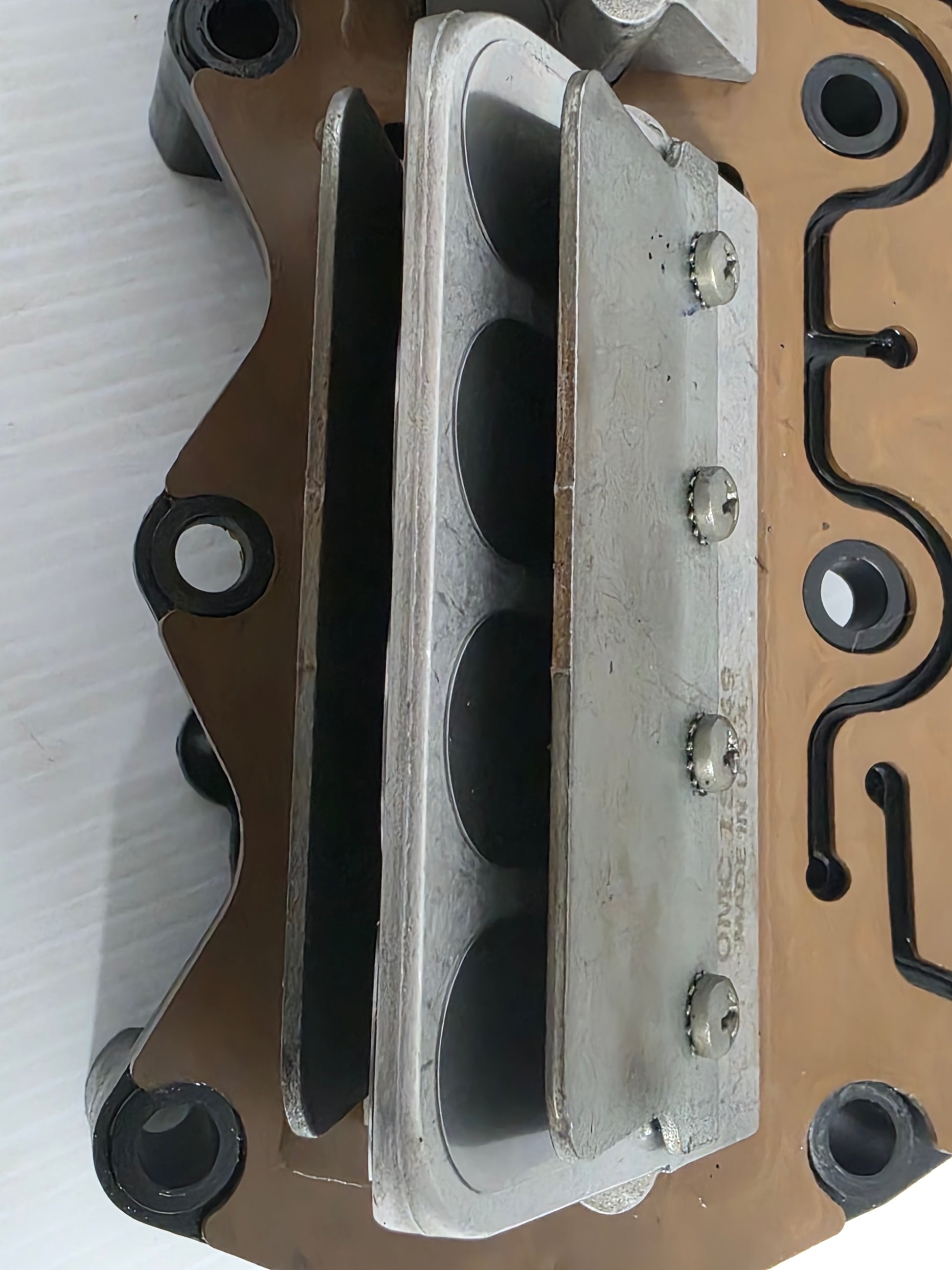

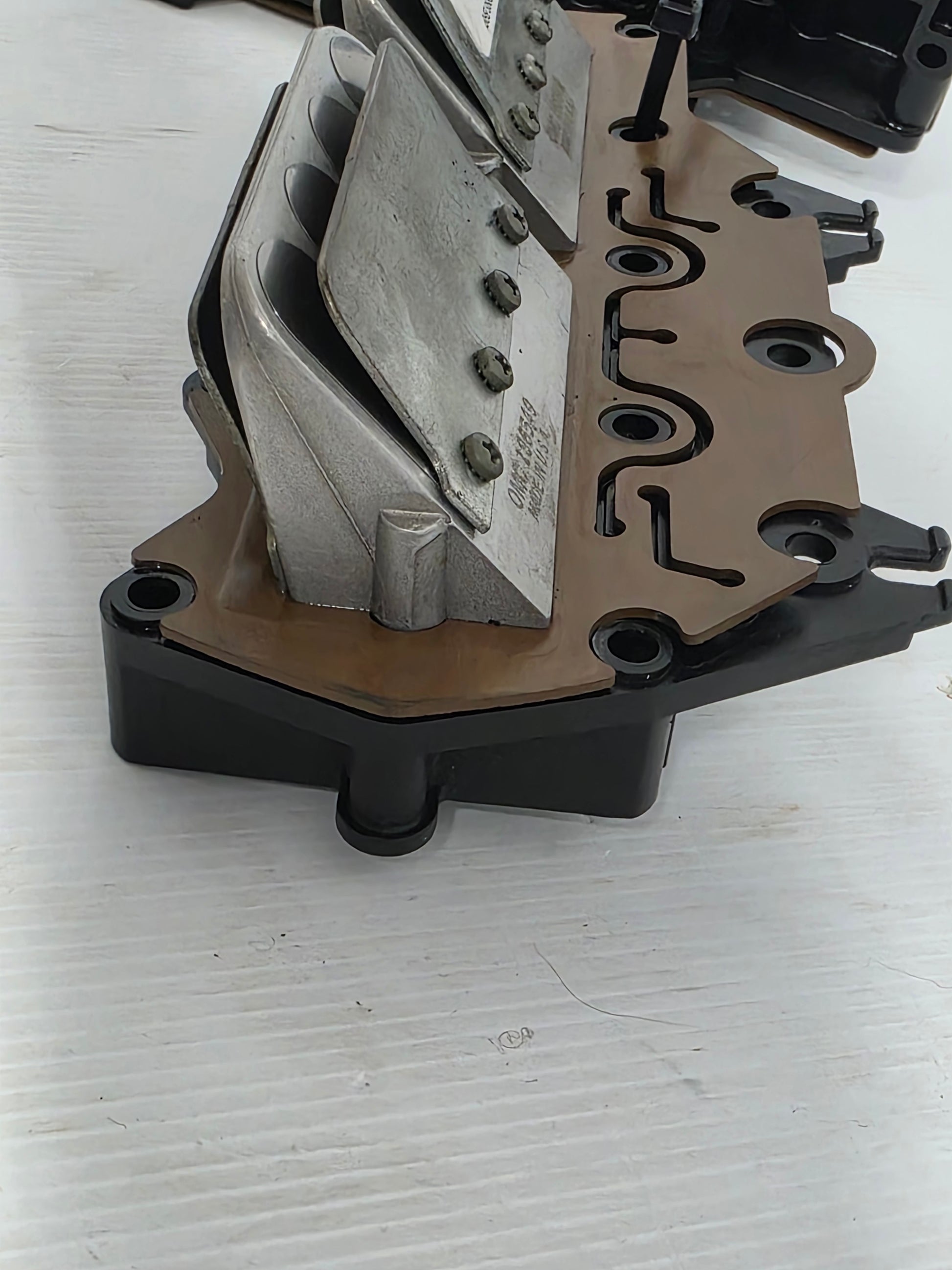

The paired manifolds distribute intake air and fuel to the port and starboard cylinder banks and provide the mounting paths for the reed assemblies, throttle bodies and balance system.

⚠️ Common Signs of Failure

• Cracked casting or stripped threads
• Warped gasket surfaces
• Intake air leak causes a lean cylinder bank
• Damaged reed seating area
• Balance-tube fittings leak
• Poor idle, hesitation or reduced cylinder-bank performance

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0436893 is the port-side service number
• 0436894 is the starboard-side service number
• The two numbers are companion assemblies, not supersessions
• No later complete-manifold supersession has been verified

OEM / Related Numbers

• 0436893 / 436893 port
• 0436894 / 436894 starboard
• 0434522 related balance-tube manifold assembly
• 0389823 related reed / intake assembly reference found with applicable manifolds
• 335819 related starboard intake-manifold seal
• Related reed cages, gaskets, throttle bodies and drain hoses

Aftermarket / Verified Equivalents

• No verified complete aftermarket manifold pair
• Boyesen BSN-144 reed kit - verified performance-reed option for compatible Johnson / Evinrude 60-degree V4 applications
• Chris Carson Marine replacement reeds are available for compatible V4 60-degree engines
• Pro Marine intake seals and powerhead gasket sets are available separately
• Aftermarket reeds replace petals or reed assemblies, not the aluminium manifolds

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
