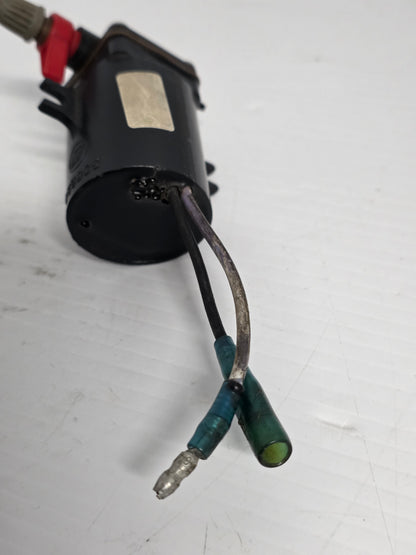

0437232 Johnson Primer Solenoid | Genuine Used Part

🔧 Product Description

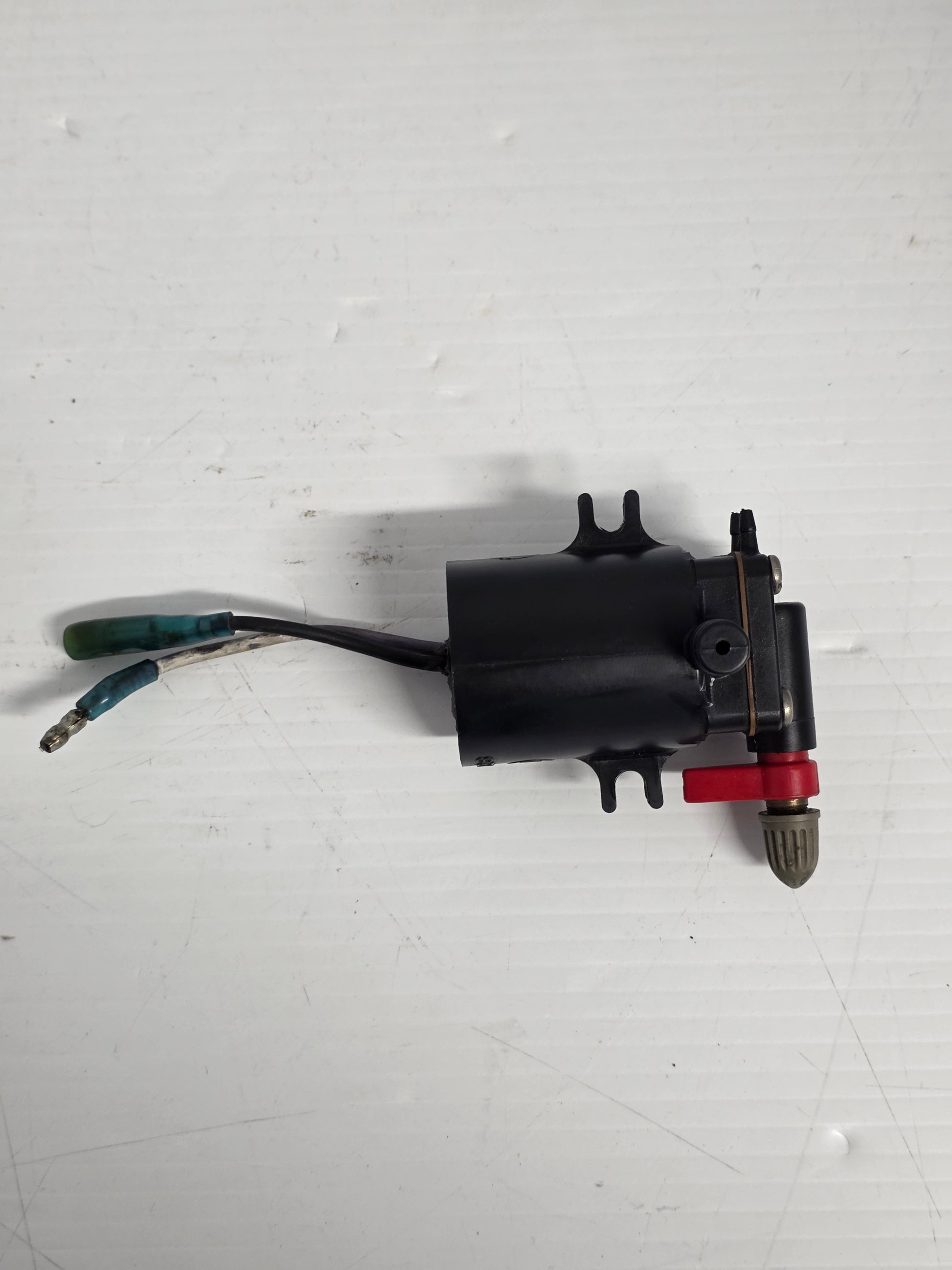

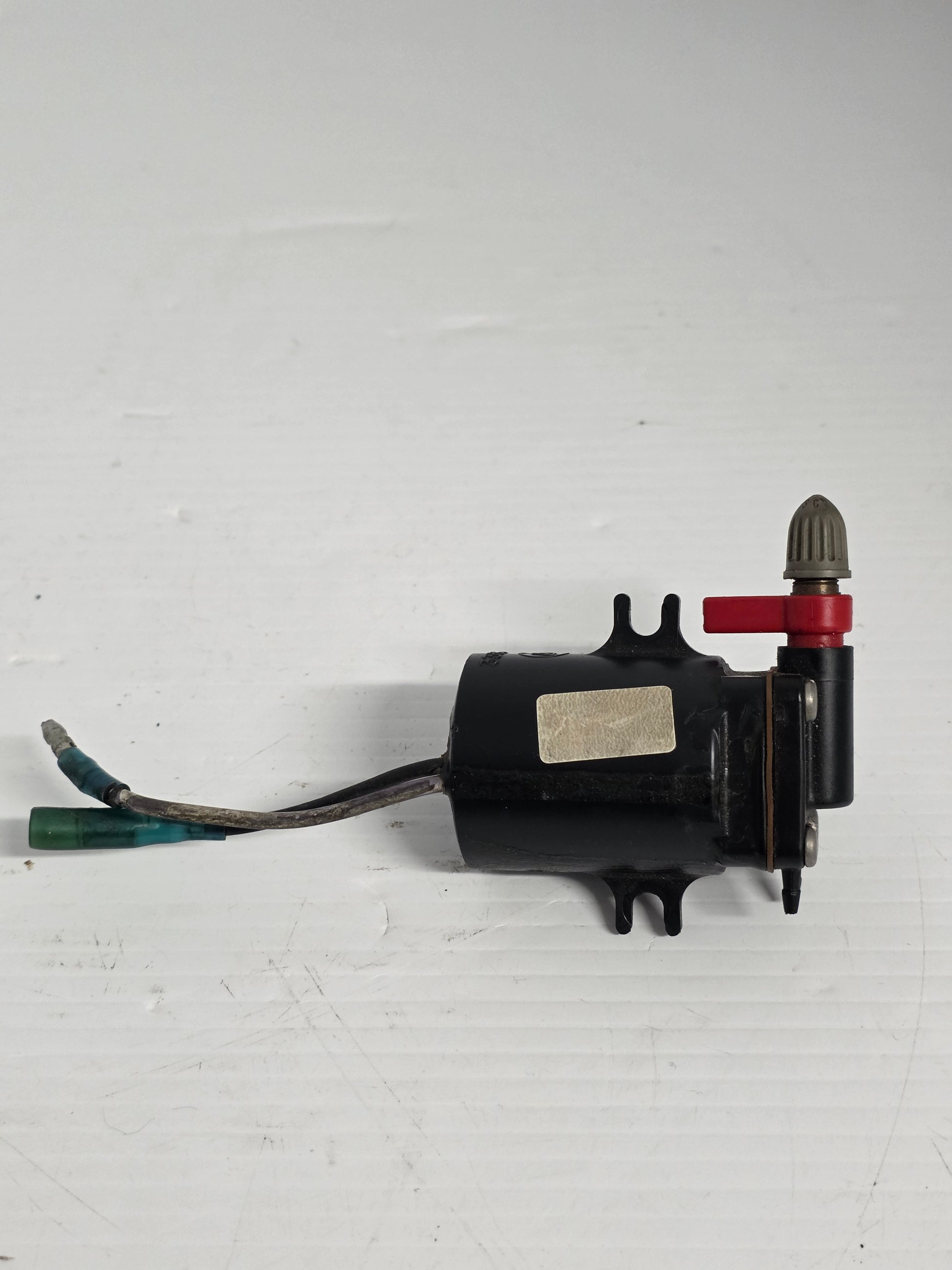

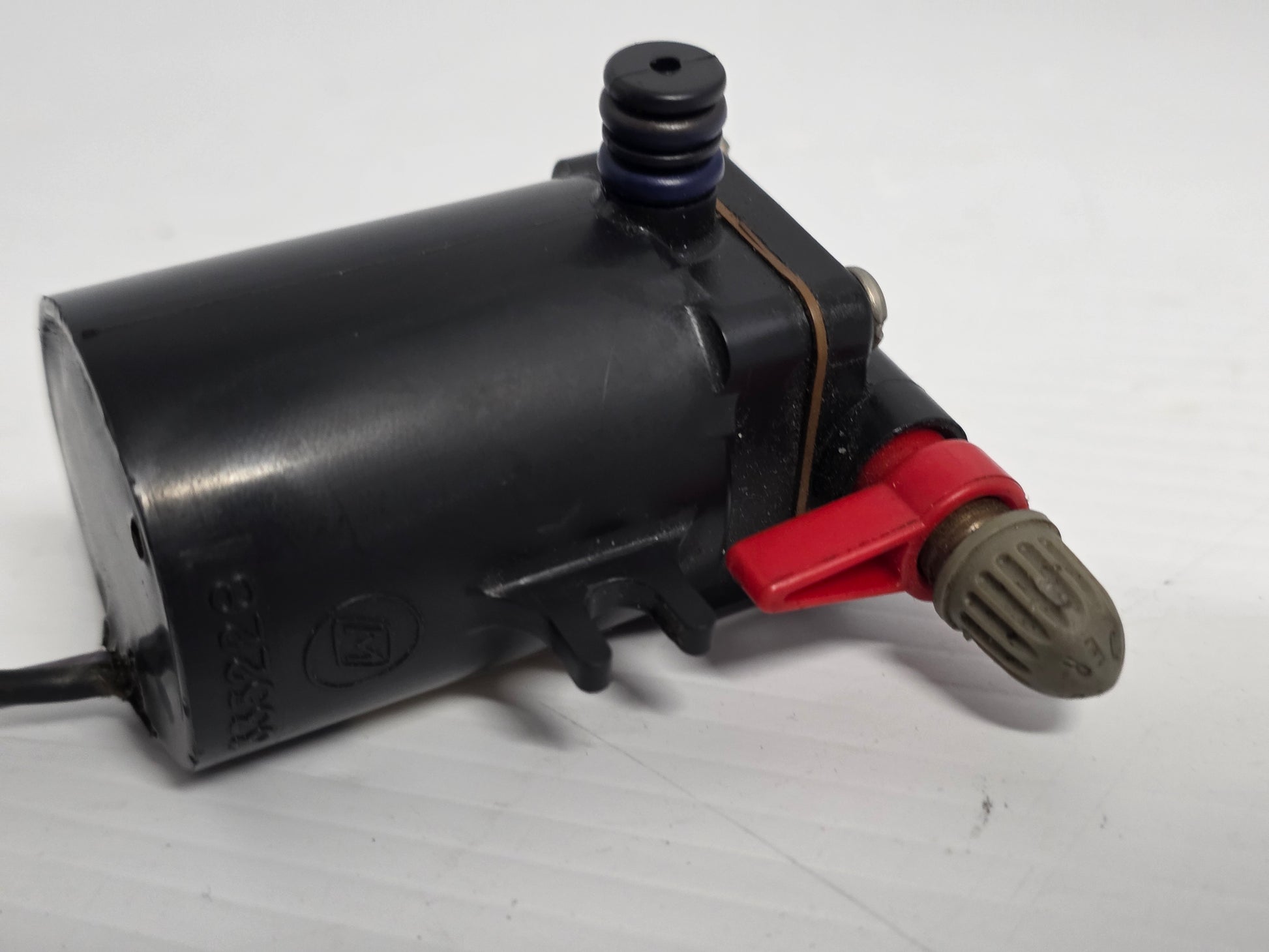

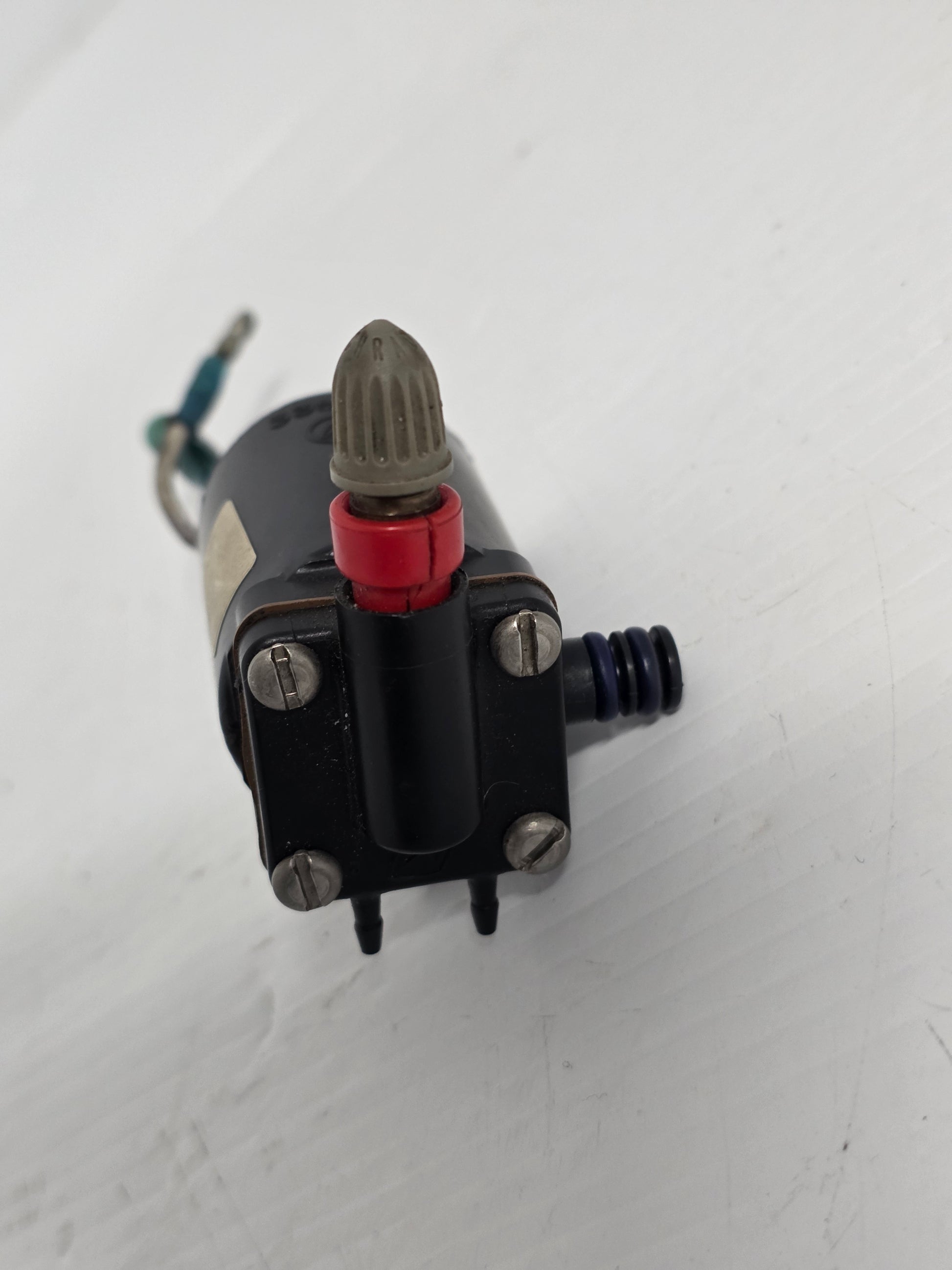

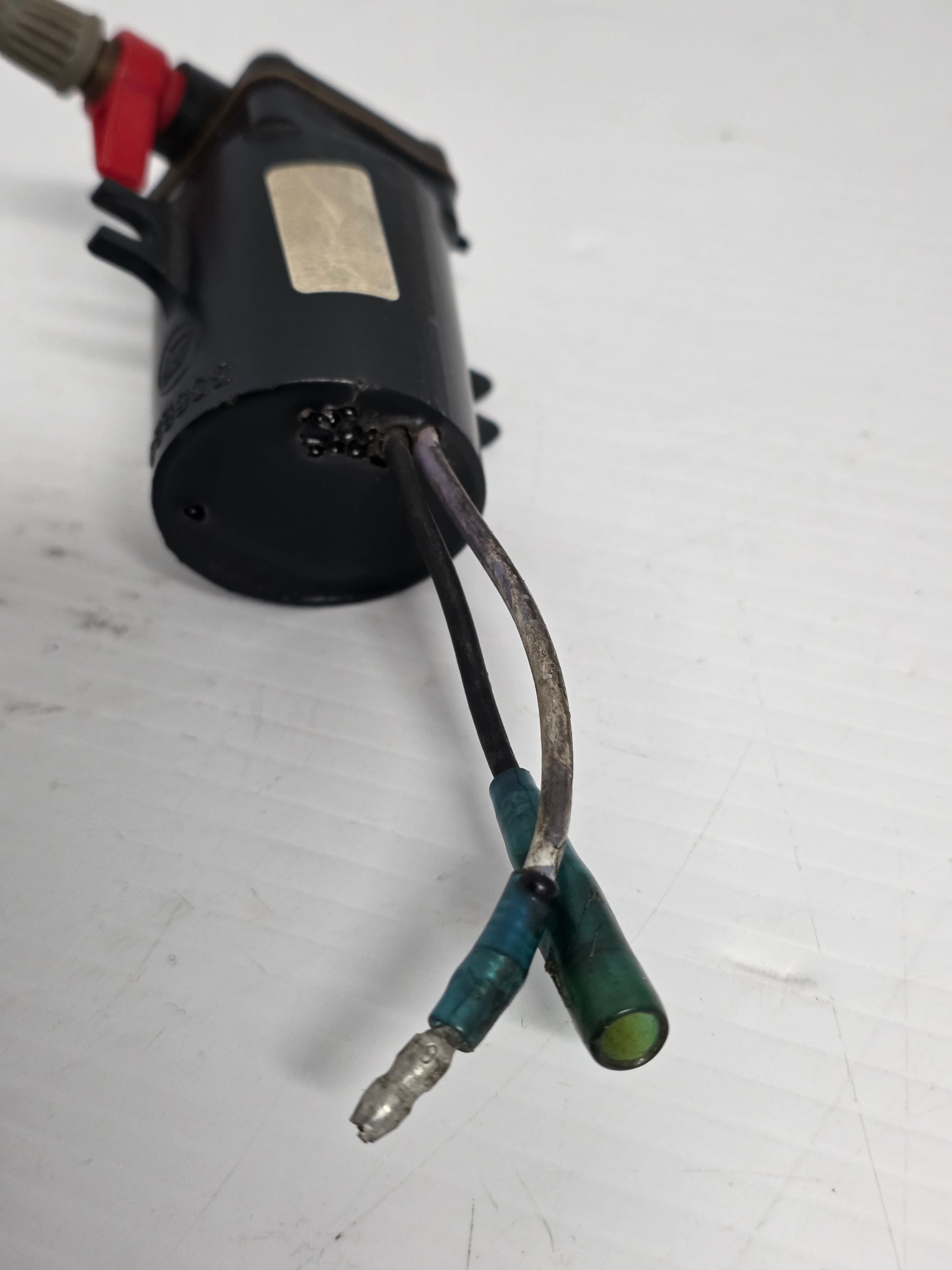

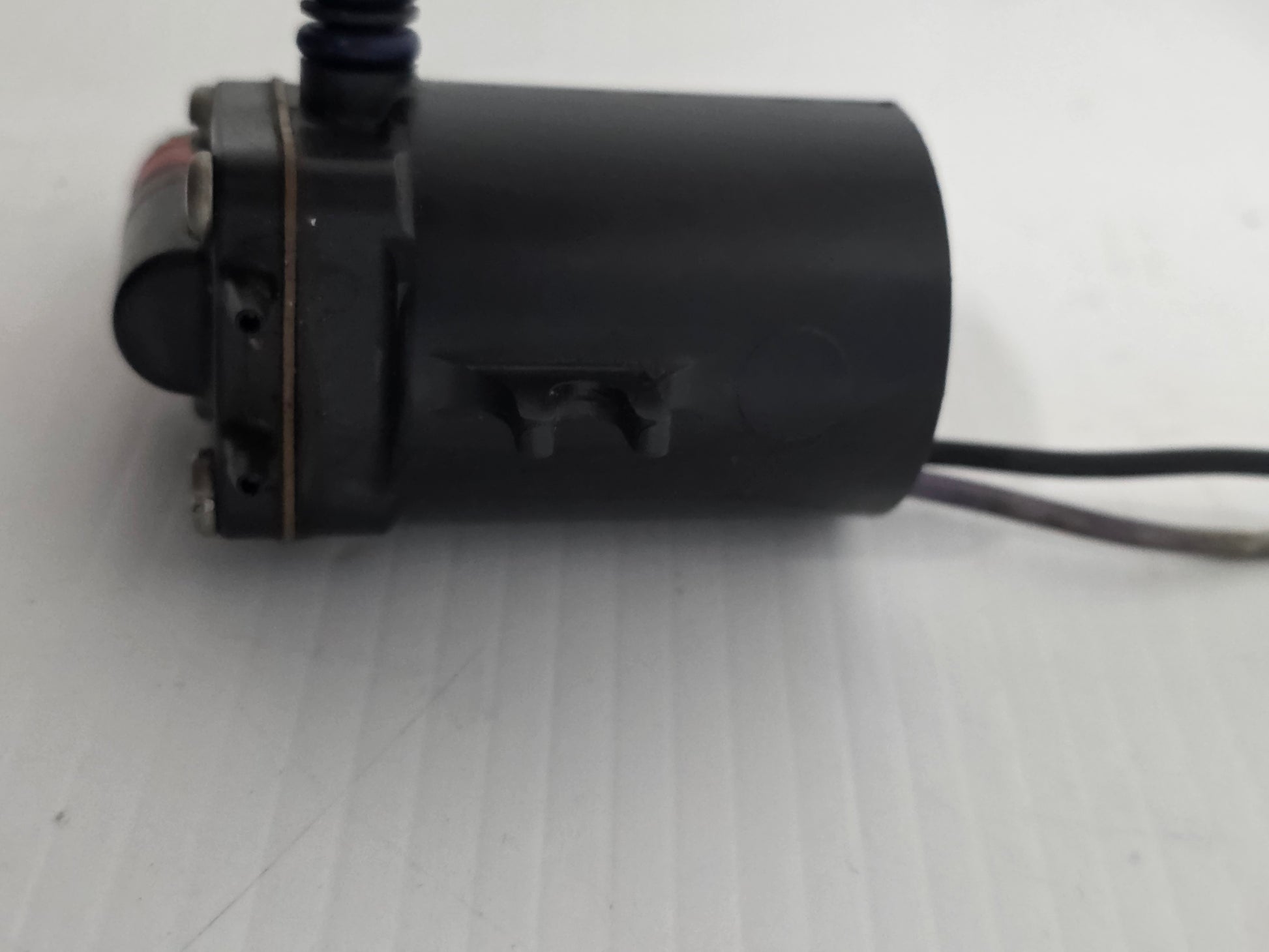

Genuine Johnson Evinrude Fuel Primer Solenoid - Part Number: 0437232

A genuine OMC / BRP electric primer solenoid fitted to selected carburetted Johnson and Evinrude V4 and V6 outboards.

When the ignition key is pushed during cranking, the solenoid delivers additional fuel directly to the intake system. This produces the rich fuel mixture required for reliable cold starting.

⚙️ Key Features

• Genuine Johnson / Evinrude primer solenoid
• Correct part number 0437232
• Electric push-to-prime operation
• Includes manual-primer override where fitted
• Designed for V4 and V6 carburetted fuel brackets

🚤 Compatibility

Commonly used on

• Johnson and Evinrude carburetted V4 and V6 outboards
• Fuel brackets with vapor-separator and VRO systems

Typically suits

• Engine models:
• Evinrude 90HP - selected 1995 and 1997 models
• Johnson / Evinrude 100HP and 105HP
• Johnson / Evinrude 115HP
• Johnson / Evinrude 150HP
• Johnson / Evinrude 175HP
• Carburetted Ocean Pro, Ocean Runner and Intruder models using 0437232
• HP Range: Approximately 90HP - 175HP
• Engine Type: Johnson / Evinrude carburetted V4 or V6 two-stroke outboard
• Year Range: Approximately 1991-2005, dependent on fuel-system configuration

🔌 Function

The solenoid opens when supplied with 12 volts from the push-to-prime ignition circuit. Pressurised fuel then flows through the primer hoses to the intake manifold or carburettor passages.

⚠️ Common Signs of Failure

• Engine is difficult to start from cold
• Primer clicks without delivering fuel
• Fuel leaks around the manual-primer valve
• Engine floods because the valve does not close
• Solenoid winding is open, shorted or intermittent

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0437232 → Supersedes 0433374
• 0433374 earlier primer-solenoid reference
• 0769409 related earlier assembly reference

OEM / Related Numbers

• 0437232
• 437232
• 0433374
• 433374
• 0769409
• 0175158 manual primer valve
• 0341071 primer cover
• 0331365 O-ring
• 0341297 mounting gasket
• 0511809 plunger

Aftermarket / Verified Equivalents

• The ROP Shop: 0437232 / 437232 replacement solenoid
• Sierra: 18-7044 service and valve kit
• Generic 0437232 complete primer solenoid
• Aftermarket manual valve, cap, O-ring and plunger kits

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
