0438047 5004635 Evinrude Johnson Brp 20" long shaft gearbox | Genuine Used Part

🔧 Product Description

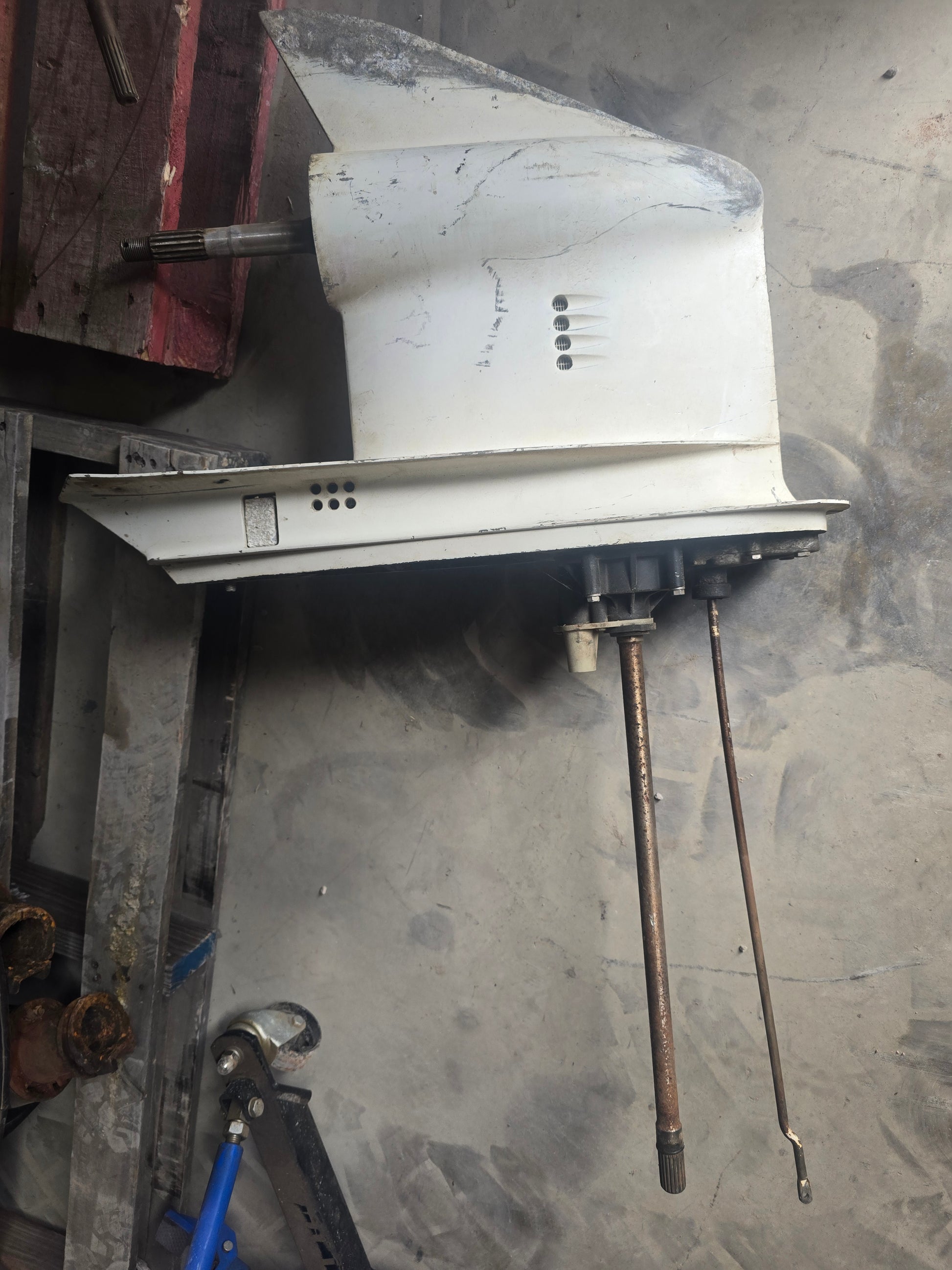

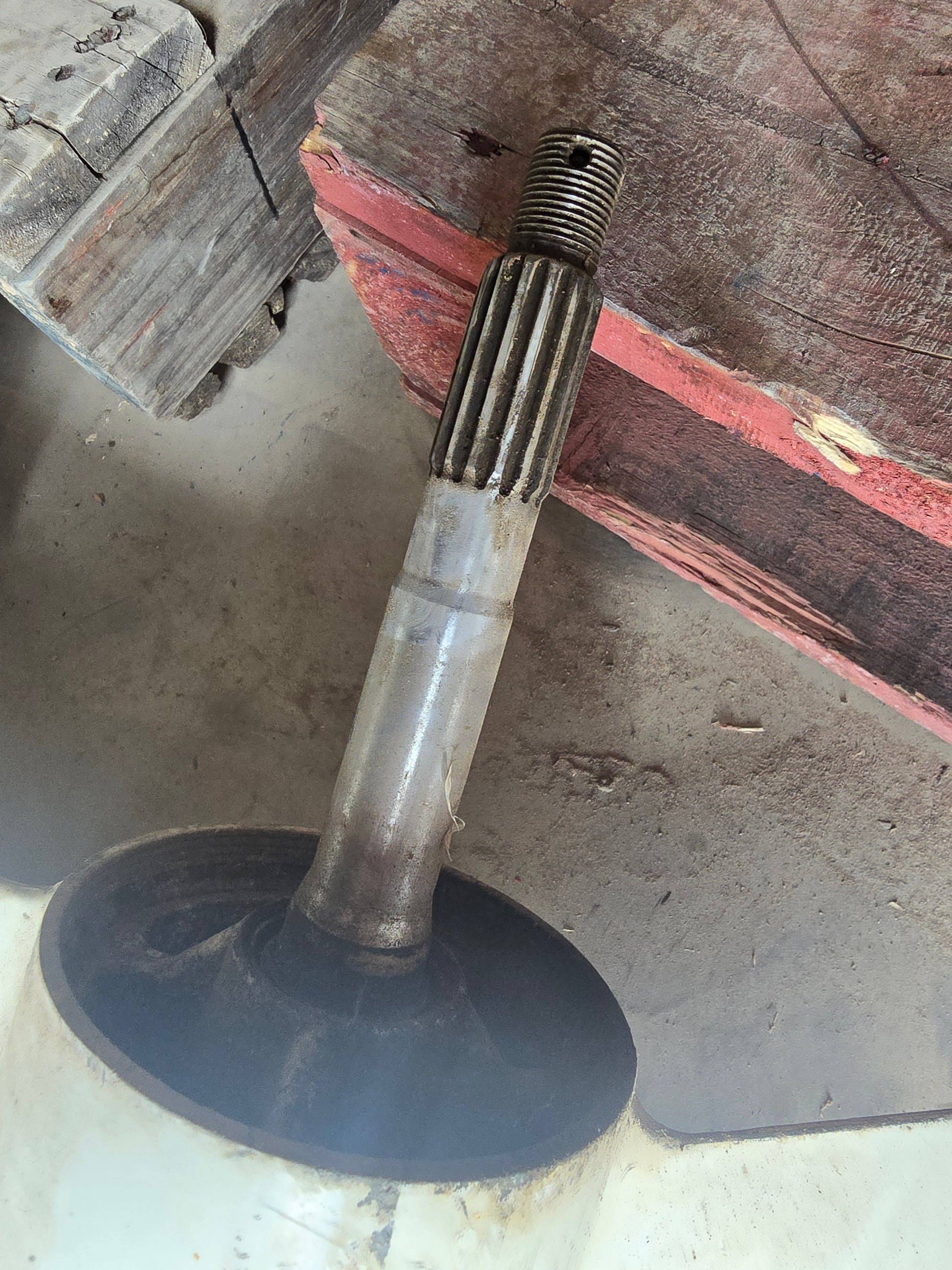

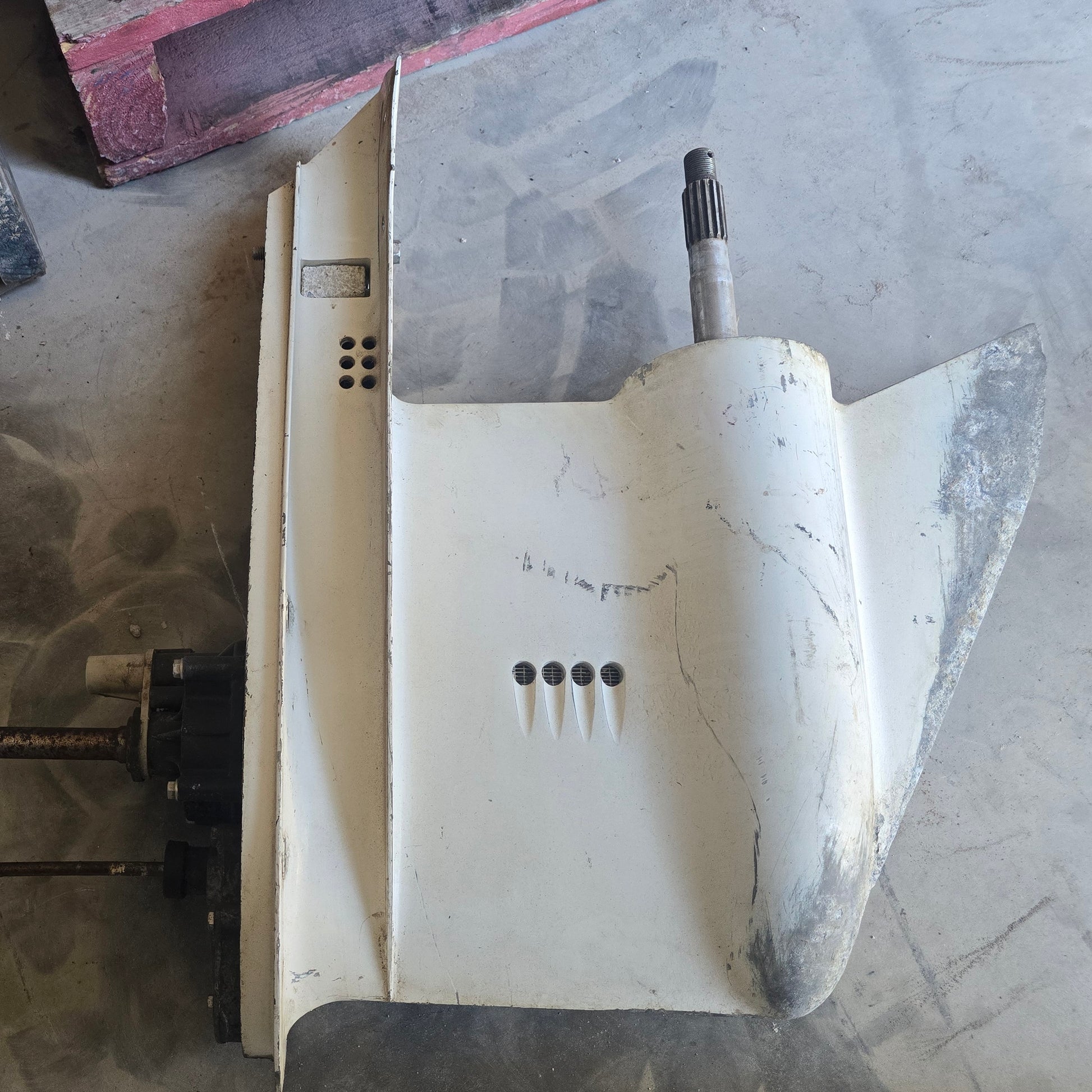

Genuine Johnson Evinrude V6 20-Inch Standard-Rotation Gearcase - Part Numbers: 0438047 / 5004635

A genuine OMC / BRP complete V6 lower unit for selected 150HP to 250HP Johnson and Evinrude two-stroke outboards.

Original complete assembly 0438047 was superseded by 5004635. The standard-rotation large "O"-type gearcase uses a heavy-duty 12:22 gear set with a 1.83:1 reduction ratio. The supplied unit is configured for a 20-inch transom.

⚙️ Key Features

• Genuine OMC / BRP complete V6 gearcase
• Original part number 0438047
• Replacement part number 5004635
• 20-inch long-shaft configuration as supplied
• Standard rotation
• Heavy-duty 12:22 gear set
• 1.83:1 reduction ratio
• Through-prop exhaust and mechanical shift

🚤 Compatibility

Documented on selected

• Johnson / Evinrude 150HP V6
• 175HP V6
• 200HP V6
• 225HP V6
• Selected 250HP V6
• 1994 Evinrude E150NXERV 20-inch standard-rotation model
• 1996 Evinrude 150HP families
• 1997 Evinrude 175 GL
• 2000 Evinrude 175 FPL / FL
• 2000 Johnson 200 PL / HPL
• 2000 Johnson 225 and selected Evinrude 250 models
• 2001 Johnson 200HP families
• V6 crossflow approximately 1979-1992
• 60-degree loopcharged V6 approximately 1991-2001
• 90-degree loopcharged V6 approximately 1986-2001
• Standard-rotation 20-inch models using the compatible upper driveshaft
• Shaft Length: 20 inch as supplied
• Gear Ratio: 1.83:1
• Gear Teeth: 12:22 heavy duty
• Rotation: Standard
• Fitment Requirement: Confirm upper driveshaft, speedometer pickup, water intake and model number

🔌 Function

The gearcase reduces engine speed by 1.83:1 and transmits torque through the clutch dog and bevel gears to the propeller shaft.

⚠️ Common Signs of Failure

• Gearcase jumps out of gear
• Gear oil contains water or metal particles
• Propeller shaft is bent
• Pinion or carrier bearings are noisy
• Driveshaft splines are worn
• Speedometer pickup or water intakes are blocked

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0438047 → Superseded by 5004635
• 0435477 related earlier V6 assembly on selected models
• 5001599 related later service assembly following BRP service revisions
• Verify the exact service-bulletin replacement by model before substituting

OEM / Related Numbers

• 0438047
• 438047
• 5004635
• 0435477
• 5001599
• 0438049 / 0439973 related gearcase and bearing housing references
• 5006373 related mechanical-shift seal kit
• GLM 22666 related heavy-duty gear set
• Related speedometer-pickup and water-intake components

Aftermarket / Verified Equivalents

• GLM 28710 complete V6 gearcase with speedometer pickup, replacing 5004635
• GLM 28810 complete V6 gearcase without speedometer pickup where the application permits
• GLM 22666 heavy-duty 12:22 gear set
• Professionally remanufactured 5004635 V6 lower units
• Aftermarket standard-rotation V6 1.83:1 lower units
• GLM 87600 / OEM 5006373 related V4 / V6 mechanical-shift seal kit

📦 Condition

• Genuine used complete gearcase
• Configured for a 20-inch shaft where stated
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Pressure, vacuum, rotation and gear-engagement testing is recommended
