0439209 BRP Carby Starboard | Genuine Used Part

🔧 Product Description

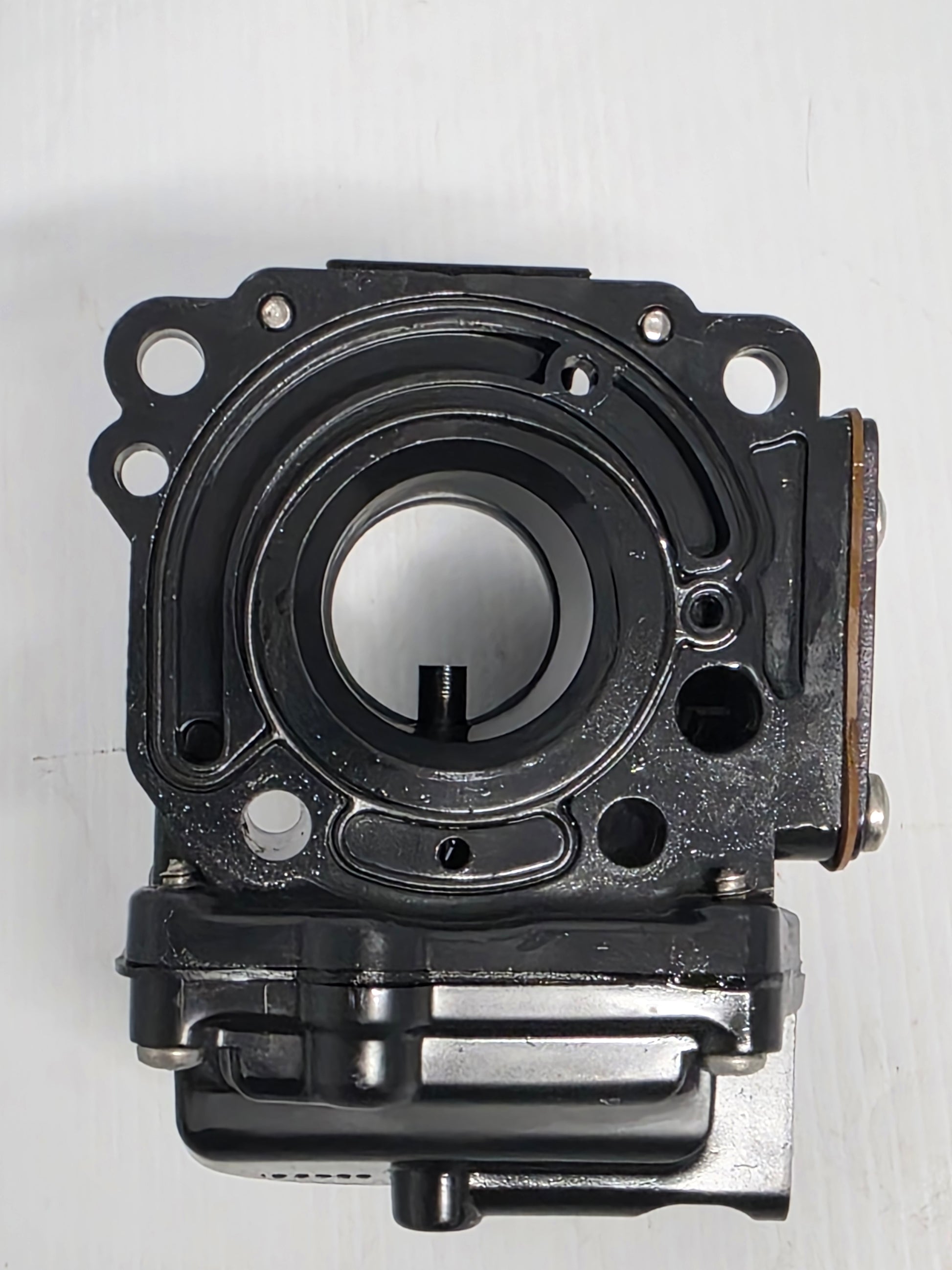

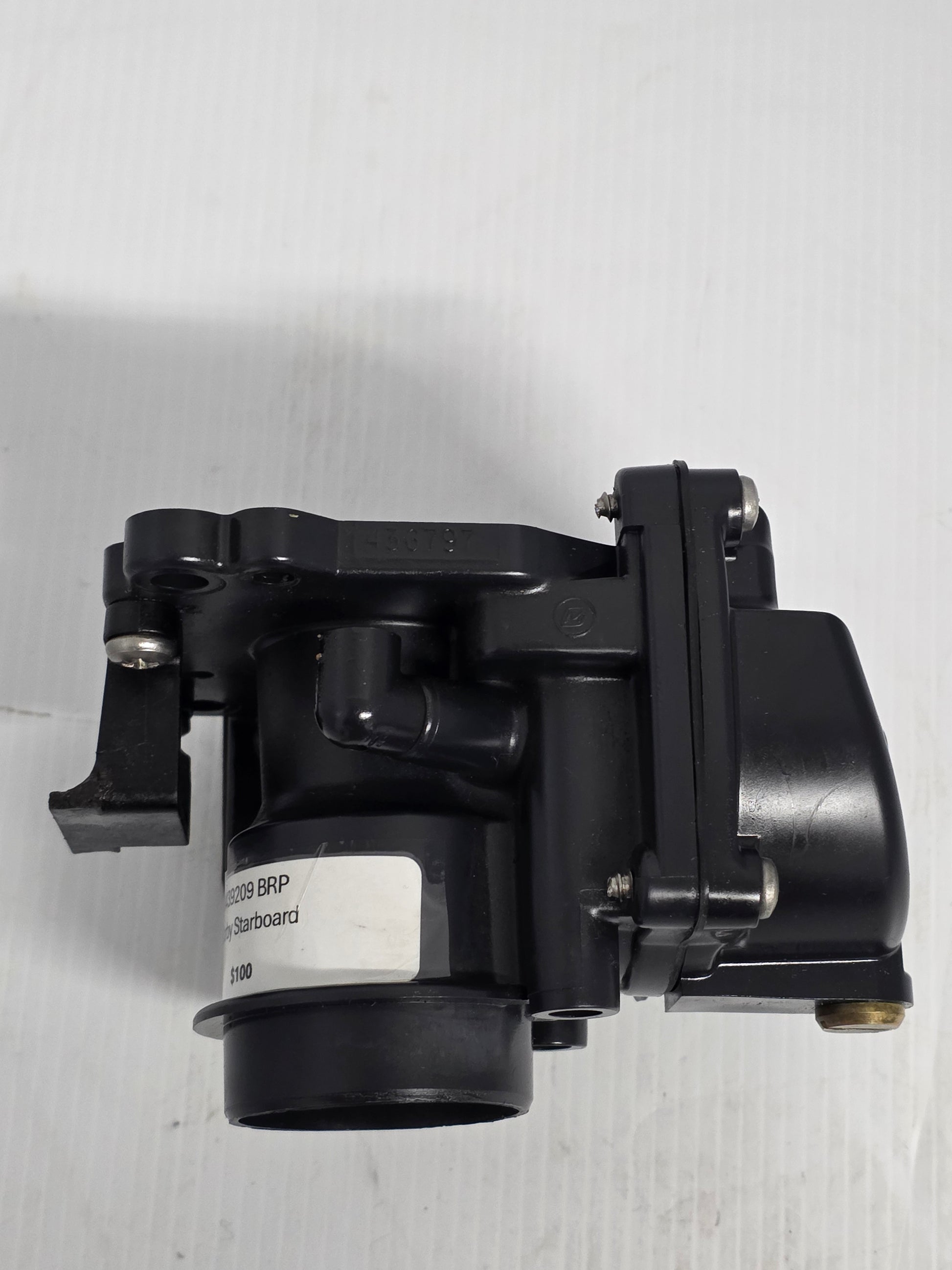

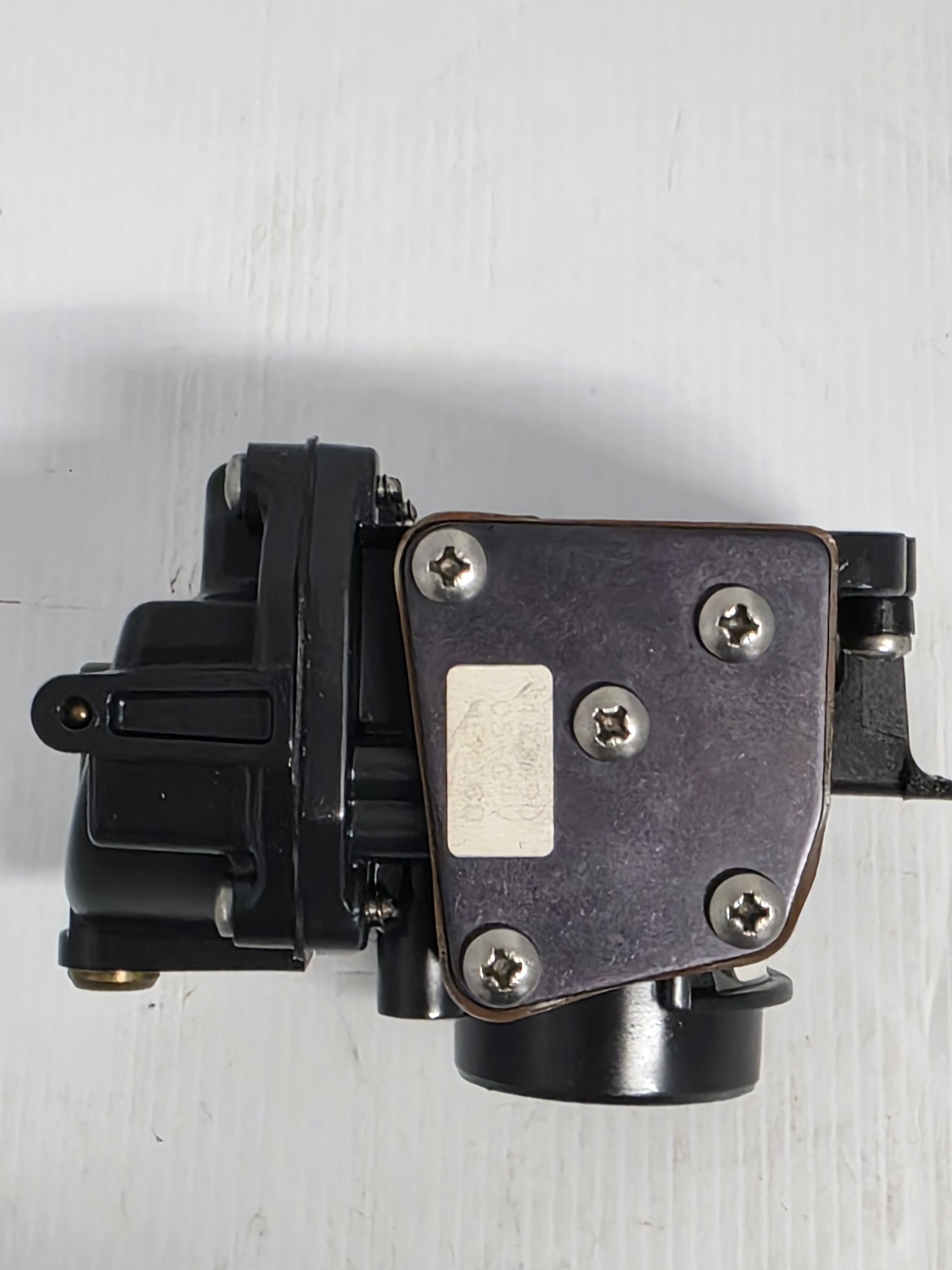

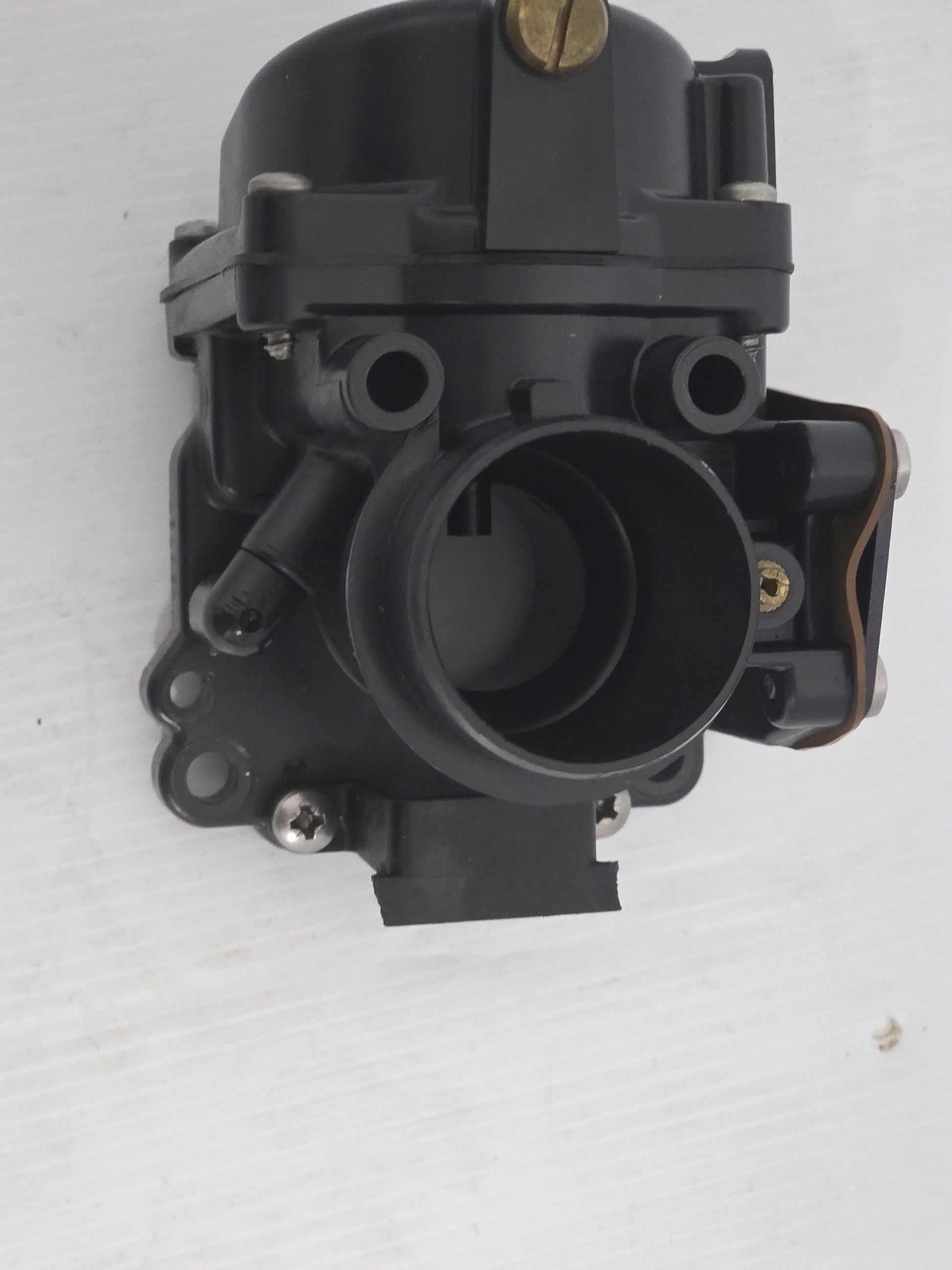

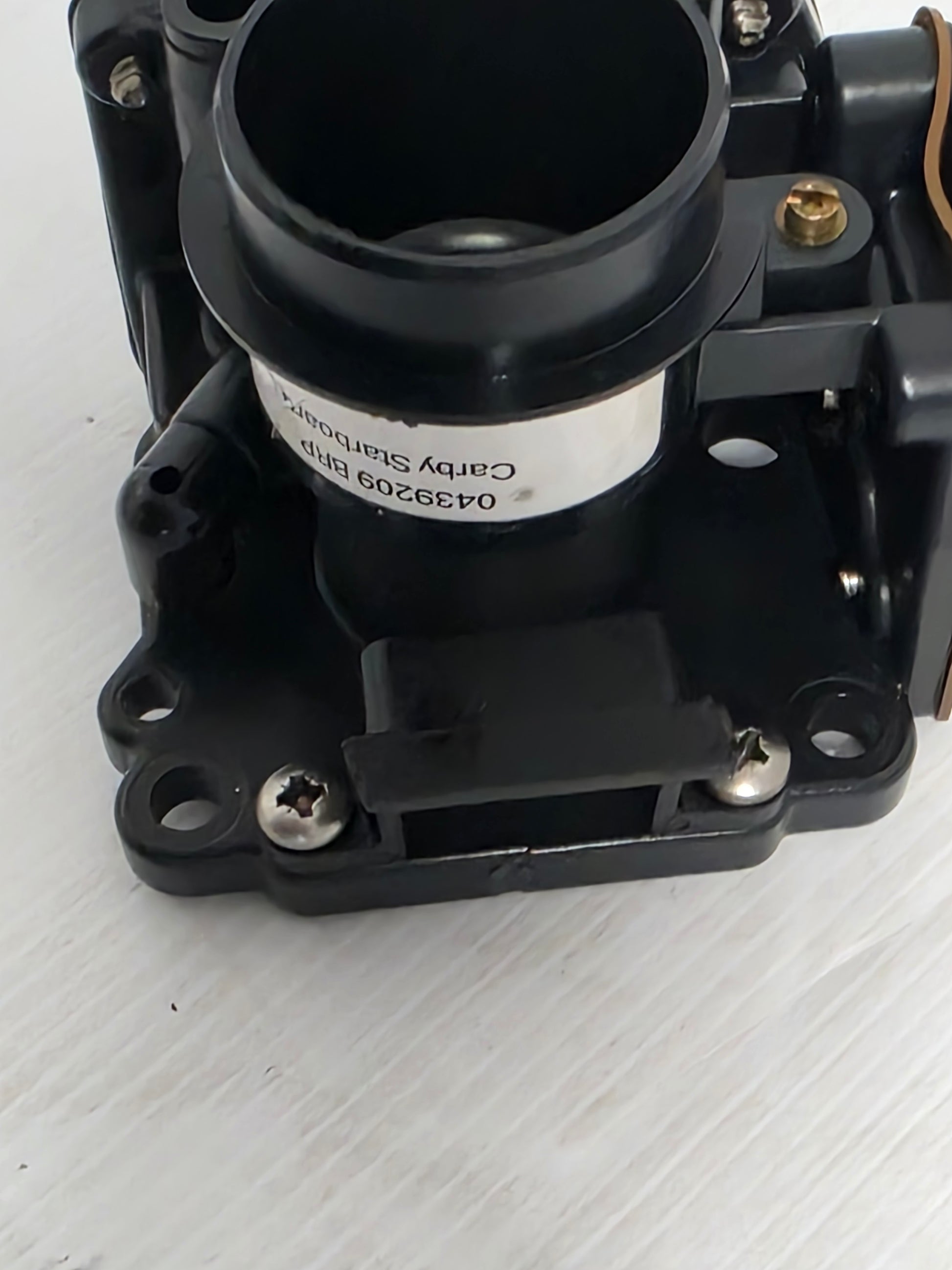

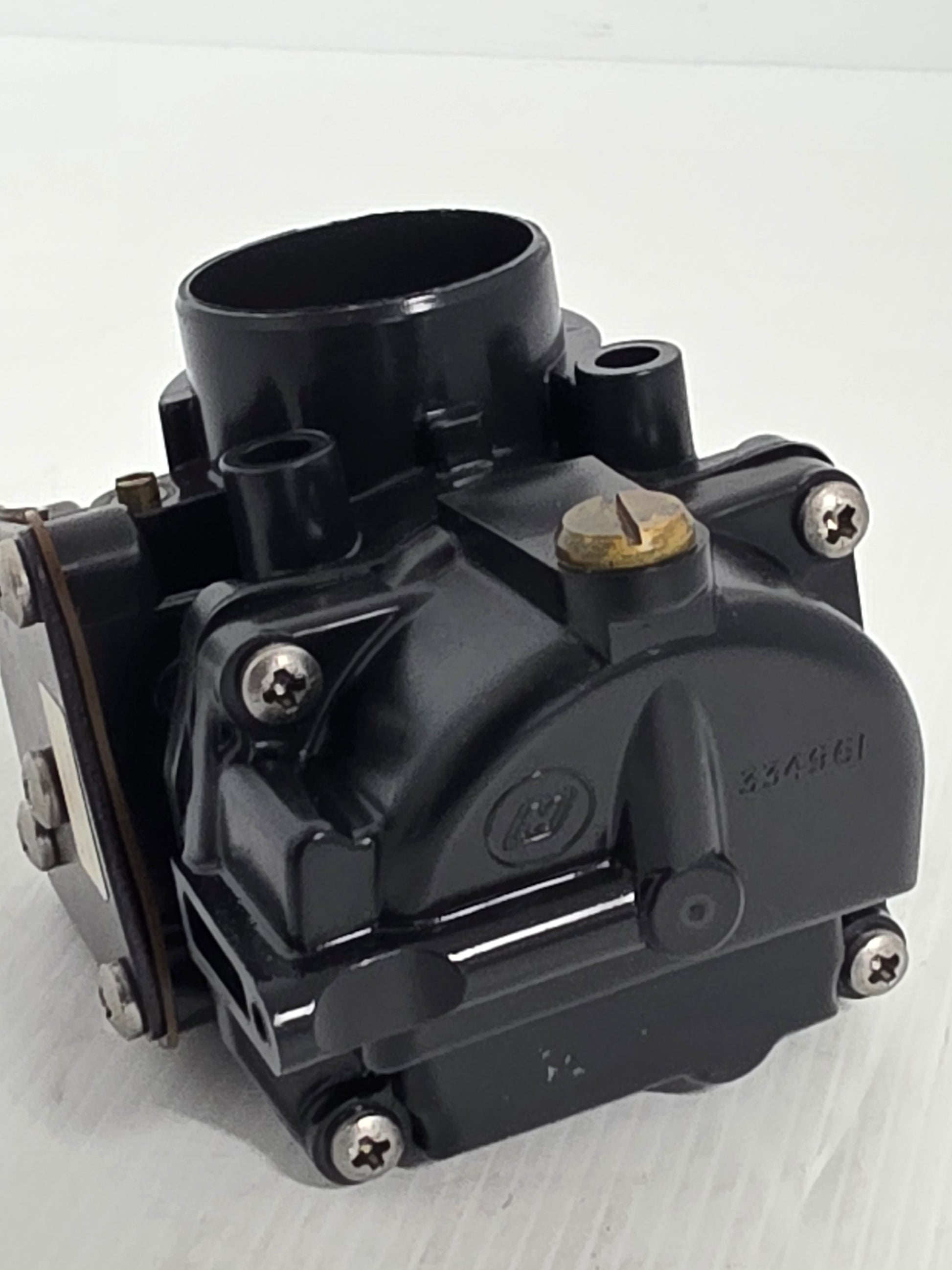

Genuine BRP / OMC Starboard Carburettor Assembly - Part Number: 0439209

A genuine starboard-side carburettor assembly for selected Johnson and Evinrude 60-degree V4 90HP, 105 Jet and 115HP two-stroke outboards.

The carburettor supplies the starboard cylinder bank and is calibrated to operate with matching port carburettor 0439208.

⚙️ Key Features

• Genuine BRP / OMC starboard carburettor
• Correct assembly part number 0439209
• Designed for 60-degree V4 intake systems
• Calibrated for the starboard cylinder bank
• Matching companion to port carburettor 0439208

🚤 Compatibility

Commonly used on

• Johnson and Evinrude 60-degree V4 starboard carburettor assemblies

Typically suits

• Engine models:
• 1997 Johnson / Evinrude 115HP V4
• 1998 Johnson / Evinrude 90HP V4
• 2000 Johnson / Evinrude 115HP V4
• 2001 Johnson / Evinrude 105 Jet V4
• 90HP, 105 Jet and 115HP 60-degree V4 engines using carburettor 0439209
• HP Range: 90HP - 115HP
• Engine Type: Johnson / Evinrude 60-degree V4 carburetted two-stroke outboard
• Year Range: Approximately 1997-2001, dependent on model

🔌 Function

The starboard carburettor meters and distributes the correct fuel-and-air mixture to the starboard cylinder bank. It must be synchronised with the port carburettor and ignition linkage.

⚠️ Common Signs of Failure

• Starboard cylinders run lean or rich
• Fuel leaks or carburettor flooding
• Engine idles unevenly between cylinder banks
• Acceleration hesitation or reduced full-throttle power
• Blocked jets, worn throttle shaft or incorrect float level

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0439209 current starboard carburettor assembly reference

OEM / Related Numbers

• 0439209
• 439209
• 438977 related carburettor-body reference
• 343870 casting reference
• 0439208 matching port carburettor

Aftermarket / Verified Equivalents

• Maximum Marine: remanufactured 0439209 carburettor
• Marine carburettor specialists: rebuilt starboard exchange assembly

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
