0581235 0763771 Evinrude Stator | Genuine Used Part

🔧 Product Description

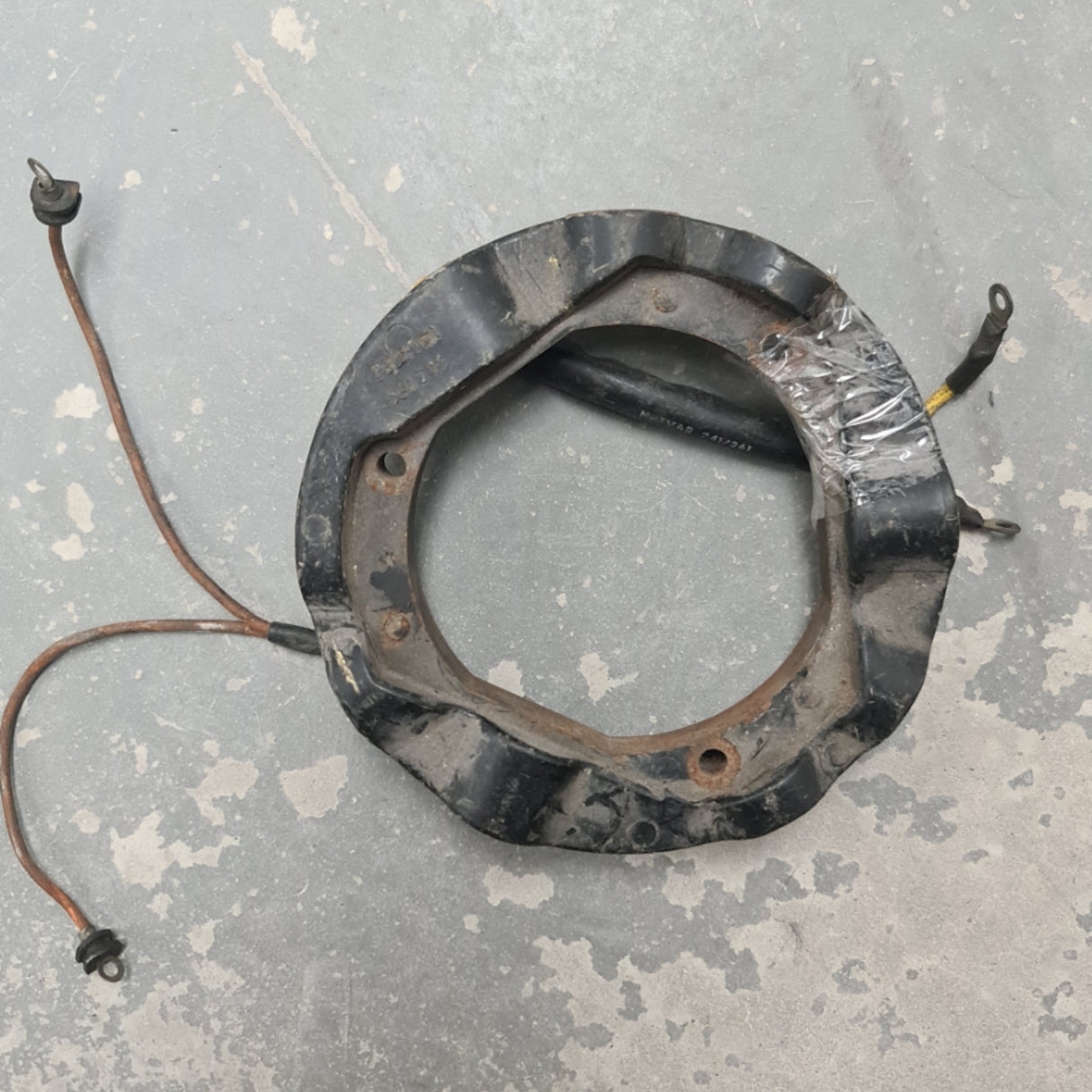

Genuine Evinrude Johnson 6 Amp Stator Assembly - Part Numbers: 0581235 / 0763771

A genuine Evinrude Johnson 6 amp stator assembly used on early 65HP, 70HP and 75HP three-cylinder Crossflow two-stroke outboards. This stator is used with screw-terminal power pack ignition systems and supplies both ignition charge output and alternator charging output.

⚙️ Key Features

• Genuine Evinrude Johnson stator assembly

• Correct OEM references 0581235 and 0763771

• 6 amp stator output

• Used on 3-cylinder 65HP, 70HP and 75HP Crossflow engines

• Also used in paired stator arrangements on selected early V6 Crossflow applications

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0763771 → Supersedes 0581235

• 0581235 → Related to earlier 0581301 / 0581114 / 0580950 references

• 0510839 earlier related OEM stator reference

OEM / Related Numbers:

• 0763771

• 763771

• 0581235

• 581235

• 0581301

• 581301

• 0581114

• 581114

• 0580950

• 580950

• 0510839

• 510839

Aftermarket / Verified Equivalents:

• CDI Electronics: 173-1235

• Sierra: 18-99235

• WSM / aftermarket reference: 173-1235

🚤 Compatibility

Commonly used on:

• Evinrude Johnson 3-cylinder Crossflow outboards

• Screw-terminal power pack ignition systems using the 0581235 / 0763771 6 amp stator family

Typically suits:

• Engine models:

• Evinrude 65HP 3-cylinder Crossflow - 1972-1973

• Johnson 65HP 3-cylinder Crossflow - 1972-1973

• Evinrude 70HP 3-cylinder Crossflow - 1973-1978

• Johnson 70HP 3-cylinder Crossflow - 1973-1978

• Evinrude 75HP 3-cylinder Crossflow - 1975-1976 and 1978

• Johnson 75HP 3-cylinder Crossflow - 1975-1976 and 1978

• Evinrude / Johnson 150HP V6 Crossflow - 1976-1978, paired stator installation where listed

• Evinrude / Johnson 175HP V6 Crossflow - 1976-1978, paired stator installation where listed

• Evinrude / Johnson 200HP V6 Crossflow - 1976-1978, paired stator installation where listed

• Evinrude / Johnson 235HP V6 Crossflow - 1976-1978, paired stator installation where listed

• HP Range: commonly 65HP - 75HP, plus selected 150HP - 235HP V6 paired-stator applications

• Engine Type: Evinrude Johnson 3-cylinder Crossflow two-stroke outboard; selected V6 Crossflow paired-stator systems

• Year Range: approximately 1972-1978

• Charging Output: 6 amp stator family

🔌 Function

The stator produces alternating current under the flywheel for ignition charge and battery charging. It works with the power pack, rectifier, timer base and ignition coils to support spark generation and electrical charging.

Common signs of failure:

• Weak or no spark

• Loss of spark on multiple cylinders

• Battery not charging

• Hard starting after warm-up

• Engine stalls when hot

• Stator winding insulation cracked, burnt or leaking resin

• Incorrect resistance or voltage output during stator testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
