0581366 511778 OMC Rectifier | Genuine Used Part

0581366 511778 OMC Rectifier | Genuine Used Part

$30.00 AUD
$30.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

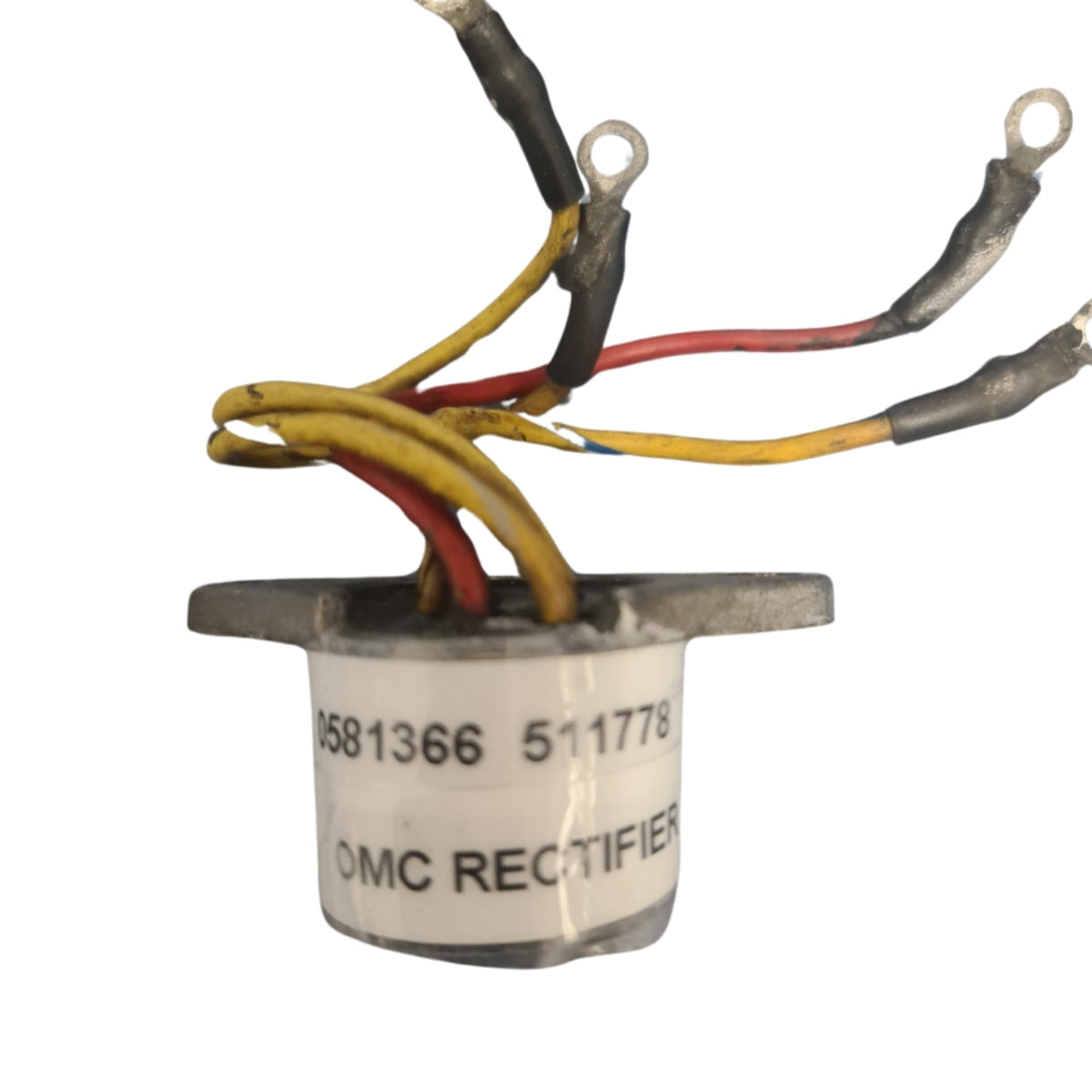

Genuine OMC / Johnson / Evinrude Rectifier Lead Assembly - Part Number: 0581366

A genuine OMC rectifier / lead assembly used on Johnson and Evinrude small to mid-range two-stroke electric-start outboards. This rectifier family is commonly associated with the 0581778 / 581778 current replacement reference and is used on 4HP to 60HP two-stroke charging systems.

⚙️ Key Features

  • Genuine OMC / Johnson / Evinrude rectifier assembly
  • Correct OEM reference 0581366
  • Supersedes into the 0581778 / 581778 rectifier-lead family
  • Used on small and mid-range two-stroke charging systems
  • Must be matched by charging system type and wiring connector layout

🚤 Compatibility

Commonly used on

  • Johnson / Evinrude electric-start two-stroke outboards
  • 4HP to 60HP two-stroke charging systems
  • 9.9HP to 60HP electric-start models using the 0581778 / 581778 rectifier family

Typically suits

  • Johnson / Evinrude 4HP to 60HP two-stroke outboards, 1974-2005
  • Johnson / Evinrude 9.9HP to 60HP electric-start outboards
  • Johnson / Evinrude 55HP two-cylinder 3.187 bore looper applications
  • Johnson / Evinrude 15HP electric-start applications including 1977 model listings
  • HP Range: 4HP / 9.9HP / 15HP / 55HP / 60HP
  • Engine Type: Johnson / Evinrude two-stroke outboard with rectifier charging system
  • Year Range: 1974-2005
  • Serial Note: OMC applications are model-year and model-number controlled; confirm by exact parts diagram and rectifier lead layout.

🔌 Function

The rectifier converts stator AC output into DC charging voltage so the battery and electrical system receive usable charging current.

⚠️ Common Signs of Failure

  • Battery not charging while engine is running
  • Overcharging or unstable battery voltage
  • Tachometer signal missing or erratic on systems using stator/rectifier tach feed
  • Burnt or melted rectifier wiring
  • Blown charging-system fuse
  • Corroded terminals or cracked housing
  • Electrical output changes after wiring is moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0581366 / 581366 to 0581778 / 581778

OEM / Related Numbers

  • 0581366
  • 581366
  • 0581778
  • 581778
  • 0582304
  • 0173692
  • Rectifier lead assembly
  • Rectifier / lead housing assembly

Aftermarket / Verified Equivalents

  • Recmar REC581778
  • ARCO AR104
  • CDI two-cylinder rectifier replacement listed against 581778

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
