• 0582574 0583668 Evinrude Stator | Genuine Used Part
1 1

0582574 0583668 Evinrude Stator | Genuine Used Part

0582574 0583668 Evinrude Stator | Genuine Used Part

$74.00 USD
$147.00 USD $74.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

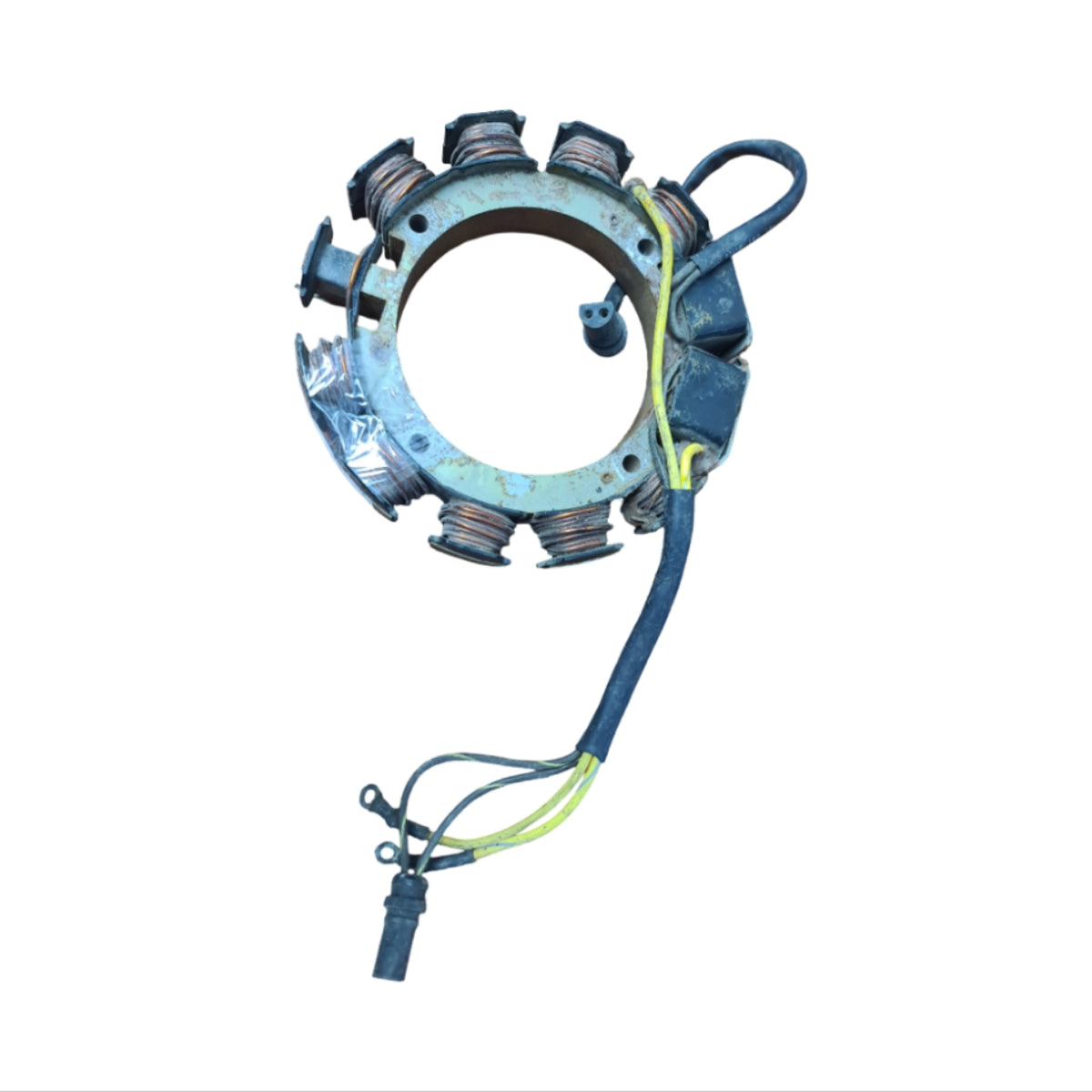

Genuine Evinrude Johnson 35 Amp V6 Stator Assembly - Part Numbers: 0582574 / 0583668

A genuine Evinrude Johnson 35 amp stator assembly used on V6 Crossflow two-stroke outboards without QuickStart. This stator supplies high-output charging current and ignition charge output on 150HP, 155HP, 175HP, 185HP and 235HP V6 Crossflow engines from the mid-to-late 1980s.

⚙️ Key Features

  • Genuine Evinrude Johnson stator assembly
  • Correct OEM references 0582574 and 0583668
  • 35 amp V6 stator output
  • Used on V6 Crossflow engines without QuickStart
  • Supports ignition charge and high-output battery charging systems

🚤 Compatibility

Commonly used on

  • Evinrude Johnson V6 Crossflow charging and ignition systems
  • 35 amp V6 engines without QuickStart using the 0582574 / 0583668 stator family

Typically suits

  • Engine models:
  • Evinrude 150HP V6 Crossflow without QuickStart - 1984-1988
  • Johnson 150HP V6 Crossflow without QuickStart - 1984-1988
  • Evinrude 155HP V6 Crossflow without QuickStart - 1984-1988
  • Johnson 155HP V6 Crossflow without QuickStart - 1984-1988
  • Evinrude 175HP V6 Crossflow without QuickStart - 1984-1988
  • Johnson 175HP V6 Crossflow without QuickStart - 1984-1988
  • Evinrude 185HP V6 Crossflow without QuickStart - 1984-1988
  • Johnson 185HP V6 Crossflow without QuickStart - 1984-1988
  • Evinrude 235HP V6 Crossflow without QuickStart - 1984-1988
  • Johnson 235HP V6 Crossflow without QuickStart - 1984-1988
  • HP Range: 150HP - 235HP
  • Engine Type: Evinrude Johnson V6 two-stroke Crossflow outboard
  • Year Range: approximately 1984-1988
  • Charging Output: 35 amp stator family
  • Ignition Type: Crossflow ignition system without QuickStart

🔌 Function

The stator generates charging current for the battery system and ignition charge voltage for the power packs. On 35 amp V6 systems, the stator is a critical component for maintaining both spark strength and charging performance.

⚠️ Common Signs of Failure

  • Weak spark or intermittent spark
  • Battery not charging under load
  • Tachometer signal issues when charging output is unstable
  • Engine misfire at higher RPM
  • Hot no-start condition
  • Melted epoxy or burnt stator windings
  • Charging voltage outside specification
  • Power pack input voltage below specification during cranking

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0583668 → Supersedes 0583274 / 0583050 / 0582574
  • 0583274 related earlier OEM stator reference
  • 0583050 related earlier OEM stator reference
  • 0582574 earlier OEM stator reference

OEM / Related Numbers

  • 0583668
  • 583668
  • 0583274
  • 583274
  • 0583050
  • 583050
  • 0582574
  • 582574
  • 0763785
  • 763785

Aftermarket / Verified Equivalents

  • CDI Electronics: 173-3668
  • CDI Electronics: 173-3050
  • Sierra: 18-5868
  • Recmar / aftermarket reference: REC0583668

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
