0583289 0763776 BRP Timer Base Trigger | Genuine Used Part

🔧 Product Description

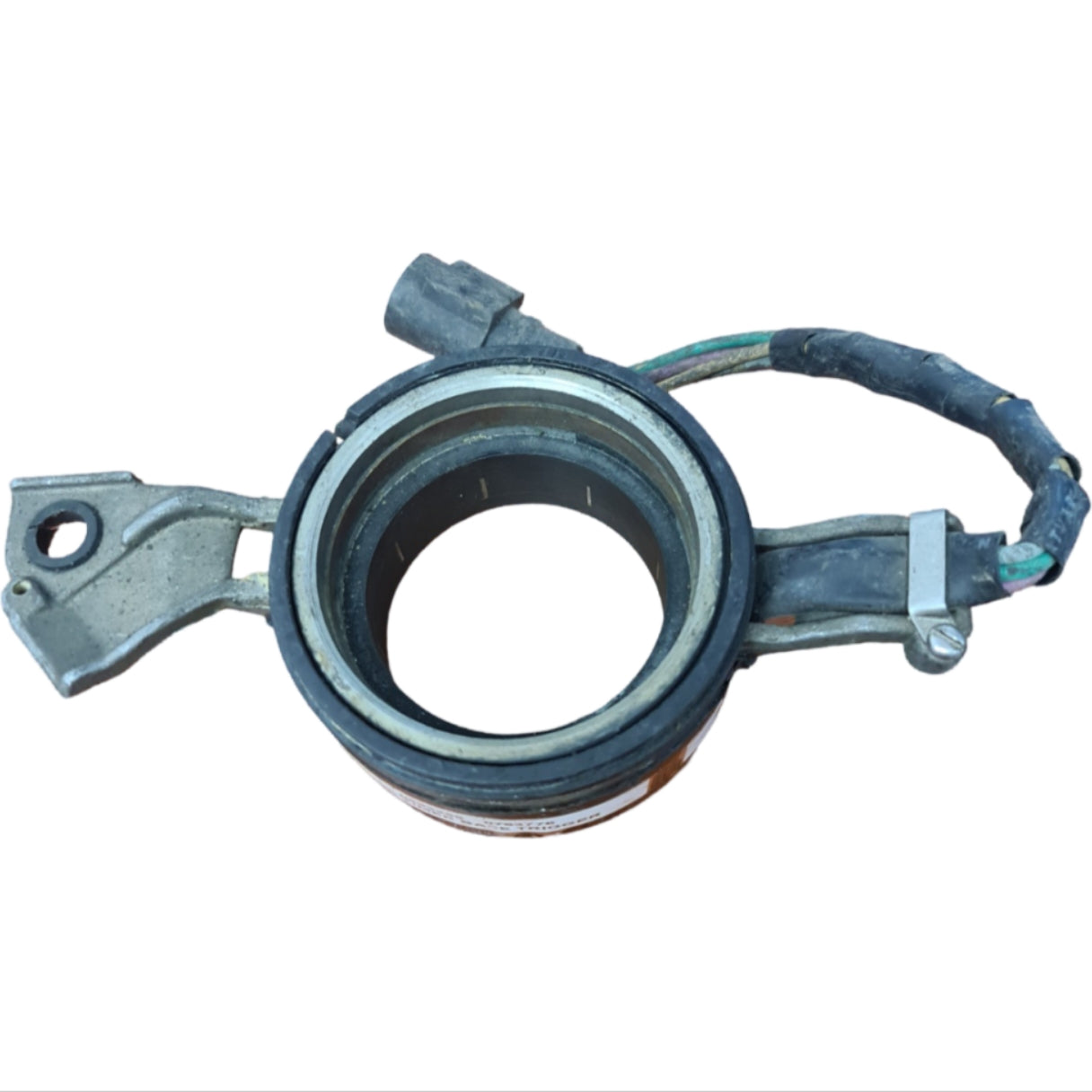

Genuine Used Evinrude Johnson V4 Timer Base and Sensor Assembly - Part Numbers: 0583289 and 0763776

A genuine pre-owned OMC, Evinrude and Johnson four-cylinder timer-base assembly for selected V4 cross-flow two-stroke outboards.

Part number 0583289 belongs to the timer-base family now serviced under BRP number 0763776. The assembly contains the ignition-trigger sensors and rotates with the spark-advance linkage to coordinate ignition timing with throttle opening.

⚙️ Key Features

• Genuine OMC, Evinrude and Johnson used timer base

• Earlier OEM reference 0583289

• Current BRP service reference 0763776

• Four-cylinder V4 ignition-trigger configuration

• Suitable for selected 85HP to 140HP cross-flow engines

• CDI Electronics replacement 133-3379 available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0582514 - Earlier timer-base reference

• 0583045 - Earlier timer-base and sensor assembly

• 0583289 - Later OEM assembly reference

• 0583379 - Related later timer-base reference

• 0763776 - Current BRP timer-base assembly

OEM / Related Numbers:

• 0583289

• 583289

• 0583379

• 583379

• 0763776

• 763776

• 0583045

• 583045

• 0582514

• 582514

• Alternate aftermarket catalogue reference: 0425-0289

• Alternate aftermarket catalogue reference: 64-6603

Aftermarket / Verified Equivalents:

• CDI Electronics: 133-3379

• Aftermarket V4 timer base replacing 0583289

• Aftermarket V4 timer base replacing 0583379

• Aftermarket timer base replacing 0763776

🚤 Compatibility

Commonly used on:

• Evinrude V4 cross-flow outboards

• Johnson V4 cross-flow outboards

• Four-cylinder capacitor-discharge ignition systems

• Engines using a rotating timer base and mechanical spark-advance linkage

Typically suits selected:

• 85HP outboards

• 88HP outboards

• 90HP outboards

• 100HP outboards

• 110HP outboards

• 112HP outboards

• 115HP outboards

• 120HP outboards

• 140HP outboards

Representative application periods:

• 120HP and 140HP: Selected 1985-1987 applications

• 88HP, 90HP, 100HP and 110HP: Selected 1988 applications

• 85HP, 88HP, 90HP, 100HP, 112HP and 115HP: Selected 1989-1997 applications

• Broader aftermarket family: Approximately 1985-1998

Important fitment note:

• This timer-base family was fitted to several V4 ignition configurations.

• Confirm the original part number, connector, wire count and mounting arrangement.

• Do not interchange it with the later 0583508 / 0763782 loop-charged Quick Start timer base.

• The flywheel, stator, power pack and timing linkage are included only when shown or stated.

🔌 Function

The trigger coils inside the timer base generate timed electrical pulses that identify crankshaft position.

The power pack uses those pulses to discharge the ignition coils. Rotation of the timer-base assembly advances or retards spark timing as the throttle linkage moves.

Common signs of failure:

• Loss of spark on one or more cylinders

• Intermittent misfire

• Spark fails when the engine becomes warm

• Backfiring or difficult starting

• Incorrect ignition timing

• Engine will not reach full advance

• Trigger resistance or output is outside specification

• Damaged wires or corroded connector terminals

• Timer-base bearing binds or has excessive movement

Recommended checks before installation:

• Match the wiring connector and wire colours

• Measure trigger resistance and peak output

• Inspect the timer-base bearing and retaining ring

• Confirm free spark-advance movement

• Check the power pack, stator and ignition coils

• Inspect the flywheel key and timer-base magnets

• Set maximum timing and throttle synchronisation to the correct engine specification

📦 Condition

• Genuine OMC, Evinrude or Johnson used part

• Pre-owned electrical component

• Cosmetic marks, light corrosion and wire ageing may be present

• Electrical testing before installation is strongly recommended

• Included components are limited to those shown or described

• Supplied in protective or equivalent packaging
