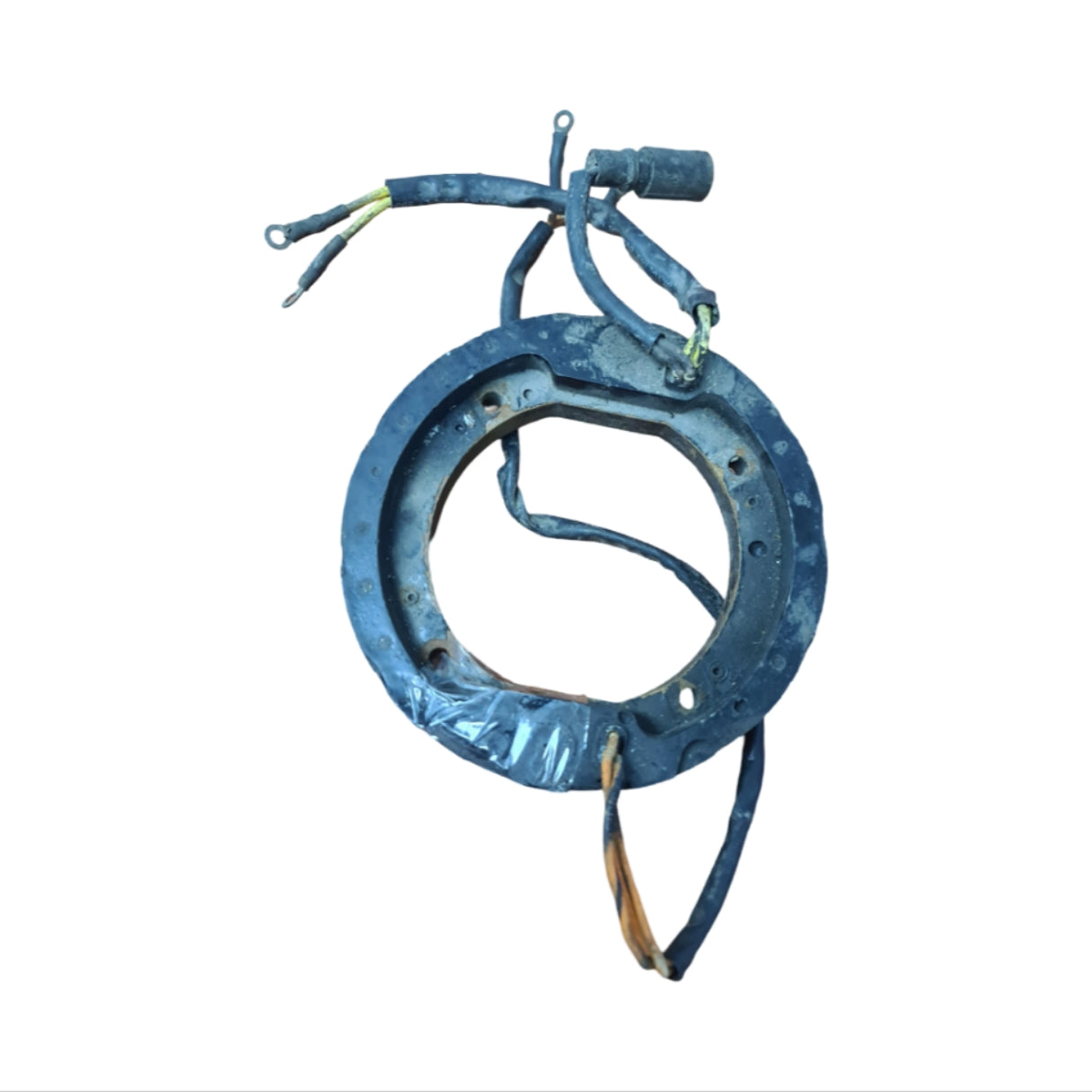

0583410 0763769 Evinrude Stator | Genuine Used Part

0583410 0763769 Evinrude Stator | Genuine Used Part

$150.00 AUD
$150.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

Genuine Evinrude Johnson V4 Looper 9 Amp Stator Assembly - Part Numbers: 0583410 / 0763769

A genuine Evinrude Johnson 9 amp stator assembly used on V4 Loop Charged two-stroke outboards with QuickStart and S.L.O.W. ignition systems. This stator is commonly used on 120HP, 125HP, 130HP, 135HP and 140HP V4 Looper engines from 1988 through 2001.

⚙️ Key Features

  • Genuine Evinrude Johnson stator assembly
  • Correct OEM references 0583410 and 0763769
  • 9 amp V4 Looper stator family
  • Used on Loop Charged engines with QuickStart and S.L.O.W.
  • Supports ignition charge and battery charging output

🚤 Compatibility

Commonly used on

  • Evinrude Johnson V4 Loop Charged two-stroke outboards
  • QuickStart and S.L.O.W. ignition systems using stator 0583410 / 0763769

Typically suits

  • Engine models:
  • Evinrude 120HP V4 Looper - 1988-2001
  • Johnson 120HP V4 Looper - 1988-2001
  • Evinrude 125HP V4 Looper - 1988-2001
  • Johnson 125HP V4 Looper - 1988-2001
  • Evinrude 130HP V4 Looper - 1988-2001
  • Johnson 130HP V4 Looper - 1988-2001
  • Evinrude 135HP V4 Looper - 1988-2001
  • Johnson 135HP V4 Looper - 1988-2001
  • Evinrude 140HP V4 Looper - 1988-2001
  • Johnson 140HP V4 Looper - 1988-2001
  • HP Range: 120HP - 140HP
  • Engine Type: Evinrude Johnson V4 Loop Charged two-stroke outboard
  • Year Range: approximately 1988-2001
  • Charging Output: 9 amp stator family
  • Ignition Type: QuickStart and S.L.O.W. ignition system

🔌 Function

The stator produces ignition charge voltage and charging output beneath the flywheel. It works with the timer base, power pack, regulator / rectifier and ignition coils to maintain spark and battery charging.

⚠️ Common Signs of Failure

  • Weak or missing spark
  • Engine stuck in S.L.O.W. mode due to ignition-side faults
  • Hard starting or poor cold start behaviour
  • Battery not charging
  • Misfire under throttle
  • Engine cuts out after warm-up
  • Burnt stator windings or cracked stator insulation
  • Incorrect DVA or resistance readings during testing

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0763769 → Supersedes 0583410
  • 0583410 earlier OEM stator assembly reference

OEM / Related Numbers

  • 0763769
  • 763769
  • 0583410
  • 583410

Aftermarket / Verified Equivalents

  • CDI Electronics: 173-3410
  • Aftermarket reference: 173-3410
  • WSM / aftermarket reference: 173-3410

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
