0583508 0763782 BRP Timer Base Trigger | Genuine Used Part

🔧 Product Description

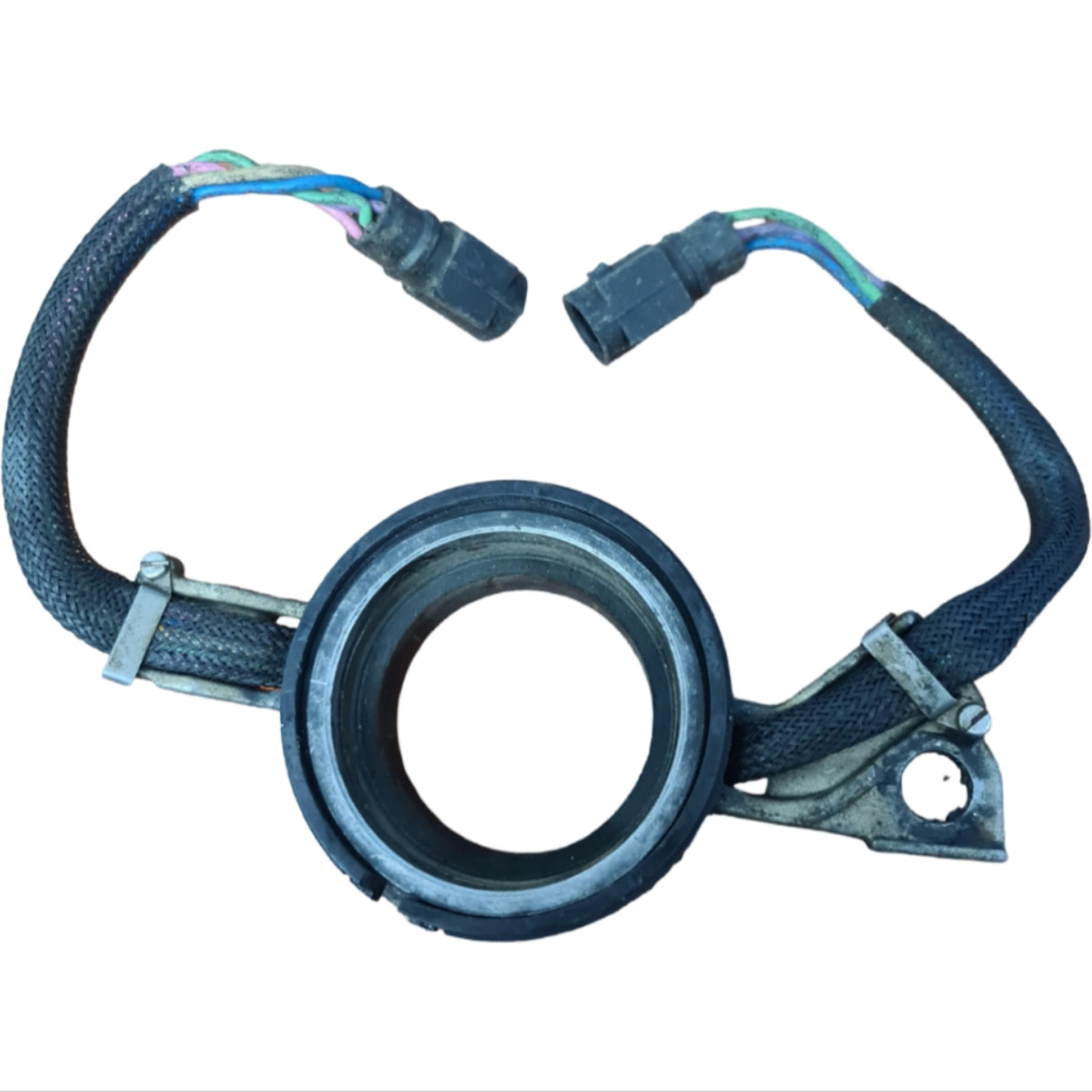

Genuine Used Evinrude Johnson Four-Cylinder Looper Timer Base - Part Numbers: 0583508 and 0763782

A genuine pre-owned BRP, OMC, Evinrude and Johnson timer-base and sensor assembly for selected 120HP to 140HP loop-charged V4 outboards.

Part number 0583508 is replaced by BRP service timer base 0763782. This timer-base family is designed for compatible engines using the Quick Start warm-up timing function and S.L.O.W. engine-protection system.

⚙️ Key Features

• Genuine BRP, OMC, Evinrude and Johnson used timer base

• Original OEM reference 0583508

• Current service reference 0763782

• Four-cylinder loop-charged ignition configuration

• Compatible with applicable Quick Start and S.L.O.W. systems

• CDI Electronics replacement 133-3508 available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0583508 - Original timer-base and sensor assembly

• 0763782 - Later BRP service timer-base assembly

OEM / Related Numbers:

• 0583508

• 583508

• 0763782

• 763782

• Related later service reference: 0778479

• Product Type: Four-cylinder timer base and sensor

Aftermarket / Verified Equivalents:

• CDI Electronics: 133-3508

• Aftermarket timer base replacing 0583508

• Aftermarket timer base replacing 0763782

• Marine Parts Distributors: 133-3508-series replacement

🚤 Compatibility

Commonly used on:

• Evinrude loop-charged V4 outboards

• Johnson loop-charged V4 outboards

• Quick Start ignition systems

• Engines equipped with S.L.O.W. over-temperature protection

Typically suits selected 1988-2001:

• 120HP

• 125HP

• 130HP

• 135HP

• 140HP

• Engine Configuration: Four-cylinder loop-charged two-stroke

• Bore Family: Approximately 3.500-inch V4 looper

• Ignition Features: Quick Start and S.L.O.W. where specified

Important fitment note:

• Do not confuse this assembly with the earlier V4 cross-flow timer bases.

• Confirm the engine model, year, wiring connectors and presence of Quick Start.

• Different power packs and timer bases may use similar connector arrangements but are not automatically interchangeable.

🔌 Function

The timer base generates crankshaft-position signals and sends them to the power pack.

It also provides the timing information required by the Quick Start system and rotates with the spark-advance linkage as the throttle is opened.

Common signs of failure:

• No spark on one or more cylinders

• Intermittent spark loss

• Quick Start timing does not operate correctly

• Engine remains excessively advanced after warm-up

• S.L.O.W.-related ignition symptoms

• Misfire during acceleration

• Engine will not reach rated rpm

• Trigger resistance or output is outside specification

• Damaged wires or connector terminals

Recommended checks before installation:

• Confirm the 0583508 / 0763782 interchange

• Compare connector pin counts and wire colours

• Test trigger resistance and output

• Check the power pack and temperature-sensor circuits

• Inspect the timer-base bearing and linkage

• Set idle timing and maximum timing after installation

📦 Condition

• Genuine BRP, OMC, Evinrude or Johnson used part

• Pre-owned electrical component

• Cosmetic marks, wire ageing and light oxidation may be present

• Electrical testing before installation is strongly recommended

• Included components are limited to those shown or described

• Supplied in protective or equivalent packaging
