0583710 0763764 Johnson Evinrude Stator | Genuine Used Part

🔧 Product Description

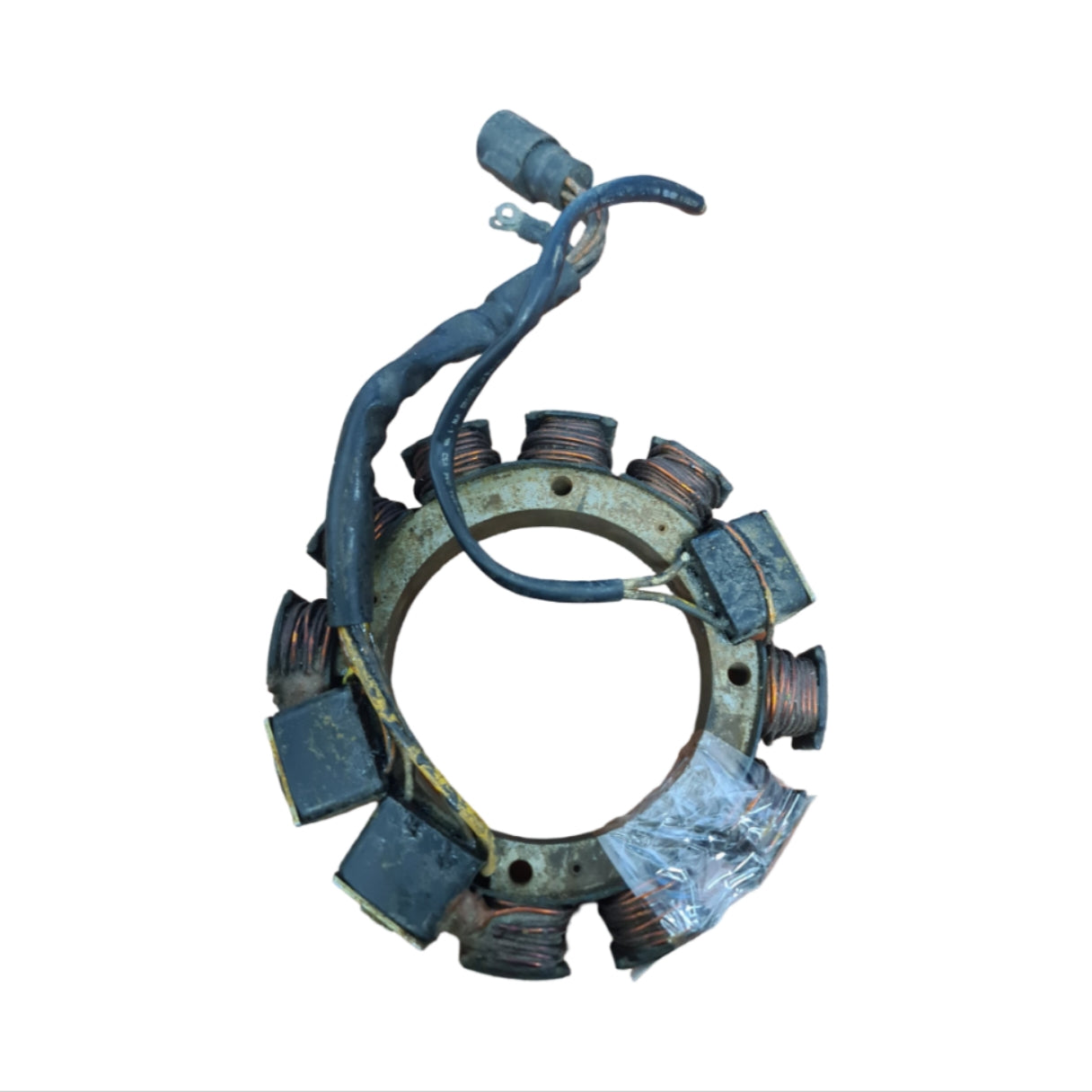

Genuine Johnson Evinrude V6 Crossflow 35 Amp Stator Assembly - Part Numbers: 0583710 / 0763764

A genuine Johnson Evinrude 35 amp stator assembly used on V6 Crossflow two-stroke engines with QuickStart and S.L.O.W. ignition systems. This stator is commonly used on 150HP, 155HP and 175HP V6 Crossflow engines from 1989 through 1992.

⚙️ Key Features

• Genuine Johnson Evinrude stator assembly

• Correct OEM references 0583710 and 0763764

• 35 amp V6 stator family

• Used on Crossflow engines with QuickStart and S.L.O.W.

• Supports ignition charge output and high-output battery charging

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0763764 → Supersedes 0584292 / 0583710

• 0584292 related later OEM stator reference

• 0583710 earlier OEM stator assembly reference

OEM / Related Numbers:

• 0763764

• 763764

• 0584292

• 584292

• 0583710

• 583710

Aftermarket / Verified Equivalents:

• CDI Electronics: 173-4292

• Sierra / aftermarket reference: 18-5869 style 35 amp V6 QuickStart stator family

• Aftermarket reference: 173-4292

🚤 Compatibility

Commonly used on:

• Johnson Evinrude V6 Crossflow two-stroke outboards

• QuickStart and S.L.O.W. ignition systems using the 0583710 / 0763764 35 amp stator family

Typically suits:

• Engine models:

• Johnson 150HP V6 Crossflow with QuickStart - 1989-1992

• Evinrude 150HP V6 Crossflow with QuickStart - 1989-1992

• Johnson 155HP V6 Crossflow with QuickStart - 1989-1992

• Evinrude 155HP V6 Crossflow with QuickStart - 1989-1992

• Johnson 175HP V6 Crossflow with QuickStart - 1989-1992

• Evinrude 175HP V6 Crossflow with QuickStart - 1989-1992

• Johnson / Evinrude 6-cylinder 3.500 bore Crossflow 150HP applications using 0583710 / 0763764

• Johnson / Evinrude 6-cylinder 3.500 bore Crossflow 155HP applications using 0583710 / 0763764

• Johnson / Evinrude 6-cylinder 3.625 big-bore Crossflow 175HP applications using 0583710 / 0763764

• HP Range: 150HP - 175HP

• Engine Type: Johnson Evinrude V6 two-stroke Crossflow outboard

• Year Range: approximately 1989-1992

• Charging Output: 35 amp stator family

• Ignition Type: QuickStart and S.L.O.W. ignition system

🔌 Function

The stator generates charging current and ignition charge voltage beneath the flywheel. On QuickStart V6 systems, correct stator output is essential for reliable spark, stable charging voltage and proper ignition-system operation.

Common signs of failure:

• Weak or missing spark

• Engine difficult to start hot or cold

• QuickStart operation inconsistent

• Battery not charging

• Tachometer drop-out or unstable charging output

• Engine misfire under load

• Melted stator potting or burnt windings

• Failed voltage output test during cranking or running

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
