0583779 0763762 Evinrude Stator | Genuine Used Part

🔧 Product Description

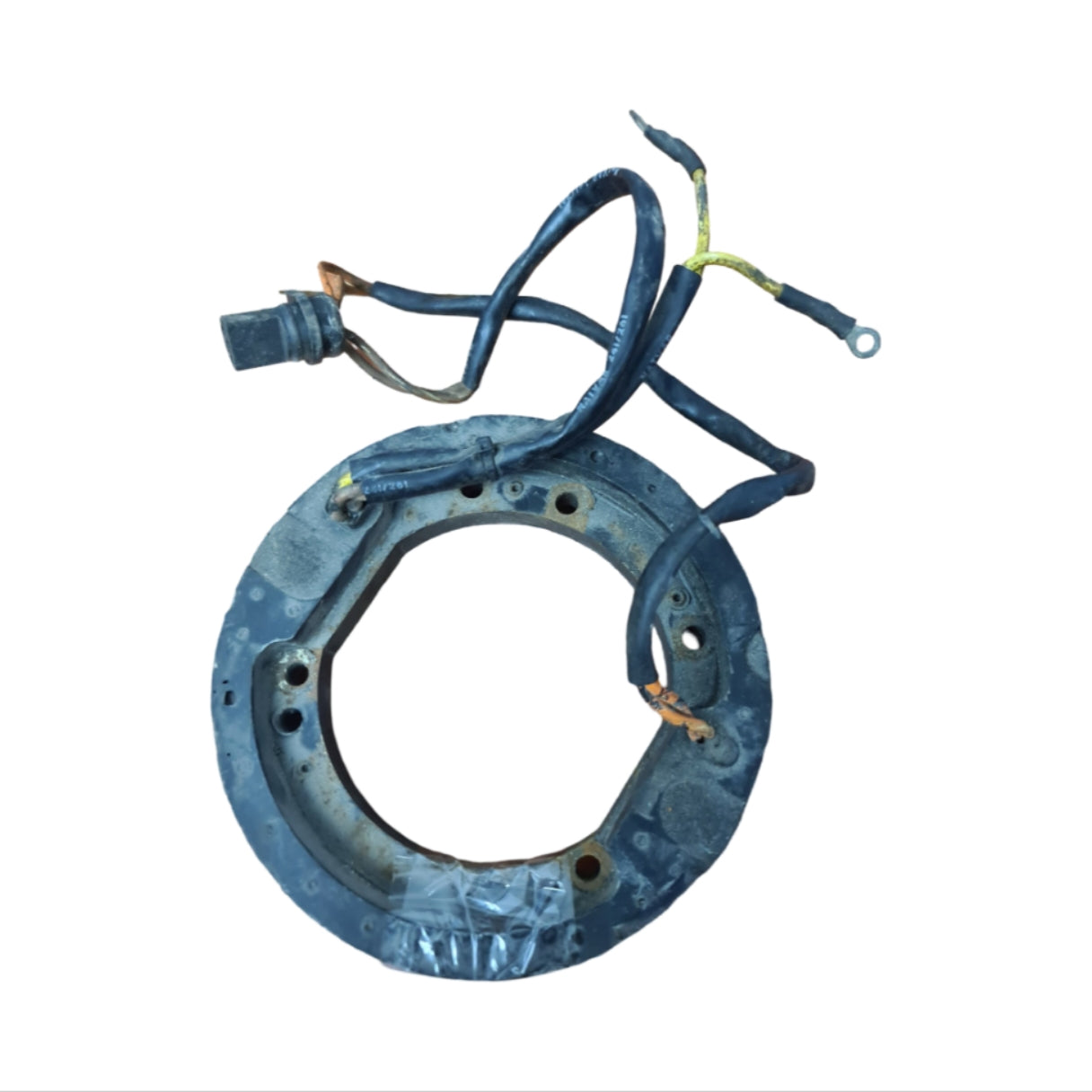

Genuine Evinrude Johnson 9 Amp Stator Assembly - Part Numbers: 0583779 / 0763762

A genuine Evinrude Johnson stator assembly used under the flywheel on 60HP, 65HP and 70HP three-cylinder two-stroke outboards. This stator supplies ignition charge output and charging-system output on engines equipped with S.L.O.W. protection systems.

⚙️ Key Features

• Genuine Evinrude Johnson stator assembly

• Correct OEM references 0583779 and 0763762

• 9 amp charging-output stator family

• Used on 3-cylinder 60HP, 65HP and 70HP two-stroke engines

• Supports ignition charge, charging output and S.L.O.W. system operation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0763762 → Supersedes 0584766

• 0584766 → Supersedes / replaces 0584236

• 0584236 → Related later service reference for 0583779

• 0583779 earlier OEM stator assembly reference

OEM / Related Numbers:

• 0763762

• 763762

• 0584766

• 584766

• 0584236

• 584236

• 0583779

• 583779

Aftermarket / Verified Equivalents:

• CDI Electronics: 173-4766

• Aftermarket reference: 173-4766

• Recmar-style replacement: REC0763762

🚤 Compatibility

Commonly used on:

• Evinrude Johnson 3-cylinder two-stroke outboards

• 60HP to 70HP S.L.O.W. ignition systems using the 0583779 / 0763762 stator family

Typically suits:

• Engine models:

• Evinrude 60HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Johnson 60HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Evinrude 65HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Johnson 65HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Evinrude 70HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Johnson 70HP 3-cylinder two-stroke - 1989-1998 S.L.O.W. ignition applications

• Johnson / Evinrude 3-cylinder 3.187-inch bore Looper 60HP stator systems

• Johnson / Evinrude 3-cylinder 3.187-inch bore Looper 65HP stator systems

• Johnson / Evinrude 3-cylinder 3.187-inch bore Looper 70HP stator systems

• HP Range: 60HP - 70HP

• Engine Type: Evinrude Johnson 3-cylinder two-stroke outboard

• Year Range: approximately 1989-1998

• Charging Output: 9 amp stator family

• Ignition Type: S.L.O.W. ignition system

🔌 Function

The stator generates electrical output beneath the flywheel. It supplies ignition charge voltage to the power pack and charging current to the rectifier / regulator circuit so the engine can maintain spark and battery charging.

Common signs of failure:

• Weak or missing spark

• Battery not charging

• Engine enters S.L.O.W. mode due to ignition-side faults

• Hard starting after warm-up

• Misfire under throttle

• Burnt or darkened stator windings

• Cracked insulation or damaged stator leads

• Low DVA output during cranking or running tests

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
