0584107 Aftermarket Bombardier Trim/Tilt Motor | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Power Trim Motor and Wiring-Harness Kit - Replaces Part Number: 0584107

New aftermarket replacement for OMC 0584107/584107. The kit converts the applicable original three-wire internal-mounted trim motor system to a two-wire motor using the supplied relay/junction wiring components.

⚙️ Key Features

• Replacement kit for OMC 584107

• Includes two-wire reversible trim motor

• Provides the wiring and junction components required for the conversion

• Designed for internal-mounted OMC V4/V6 trim systems using the listed OEM family

• Marine ignition-protected 12-volt motor construction

🧰 Kit / Assembly Contents

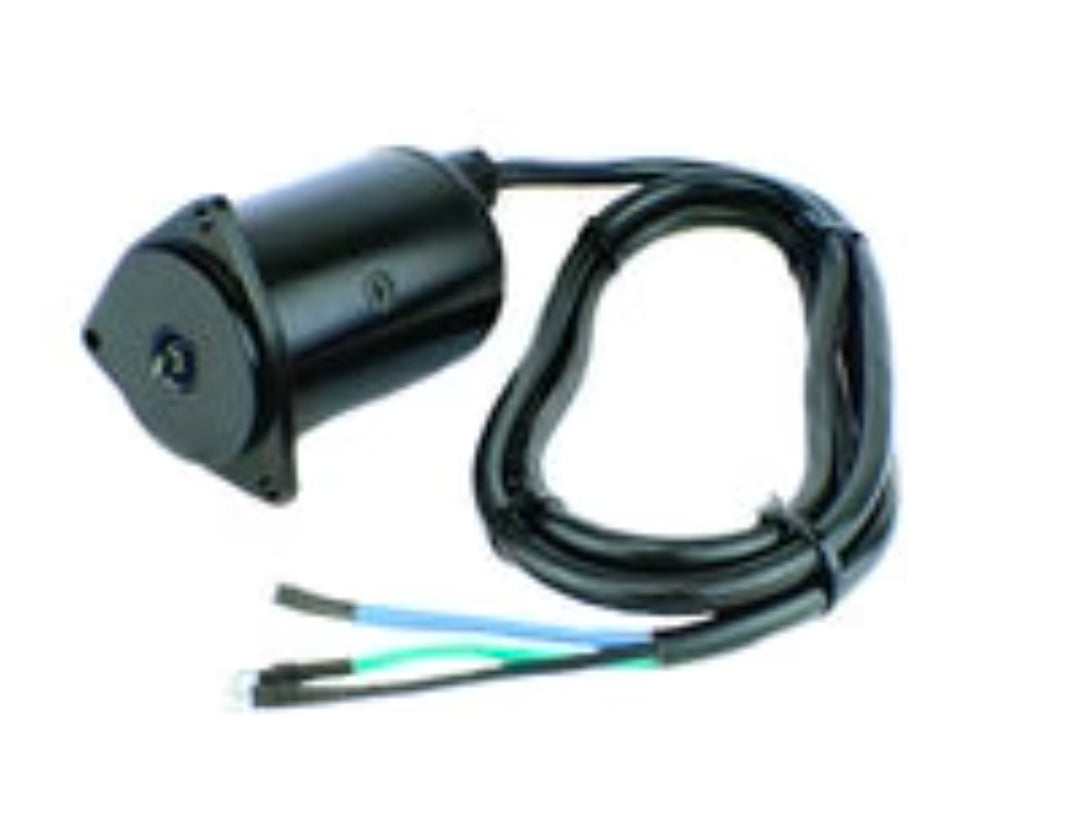

• 1 × Two-wire power trim/tilt motor - supplied under kit P/N 0584107

• 1 × Junction-box/relay wiring-harness assembly - supplied under kit P/N 0584107

• 1 × Motor mounting seal/O-ring - supplied under kit P/N 0584107

• Small terminals, fasteners and installation hardware - supplied according to kit manufacturer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0584107 / 584107 → Replaces the earlier 3-wire motor family 387277, 582048 and 582155 where the conversion kit is specified

OEM / Related Numbers:

• 387277

• 582048

• 582155

• 584107

• ARCO 6206 / 6220 application families

Aftermarket / Verified Equivalents:

• WSM: PH200-T020 family

• ARCO: 6206 / 6220 application-dependent conversion family

• Sierra: 18-6761 on specified motor-only applications

• Recmar: REC0584107

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude internal-mounted power trim systems originally using OMC 387277/582048/582155/584107

Typically suits:

• Engine / Drive models:

• 70HP and 75HP late-1970s/early-1980s models using the listed internal trim system

• 85HP-115HP V4 models using the listed 3-wire motor family

• Selected V6 120HP-235HP applications only where the parts catalogue specifies OMC 584107

• HP / Drive Range: 70HP - 235HP on the documented conversion family

• System Type: Outboard hydraulic power trim and tilt system

• Year Range: Principally late 1970s through early 1980s; model-code dependent

• Serial / Component Identification: Confirm the original 3-wire internal-mounted system and follow the conversion wiring supplied with the kit.

🔌 Function

The reversible 12-volt trim/tilt motor drives the hydraulic pump in both directions. The pump then raises or lowers the outboard or sterndrive while hydraulic valves hold the selected position.

Common signs of failure / service requirement:

• Trim or tilt does not operate in either direction

• Motor clicks, turns slowly or draws excessive current

• Intermittent operation caused by worn brushes or corroded wiring

• Hydraulic pump works only when the motor is struck or cooled

• Water intrusion, corrosion or a burnt electrical smell

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
