0584980 0586284 0586180 0335309 BRP Starter Motor Assy | Genuine Used Part

🔧 Product Description

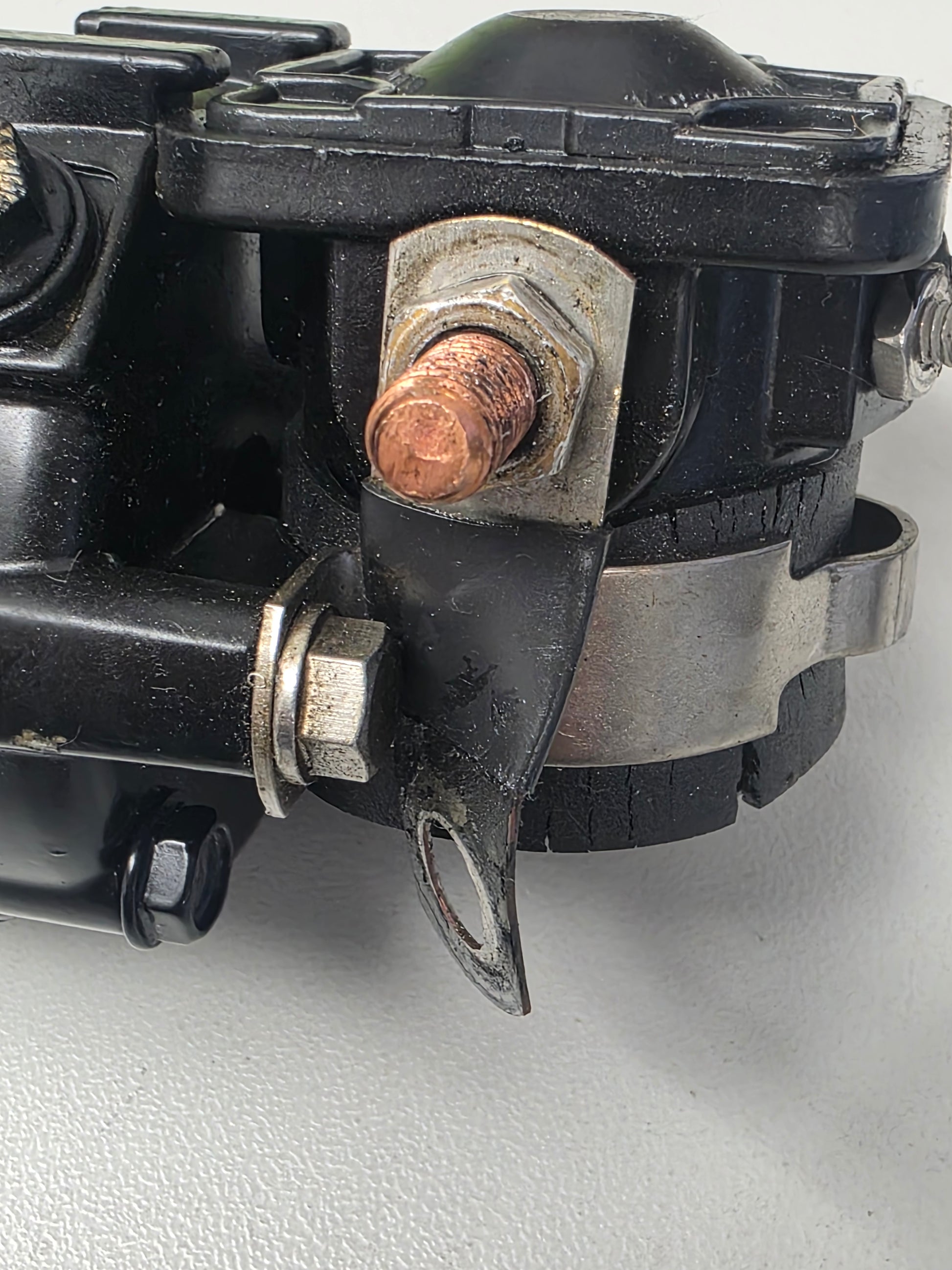

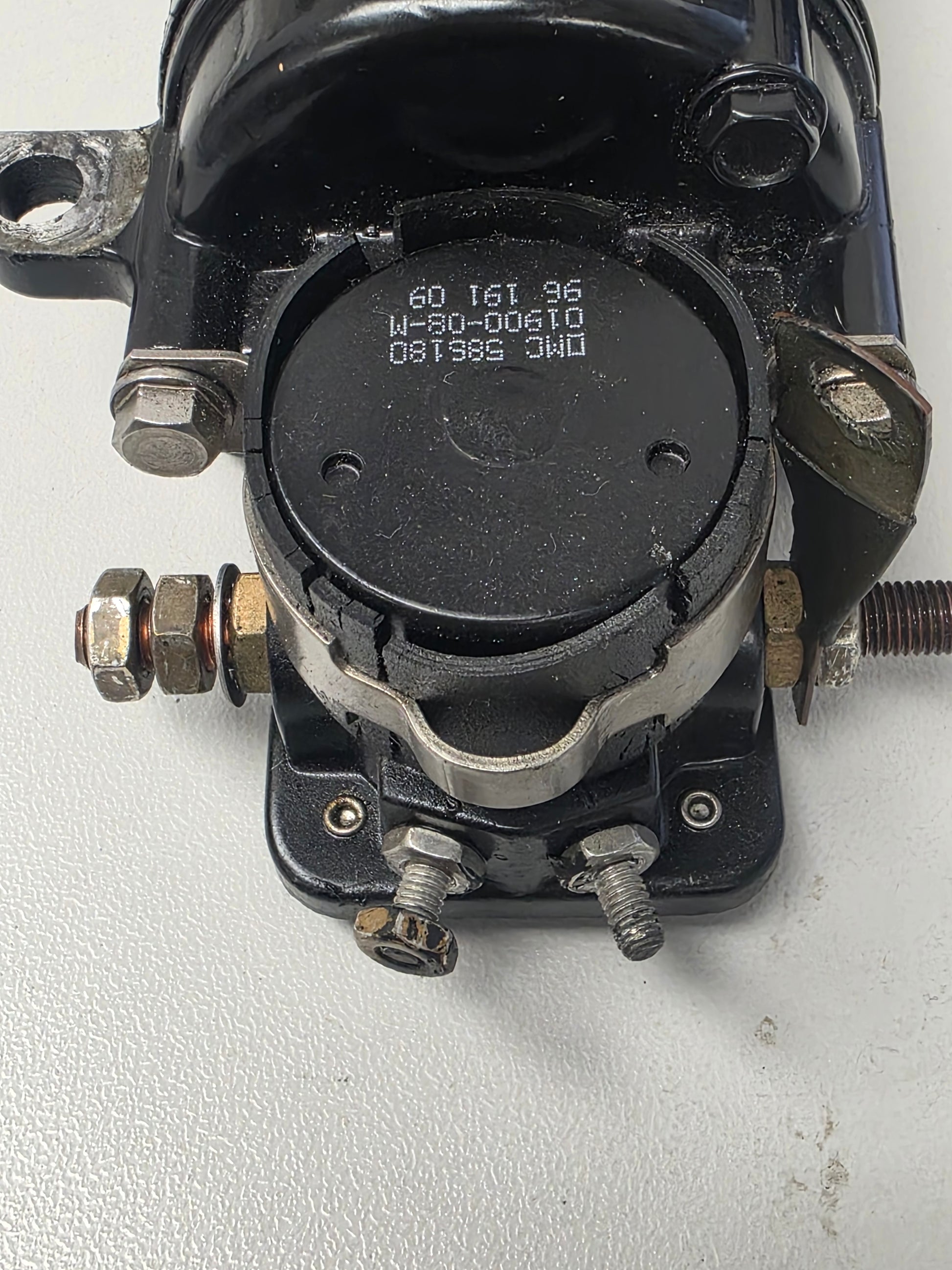

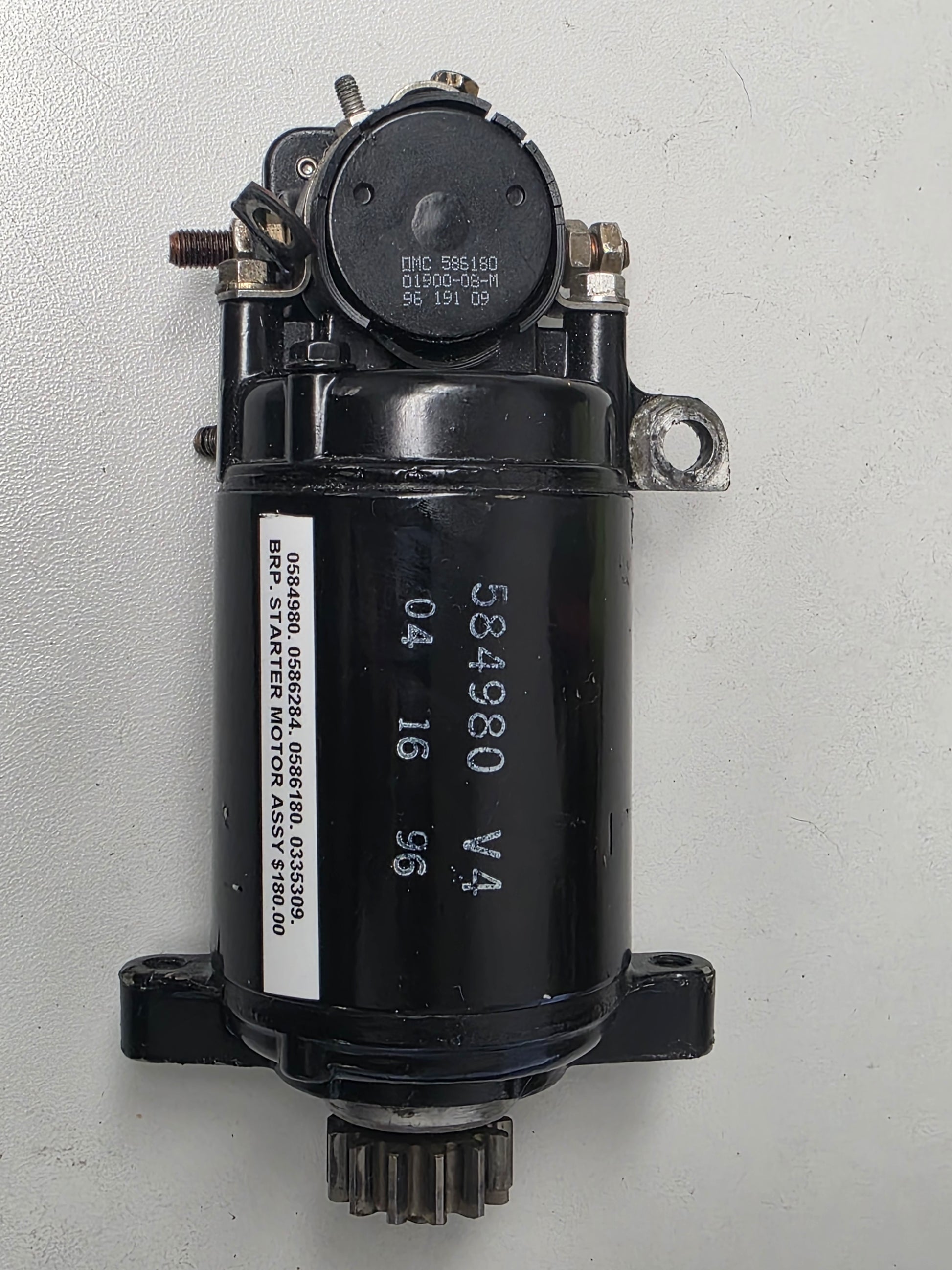

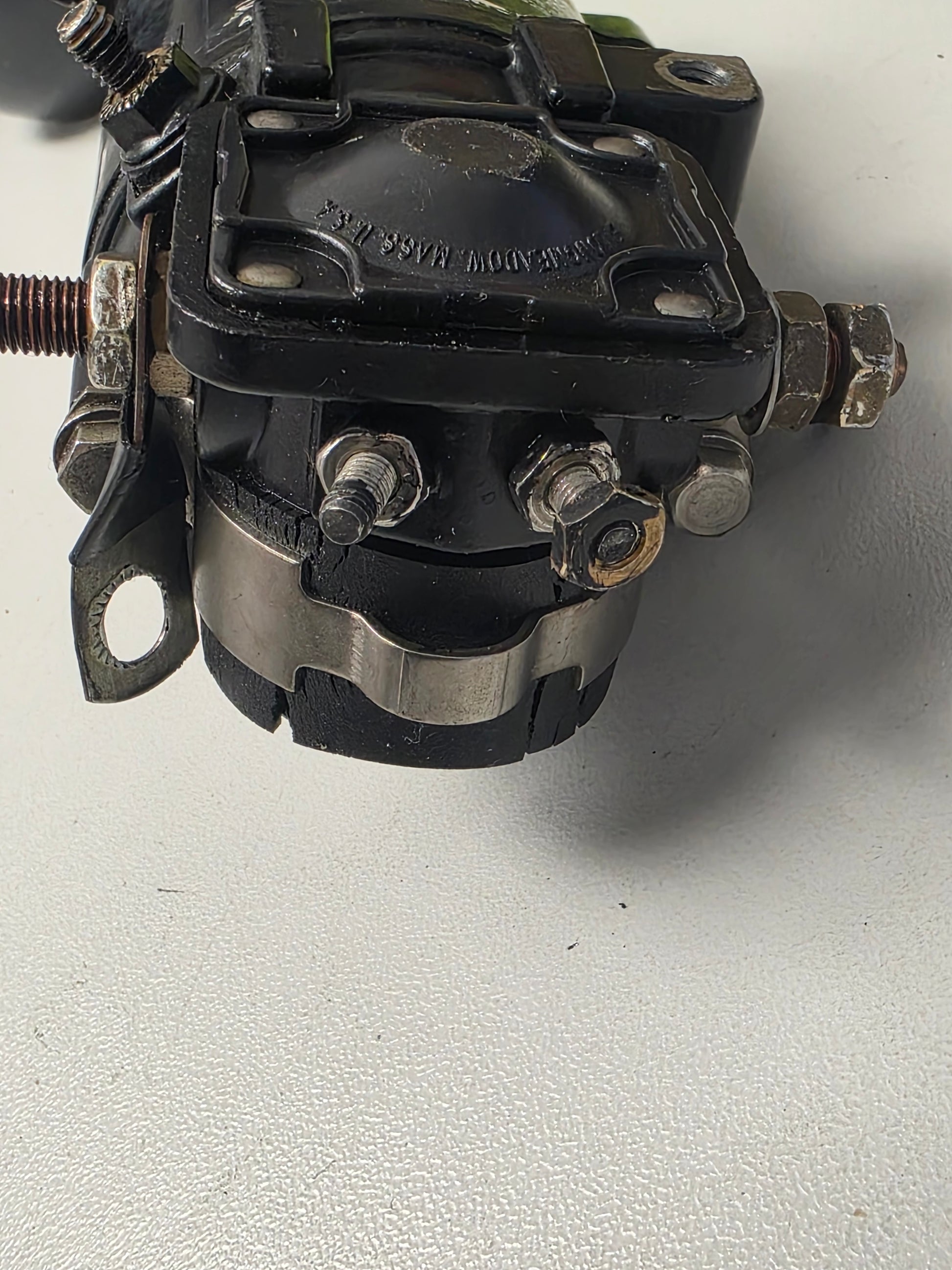

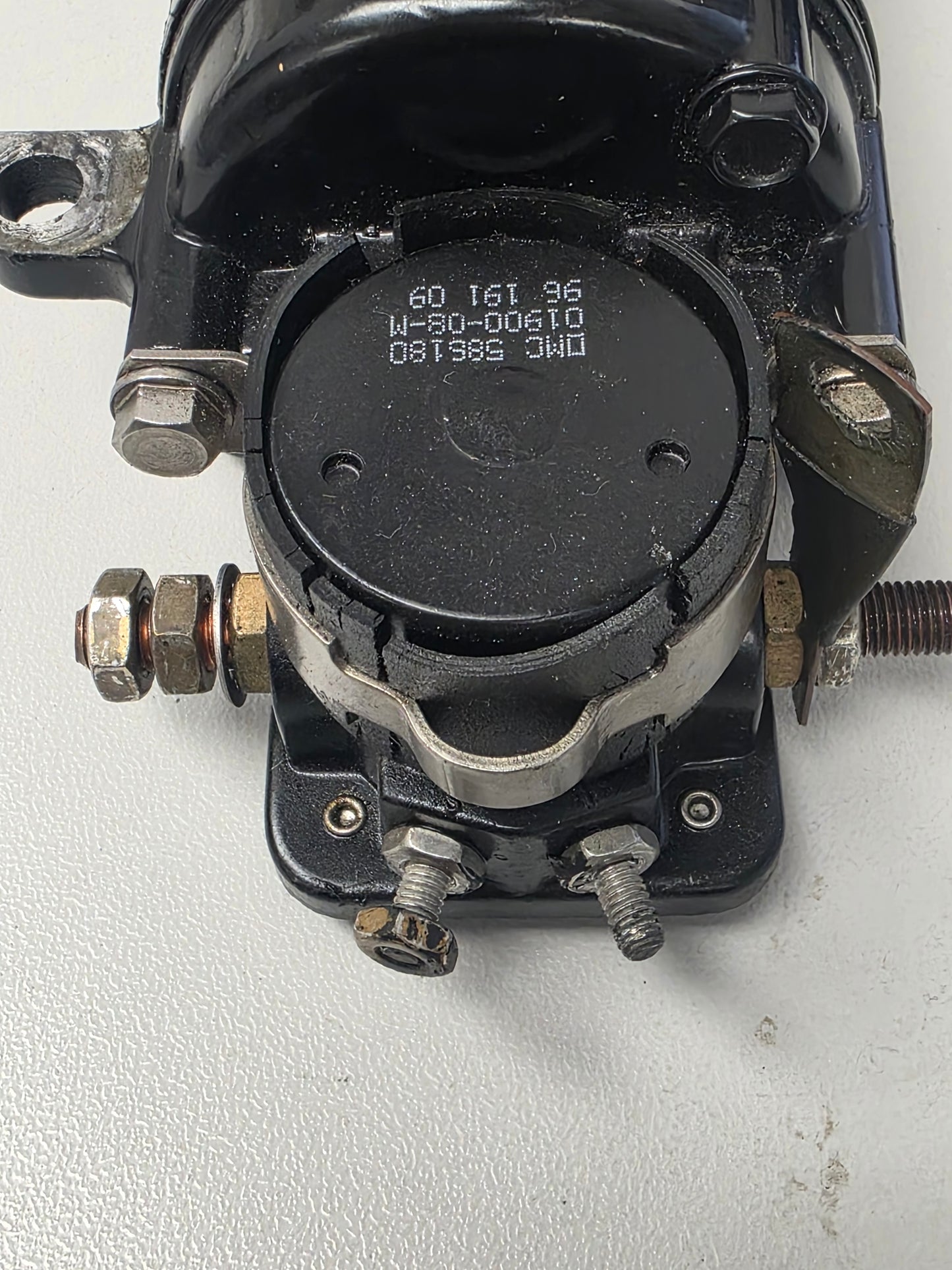

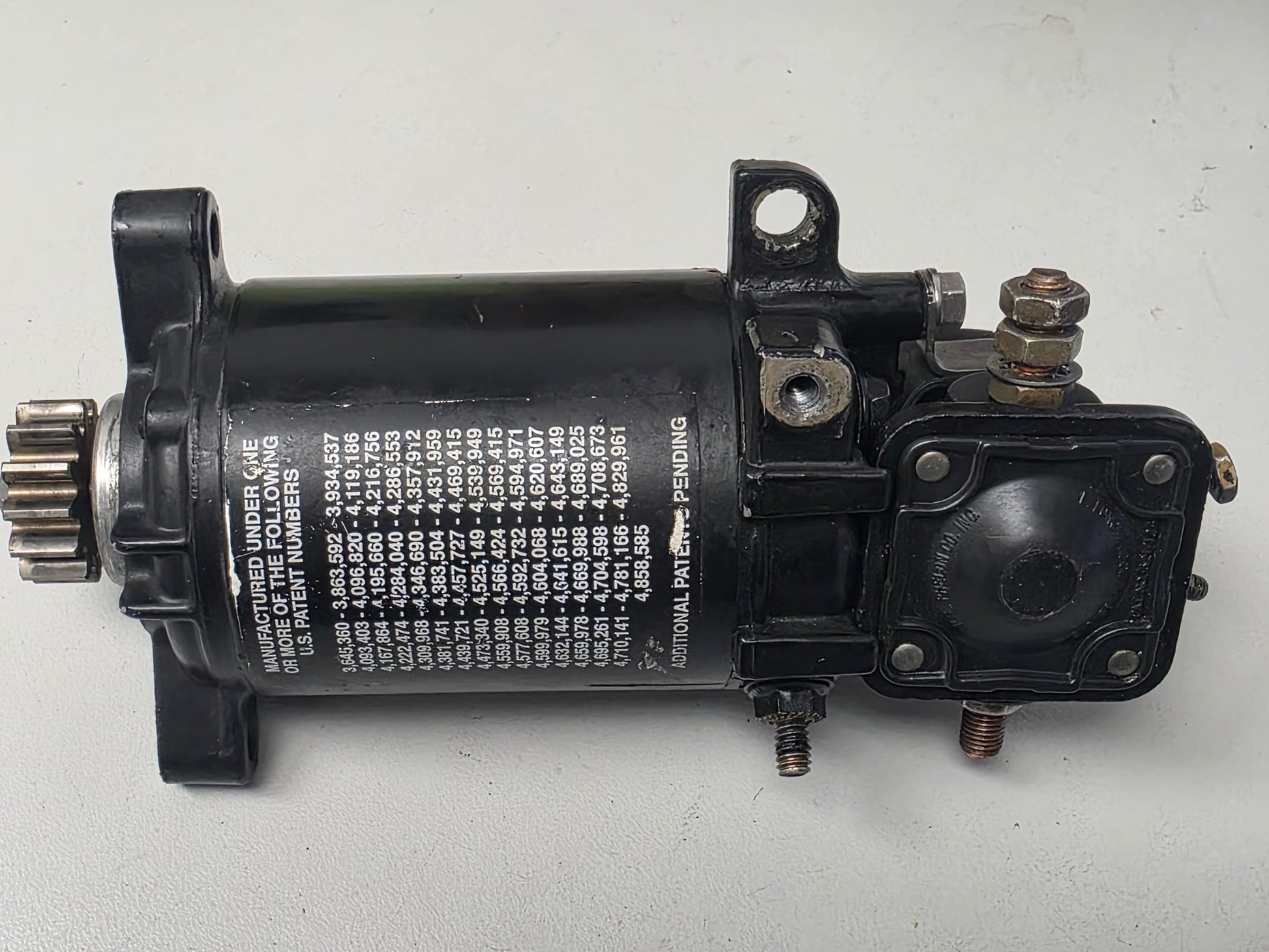

Genuine BRP / Evinrude Johnson Starter Motor Assembly - Part Numbers: 0584980 / 0586284

A genuine BRP / Evinrude Johnson starter motor assembly used on 60-degree V4 two-stroke outboards. This starter family is commonly used on 90HP to 115HP Johnson and Evinrude 60° V4 engines and is associated with the 0586180 starter solenoid and 0335309 13-tooth starter drive gear in the electric-start assembly.

⚙️ Key Features

• Genuine BRP / Evinrude Johnson starter motor assembly

• Correct starter motor references 0584980 and 0586284

• 12-volt clockwise rotation starter family

• Used on 90HP to 115HP 60° V4 outboards

• Related starter components include 0586180 solenoid assembly and 0335309 13-tooth drive gear

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586284 → Later starter motor assembly reference

• 0584980 earlier starter motor assembly reference

OEM / Related Numbers:

• 0584980

• 584980

• 0586284

• 586284

• 0769312 related starter motor reference

• 0586180 related starter solenoid assembly

• 586180 related starter solenoid assembly

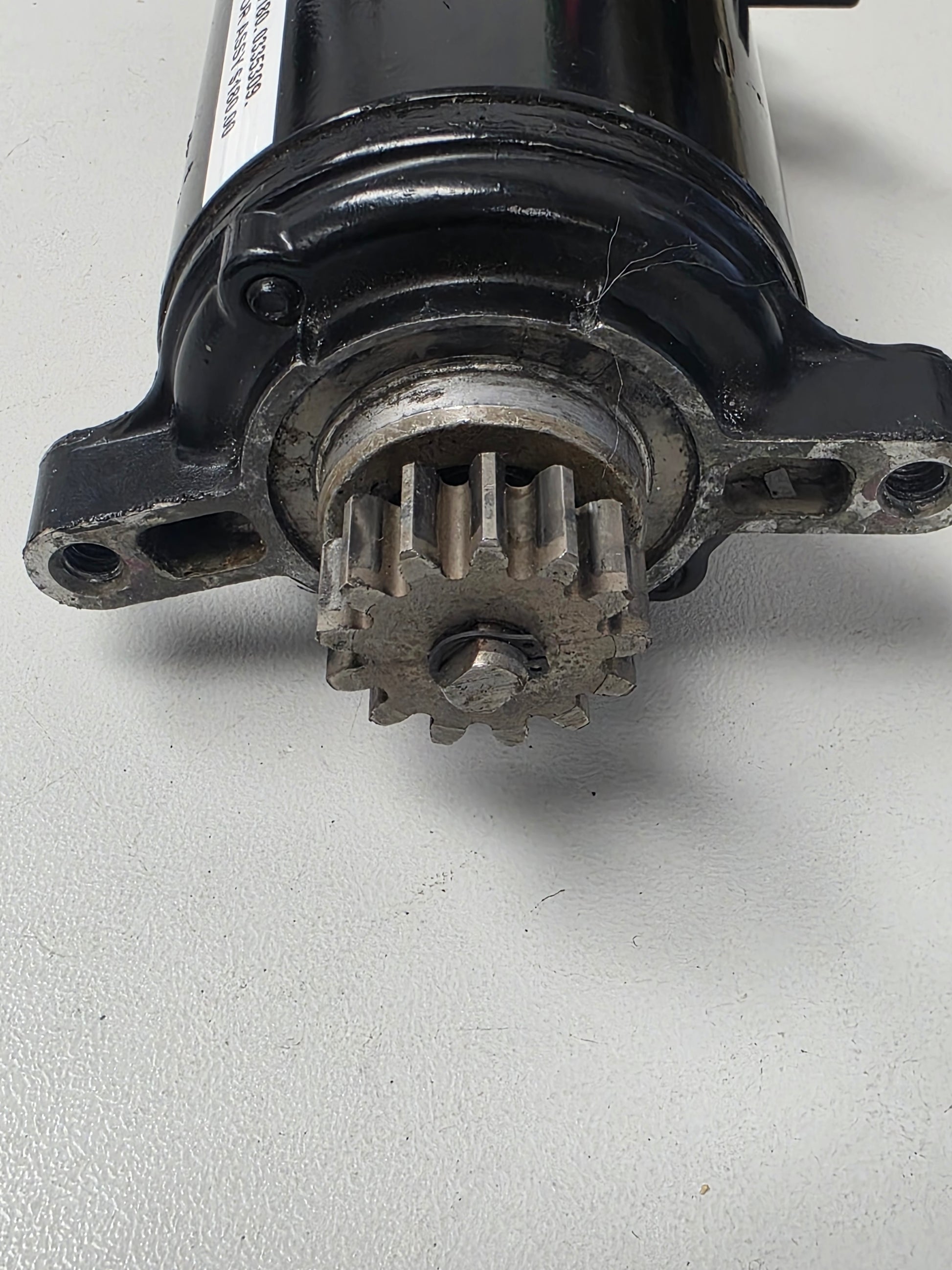

• 0335309 related 13-tooth starter drive gear

• 335309 related 13-tooth starter drive gear

Aftermarket / Verified Equivalents:

• ARCO: 5399

• Sierra: 18-5632

• API Marine: MOT2011N

• MES: S2049M

• Marine Spare Parts: AM0586284 style replacement

• Mercury / Quicksilver aftermarket cross reference: 8M6007315

• Mercury / Quicksilver aftermarket cross reference: 8M6014131

🚤 Compatibility

Commonly used on:

• Johnson / Evinrude 60° V4 two-stroke starter assemblies

• 90HP to 115HP OMC / BRP electric-start systems using 0584980 / 0586284 starter motors

Typically suits:

• Engine models:

• Evinrude 90HP 60° V4 - approximately 1995-2001

• Evinrude 100HP 60° V4 - approximately 1998-2000 where 0586284 is specified

• Evinrude 105HP 60° V4 commercial / special model applications where 0586284 is specified

• Evinrude 115HP 60° V4 - approximately 1995-2001

• Johnson 90HP 60° V4 - approximately 1995-2006

• Johnson 100HP 60° V4 - approximately 1998-2000 where 0586284 is specified

• Johnson 105HP 60° V4 commercial / special model applications where 0586284 is specified

• Johnson 115HP 60° V4 - approximately 1995-2006

• Johnson / Evinrude 80HP 60° V4 applications, approximately 1998-2000, where the starter diagram specifies 0586284

• HP Range: commonly 80HP - 115HP, with core fitment on 90HP - 115HP

• Engine Type: Johnson / Evinrude 60° V4 two-stroke outboard

• Year Range: approximately 1995-2006 depending on brand and model

• Starter Type: 12V clockwise rotation starter motor with related 13-tooth drive gear family

🔌 Function

The starter motor assembly provides electric cranking power by driving the starter gear into the flywheel ring gear. The related solenoid controls high-current starter engagement, while the 13-tooth drive gear transfers starter rotation to the flywheel.

Common signs of failure:

• Starter solenoid clicks but starter motor does not crank

• Slow cranking with a fully charged battery

• Starter gear fails to engage the flywheel

• Grinding noise from worn 13-tooth drive gear

• Starter stays engaged after the key is released

• Heat, corrosion or brush wear causing intermittent starting

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
