0585001 OMC Rectifier | Genuine Used Part

🔧 Product Description

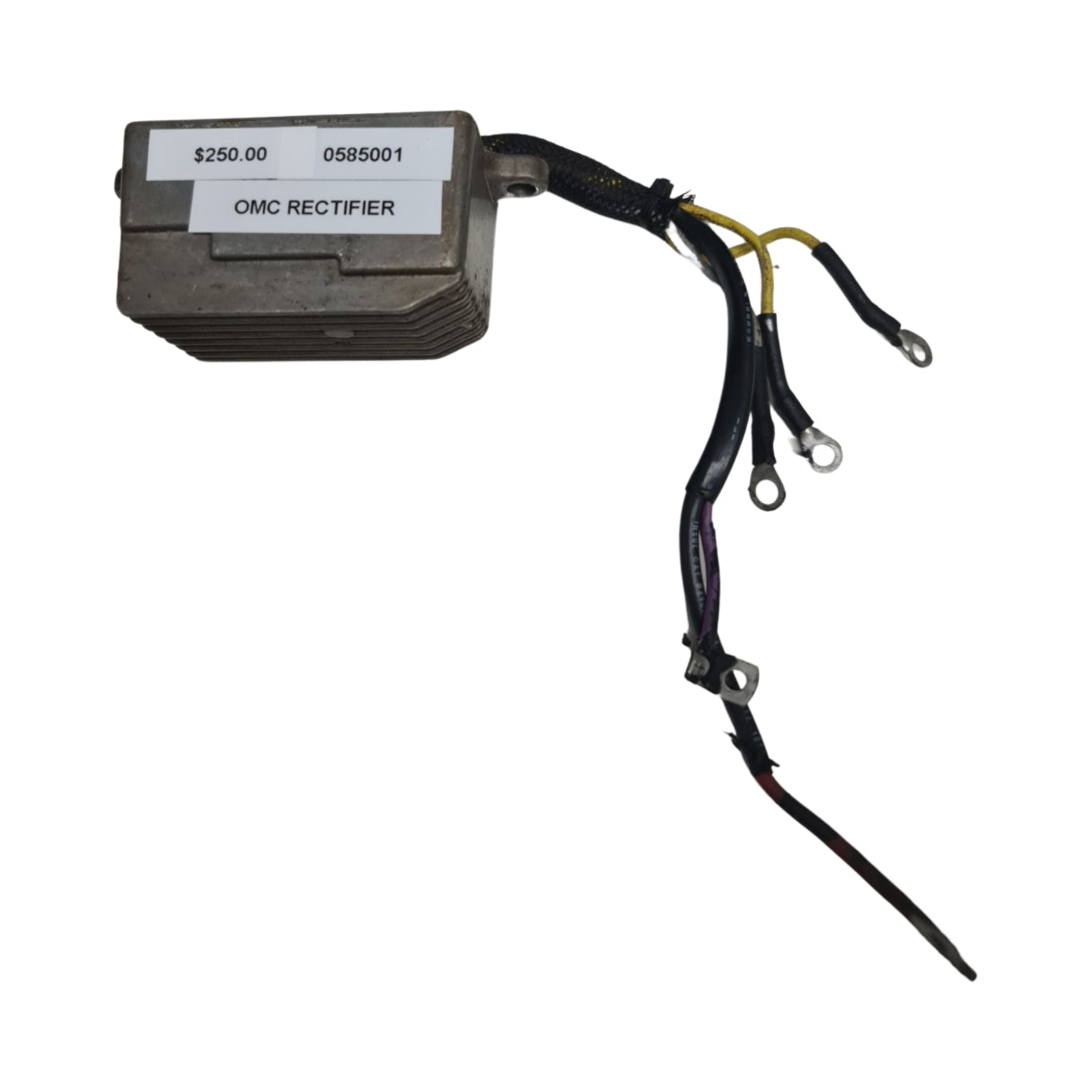

Genuine OMC Johnson / Evinrude 4 / 12 Amp Rectifier Regulator Assembly - Part Number: 0585001

A genuine OMC rectifier / regulator assembly used on selected Johnson and Evinrude midrange charging systems. This 4 / 12 amp regulator converts stator AC output into regulated DC charging voltage for the battery and engine electrical system.

⚙️ Key Features

• Genuine OMC / Johnson / Evinrude rectifier regulator assembly

• Correct part number 0585001

• 4 / 12 amp charging-system regulator / rectifier

• Used on selected 35HP to 70HP Johnson / Evinrude outboards

• Replaces / cross-references with 0584476 and 1934476 regulator references

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0585001 current / listed rectifier regulator assembly reference

• 0584476 earlier / related rectifier regulator reference

OEM / Related Numbers:

• 0585001

• 585001

• 0584476

• 584476

• 1934476

• 193-4476

• 300-03587

• 4 / 12A rectifier regulator assembly

Aftermarket / Verified Equivalents:

• CDI Electronics: 193-4476

• Aftermarket reference: 300-03587

• Aftermarket rectifier regulator replacements for 0585001 / 0584476 applications

🚤 Compatibility

Commonly used on:

• Johnson / Evinrude midrange outboard charging systems

Typically suits:

• Engine models:

• Johnson 35HP 1992-1997 charging-system applications using this regulator family

• Evinrude 35HP 1992-1997 charging-system applications using this regulator family

• Johnson 40HP 1992-2005 charging-system applications using 0585001

• Evinrude 40HP 1992-2005 charging-system applications using 0585001

• Johnson 45HP 1992-1995 charging-system applications using this regulator family

• Evinrude 45HP 1992-1995 charging-system applications using this regulator family

• Johnson 50HP 1992-2005 charging-system applications using 0585001

• Evinrude 50HP 1992-2005 charging-system applications using 0585001

• Johnson 60HP 1992-2001 charging-system applications using this regulator family

• Evinrude 60HP 1992-2001 charging-system applications using this regulator family

• Johnson 65HP 1992-2001 charging-system applications using this regulator family

• Evinrude 65HP 1992-2001 charging-system applications using this regulator family

• Johnson 70HP applications using 0585001

• Evinrude 70HP applications using 0585001

• HP Range: commonly 35HP - 70HP depending on model and charging system

• Engine Type: Johnson / Evinrude two-stroke outboard

• Year Range: Approximately 1992 - 2005 depending on horsepower

• System Type: 4 / 12 amp charging-system rectifier / regulator

🔌 Function

The rectifier / regulator converts AC current from the stator to regulated DC voltage for battery charging and electrical-system operation.

Common signs of failure:

• Battery not charging

• Overcharging or high voltage at the battery

• Tachometer failure or erratic tachometer reading

• Blown charging-system fuse

• Melted or overheated regulator wiring

• Weak battery after running

• Charging voltage remains incorrect after stator and battery checks

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
