0585059 Aftermarket BRP Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

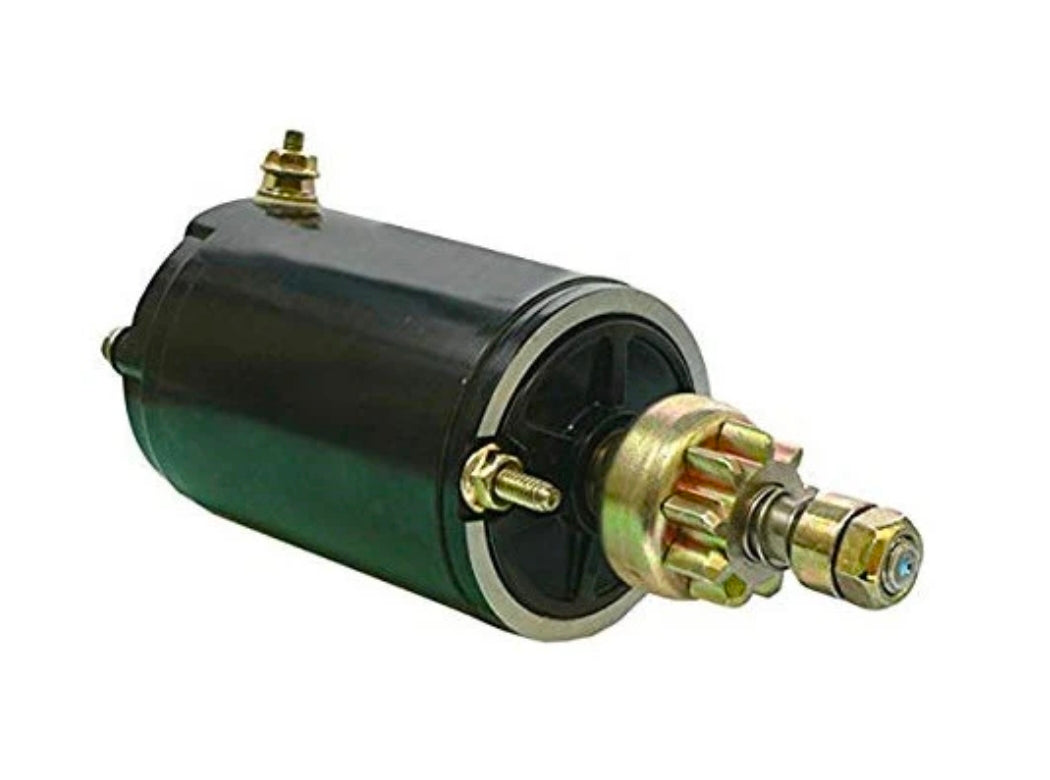

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0585059

Brand-new marine starter motor for selected Johnson and Evinrude 20HP, 25HP, 28HP, 30HP and 35HP two-cylinder outboards. This 12-volt starter is designed around the original OMC mounting arrangement and 9-tooth drive configuration used on the applicable electric-start engine families.

Fitment must be confirmed from the complete engine model number or the starter number removed from the engine, particularly where engines of the same horsepower were produced with different cylinder configurations or starting systems.

⚙️ Key Features

• 12-volt marine starter motor

• 9-tooth starter drive

• Suits selected two-cylinder Johnson and Evinrude outboards

• Direct replacement mounting arrangement for the documented OEM references

• Complete starter assembly; external solenoid and battery leads are not included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0778991 → Supersedes 0585059

• 0585059 → Supersedes 0583473

• 0583473 (earlier OMC starter reference)

OEM / Related Numbers:

• 0583473 / 583473

• 0585059 / 585059

• 0585459 / 585459

• 0777687 / 777687

• 0778991 / 778991

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-5627

• ARCO Marine: 5390

• MES Marine: S2039M

• Mallory Marine: 9-15043

• Mercury / Quicksilver: 8M6007323

• Arrowhead / DB Electrical: 410-21031

• RECMAR: REC0585059

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude two-cylinder two-stroke outboards

• Electric-start versions of the 31.8-cubic-inch engine family

Typically suits:

• Engine models:

• Evinrude E20, E20E and E20EL

• Evinrude E25, E25E, E25EL, E25TE and E25TEL

• Evinrude E28, E28E and E28ES

• Evinrude E30, E30E, E30EL and E30TE

• Evinrude E35, E35E, E35EL and E35TE

• Johnson J20, J20E and J20EL

• Johnson J25, J25E, J25EL, J25TE and J25TEL

• Johnson J28, J28E and J28ES

• Johnson J30, J30E, J30EL and J30TE

• Johnson J35, J35E, J35EL and J35TE

• HP Range: 20HP-35HP

• Engine Type: Two-cylinder, two-stroke outboards; approximately 31.8 cu in

• Year Range: Approximately 1987-1994

• Model/Serial Note: Match the full model suffix because three-cylinder 25HP and 35HP engines use a different starter family.

🔌 Function

The starter draws current from the battery and rotates the engine flywheel through its 9-tooth pinion, allowing the crankshaft to reach starting speed.

Common signs of failure:

• Starter clicks but does not rotate

• Slow cranking with a confirmed healthy battery and cables

• Starter operates intermittently when hot or cold

• Pinion fails to rise or remain engaged with the flywheel

• Excessive brush dust or worn commutator segments

• Grinding from damaged pinion or flywheel teeth

• Burnt terminals, overheated windings or internal corrosion

📦 Condition

• Brand-new aftermarket replacement starter motor

• Designed to replace the listed BRP, OMC, Johnson and Evinrude references

• Supplied in manufacturer or equivalent protective packaging
