0585219 0439561 BRP Rectifier | Genuine Used Part

🔧 Product Description

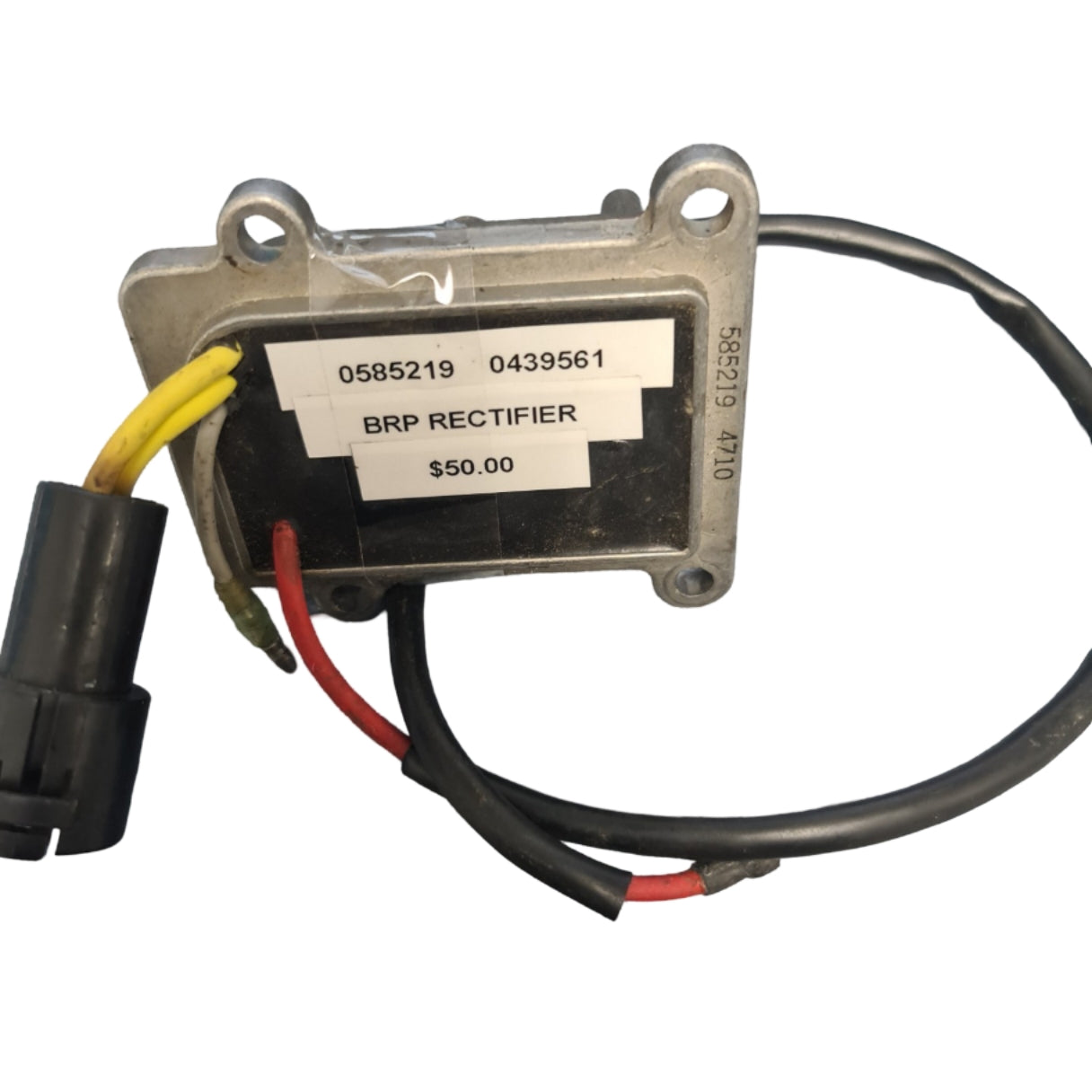

Genuine BRP / OMC Johnson Evinrude Rectifier Regulator - Part Numbers: 0585219 / 0439561

A genuine BRP / OMC rectifier regulator used on selected Johnson and Evinrude V6 outboard charging systems. This regulator is part of the 0439561 / 0584093 / 0585219 family used on 105HP, 150HP and 175HP applications where the charging-system diagram specifies this unit.

⚙️ Key Features

• Genuine BRP / OMC rectifier regulator

• Correct OEM part numbers 0585219 and 0439561

• Also cross-references with 0584093

• Used on selected 105HP, 150HP and 175HP Johnson / Evinrude charging systems

• Match by stator output, regulator plug, wiring colours and model number

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0439561 earlier OMC rectifier regulator and gasket assembly reference

• 0584093 related BRP / OMC rectifier regulator reference

• 0585219 later BRP / OMC rectifier regulator reference

• 0777673 related regulator reference

• 0778334 related regulator reference

OEM / Related Numbers:

• 0585219

• 585219

• 0439561

• 439561

• 0584093

• 584093

• 0777673

• 777673

• 0778334

• 778334

• Rectifier regulator

• Regulator rectifier

• Voltage regulator

• Charging regulator

• 35 amp regulator rectifier

Aftermarket / Verified Equivalents:

• CDI Electronics: 193-4093

• Sierra: 18-5828

• Mallory: 9-17206

• Marine Parts Distributors: 193-4093-Z8

• Aftermarket replacement for 0439561 / 0584093 / 0585219

🚤 Compatibility

Commonly used on:

• Johnson / Evinrude V6 outboard charging systems

Typically suits:

• Engine models:

• Johnson 105HP J105 - approximately 1992-1995

• Evinrude 105HP E105 - approximately 1992-1995

• Johnson 150HP J150 - approximately 1991-1995

• Evinrude 150HP E150 - approximately 1991-1995

• Johnson 150HP TJ150 - approximately 1991-1993

• Evinrude 150HP TE150 - approximately 1991-1993

• Johnson 150HP VJ150 - approximately 1991-1993

• Evinrude 150HP VE150 - approximately 1991-1993

• Johnson 175HP J175 - approximately 1991-1995

• Evinrude 175HP E175 - approximately 1991-1995

• Johnson 175HP VJ175 - approximately 1991-1993

• Evinrude 175HP VE175 - approximately 1991-1993

• Johnson / Evinrude 150HP and 175HP 60-degree V6 charging systems where the regulator diagram specifies 0439561 / 0584093 / 0585219

• HP Range: 105HP - 175HP

• Engine Type: Johnson / Evinrude two-stroke outboard charging system

• Year Range: approximately 1991 - 1995 confirmed replacement range; later V6 usage is diagram-controlled

• Serial Note: Match by exact Johnson / Evinrude model number, stator amperage, regulator plug, wiring colours and charging-system diagram before installation.

🔌 Function

The rectifier regulator converts stator AC output into DC charging voltage and regulates that voltage to protect the battery and electrical system.

Common signs of failure:

• Battery not charging

• Battery overcharging

• Tachometer signal loss on some systems

• Blown charging-system fuse

• Burnt or melted regulator wiring

• Voltage spikes at battery

• Electrical accessories behaving erratically

• Charging output returns when a known-good regulator is fitted

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
