0586228 BRP Trim Relay & Cable | Genuine Used Part

0586228 BRP Trim Relay & Cable | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$40.00 AUD
$80.00 AUD $40.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

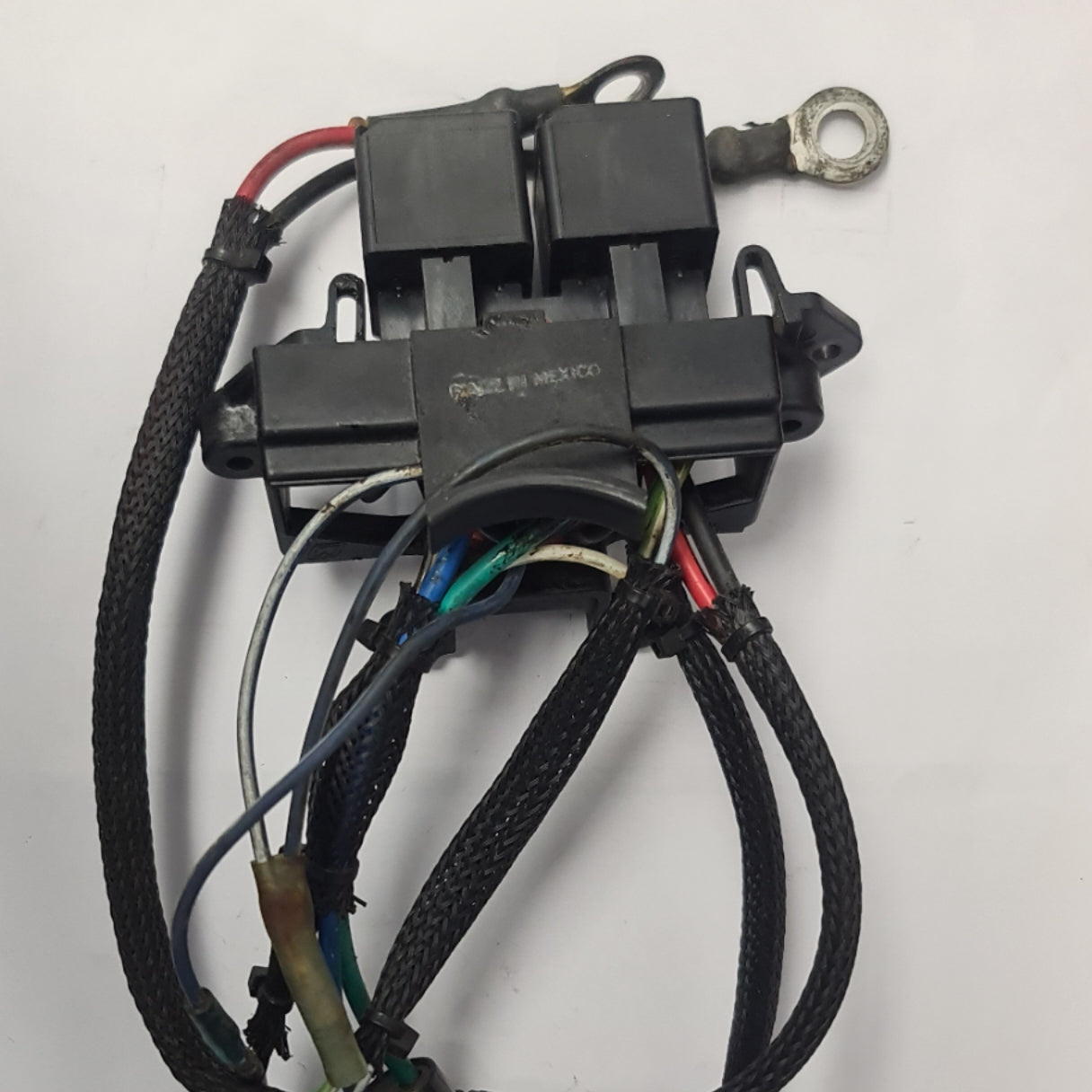

Genuine BRP Johnson / Evinrude Power-Trim Relay and Cable Assembly - Current Part Number: 0586228

A genuine OMC / BRP trim-relay and wiring assembly for selected late-1990s and early-2000s V4 and V6 outboards. Current service number 0586228 replaces earlier harness 0586226. It carries the high-current up and down relay circuits between the engine harness and trim motor.

⚙️ Key Features

  • Genuine BRP relay and cable assembly
  • Current part number 0586228
  • Supersedes 0586226
  • Contains trim relays, sockets and marine wiring
  • Used on selected 90HP-250HP Johnson / Evinrude outboards

🚤 Compatibility

  • Johnson / Evinrude 90HP, 105HP and 115HP families
  • Johnson / Evinrude 150HP, 175HP and 200HP families
  • Johnson / Evinrude 225HP and 250HP V6 applications
  • Documented examples include 1998 115HP / 150HP / 175HP / 225HP / 250HP
  • Documented 1999-2001 105HP, 115HP, 150HP, 175HP and 200HP applications
  • Approximate application era: 1998-2001

🔌 Function

The relay assembly reverses polarity to the two-wire trim motor, allowing the hydraulic pump to run in the up or down direction.

⚠️ Common Signs of Failure

  • Trim works in only one direction
  • Relays click but motor does not run
  • Harness or socket overheats
  • Connector pins corrode
  • Cable insulation becomes brittle
  • Intermittent trim operation occurs

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0586228 → Supersedes 0586226
  • 586228 and 586226 are unprefixed OMC formats
  • Individual relay and bracket numbers remain separately serviceable

OEM / Related Numbers

  • 0586228 / 586228
  • 0586226 / 586226
  • 0586224 related relay
  • 0335572 related relay bracket
  • 0334191 related bracket
  • Related trim motor and engine-harness connectors

Aftermarket / Verified Equivalents

  • Sierra 18-5705 individual trim relay for compatible sockets
  • CDI / aftermarket 300-01561 relay
  • Recmar R473 relay
  • No verified complete aftermarket harness-and-relay assembly matching every 0586228 connector

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
