🔧 Product Description

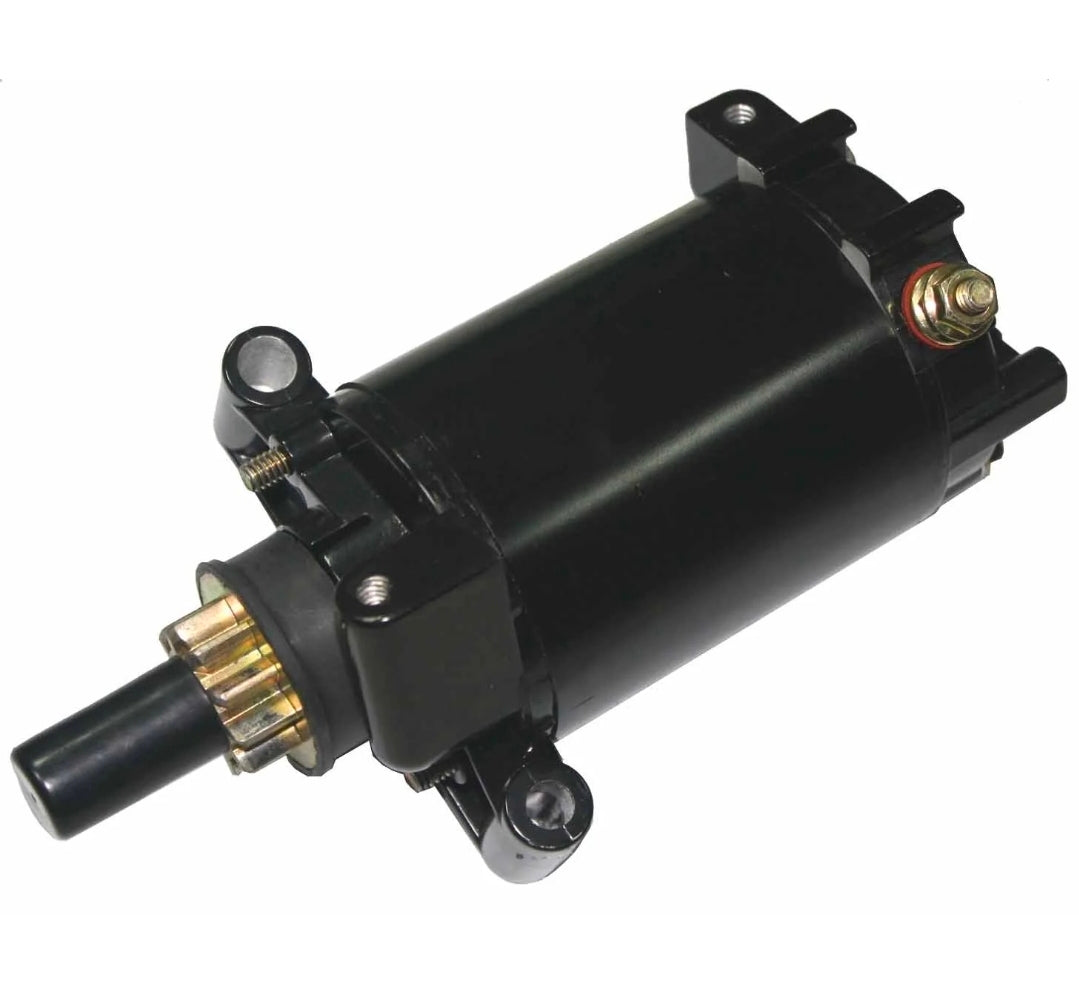

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0586277

Brand-new 12-volt starter motor for selected Johnson and Evinrude 25HP and 35HP three-cylinder two-stroke outboards. This compact starter uses a 10-tooth drive and is designed for the specific three-cylinder engine platform introduced during the mid-1990s.

The starter must not be selected solely from horsepower. Two-cylinder 25HP and 35HP engines use different starter motors, so the engine model code and original part number must be matched.

⚙️ Key Features

• 12-volt marine starter motor

• 10-tooth starter drive

• Counter-clockwise rotation under the documented supplier convention

• Designed for three-cylinder 25HP and 35HP two-stroke engines

• Complete replacement assembly with marine corrosion-resistant finish

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0778996 → Later BRP service reference for 0586277

• 0586277 → Supersedes 0584818

• 0584818 (earlier OEM starter reference)

OEM / Related Numbers:

• 0584818 / 584818

• 0586272 / 586272

• 0586277 / 586277

• 0778996 / 778996

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-5631

• ARCO Marine: 5398

• API Marine: MOT2010N

• Protorque: PH130-0026

• MES Marine: S2048M

• DB Electrical: SAB0104 / 410-21062

• RECMAR: REC0586277

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude three-cylinder two-stroke outboards

• Selected commercial, tiller and remote-control electric-start configurations

Typically suits:

• Engine models:

• Evinrude E25K, E25KL, E25PL3, E25TEL3 and E25TKL

• Evinrude E35K, E35KL, E35PL3, E35QL, E35TEL3 and E35TKL

• Evinrude BE25 and BE35 European model families

• Evinrude HE35 and HJ35 commercial model families

• Johnson J25K, J25KL, J25PL3, J25TEL3 and J25TKL

• Johnson J35K, J35KL, J35PL3, J35QL, J35TEL3 and J35TKL

• Johnson BJ25 and BJ35 European model families

• HP Range: 25HP-35HP

• Engine Type: Three-cylinder two-stroke outboards

• Year Range: Approximately 1996-2001, with selected service applications extending into later production

• Model/Serial Note: Confirm the three-cylinder engine configuration and original starter reference before ordering.

🔌 Function

The starter uses battery power to rotate the crankshaft through the flywheel ring gear, providing the initial cranking speed required for ignition and combustion.

Common signs of failure:

• Starter remains stationary despite power reaching the terminal

• Slow or uneven cranking

• Intermittent operation caused by worn brushes or armature contact

• Pinion fails to engage or disengage correctly

• Clicking from the starting circuit without engine rotation

• Grinding or metallic noise during engagement

• Starter overheats after short cranking periods

📦 Condition

• Brand-new aftermarket replacement starter motor

• Designed for the listed three-cylinder engine family

• Supplied in manufacturer or equivalent protective packaging
