🔧 Product Description

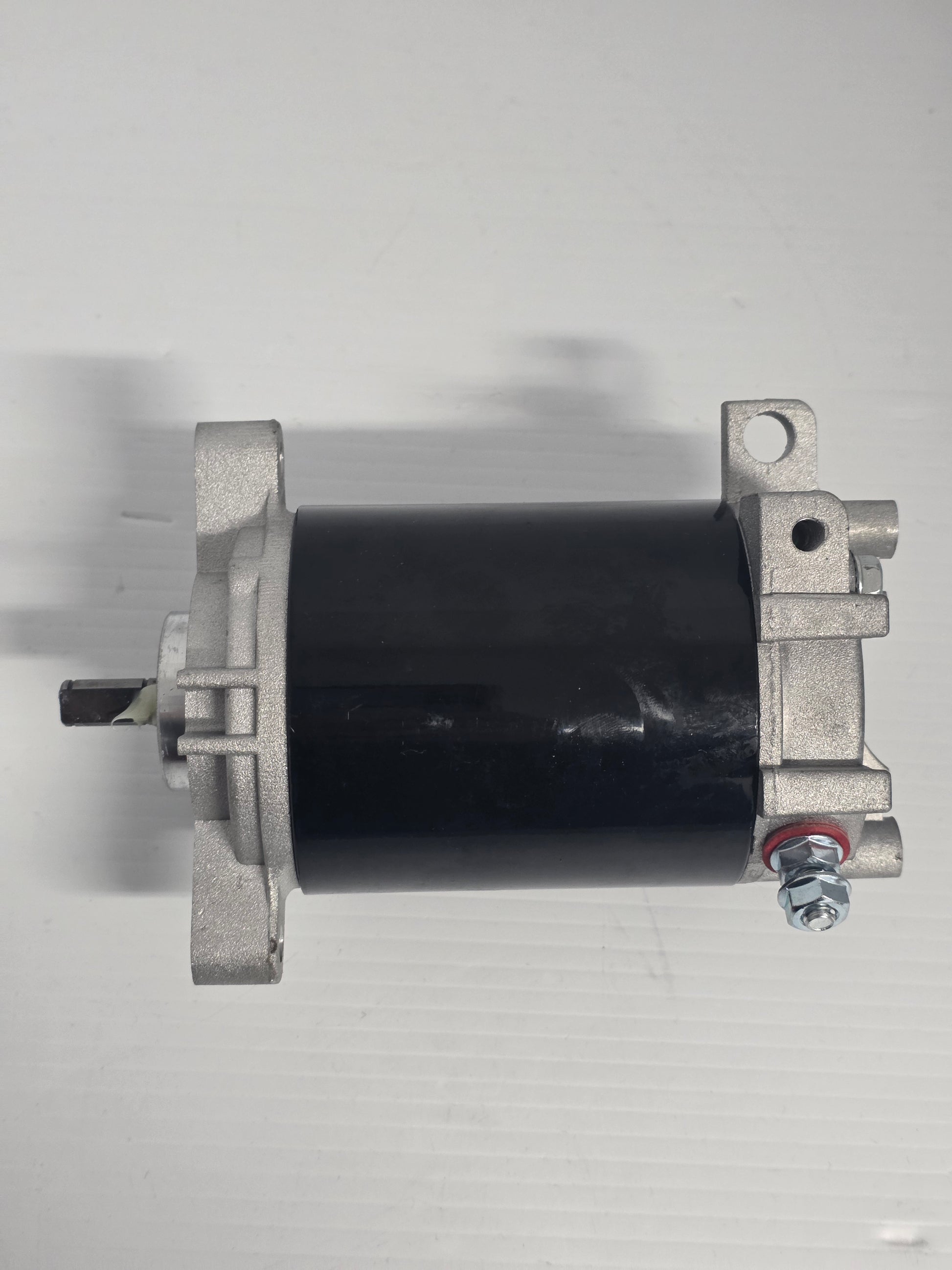

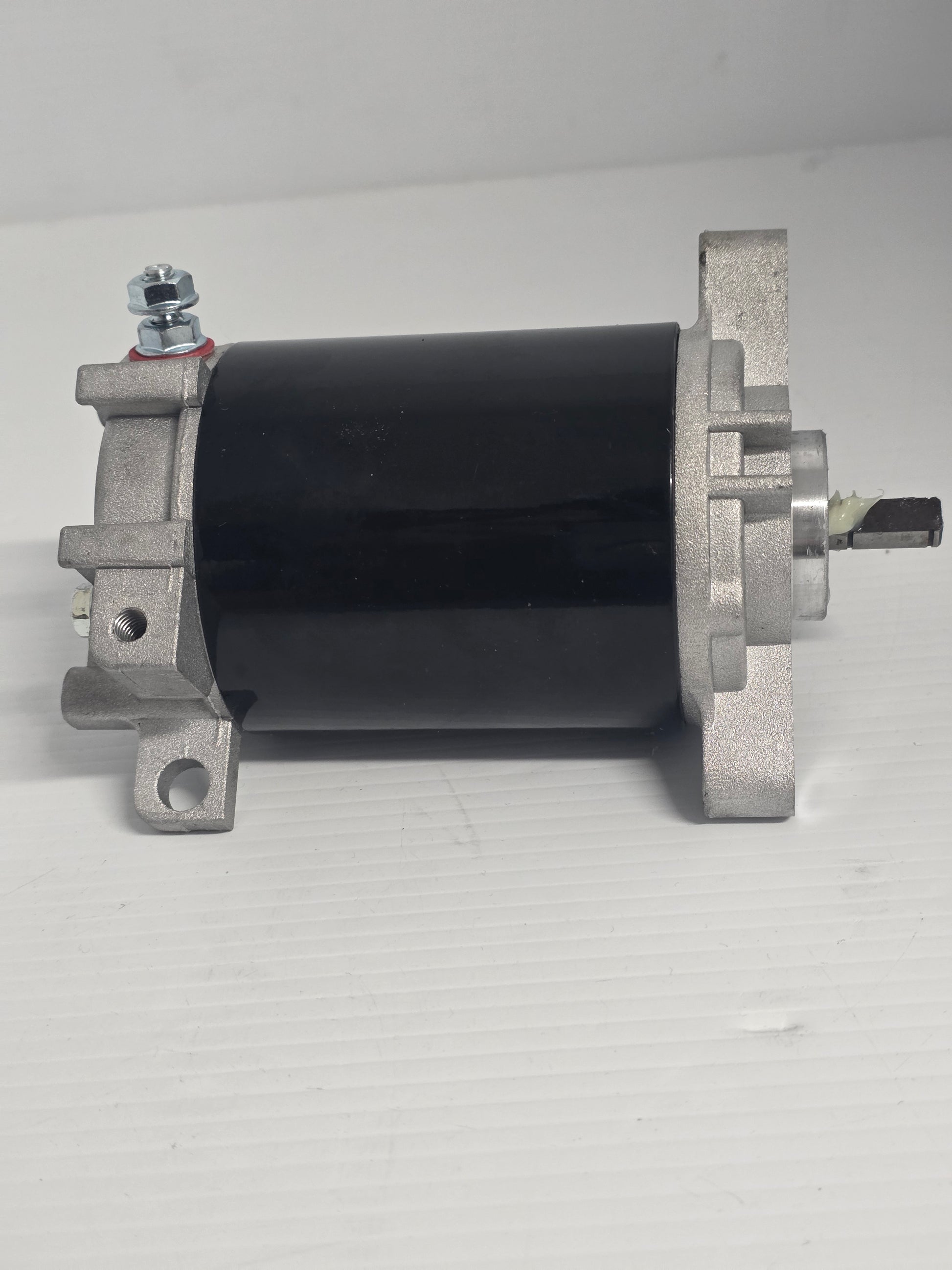

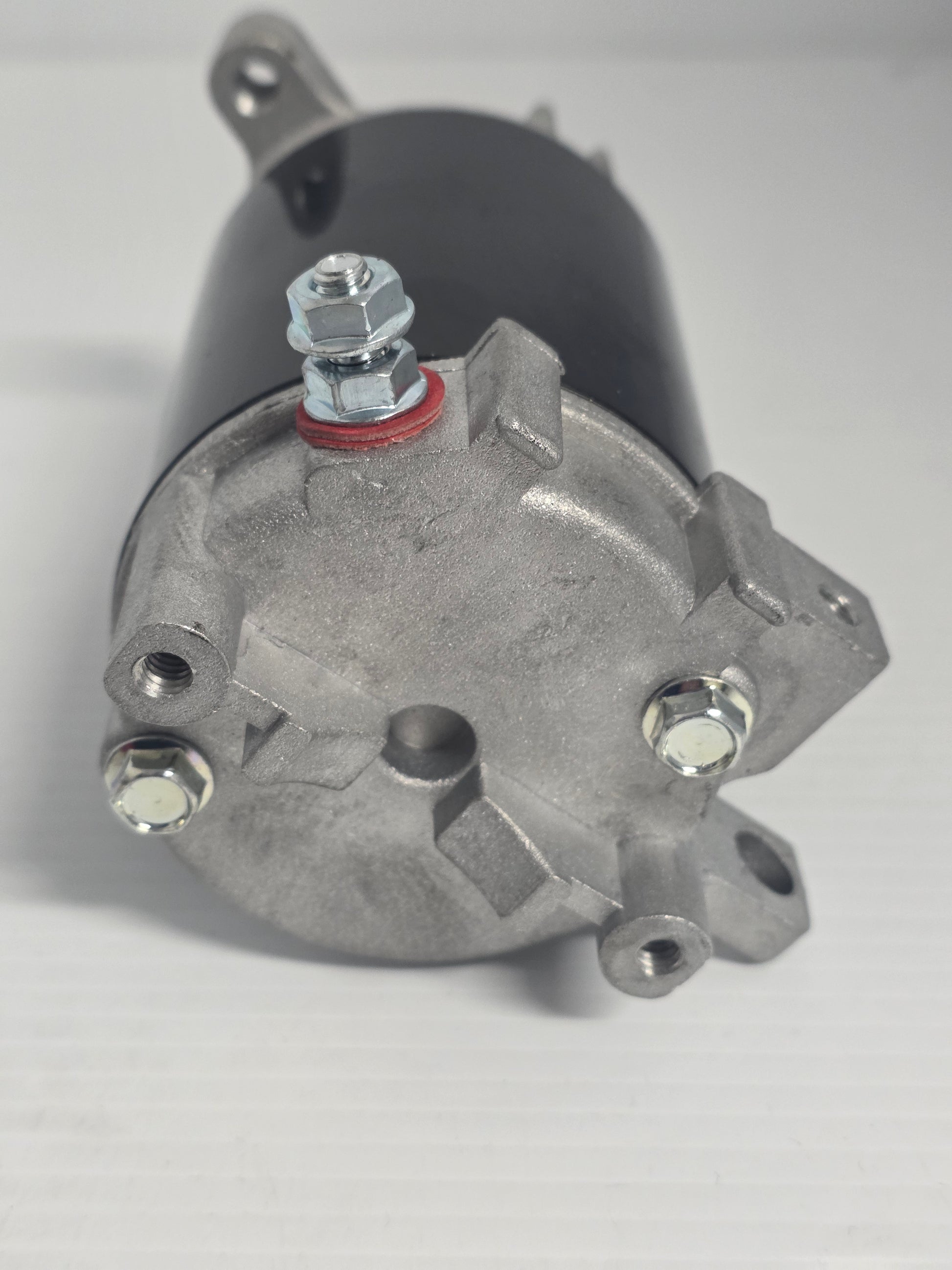

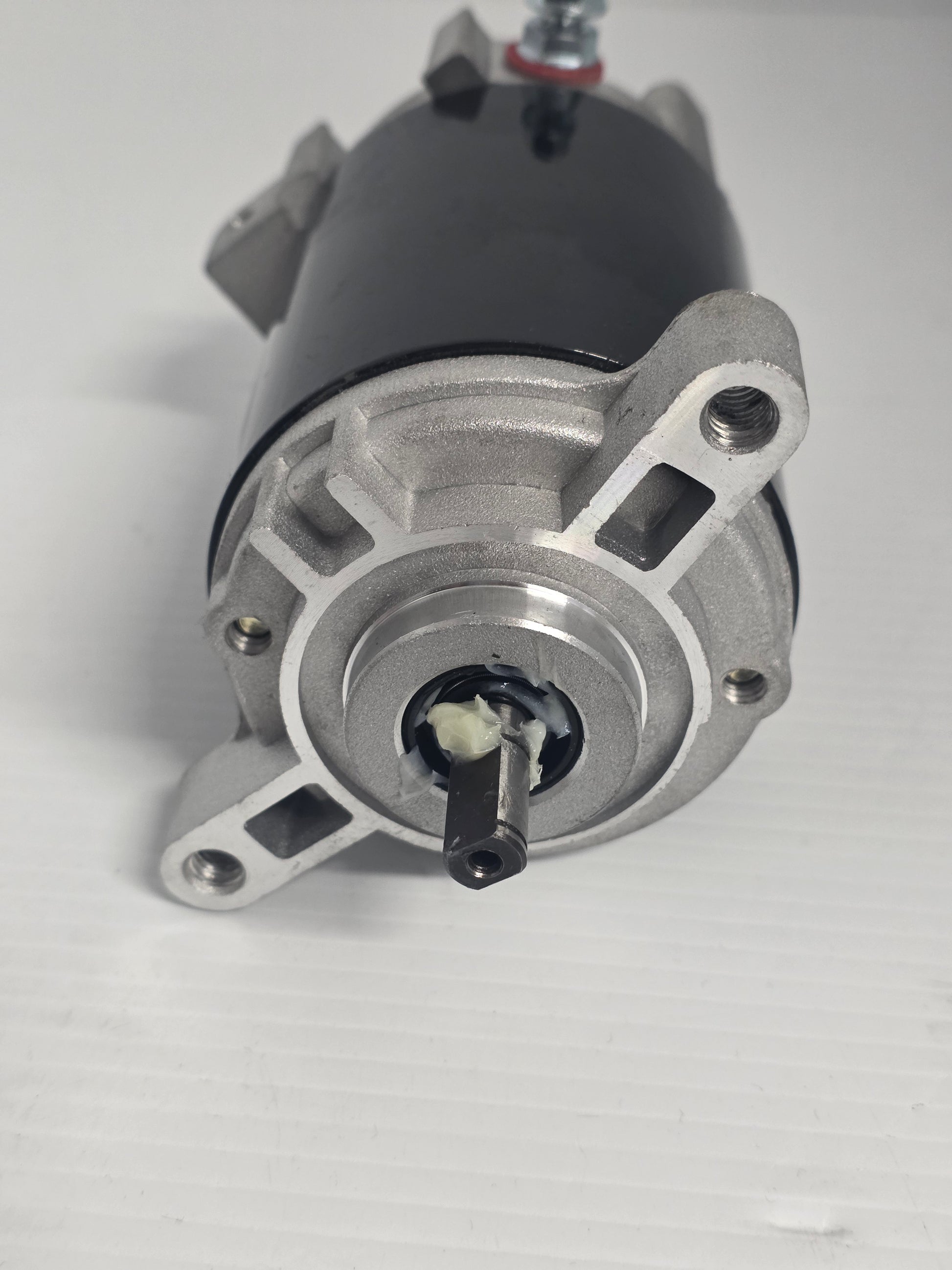

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0586284

Brand-new 12-volt starter motor for selected Johnson and Evinrude 60-degree V4 80HP, 90HP, 100HP, 105HP and 115HP outboards. This reference is commonly supplied as the starter motor without the external drive gear, meaning the original compatible drive components must be inspected and transferred or purchased separately.

⚙️ Key Features

• 12-volt marine starter motor

• Designed for 60-degree V4 looper engines

• Replacement for 0584980 and 0586284

• Motor-only configuration on commonly catalogued aftermarket versions

• Original starter drive, pinion and associated hardware may require transfer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586284 → Supersedes 0584980

• 0584980 (earlier OEM starter-motor reference)

OEM / Related Numbers:

• 0584980 / 584980

• 0586284 / 586284

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-5632

• ARCO Marine: 5399

• API Marine: MOT2011N

• DB Electrical: 410-21033

• Lester / WAI: 5720 / 5720N

• MES Marine: S2049M / S2049M-OE

• EMP: 4-5632

• Barsanco: 690-054

• Mallory Marine: 9-18110

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude 60-degree V4 looper outboards

• Selected standard, commercial and jet-drive model configurations

Typically suits:

• Engine models:

• Evinrude E90EL and E90PL

• Evinrude E100WQL and E100WQX

• Evinrude E105W

• Evinrude E115EL, E115GL, E115PL, E115PX, E115SL and E115SX

• Johnson J80 and selected 80HP jet models

• Johnson J90EL, J90EX, J90GL, J90PL, J90PX, J90SL and J90VL

• Johnson J100WPL, J100WPX, J100WQL and J100WQX

• Johnson J105W

• Johnson J115EL, J115GL, J115J, J115PL, J115PX, J115SL, J115SX, J115TSL and J115TSX

• HP Range: 80HP-115HP

• Engine Type: 60-degree V4 two-stroke looper

• Year Range:

• Evinrude: approximately 1995-2001

• Johnson: approximately 1995-2006

• Model/Serial Note: Confirm whether the replacement supplied is motor-only and inspect the original jackshaft, pinion and retaining hardware before dismantling.

🔌 Function

The starter motor drives the separate starter-drive mechanism, which engages the flywheel and cranks the V4 engine.

Common signs of failure:

• Motor does not rotate after the solenoid supplies power

• Starter runs slowly or stalls against compression

• Armature has intermittent dead spots

• Excessive brush wear or commutator damage

• Motor spins but the transferred drive does not engage

• Bearing or bushing noise

• Overheating caused by high resistance or extended cranking

📦 Condition

• Brand-new aftermarket replacement starter motor

• Commonly supplied without starter pinion or jackshaft components

• Supplied in manufacturer or equivalent protective packaging
