0586292 BRP Power Pack | Genuine Used Part

🔧 Product Description

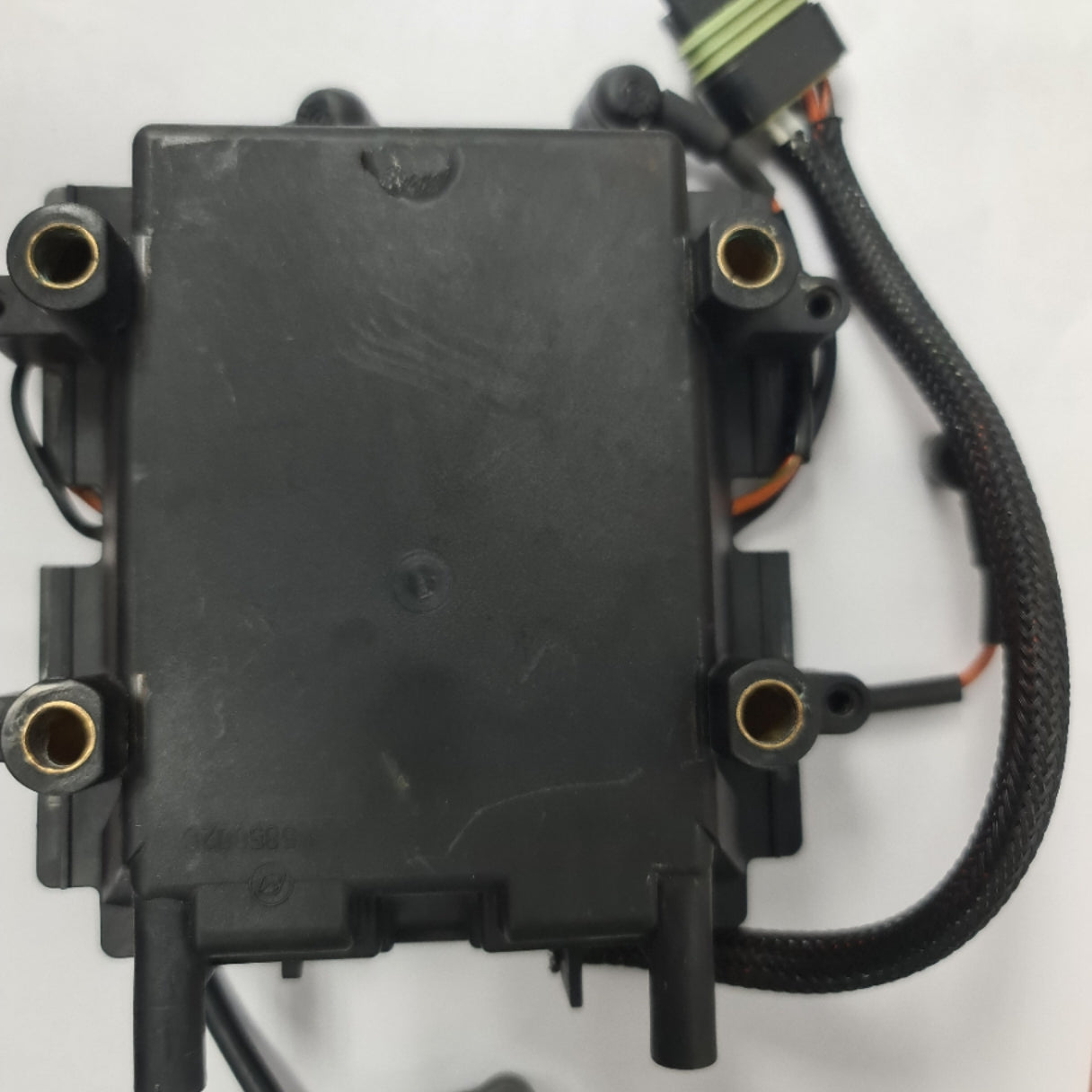

Genuine BRP Johnson / Evinrude Power Pack - Part Number: 0586292

A genuine BRP / OMC Johnson and Evinrude ignition power pack for selected 60-degree 4-cylinder two-stroke outboards. This module controls ignition timing and coil trigger output on compatible 80 Jet, 90HP, 100HP, 105 Commercial and 115HP engines equipped with QuickStart and S.L.O.W. protection.

⚙️ Key Features

• Genuine BRP / Johnson / Evinrude ignition power pack

• Correct OEM part number 0586292

• 4-cylinder optical ignition power pack

• Supports QuickStart and S.L.O.W. protection systems

• 6400 RPM limit application

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586292 current / listed BRP power pack reference

• 0586098 earlier related power pack reference

• 0586015 earlier related power pack reference

• 0765386 earlier related power pack reference

OEM / Related Numbers:

• 0586292

• 586292

• 0586098

• 586098

• 0586015

• 586015

• 0765386

• 765386

• Power Pack Assembly

• Optical ignition power pack

Aftermarket / Verified Equivalents:

• CDI Electronics: 113-6292

• CDI Electronics Kit: 113-6292K 1

• CDI Electronics related kit components: 133-6343

• CDI Electronics related kit components: 931-4922

🚤 Compatibility

Commonly used on:

• Johnson / Evinrude 60-degree 4-cylinder optical ignition systems

Typically suits:

• Engine models:

• Johnson 80 Jet 60-degree 4-cylinder - 1995-2006

• Evinrude 80 Jet 60-degree 4-cylinder - 1995-2006

• Johnson 90HP 60-degree 4-cylinder - 1995-2006

• Evinrude 90HP 60-degree 4-cylinder - 1995-2006

• Johnson 100HP 60-degree 4-cylinder - 1995-2006

• Evinrude 100HP 60-degree 4-cylinder - 1995-2006

• Johnson 105 Commercial 60-degree 4-cylinder - 1995-2006

• Evinrude 105 Commercial 60-degree 4-cylinder - 1995-2006

• Johnson 115HP 60-degree 4-cylinder - 1995-2006

• Evinrude 115HP 60-degree 4-cylinder - 1995-2006

• HP Range: 80 Jet / 90HP / 100HP / 105HP / 115HP

• Engine Type: Johnson / Evinrude 60-degree 4-cylinder two-stroke outboard with optical ignition

• Year Range: Approximately 1995 - 2006

• Serial / Model Note: OMC / BRP fitment is model-number controlled. Match by exact Johnson / Evinrude model number, ignition system type and connector layout.

🔌 Function

The power pack receives timing signals from the optical ignition system and triggers the ignition coils at the correct time. It also interfaces with engine protection logic including QuickStart and S.L.O.W. functions.

Common signs of failure:

• No spark on one or more cylinders

• Intermittent spark loss when warm

• Engine starts then drops cylinders

• S.L.O.W. mode or timing faults after sensor testing

• No-start with verified stator, optical sensor and coil inputs

• Misfire under load

• Heat, water or corrosion damage at the module

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
