🔧 Product Description

Aftermarket replacement E-TEC Trim & Tilt Relay Assembly - Replaces Part Number: 0586767

New aftermarket combined UP/DOWN trim relay assembly replacing Evinrude 0586767/586767. The sealed relay module is used across a broad range of E-TEC outboards and switches motor current in both trim directions.

⚙️ Key Features

• Combined UP and DOWN relay module

• Direct replacement for Evinrude 0586767

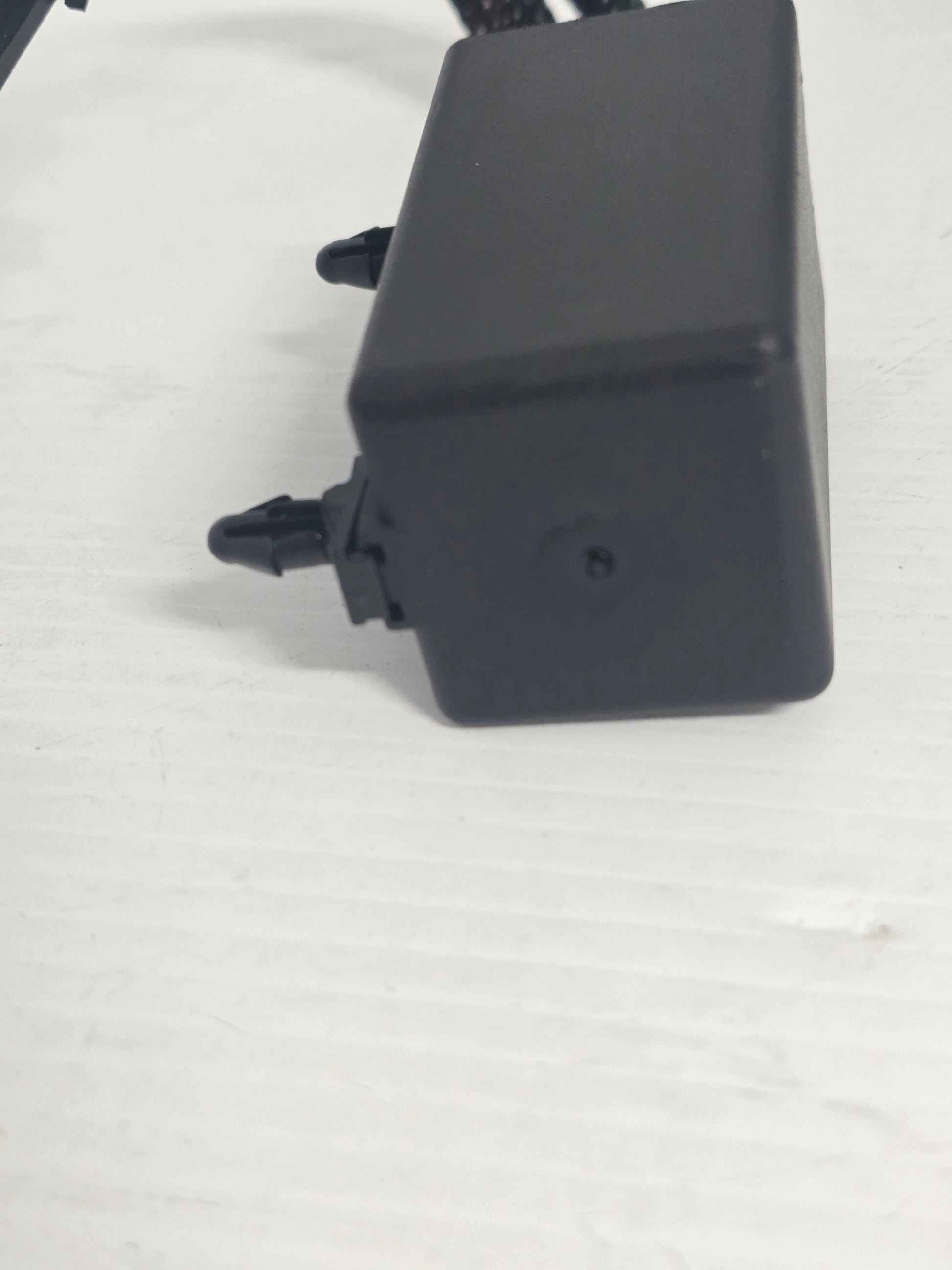

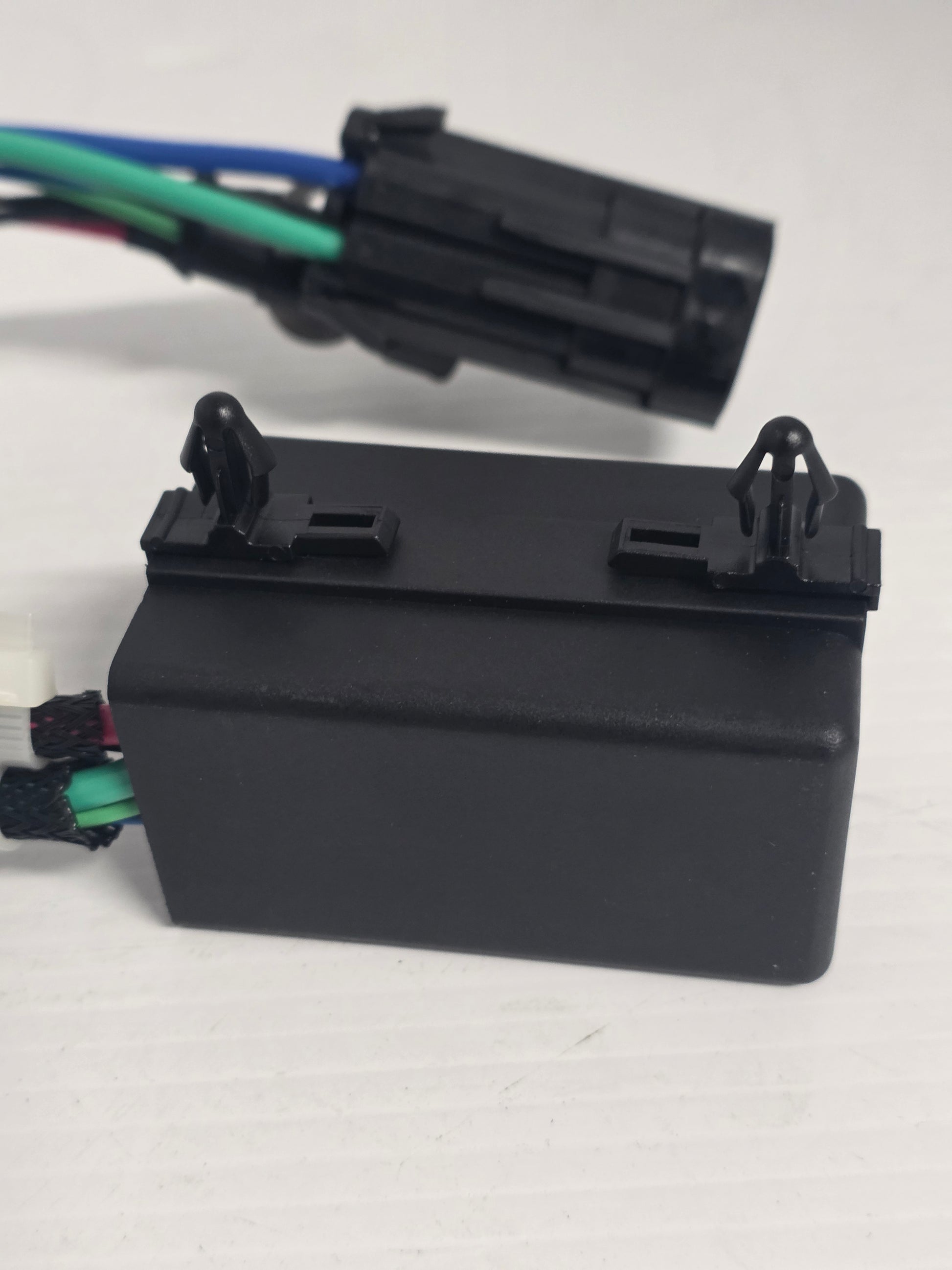

• Sealed marine connector and relay housing

• Supports E-TEC G1 and specified G2 electrical systems

• One relay assembly controls both trim directions

🧰 Kit / Assembly Contents

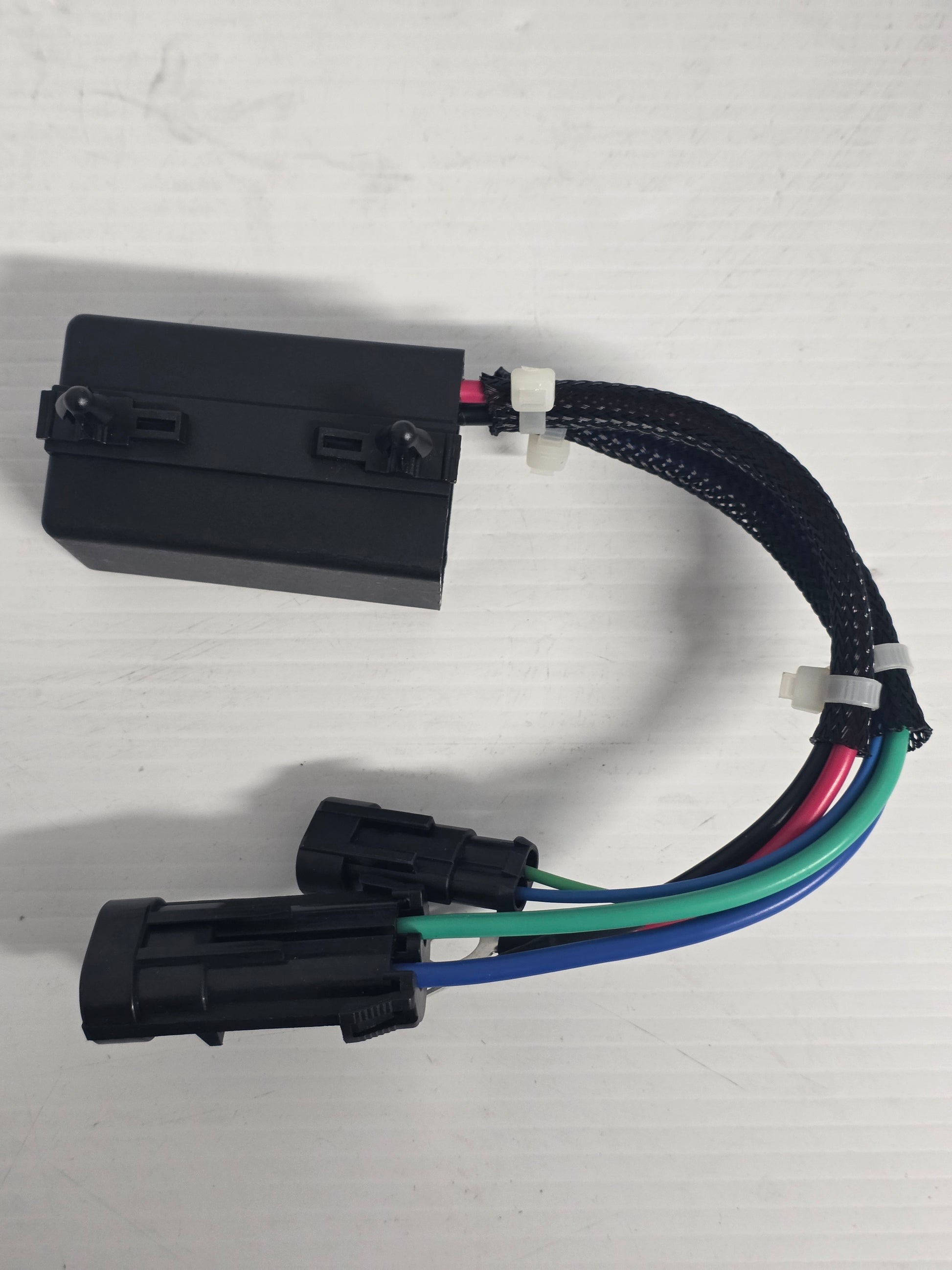

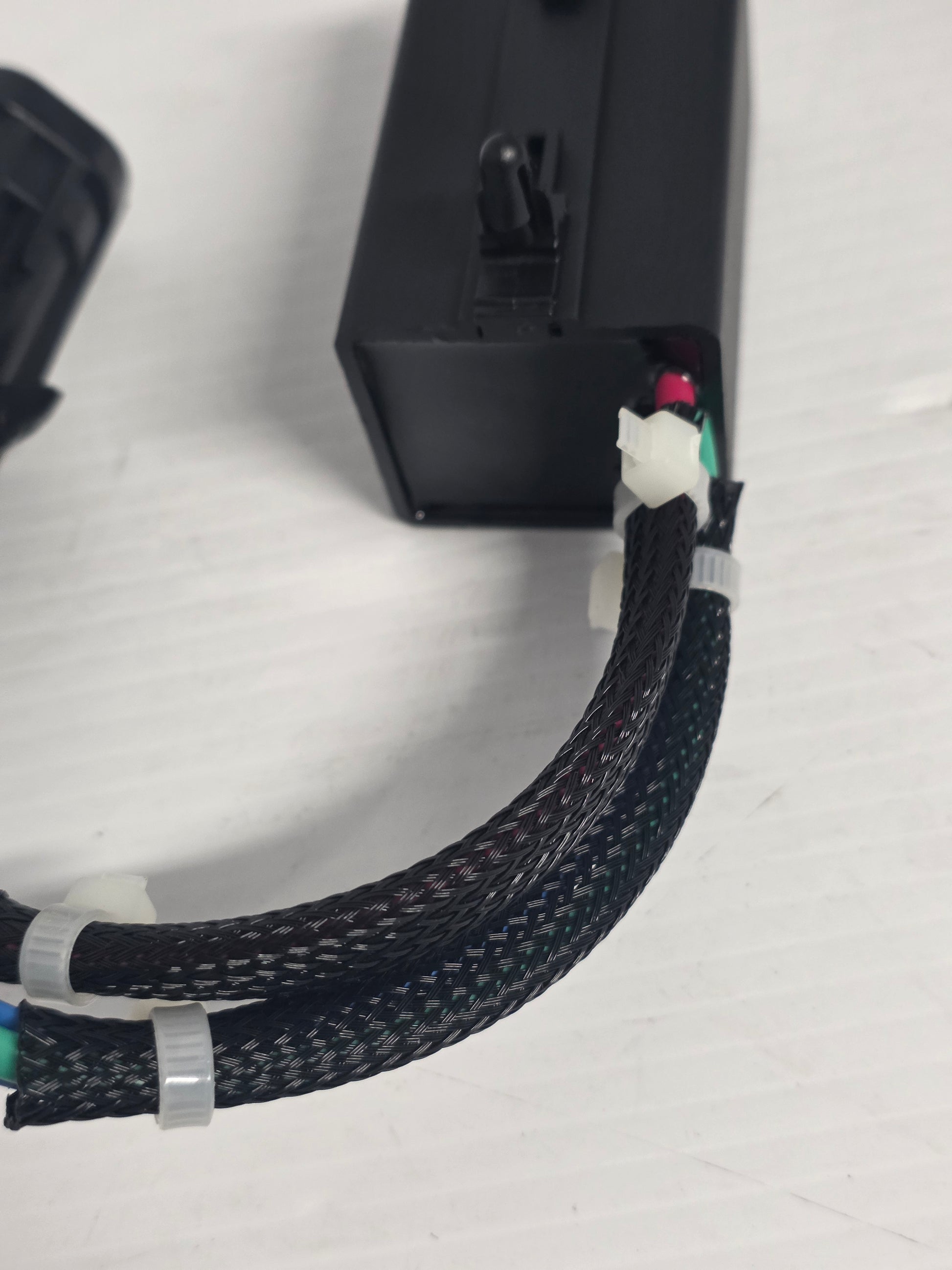

• 1 × Complete trim/tilt relay and cable assembly - P/N 0586767

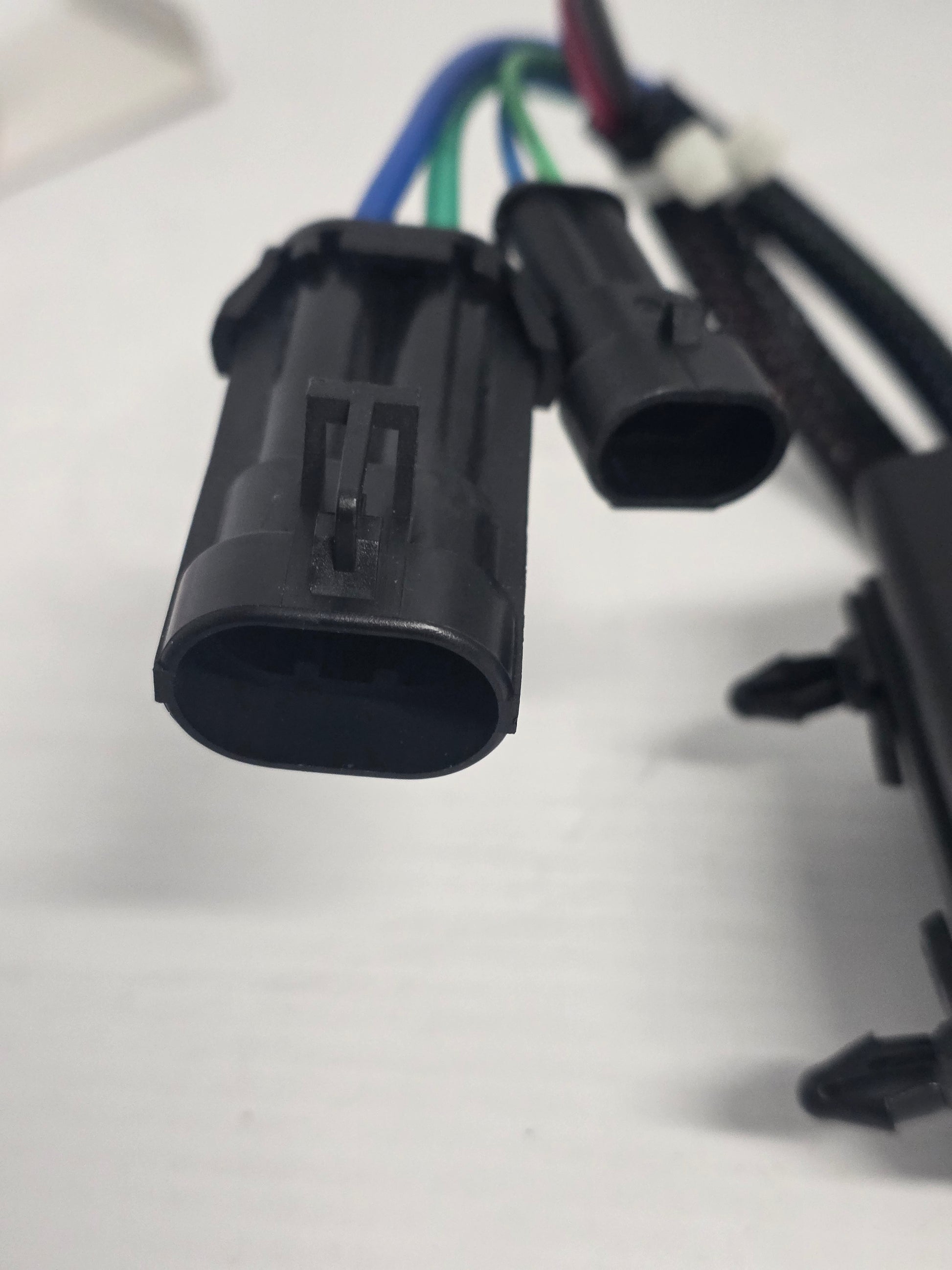

• 1 × Integrated sealed wiring connector and motor leads

• Mounting bracket/fasteners - transferred or supplied according to manufacturer package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0586767 / 586767 (Evinrude OEM relay reference)

OEM / Related Numbers:

• 586767

• WSM 343-100

Aftermarket / Verified Equivalents:

• WSM: 343-100

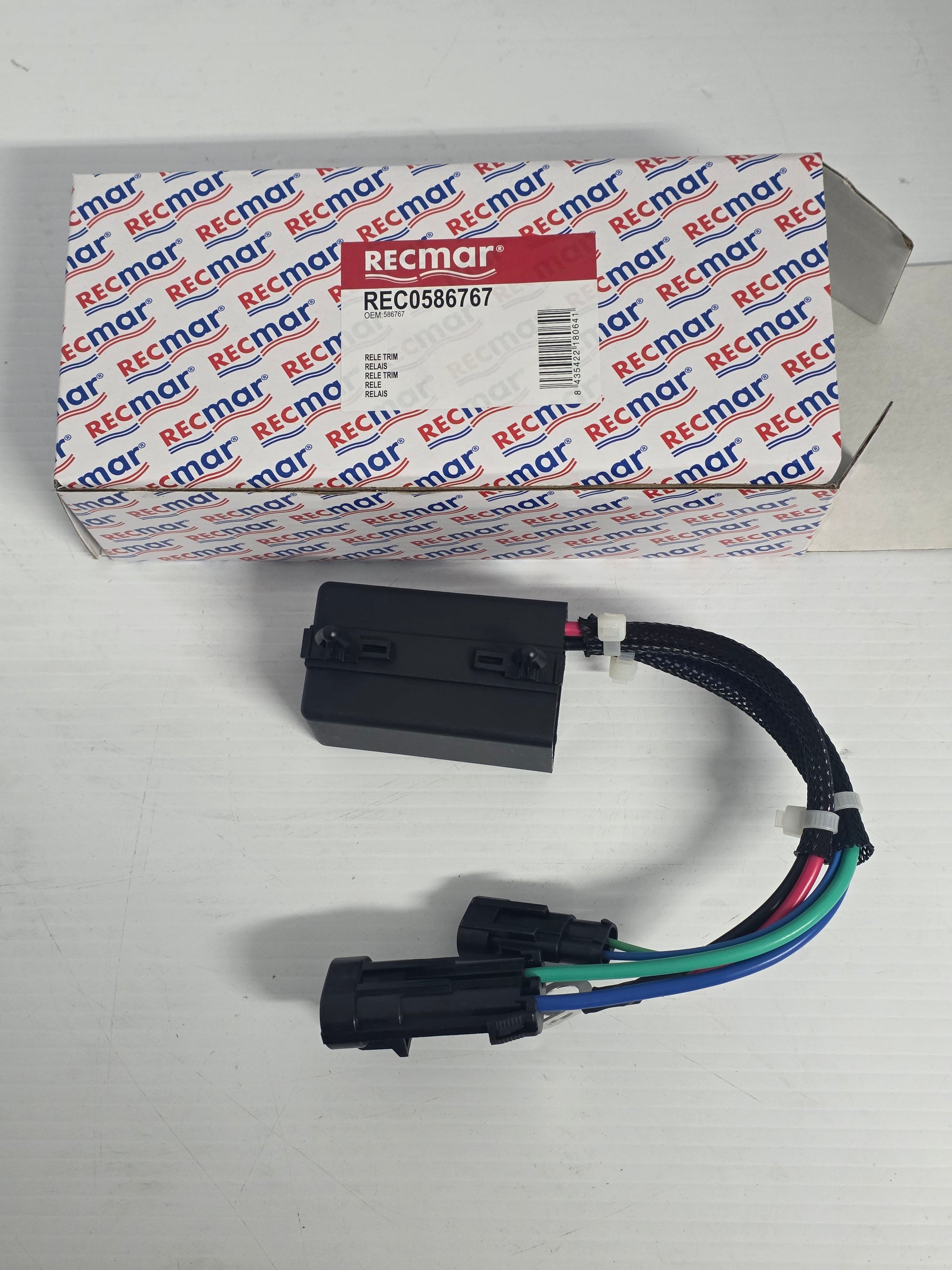

• Recmar: REC0586767

• Aftermarket sealed E-TEC trim-relay assemblies matched to 586767

🚤 Compatibility

Commonly used on:

• Evinrude E-TEC trim and tilt electrical systems

Typically suits:

• Engine / Drive models:

• E15, E25 and E30 E-TEC

• E40, E50 and E60 E-TEC

• E75, E90, E115 and E130 E-TEC

• E150, E175, E200, E225, E250 and E300 E-TEC

• G1 and specified G2 applications whose parts catalogue lists 586767

• HP / Drive Range: 15HP - 300HP

• System Type: Outboard electric-hydraulic power trim and tilt system

• Year Range: Principally 2004 onward; engine-model and serial dependent

• Serial / Component Identification: Confirm OEM 586767 because other E-TEC trim systems use different relay modules.

🔌 Function

The relay assembly switches high battery current to the trim/tilt motor in the UP or DOWN direction when commanded by the trim switch or engine-control system.

Common signs of failure / service requirement:

• Trim operates in only one direction

• Relay clicks but the motor does not run

• Intermittent trim operation or heat-damaged connector

• No voltage reaching the trim motor under load

• Burnt relay contacts or melted housing

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
