0586767 Evinrude Johnson Trim Relay | Genuine OEM BRP Outboard Part

0586767 Evinrude Johnson Trim Relay | Genuine OEM BRP Outboard Part

$281.67 AUD
$281.67 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

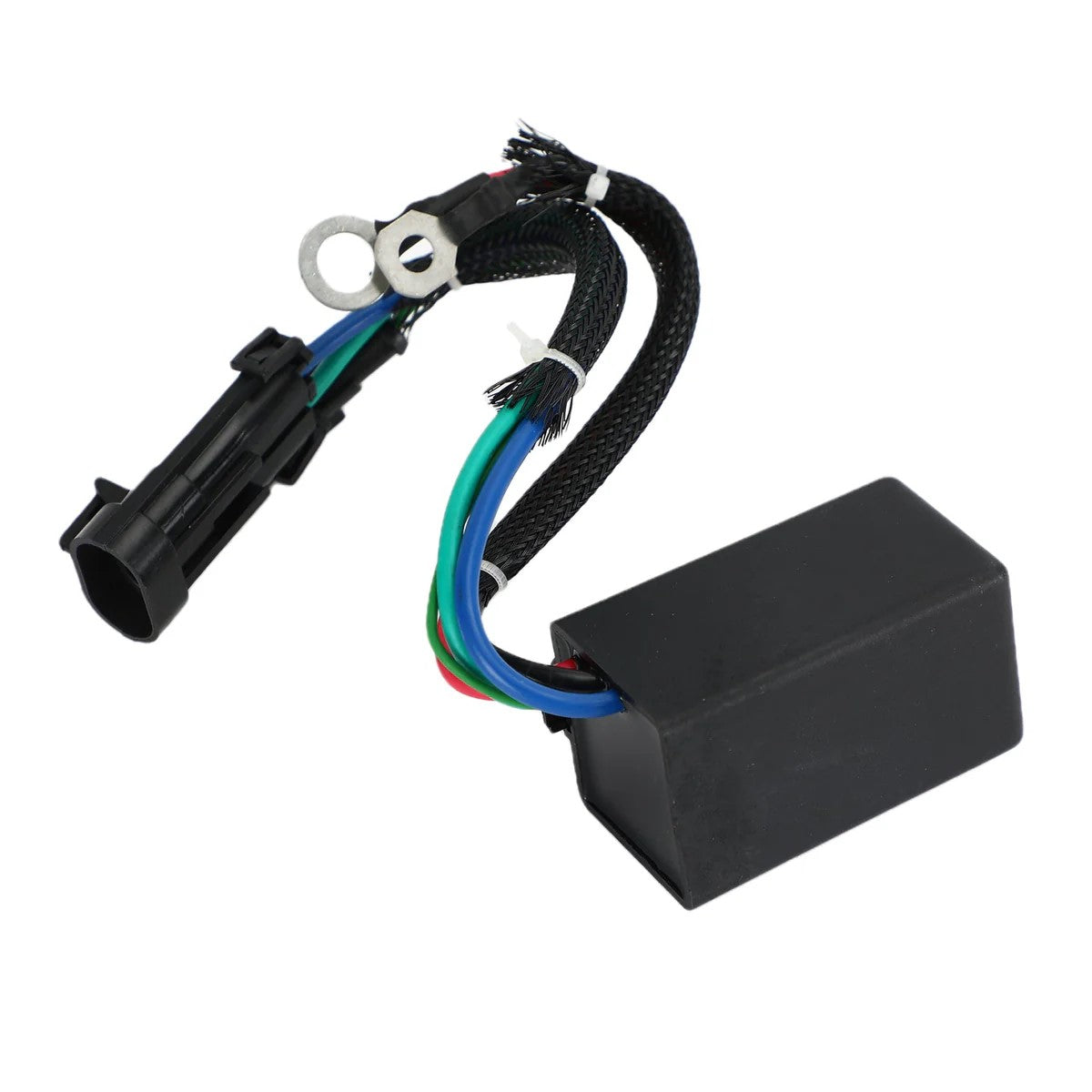

Genuine BRP Evinrude E-TEC Trim and Tilt Relay with Harness - Part Number: 0586767

A genuine BRP power trim and tilt relay assembly for a wide selection of Evinrude E-TEC outboards.

The assembly includes the sealed relay, electrical leads and moulded connectors used to switch high battery current to the trim motor. Depending on the direction commanded by the trim switch, the relay reverses the polarity supplied to the motor so the outboard trims upward or downward.

⚙️ Key Features

  • Genuine BRP Evinrude trim and tilt relay assembly
  • Correct OEM reference 0586767
  • Includes relay, wiring and sealed connectors
  • Controls both upward and downward trim operation
  • ARCO Marine and other aftermarket replacements available

🚤 Compatibility

Commonly used on

  • Evinrude E-TEC power trim and tilt systems
  • Engines using the sealed BRP relay and harness assembly
  • Two-wire reversible trim motors

Typically suits

  • Engine models:
  • Evinrude E-TEC 25HP and 30HP applications where specified
  • Evinrude E-TEC 40HP and 50HP
  • Evinrude E-TEC 55 MFE
  • Evinrude E-TEC 60HP and 65 Jet
  • Evinrude E-TEC 75HP and 90HP
  • Evinrude E-TEC 105 Jet
  • Evinrude E-TEC 115HP and 130HP
  • Evinrude E-TEC 150HP and 175HP
  • Evinrude E-TEC 200HP, 225HP and 250HP
  • Evinrude E-TEC 300HP
  • Engines whose electrical diagram specifies relay assembly 0586767
  • HP Range: Approximately 25HP - 300HP
  • Engine Type: Evinrude E-TEC direct-injection two-stroke outboard
  • Year Range: Primarily approximately 2004-2012, dependent on model

🔌 Function

The relay receives a low-current signal from the trim switch and switches the higher current required by the hydraulic trim motor. It also reverses electrical polarity to change the motor's direction.

⚠️ Common Signs of Failure

  • Trim operates in only one direction
  • Trim motor does not operate
  • Relay clicks but the motor does not run
  • Trim works intermittently
  • Relay becomes hot or smells burnt
  • Connectors show corrosion or heat damage
  • Voltage is present at the switch but absent at the trim motor
  • Trim motor runs when the relay is tapped or moved

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0586767 current BRP trim-relay and cable-assembly reference

OEM / Related Numbers

  • 0586767
  • 586767
  • BRP / OMC 586767
  • Trim and tilt cable and relay assembly
  • Power trim relay assembly
  • Tilt-motor reversing relay

Aftermarket / Verified Equivalents

  • ARCO Marine: R767
  • Aftermarket relay: YJ041AU1
  • F.S.P replacement relay for 0586767
  • Replacement relays sold under 586767 / 0586767

📦 Condition

  • Genuine BRP part
  • Brand new
  • Supplied in original or equivalent packaging
