0586784 Sending Unit Assembly | Genuine Used Part

🔧 Product Description

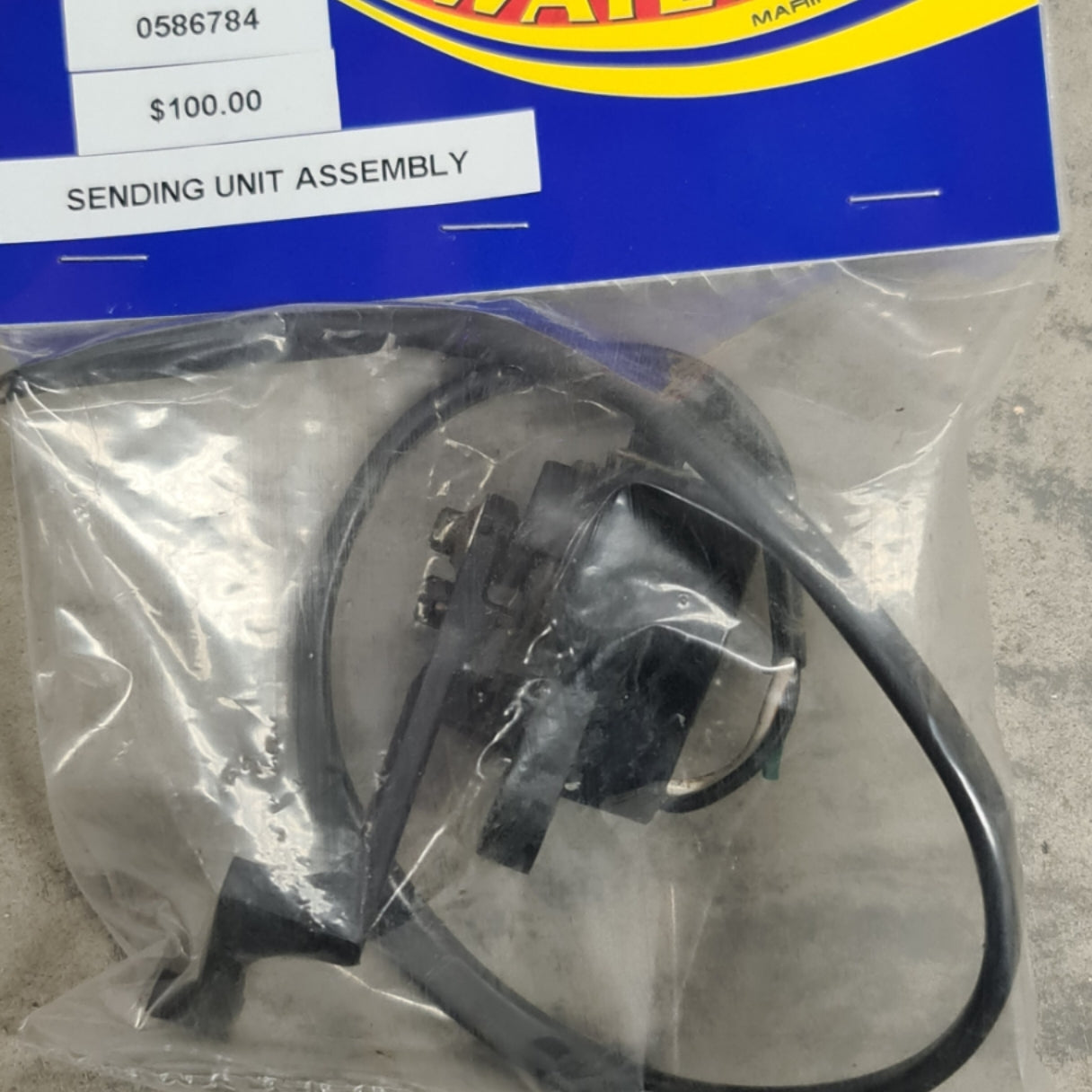

Genuine Evinrude E-TEC Trim Sending Unit Assembly - Part Number: 0586784

A genuine used BRP trim-position sender for selected Evinrude E-TEC outboards.

The sender is mounted on the swivel or trim-bracket assembly and produces a variable electrical signal corresponding to the engine's trim angle. This signal is used by the trim gauge and compatible engine-monitoring systems.

⚙️ Key Features

• Genuine BRP Evinrude trim sender
• Correct original part number 0586784
• Later replaced by trim sender 0587146
• Supplies engine trim-position information
• Used on E-TEC 60HP to 200HP platforms where specified

🚤 Compatibility

Commonly used on

• Evinrude E-TEC trim and tilt assemblies
• Digital and analogue trim-position gauge systems

Typically suits

• Engine models:
• Evinrude E-TEC 60HP and 65HP designated AF models
• Evinrude E-TEC 75HP - approximately 2004-2011 AF models
• Evinrude E-TEC 90HP - approximately 2004-2011 AF models
• Evinrude E-TEC 115HP - approximately 2007-2012 AF models
• Evinrude E-TEC 130HP - approximately 2009-2011 AA / AF models
• Evinrude E-TEC 150HP - approximately 2007-2012 AA / AB models
• Evinrude E-TEC 175HP - approximately 2007-2012 AA / AB models
• Evinrude E-TEC 200HP - approximately 2007-2011 AA / AF models
• HP Range: 60HP - 200HP
• Engine Type: Evinrude E-TEC direct-injected two-stroke outboard
• Year Range: Approximately 2004 - 2012

🔌 Function

The sender converts the engine's trim angle into an electrical resistance signal for the trim gauge or engine-monitoring display.

⚠️ Common Signs of Failure

• Trim gauge remains at one position
• Trim reading jumps or moves erratically
• Gauge displays the wrong engine angle
• Intermittent signal as the engine trims
• Sender arm, wiring or connector is damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0587146 → Supersedes 0586784
• 0586784 original trim-sender assembly reference
• 0769495 related earlier service-kit reference

OEM / Related Numbers

• 0586784
• 586784
• 0587146
• 587146
• 0769495
• 769495
• BRP-0586784
• BRP-0587146

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
