0587146 Evinrude Johnson Trim Sender | Genuine OEM BRP Outboard Part

🔧 Product Description

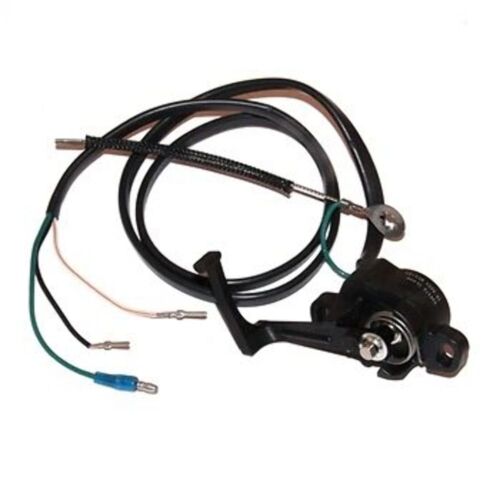

Genuine BRP Evinrude Power Trim Sending Unit Assembly - Part Number: 0587146

A genuine BRP trim-position sending unit for selected Evinrude E-TEC outboards.

The sender mounts to the swivel-bracket area and measures the outboard's trim angle. Its electrical signal is used by the trim gauge, engine display or engine-management network to indicate the position of the outboard. Part number 0587146 supersedes earlier sender references 0586784 and 0769495.

⚙️ Key Features

• Genuine BRP trim-position sending unit

• Correct current reference 0587146

• Replaces 0586784 and 0769495

• Mounts to the swivel-bracket assembly

• Improved later-design sender assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0587146 → Supersedes 0586784

• 0586784 → Replaces or relates to 0769495

• 0769495 earlier BRP trim-sender reference

OEM / Related Numbers:

• 0587146

• 587146

• 0586784

• 586784

• 0769495

• 769495

• Trim sender

• Trim sending-unit assembly

• Power trim-position sensor

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Evinrude E-TEC swivel brackets

• Analog and digital trim-position displays

• Outboards using the 0586784 / 0587146 sender family

Typically suits:

• Engine models:

• Evinrude E-TEC 60HP and 65 Jet applications where specified

• Evinrude E-TEC 75HP

• Evinrude E-TEC 90HP

• Evinrude E-TEC 105 Jet

• Evinrude E-TEC 115HP and 130HP

• Evinrude E-TEC 135 H.O.

• Evinrude E-TEC 150HP and 175HP

• Evinrude E-TEC 200HP

• Evinrude E-TEC 225HP applications using this sender design

• Engines originally fitted with 0586784 or 0769495

• HP Range: Approximately 60HP / 75HP - 225HP

• Engine Type: Evinrude E-TEC direct-injection outboard

• Year Range: Approximately 2005 onward, dependent on swivel-bracket design

🔌 Function

The sender varies its electrical output as the engine rotates through the trim range. This signal allows the helm gauge or electronic display to show the outboard's approximate trim position.

Common signs of failure:

• Trim gauge remains at the top or bottom

• Gauge reading jumps or changes erratically

• Displayed trim does not match the engine position

• Sender arm is seized or damaged

• Wiring is cut, pinched or corroded

• Gauge works only through part of the trim range

• Sender housing is cracked

• Water intrusion causes intermittent readings

📦 Condition

• Genuine BRP part

• Brand new

• Supplied in original or equivalent packaging
