06115-ZVL-010 Honda Marine Gasket Kit 06115-ZW5-040 | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda BF175D-BF250D Engine Gasket Kit - Part Number: 06115-ZVL-010

A genuine Honda 20-piece engine gasket and sealing package for specified BF175D, BF200D, BF225D and BF250D V6 outboards. The supplied title references 06115-ZW5-040, but that older ZW5 kit belongs to the BF115A/BF130A platform and is not a direct supersession or substitute for 06115-ZVL-010.

⚙️ Key Features

• Genuine Honda large-V6 engine gasket package

• Includes both cylinder-head and both head-cover gaskets

• Covers oil-pan, oil-pump, intake, injector-base, exhaust and mount-case joints

• Includes the listed drain washer and O-rings

• Not interchangeable with BF115A/BF130A gasket kit 06115-ZW5-040

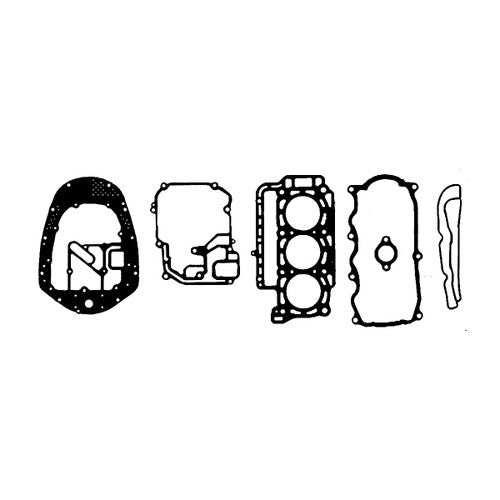

📋 Kit / Assembly Contents

• 1 × oil-pan gasket - 11381-ZVL-003

• 2 × cylinder-head gaskets - 12251-ZY3-A01

• 2 × head-cover gaskets - 12312-ZY3-000

• 1 × timing-belt tensioner-base O-ring - 14529-ZY3-000

• 1 × oil-pump body gasket - 15112-ZY3-013

• 1 × front injector-base gasket - 17055-RCA-A01

• 1 × rear injector-base gasket - 17065-RCA-A01

• 1 × intake-manifold gasket - 17105-P8E-A01

• 1 × right exhaust-manifold gasket - 18115-ZY3-003

• 1 × left exhaust-manifold gasket - 18125-ZY3-003

• 2 × exhaust-pipe gaskets - 18333-ZVL-003

• 1 × mount-case gasket - 23172-ZVL-003

• 1 × 12 mm drain-plug washer - 90601-ZE2-000

• 2 × 7.8 × 1.9 mm O-rings - 91301-MJ0-003

• 2 × 66.4 × 3.1 mm O-rings - 91301-ZY3-003

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 06115-ZVL-010 - kit for the specified BF175D/BF200D/BF225D/BF250D engine revisions

• 06115-ZVL-B10 - separate revised kit used on selected DK1/B-series engine revisions

• 06115-ZW5-040 - separate BF115A/BF130A gasket-kit family; not a direct supersession

• 06115-ZW5-040 supersedes earlier 06115-ZW5-000 within the BF115A/BF130A family

OEM / Related Numbers:

• 06115-ZVL-010

• 06115-ZVL-B10

• 06115-ZW5-040

• 06115-ZW5-000

Aftermarket / Verified Equivalents:

• No verified complete aftermarket equivalent matching every Honda gasket and quantity

🚤 Compatibility

Commonly used on:

• Honda BF175D

• Honda BF200D

• Honda BF225D

• Honda BF250D

• Not for DK1/B-series engines where the catalogue specifies 06115-ZVL-B10

Typically suits:

• HP Range: 175-250 HP

• Engine Type: Large-displacement V6 EFI four-stroke outboard

• Year Range: Approximately 2014 onward, engine revision dependent

• Serial / Identification Range: Use the engine product number and frame serial to choose between ZVL-010 and ZVL-B10; the two packages contain revised gaskets.

🔌 Function

Provides the matched genuine sealing components required during major cylinder-head, oil-system, intake, exhaust and mount-case service.

Common signs replacement or service is required:

• Oil, coolant or exhaust leakage from multiple engine joints

• Cylinder-head removal or major upper-engine overhaul

• Head-cover or oil-pan gasket leakage

• Exhaust-manifold or mount-case gasket failure

• Engine has been dismantled and the original compressed gaskets cannot be reused

📦 Condition

• Genuine Honda Marine OEM part

• Brand new

• Supplied in genuine Honda or equivalent protective packaging
