06167-ZW5-305 Honda Vapor Separator | Genuine Used Part

🔧 Product Description

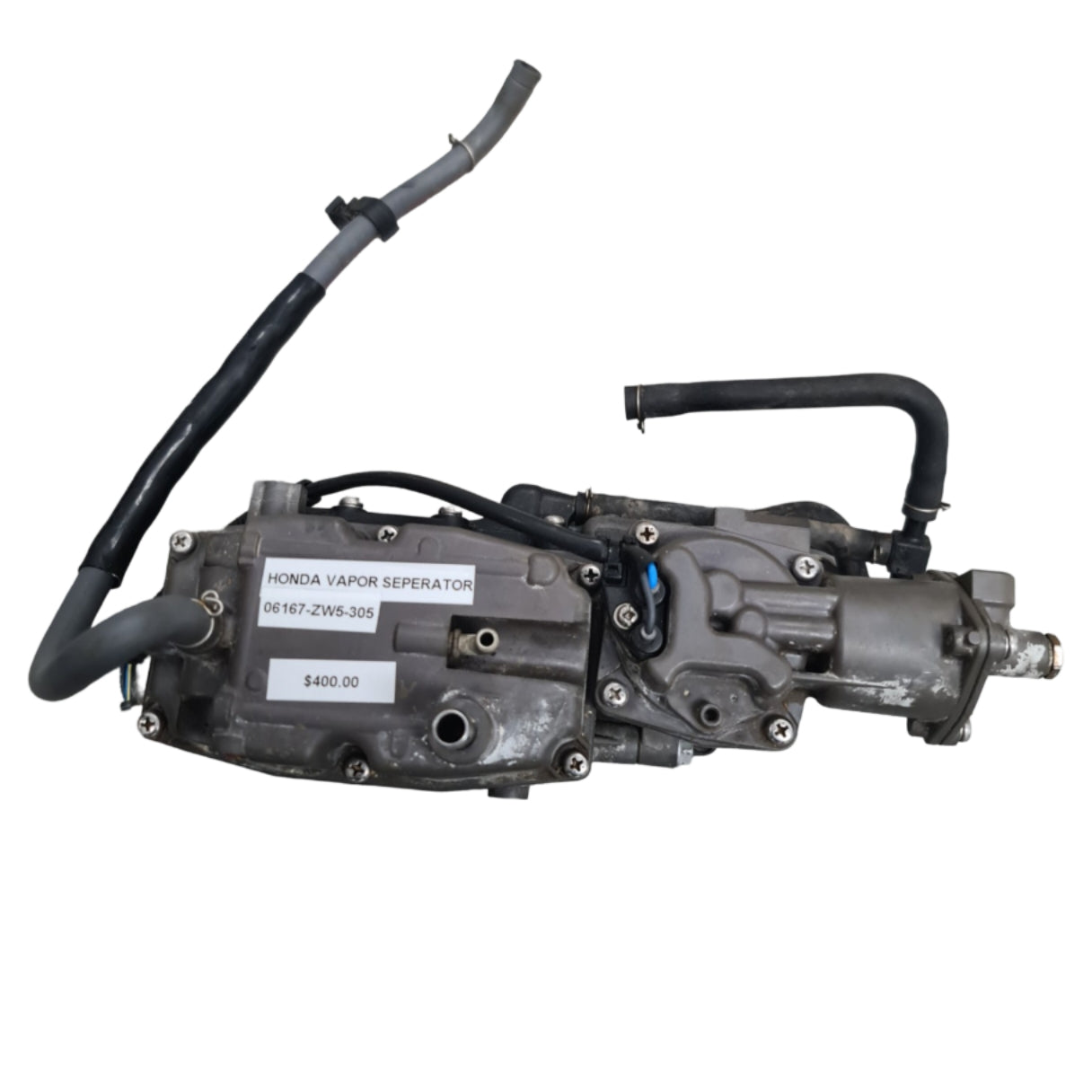

Genuine Honda Vapor Separator Kit - Part Number: 06167-ZW5-305

A genuine Honda vapour separator tank assembly for selected BF115A and BF130A four-stroke outboards. The assembly stores a controlled supply of fuel for the high-pressure fuel-injection system and incorporates the vapour-separator body, internal electric pump and associated float-chamber components.

This earlier assembly has been replaced in Honda service catalogues by 06167-ZW5-345 and is suited to the original 115HP and 130HP fuel-injection system configuration where the serial-numbered parts diagram specifies the ZW5-series separator.

⚙️ Key Features

• Genuine Honda OEM vapour separator assembly
• Original Honda part number 06167-ZW5-305
• Complete VST-style fuel reservoir and high-pressure pump assembly
• Used on Honda BF115A and BF130A four-stroke fuel-injection systems
• Superseded by later Honda service assembly 06167-ZW5-345

🚤 Compatibility

Commonly used on

• Honda BF115A and BF130A four-stroke outboard electronic fuel-injection systems
• Honda ZW5-series vapour separator and high-pressure fuel-pump assemblies

Typically suits

• Engine models:
• Honda BF115AX LA / XA model families
• Honda BF115AX XA - serial BZBD-1000001 to BZBD-1099999
• Honda BF115AY LA / XA model families
• Honda BF115A1 LA / XA model families
• Honda BF115A1 LCA - serial BZBG-1200001 to BZBG-1299999
• Honda BF130A LA / XA model families
• Honda BF130A1 LA / XA / LCA model families
• Honda BF130A2 LA / XA / LCA model families
• Honda BF130A3 LA / XA / LCA model families
• HP Range: 115HP - 130HP
• Engine Type: Honda inline 4-cylinder EFI four-stroke outboard
• Year Range: Approximately 1999 - 2007

🔌 Function

The vapour separator maintains a stable reservoir of fuel for the high-pressure electric pump, separates fuel vapour from liquid fuel and supplies the fuel rail at the pressure required by the electronic injection system.

⚠️ Common Signs of Failure

• Engine starts but stalls when fuel demand increases
• Loss of power or hesitation under acceleration
• High-pressure fuel pump does not run or runs intermittently
• Fuel leakage or strong petrol odour beneath the engine cowl
• Lean-running, low fuel-pressure or injector-supply faults

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 06167-ZW5-345 → Supersedes 06167-ZW5-305
• 06167-ZW5-305 earlier OEM vapour separator kit reference

OEM / Related Numbers

• 06167-ZW5-305
• 06167ZW5305
• 06167-ZW5-345
• 06167ZW5345
• 16011-ZY3-A01 related float valve set
• 16024-ZY3-000 related drain screw set
• 16733-ZW5-000 related mounting grommet

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
