06193-ZW9-020 Honda Marine Pump Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda BF8D / BF9.9D Short & Long Shaft Water Pump Rebuild Kit - Part Number: 06193-ZW9-020

A genuine Honda complete water-pump rebuild package for BF8D and BF9.9D short- and long-shaft outboards. It renews the pump housing assembly, impeller, plate, gasket, drive key, seal and mounting hardware.

⚙️ Key Features

• Complete genuine Honda portable-outboard pump package

• For short and long shaft BF8D/BF9.9D installations

• Housing assembly includes the matched pump body/liner arrangement

• Later service packages supersede the original 020 kit as production revisions changed

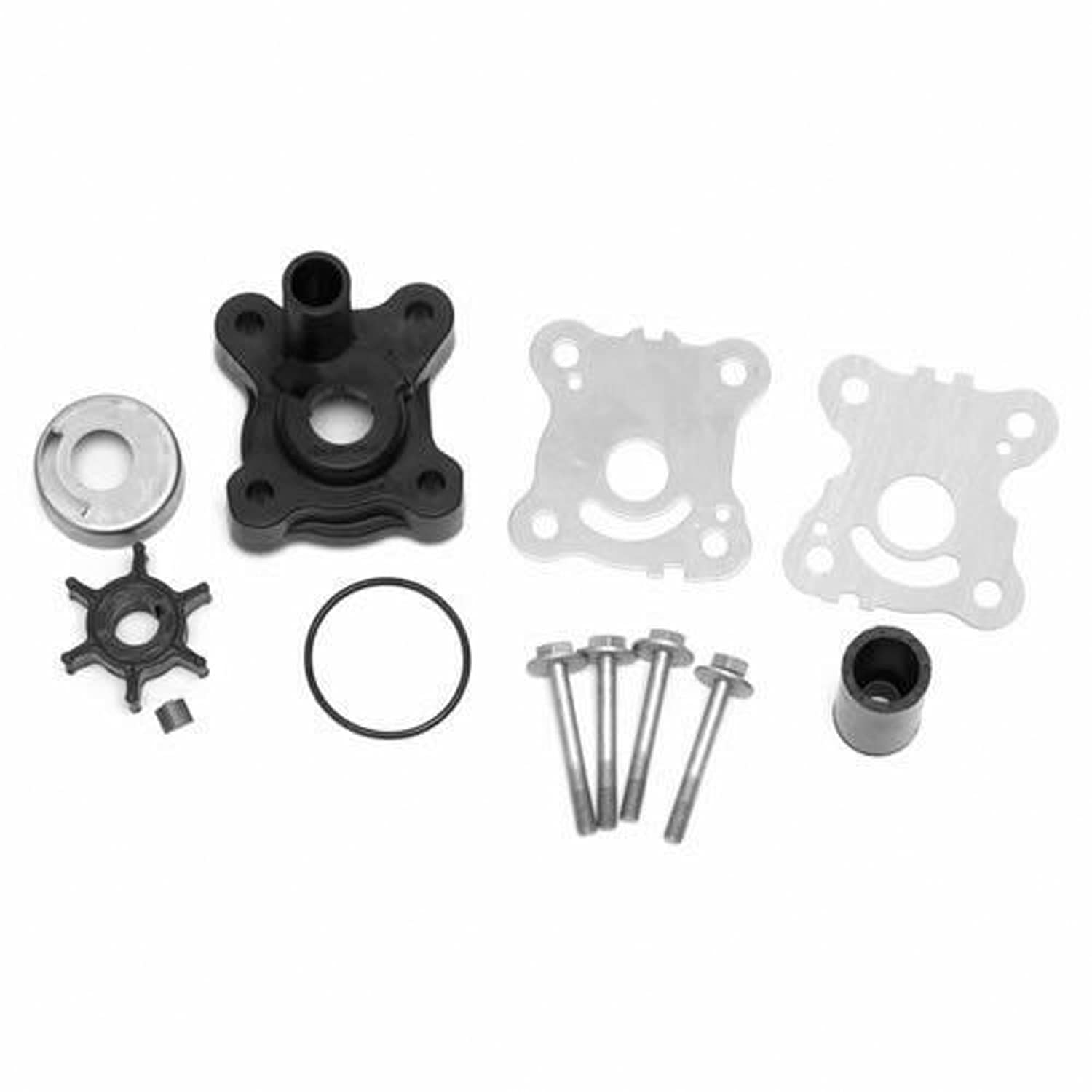

📋 Kit / Assembly Contents

• 1 × water-pump impeller - 19210-ZW9-013

• 1 × impeller housing assembly - 19215-ZW9-020

• 1 × impeller cover/plate - 19231-ZW9-000

• 1 × impeller gasket - 19232-ZW9-000

• 1 × impeller key - 90752-ZW9-003

• 1 × pump O-ring - 91301-ZG3-000

• 4 × bolts with washers - 90122-ZW9-000

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 06193-ZW9-040 - later service replacement shown for selected current applications

• 06193-ZW9-030 - intermediate rebuild-kit revision

• 06193-ZW9-020 - earlier short/long shaft rebuild kit

• 06193-ZW9-000 - original kit reference

OEM / Related Numbers:

• 06193-ZW9-040

• 06193-ZW9-030

• 06193-ZW9-020

• 06193-ZW9-000

• 06192-ZW9-010 - related service impeller kit

Aftermarket / Verified Equivalents:

• No verified complete aftermarket kit equivalent matching the listed Honda package revision

🚤 Compatibility

Commonly used on:

• Honda BF8D short and long shaft

• Honda BFP8D where the same pump diagram is used

• Honda BF9.9D/BFP9.9D short and long shaft

Typically suits:

• HP Range: 8-9.9 HP

• Engine Type: Inline two-cylinder four-stroke outboard

• Year Range: Approximately 2001 onward for the D-series platform

• Serial / Identification Range: The 020 package appears on earlier D-series frames; later serials use revised 030/040 or A-series kits. Confirm the full frame serial and shaft length.

🔌 Function

Restores pump-chamber clearances, vane flexibility and sealing so the portable outboard can prime and circulate cooling water.

Common signs replacement or service is required:

• No or weak tell-tale flow

• Overheat warning or hot running

• Impeller damage after dry operation

• Scored housing/plate or leaking pump gasket

📦 Condition

• Genuine Honda Marine OEM part

• Brand new

• Supplied in genuine Honda or equivalent protective packaging
