06193-ZY1-030 Honda Marine Impeller Pump Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda BF15D / BF20D Short & Long Shaft Water Pump Rebuild Kit - Part Number: 06193-ZY1-030

A genuine Honda nine-piece water-pump rebuild package for BF15D and BF20D short- and long-shaft outboards. It replaces the original pump housing, impeller, plate, gasket, key and four mounting bolts as one matched service package.

⚙️ Key Features

• Complete genuine Honda pump rebuild kit
• For BF15D/BF20D short and long shaft configurations
• Nine total components including four new washer bolts
• Current replacement for the 06193-ZY1-020 family

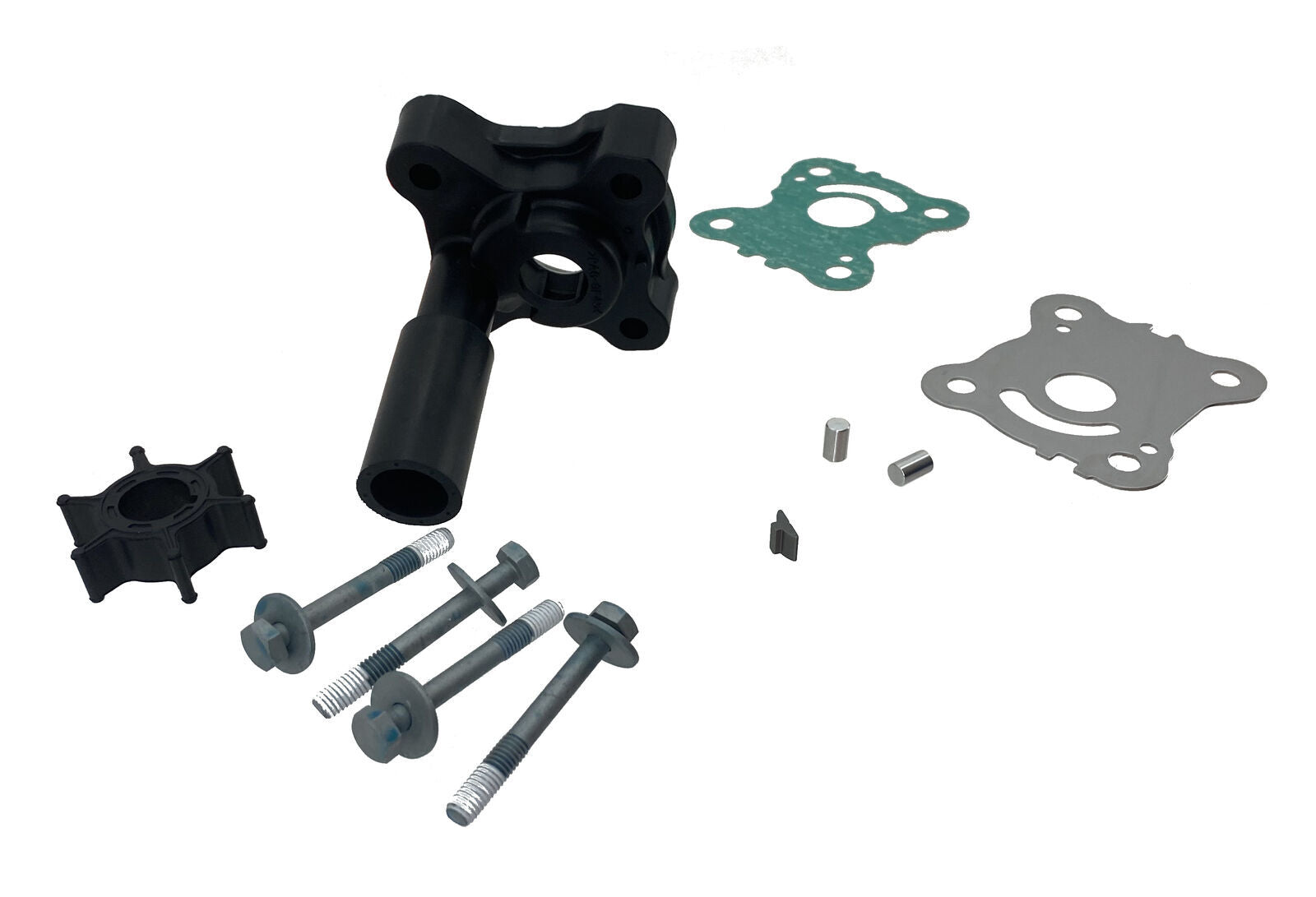

📋 Kit / Assembly Contents

• 1 × impeller housing - 19215-ZW9-020
• 1 × water-pump impeller - 19210-ZW9-A32
• 4 × bolts with washers - 90121-ZW9-000
• 1 × Woodruff key - 90752-ZW9-A30
• 1 × pump gasket - 19232-ZW9-000
• 1 × pump plate - 19231-ZW9-000

🚤 Compatibility

Commonly used on

• Honda BF15D short and long shaft
• Honda BF20D short and long shaft

Typically suits

• HP Range: 15-20 HP
• Engine Type: Inline two-cylinder four-stroke outboard
• Year Range: Approximately 2003 onward
• Serial / Identification Range: Confirm the complete model/frame serial and exclude extra-long shaft configurations that use a ZW9-A-series rebuild kit.

🔌 Function

Restores the complete water-pump wear chamber and impeller so the engine receives dependable cooling-water flow.

⚠️ Common Signs of Failure

• Weak or absent tell-tale stream
• Overheating
• Impeller vane deterioration
• Housing or plate scoring
• Pump gasket leakage

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 06193-ZY1-030 → supersedes 06193-ZY1-020
• 06193-ZY1-020 → supersedes 06193-ZY1-010 and 06193-ZY1-000

OEM / Related Numbers

• 06193-ZY1-030
• 06193-ZY1-020
• 06193-ZY1-010
• 06193-ZY1-000

Aftermarket / Verified Equivalents

• Rareelectrical complete water-pump kit cross-referenced to 06193-ZY1-030
• Aftermarket kit must contain 19210-ZW9-A32, 19215-ZW9-020, 19231-ZW9-000, 19232-ZW9-000 and 90752-ZW9-A30

📦 Condition

• Genuine Honda Marine OEM part
• Brand new
• Supplied in genuine Honda or equivalent protective packaging
