06193-ZY3-010 Honda Marine Impeller Pump Kit | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda BF200A / BF225A Complete Water Pump Rebuild Kit - Part Number: 06193-ZY3-010

A genuine Honda complete 19-piece water-pump rebuild package for BF200A and BF225A V6 outboards. It replaces the pump housing, liner, cover, impeller, all listed seals, the drive key, four collars and four bolt/washer assemblies.

⚙️ Key Features

• Complete genuine Honda V6 water-pump overhaul kit

• Renews every major pump wear surface and seal

• Includes both auxiliary pump O-rings in addition to the main housing O-ring

• Suitable for full pump overhaul after overheating, corrosion or dry-running damage

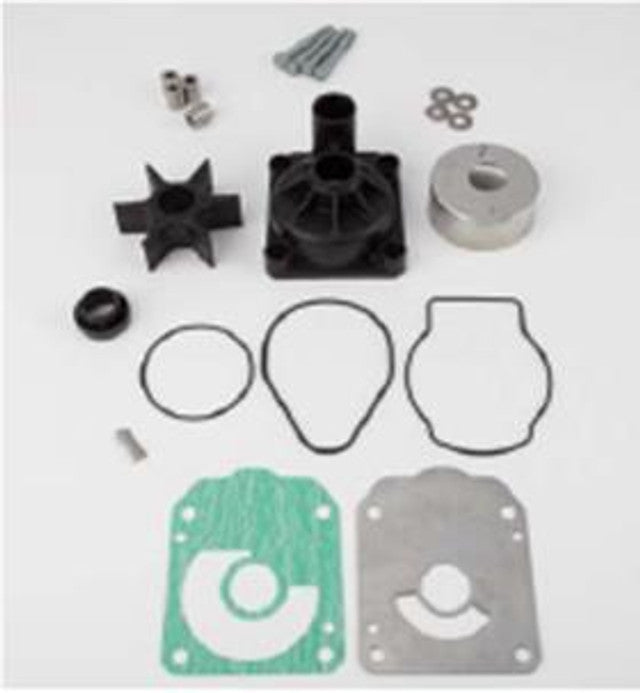

📋 Kit / Assembly Contents

• 1 × water-pump impeller - 19210-ZY3-003

• 1 × impeller housing - 19221-ZY3-010

• 1 × pump liner - 19223-ZY3-000

• 1 × impeller cover - 19231-ZY3-000

• 1 × impeller gasket - 19234-ZY3-000

• 1 × water-tube seal ring - 19253-ZY3-000

• 4 × bolt-and-washer assemblies - 90105-ZX2-C00

• 1 × impeller key - 90752-ZY3-003

• 1 × pump O-ring - 91356-ZY3-003

• 1 × pump O-ring - 91358-ZY3-003

• 1 × pump O-ring - 91359-ZY3-003

• 4 × distance collars - 91551-ZY3-000

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 06193-ZY3-010 - later rebuild-kit revision following 06193-ZY3-000

• 06193-ZY3-030 - later package shown for selected subsequent engine revisions; verify by serial

OEM / Related Numbers:

• 06193-ZY3-010

• 06193-ZY3-000

• 06193-ZY3-030

• 06192-ZY3-000 - related four-piece service impeller kit

Aftermarket / Verified Equivalents:

• No verified complete aftermarket equivalent matching all 19 Honda components

• Sierra Marine 18-3285 corresponds to the smaller 06192-ZY3-000 service impeller kit, not this full rebuild package

🚤 Compatibility

Commonly used on:

• Honda BF200A

• Honda BF225A

Typically suits:

• HP Range: 200-225 HP

• Engine Type: 3.5-litre V6 EFI four-stroke outboard

• Year Range: Approximately 2002-2013

• Serial / Identification Range: Honda catalogues identify 06193-ZY3-010 across later BF200A/BF225A applications; confirm the full BAEJ/BAGJ/BAHJ frame serial and pump diagram.

🔌 Function

Rebuilds the complete raw-water pump so the V6 engine receives stable cooling flow at idle and full load.

Common signs replacement or service is required:

• Weak tell-tale or overheat alarm

• Missing or hardened impeller vanes

• Scored housing, liner or cover

• Leaking or flattened pump O-rings

• Corrosion around the pump and water-tube connection

📦 Condition

• Genuine Honda Marine OEM part

• Brand new

• Supplied in genuine Honda or equivalent protective packaging
