06193-ZY6-A01 Honda Marine Impeller Kit 06193-ZY6-A03 | Genuine OEM Outboard Part

🔧 Product Description

Genuine Honda BF115D / BF135A / BF150A Complete Water Pump Rebuild Kit - Part Number: 06193-ZY6-A01

A genuine Honda 18-piece complete pump rebuild package for BF115D, BF135A and BF150A outboards from the applicable production change. It includes the housing, liner, impeller, plate, gasket, water-tube seal, O-ring, key, four collars, four washer bolts and two dowels.

⚙️ Key Features

• Complete genuine Honda 18-piece cooling-pump rebuild package

• Introduced at the specified BF135A/BF150A production change

• Includes the revised ZY6-A00 impeller housing

• Later A02/A03/A04 package revisions retain the same engine-family application but must be checked by serial

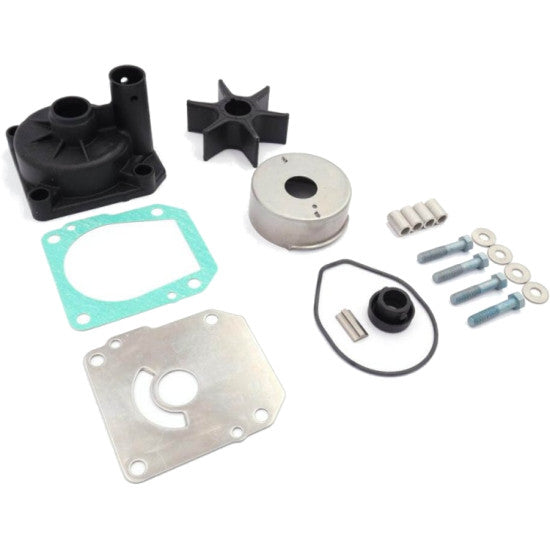

📋 Kit / Assembly Contents

• 1 × water-pump impeller - 19210-ZW1-B04

• 1 × water-tube seal ring - 19253-ZW1-B01

• 1 × impeller housing - 19221-ZY6-A00

• 4 × bolts with washers - 90116-ZY6-000

• 4 × distance collars - 91552-ZY6-000

• 1 × pump liner/cup - 19223-ZW1-B00

• 1 × water-pump O-ring - 91356-ZW1-B00

• 1 × Woodruff key - 90752-ZW1-B02

• 1 × impeller gasket - 19234-ZY6-000

• 2 × locating dowels - 90756-ZVL-000

• 1 × impeller cover/plate - 19231-ZY6-000

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 06193-ZY6-A04 → later package revision

• 06193-ZY6-A03 → supersedes A02/A01 in selected catalogues

• 06193-ZY6-A01 → supersedes 06193-ZY6-000 from the production change

• 06193-ZY6-000 - earlier pump package used up to the specified frame break

OEM / Related Numbers:

• 06193-ZY6-A04

• 06193-ZY6-A03

• 06193-ZY6-A02

• 06193-ZY6-A01

• 06193-ZY6-000

• 06192-ZY6-010/020 - service impeller kit

Aftermarket / Verified Equivalents:

• No verified complete aftermarket equivalent matching all 18 genuine Honda components

🚤 Compatibility

Commonly used on:

• Honda BF115D

• Honda BF135A

• Honda BF150A

Typically suits:

• HP Range: 115-150 HP

• Engine Type: 2.4-litre inline four-cylinder EFI four-stroke outboard

• Year Range: Approximately 2004 onward

• Serial / Identification Range: The earlier 06193-ZY6-000 package is specified up to engine serial 1300562; 06193-ZY6-A01 applies from serial 1300563 and subsequent within the affected BF135A/BF150A production. Confirm current A03/A04 replacement by full frame serial.

🔌 Function

Restores the complete water-pump chamber, drive and seals to factory cooling-flow capability.

Common signs replacement or service is required:

• Weak or intermittent cooling-water discharge

• Overheat alarm

• Impeller vane failure

• Housing, liner or plate scoring

• Water leakage from flattened O-rings or gasket

📦 Condition

• Genuine Honda Marine OEM part

• Brand new

• Supplied in genuine Honda or equivalent protective packaging
