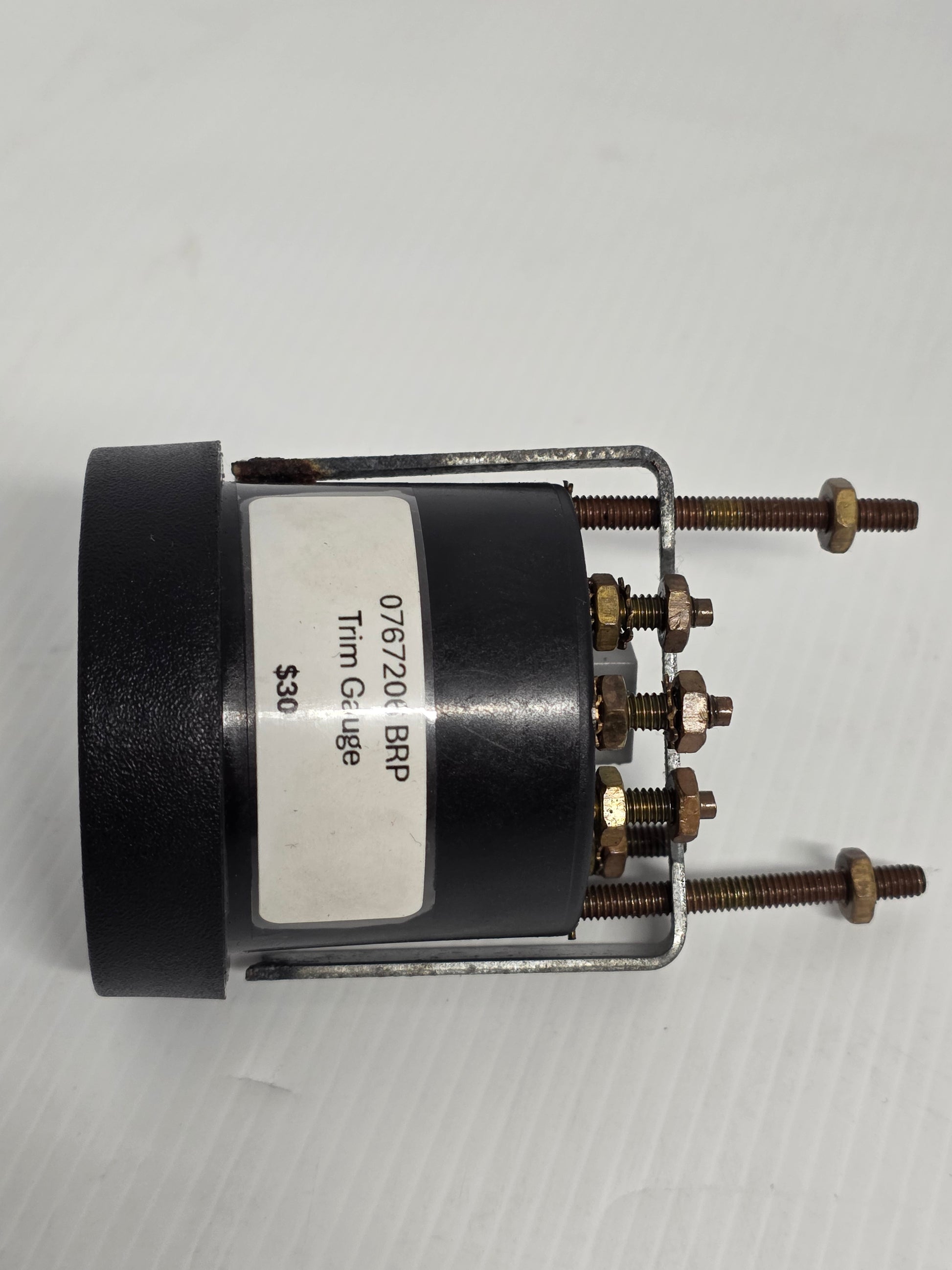

• 0767206 BRP Trim Gauge | Genuine Used Part

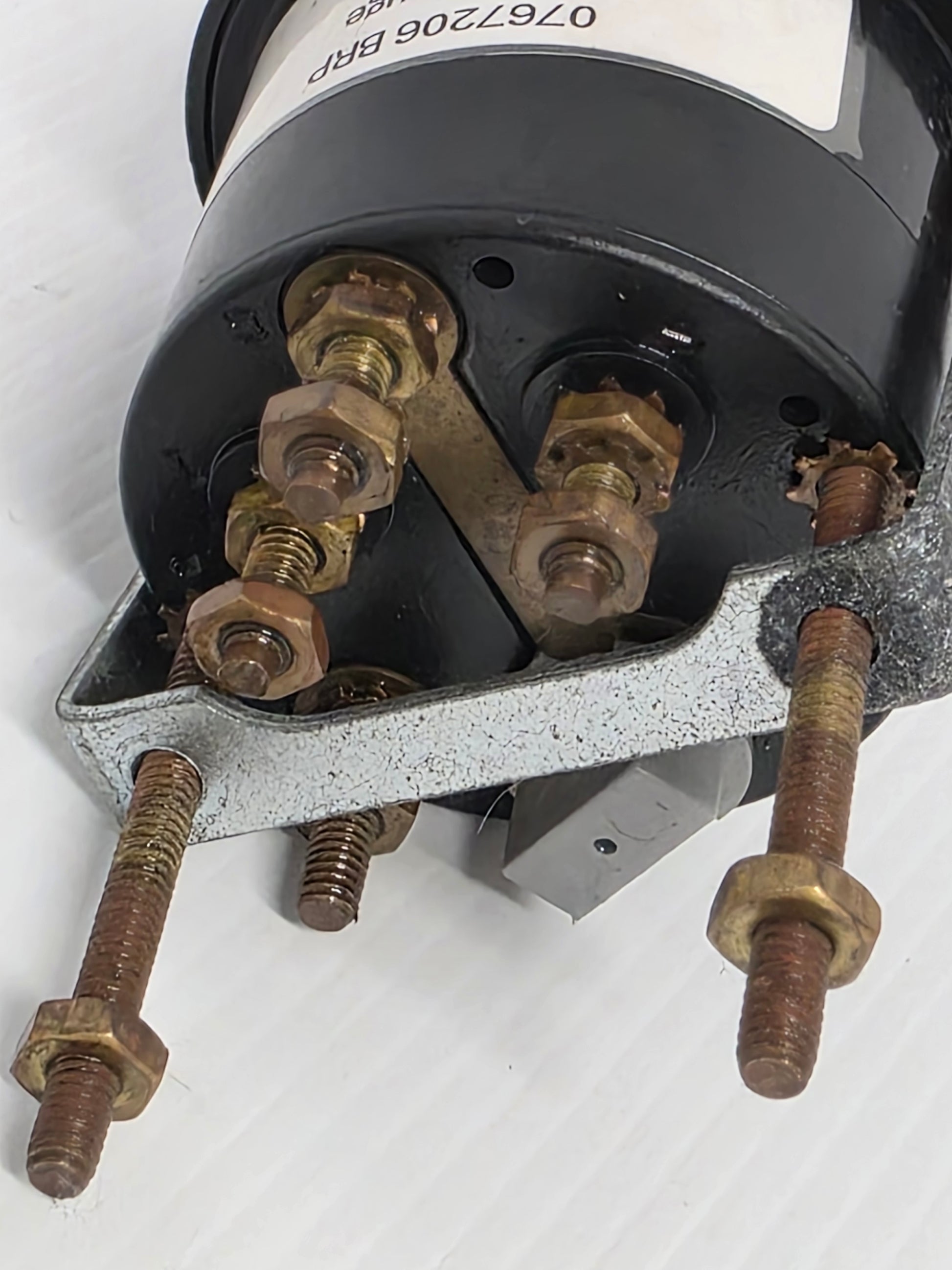

  • 0767206 BRP Trim Gauge | Genuine Used Part - photo 2 of 5

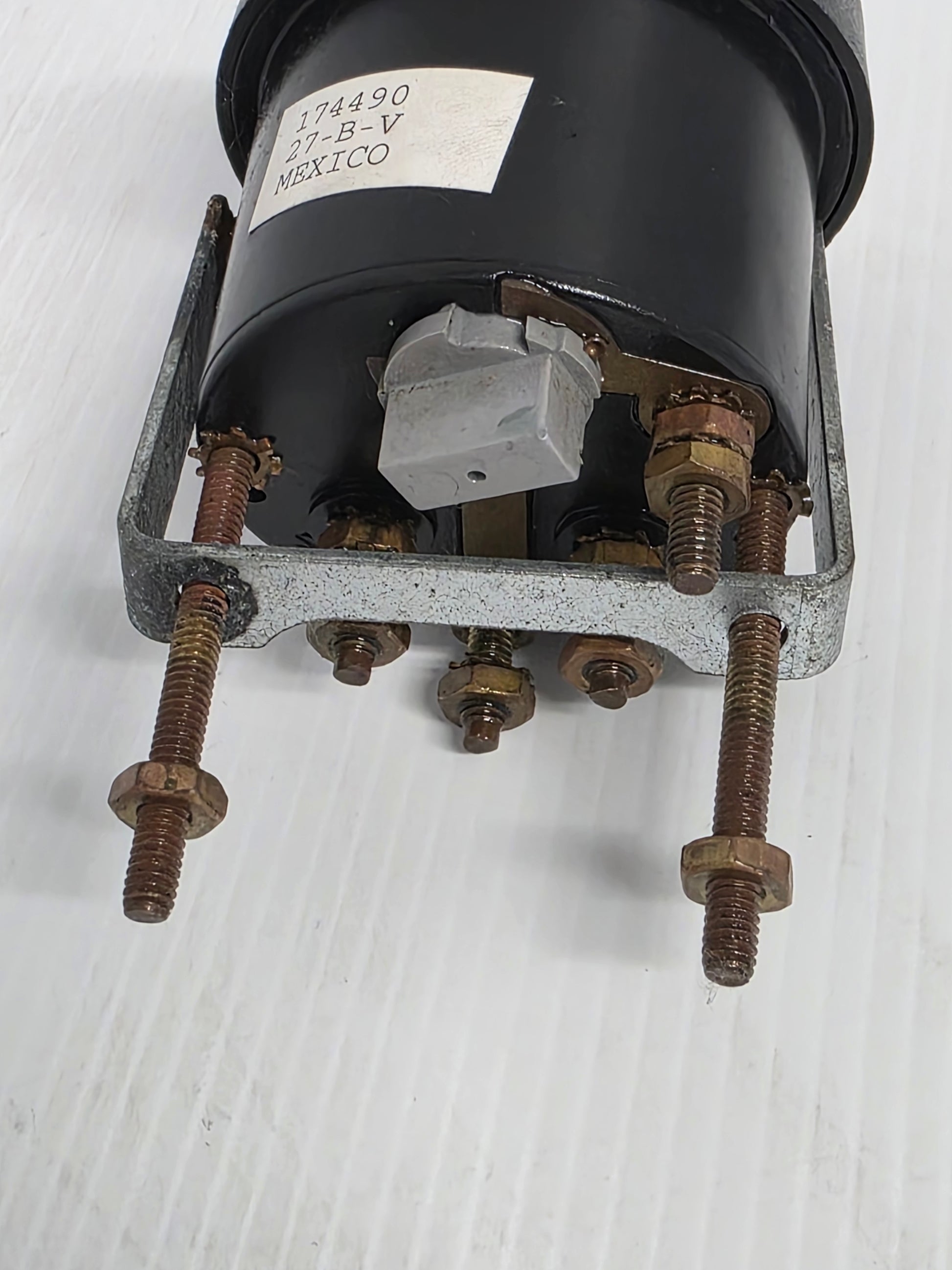

  • 0767206 BRP Trim Gauge | Genuine Used Part - photo 3 of 5

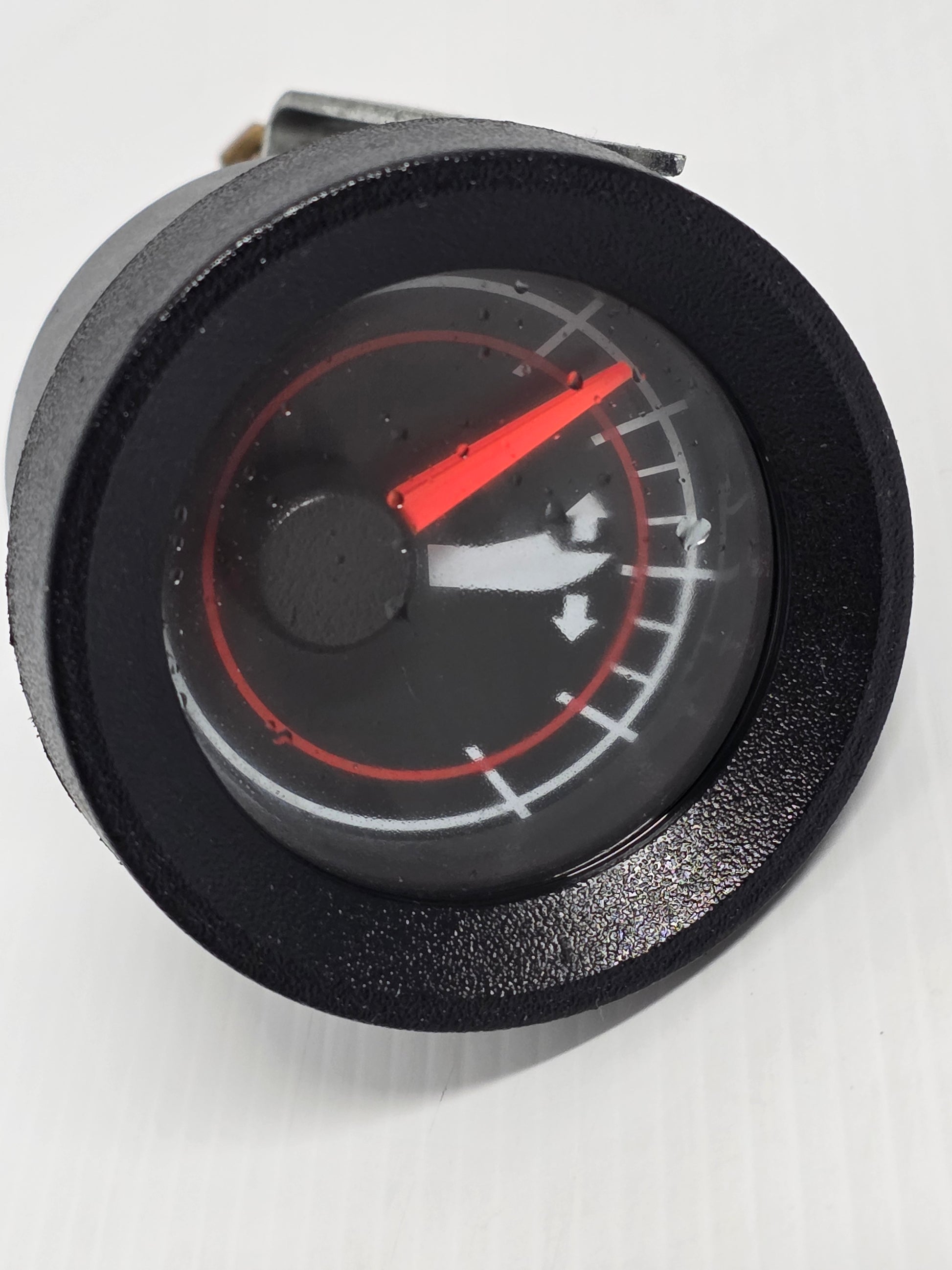

  • 0767206 BRP Trim Gauge | Genuine Used Part - photo 4 of 5
  • 0767206 BRP Trim Gauge | Genuine Used Part - photo 5 of 5
1 5

0767206 BRP Trim Gauge | Genuine Used Part

0767206 BRP Trim Gauge | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$15.00 AUD
$30.00 AUD $15.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine BRP Johnson Evinrude Analogue Trim Gauge - Part Number: 0767206

A genuine used BRP trim-position gauge for selected Johnson and Evinrude outboard motors equipped with a compatible analogue trim sender.

The gauge displays the outboard's operating angle, helping the operator monitor trim position during acceleration, planing and low-speed operation.

⚙️ Key Features

  • Genuine used BRP trim gauge
  • Correct OEM part number 0767206
  • Tech Series / OEM-Tech instrument design
  • Approximately two-inch dash installation
  • Designed for Johnson and Evinrude trim-sender calibration

🚤 Compatibility

Commonly used on

  • Johnson and Evinrude outboard trim systems
  • Analogue BRP and OMC dashboard instrumentation
  • Engines equipped with a resistance-type trim sender

Typically suits

  • Johnson outboards with compatible power trim
  • Evinrude outboards with compatible power trim
  • Selected Ficht and E-TEC installations retaining analogue gauges
  • 12-volt instrument systems
  • Approximately two-inch dash cut-outs

🔌 Function

The gauge receives a variable-resistance signal from the engine-mounted trim sender and moves the needle between the down and up positions.

⚠️ Common Signs of Failure

  • Needle remains fully up or fully down
  • Gauge does not respond to engine movement
  • Reading is reversed
  • Needle moves erratically
  • Gauge and sender calibrations do not match
  • Illumination does not operate
  • Wiring terminals are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0767206 → Supersedes 0174709
  • 0174709 earlier OEM-Tech trim-gauge reference

OEM / Related Numbers

  • 0767206
  • 767206
  • 0174709
  • 174709
  • BRP OEM-Tech trim gauge
  • Related trim-sender assembly and Modular Wiring System harness

Aftermarket / Verified Equivalents

  • Faria: GE0003A - BRP / OMC / Johnson / Evinrude trim gauge
  • Faria: GBC036A - Johnson / Evinrude two-inch trim gauge
  • Faria Platinum two-inch trim gauge for Johnson, Evinrude and Suzuki
  • Faria Euro Black trim gauge for Johnson, Evinrude and Suzuki
  • Faria Dress White trim gauge for Johnson, Evinrude and Suzuki

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
