0775798 OMC Trim Gauge | Genuine Used Part

🔧 Product Description

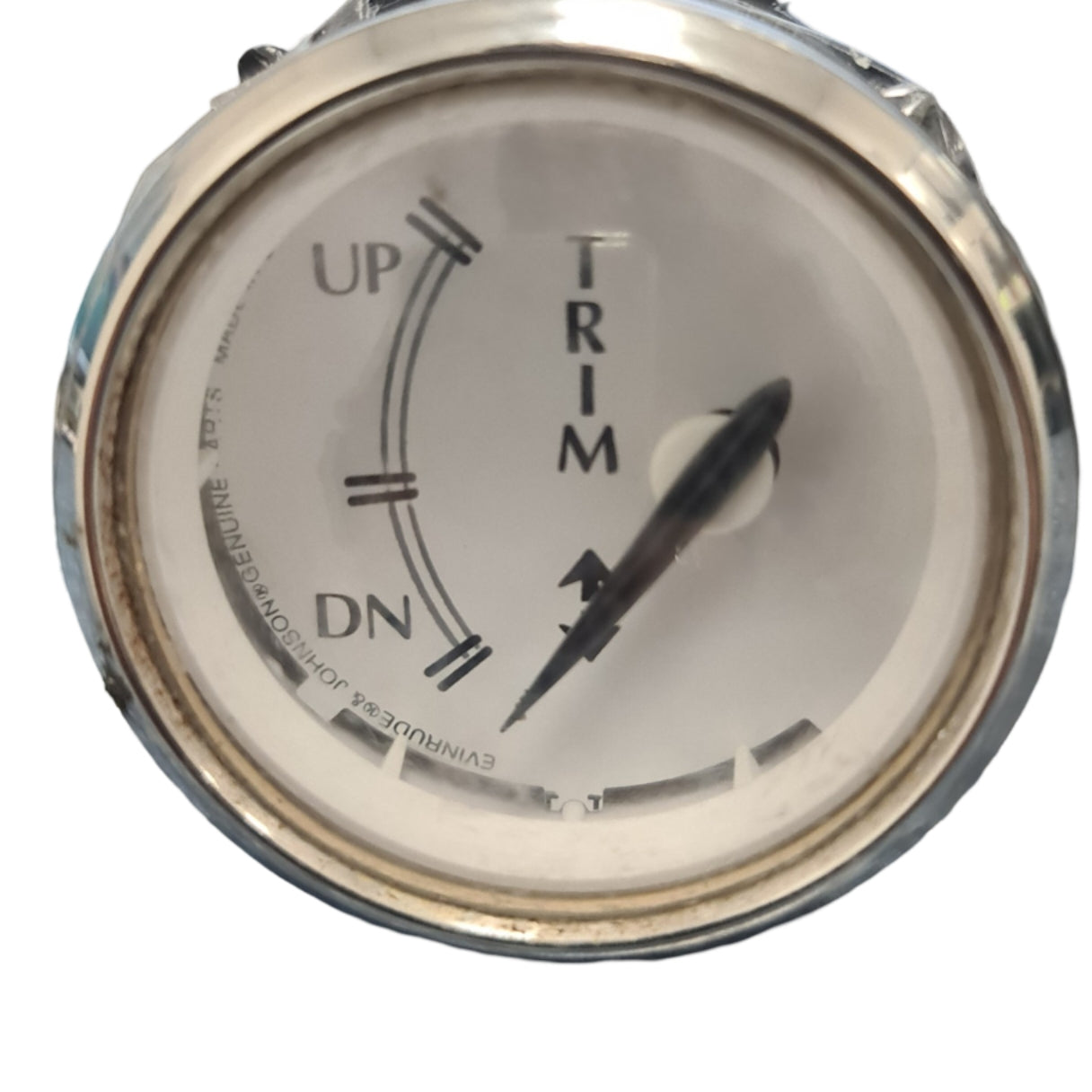

Genuine OMC BRP Two-Inch Retro Trim Gauge - Part Number: 0775798

A genuine used OMC / BRP trim gauge for selected Johnson and Evinrude outboards equipped with a compatible analogue trim-position sender.

The gauge shows the relative angle of the engine from the fully lowered position through the operating trim and tilt range.

⚙️ Key Features

• Genuine used OMC / BRP trim gauge
• Original part number 0775798
• Two-inch Retro Series design
• Analogue up-and-down trim display
• Designed for OMC / BRP sender calibration

🚤 Compatibility

Commonly used on

• Johnson outboards with power trim
• Evinrude outboards with power trim
• OMC / BRP analogue instrument panels

Typically suits

• 12-volt trim-sender circuits
• Approximately two-inch instrument cut-outs
• Engines equipped with a compatible resistance-type trim sender
• Selected Ficht and E-TEC installations using analogue gauges

🔌 Function

The gauge interprets the resistance signal from the engine-mounted trim sender and displays the approximate engine position.

⚠️ Common Signs of Failure

• Gauge remains at full up or full down
• Reading is reversed
• Needle moves intermittently
• Gauge does not respond to the trim sender
• Sender and gauge calibrations do not match
• Illumination has failed
• Terminals are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0767210 → Supersedes 0775798
• 0775798 original two-inch Retro trim gauge

OEM / Related Numbers

• 0775798
• 775798
• 0767210
• 767210
• Related trim sender and engine harness
• 0767206 related OEM-Tech trim gauge
• 0775682 related trim gauge with a different instrument style

Aftermarket / Verified Equivalents

• Faria: GE0003A - BRP / OMC trim gauge
• Faria: GBC036A - Evinrude / Johnson trim gauge
• Faria Platinum trim gauge for Johnson, Evinrude and Suzuki
• Faria Euro Black trim gauge for Johnson, Evinrude and Suzuki
• Current analogue trim gauge must match the OMC / BRP sender range

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
