0775803 BRP Speedo Gauge | Genuine Used Part

🔧 Product Description

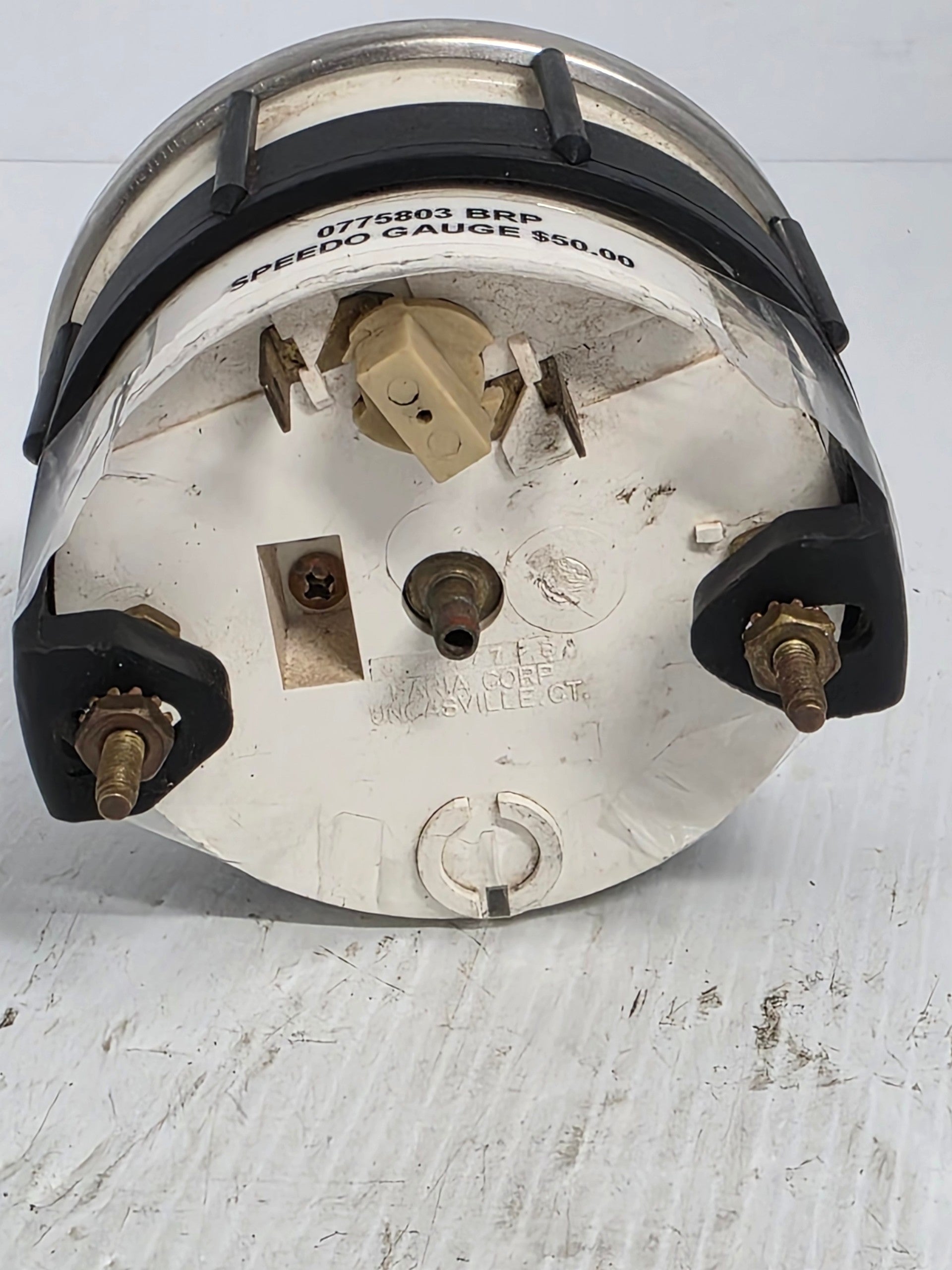

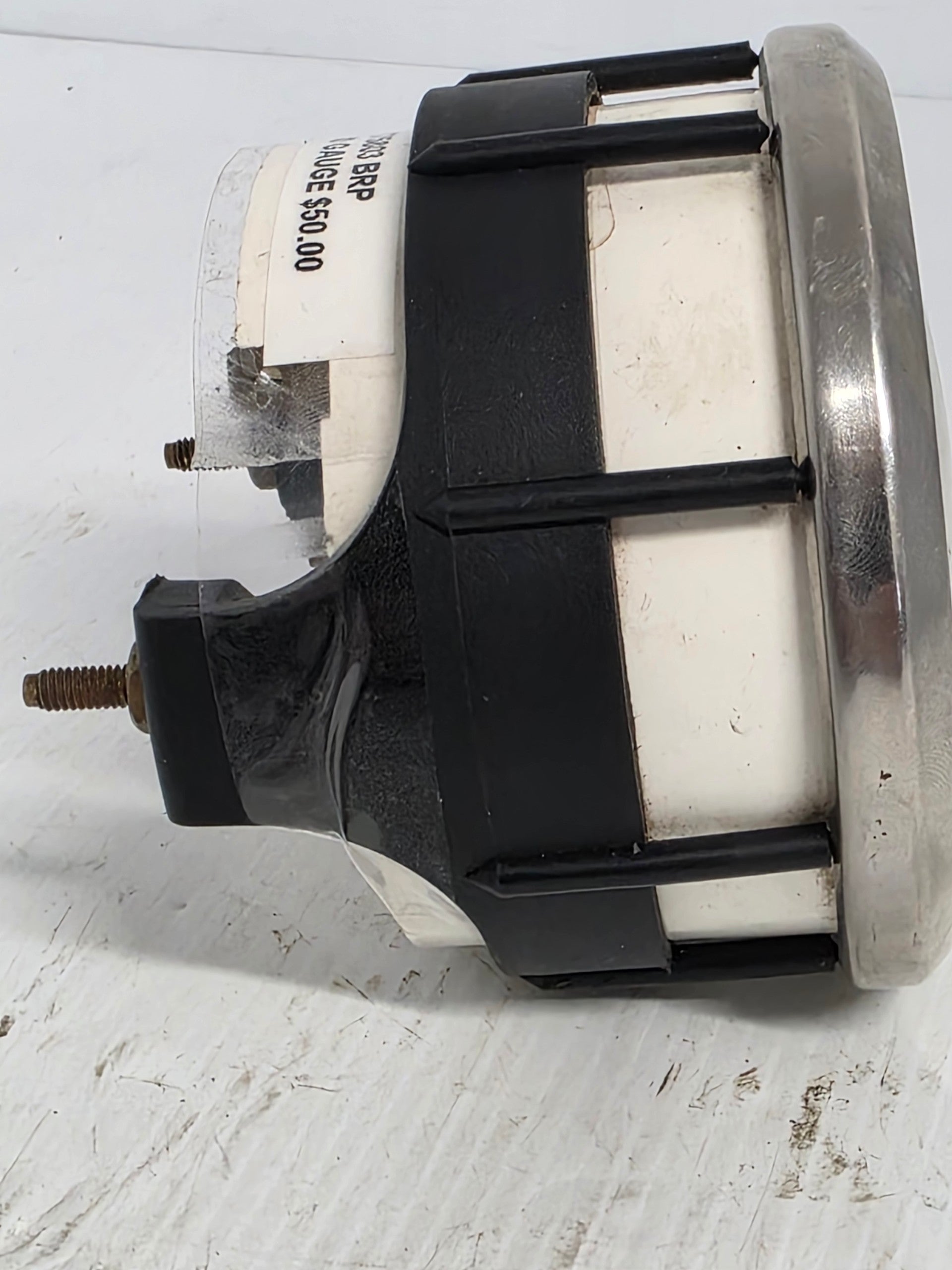

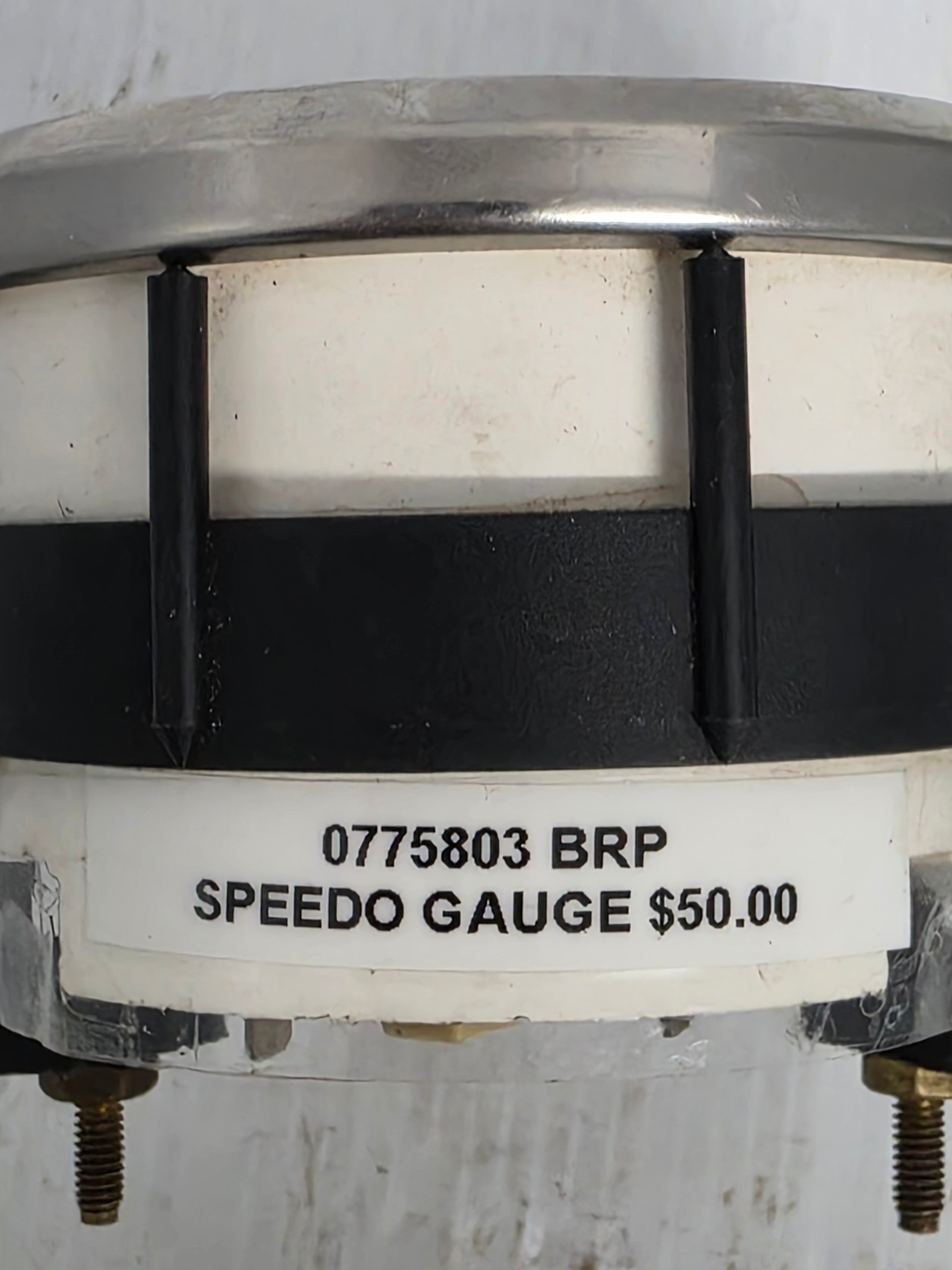

Genuine BRP Johnson Evinrude 80 MPH Mechanical Speedometer - Part Number: 0775803

A genuine used BRP speedometer for measuring boat speed through a mechanical pitot-pressure system.

This black-and-gold instrument features a domed lens and an 80 MPH scale. Water pressure is supplied from a transom-mounted pitot pickup or compatible gearcase speedometer passage.

⚙️ Key Features

• Genuine used BRP speedometer

• Correct OEM part number 0775803

• 0-80 MPH speed range

• Black-and-gold Retro instrument design

• Mechanical pitot-pressure operation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0775803 current original 80 MPH Retro speedometer reference

OEM / Related Numbers:

• 0775803

• 775803

• UPC 745419292010

• Related pitot pickup

• Related speedometer pressure hose

• Related mounting bracket and dash illumination

• 0775679 related earlier 60 MPH speedometer

Aftermarket / Verified Equivalents:

• Faria 80 MPH mechanical pitot speedometer with matching cut-out

• Sierra 80 MPH mechanical marine speedometer

• Teleflex / SeaStar 80 MPH pitot speedometer

• Universal mechanical speedometer with matching scale and hose connection

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude-powered boats

• BRP Retro Series instrument panels

• Boats using a pitot speed system

Typically suits:

• Speed Range: 0-80 MPH

• Cut-Out Diameter: Approximately 3¼ inches

• Input Type: Pitot pressure

• Electrical Connection: Illumination only

• Engine Type: Not engine-specific

🔌 Function

Water pressure created by the boat's forward movement travels through the pitot hose and operates the speedometer's internal diaphragm mechanism.

Common signs of failure:

• Gauge remains at zero

• Speed reading is inaccurate

• Pitot opening is blocked

• Pressure hose leaks or is kinked

• Water leaks behind the gauge

• Needle sticks

• Gauge does not return fully to zero

📦 Condition

• Genuine used part

• Pitot pickup and pressure tubing included only where shown or stated

• Removed from running engine where applicable

• In good working condition unless otherwise stated
