🔧 Product Description

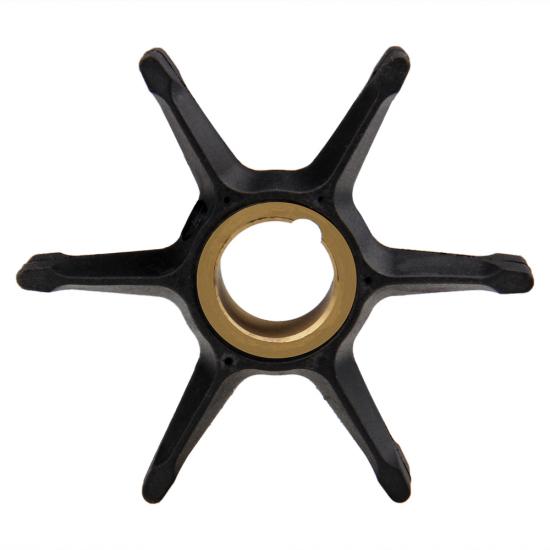

Genuine BRP Evinrude Johnson Pin-Key Water Pump Impeller - Part Numbers: 0777129 and 0389589

A genuine BRP flexible water-pump impeller for selected 40HP, 50HP, 55HP and 60HP Evinrude and Johnson two-stroke outboards.

This impeller uses a pin-style drive key. It must not be confused with later wedge-key impeller 0777214, even though both are used in similar horsepower ranges.

⚙️ Key Features

  • Genuine BRP OEM water-pump impeller
  • Current service number 0777129
  • Earlier OEM number 0389589
  • Common reference 389589
  • Pin-style impeller-key design
  • Suitable for selected late-1970s and mid-1980s gearcases
  • Broad aftermarket support

🚤 Compatibility

Typically suits selected

  • 40HP
  • 50HP
  • 55HP
  • 60HP two-stroke outboards
  • Twin-cylinder gearcases using the pin-style impeller drive

Representative application period

  • Approximately 1979-1985
  • Verified 1980-1982 50HP-60HP gearcase applications
  • Additional engines whose water-pump diagram lists 0389589 or 0777129

Important fitment note

  • Confirm that the original impeller uses a pin key.
  • Wedge-key impeller 0777214 is a different component.
  • Later 40HP-50HP engines may use 0432941 or 0765350.
  • The key, O-rings and water-pump housing are separate unless shown.

🔌 Function

The impeller draws cooling water through the gearcase intake and supplies it to the engine.

Installation considerations

  • Confirm the pin-key arrangement
  • Inspect the driveshaft and key bore
  • Replace a worn drive pin
  • Inspect the cup, plate and housing
  • Remove all broken vane fragments
  • Lubricate the impeller before assembly
  • Rotate the driveshaft while lowering the housing
  • Confirm cooling-water flow immediately after installation

⚠️ Common Signs of Failure

  • Weak tell-tale flow
  • Overheating at idle
  • Cracked or missing vanes
  • Hub separates from the rubber
  • Drive pin is worn or sheared
  • Impeller does not turn with the driveshaft
  • Pump cup is scored
  • Rubber fragments block the cooling system

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0389589
  • 389589
  • 0777129
  • 777129
  • 0777827
  • 777827

Aftermarket / Verified Equivalents

  • Sierra: 18-3055
  • GLM: 89690
  • Mallory: 9-45202
  • SEI Marine: 96-365-03CE
  • CEF: 500345
  • Recmar: REC777129
  • EMP: 47-01920
  • Generic 389589 pin-key impellers

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Impeller key included only when specifically supplied in the package
  • Supplied in genuine or equivalent protective packaging
