0777214 Evinrude Johnson Impeller | Genuine OEM BRP Outboard Part

0777214 Evinrude Johnson Impeller | Genuine OEM BRP Outboard Part

$58.01 AUD
$58.01 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

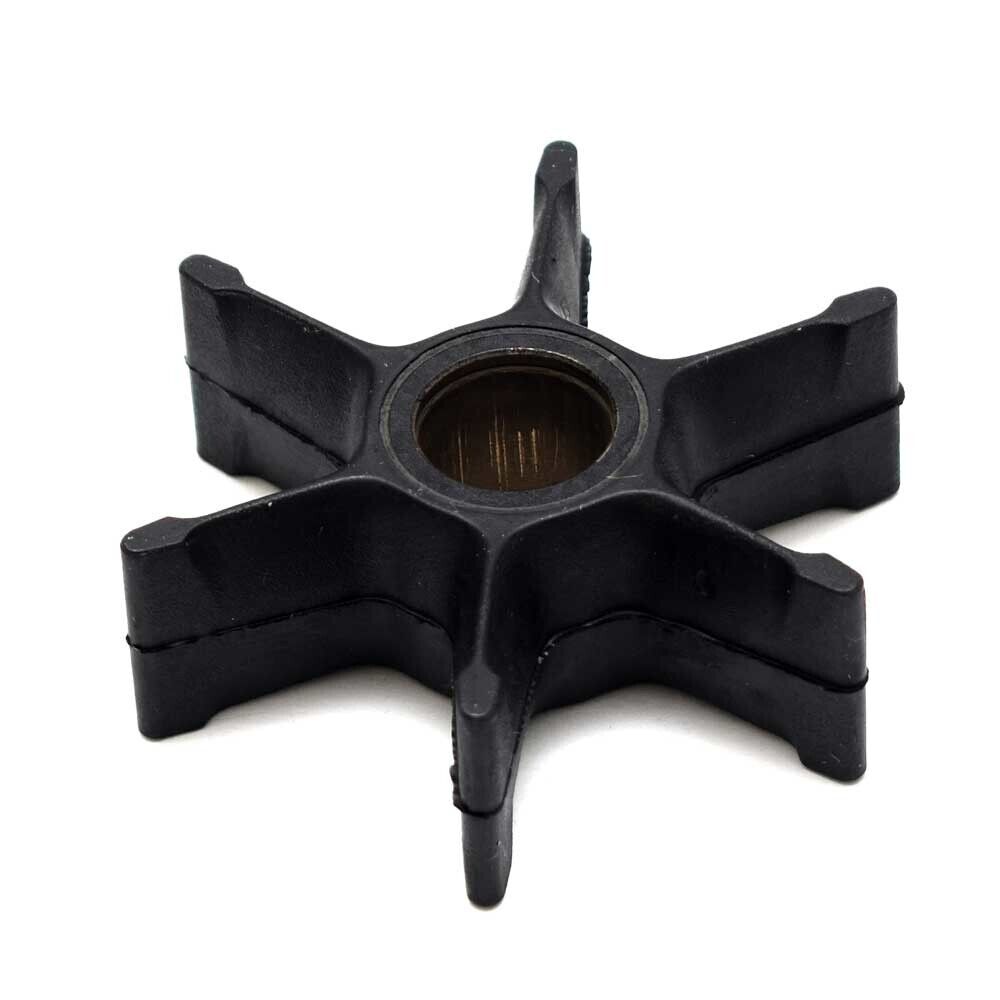

Genuine BRP Evinrude Johnson Wedge-Key Water Pump Impeller - Part Numbers: 0777214 and 0396809

A genuine BRP flexible water-pump impeller for selected 35HP, 40HP, 45HP, 48HP, 50HP and 55HP Evinrude and Johnson two-stroke outboards.

This impeller uses a wedge-style drive key and replaces original impeller number 0396809 / 396809.

It must not be confused with earlier pin-key impeller 0777129.

⚙️ Key Features

  • Genuine BRP OEM water-pump impeller
  • Current service number 0777214
  • Earlier OEM number 0396809
  • Common reference 396809
  • Wedge-style impeller-key design
  • Six flexible vanes
  • Extensive Sierra, GLM, Mallory, Recmar and WSM interchange

🚤 Compatibility

Typically suits selected

  • 35HP: approximately 1986-1987
  • 40HP: approximately 1986-1988
  • 45HP: approximately 1986-1994
  • 48HP: approximately 1987-1988
  • 50HP: approximately 1986-1988
  • Selected 55HP applications
  • Gearcases whose diagrams specify 0396809 or 0777214

Important fitment note

  • Confirm the wedge-style key before ordering.
  • Earlier engines may use pin-key impeller 0777129.
  • Later 40HP-50HP engines commonly use 0432941 or 0765350.
  • Do not alter the impeller bore or substitute an incorrect key.

🔌 Function

The impeller circulates raw cooling water from the lower unit to the engine.

Installation considerations

  • Confirm the correct key type
  • Inspect the driveshaft keyway
  • Check housing, insert cup and plate
  • Replace the wedge key if damaged
  • Lubricate the impeller before assembly
  • Rotate the driveshaft in its normal direction
  • Ensure all vanes fold correctly
  • Test cooling-water delivery after installation

⚠️ Common Signs of Failure

  • Weak cooling-water stream
  • Engine overheats
  • Vanes become permanently bent
  • Rubber cracks around the hub
  • Wedge key wears or slips
  • Housing liner becomes scored
  • Pump fails to prime
  • Broken rubber enters cooling passages

🔄 Supersession & Cross Reference

OEM Supersession / Related Chain

  • 0396809
  • 396809
  • 0777214
  • 777214
  • 0777828
  • 777828

Aftermarket / Verified Equivalents

  • Sierra: 18-3368
  • GLM: 89780
  • Mallory: 9-45208
  • SEI Marine: 96-365-03BE
  • Recmar: REC777214
  • CEF: 500346C
  • WSM: 700-250
  • HJ: O-127
  • Generic wedge-key 396809 impellers

📦 Condition

  • Genuine BRP Evinrude Johnson OEM part
  • Brand new
  • Key and other pump components included only when stated in the packaging
  • Supplied in genuine or equivalent protective packaging
