🔧 Product Description

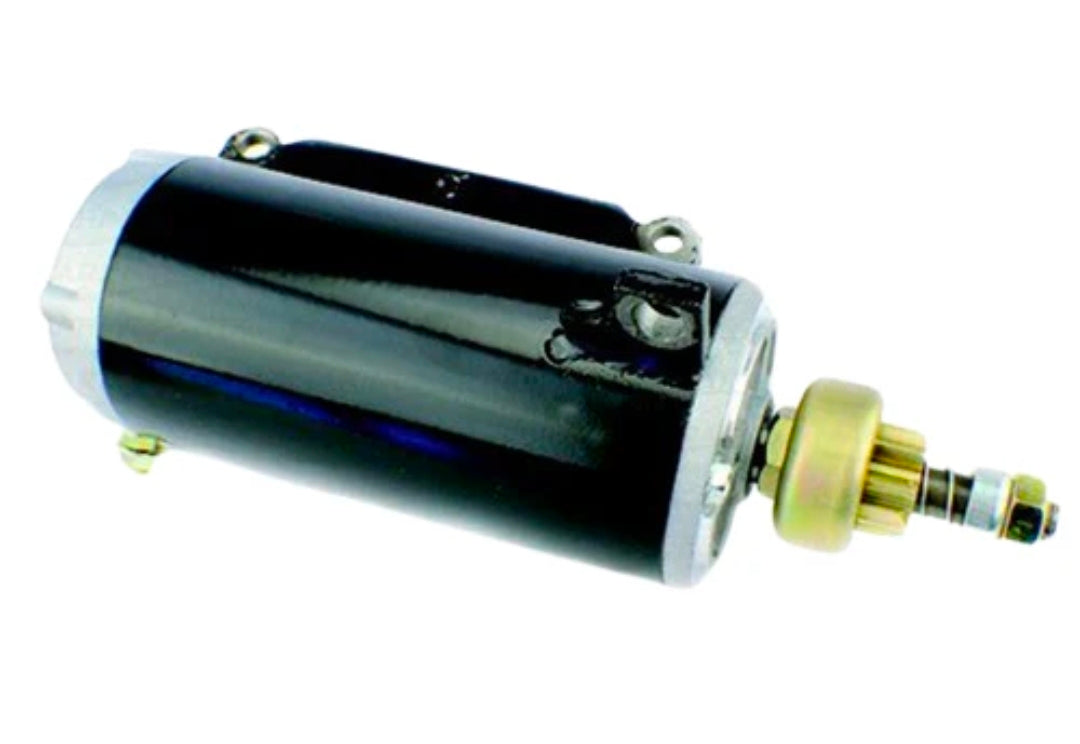

Aftermarket Johnson/Evinrude Starter Motor - Catalogue Reference: 0778292

Brand-new 12-volt starter motor for selected Johnson and Evinrude 150HP-235HP V6 crossflow outboards. This assembly uses an 8-tooth drive and has an approximate catalogue weight of 4.18kg.

REC0778292 is an aftermarket catalogue reference. It must not be represented as an original BRP starter part number. The corresponding OMC/BRP starter family includes 0387094, 0395207, 0585062, 0586288, 0777693 and 0778992.

⚙️ Key Features

• 12-volt heavy-duty marine starter motor

• 8-tooth starter drive

• Approximate catalogue weight: 4.18kg

• Designed for V6 crossflow Johnson and Evinrude engines

• Complete replacement for the documented OMC starter family

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0778992 → Later service replacement for 0586288

• 0586288 → Replaces 0585062

• 0585062 → Replaces earlier 0395207 and 0387094 applications

OEM / Related Numbers:

• 0387094 / 387094

• 0395207 / 395207

• 0585062 / 585062

• 0586288 / 586288

• 0777693 / 777693

• 0778992 / 778992

Aftermarket / Verified Equivalents:

• RECMAR: REC0778292

• Sierra Marine: 18-5600

• Sierra Marine: 18-5640

• ARCO Marine: 5373

• API Marine: MOT2004N

• Protorque: PH130-0039

• MES Marine: S2061M

• Prestolite: MJL4005

• Mercury / Quicksilver: 8M6007320

• Marine Parts: 780026

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude V6 crossflow two-stroke outboards

Typically suits:

• Engine models:

• Evinrude E150

• Evinrude E155 commercial

• Evinrude E175

• Evinrude E185

• Evinrude E200

• Evinrude E225

• Evinrude E235

• Johnson J150

• Johnson J155 commercial

• Johnson J175

• Johnson J185

• Johnson J200

• Johnson J225

• Johnson J235

• HP Range: 150HP-235HP

• Engine Type: V6 crossflow two-stroke outboards

• Year Range: Approximately 1976-1995 across the complete replacement family

• Model/Serial Note: Later V6 loop-charged, 60-degree and direct-injection engines use different starter families. Confirm the original starter number.

🔌 Function

The starter uses the 8-tooth pinion to engage the V6 flywheel and rotate the crankshaft through its compression cycles until the engine starts.

Common signs of failure:

• Starter cannot crank the V6 engine under compression

• Solenoid clicks without flywheel movement

• Pinion slips, chatters or fails to rise

• Grinding from worn 8-tooth drive or ring gear

• Starter operates intermittently due to brush wear

• Excessive heat or voltage drop at the starter cables

• Bearing, armature or winding damage

📦 Condition

• Brand-new aftermarket replacement starter motor

• 8-tooth starter-drive configuration

• Approximate catalogue weight: 4.18kg

• Supplied in manufacturer or equivalent protective packaging
