🔧 Product Description

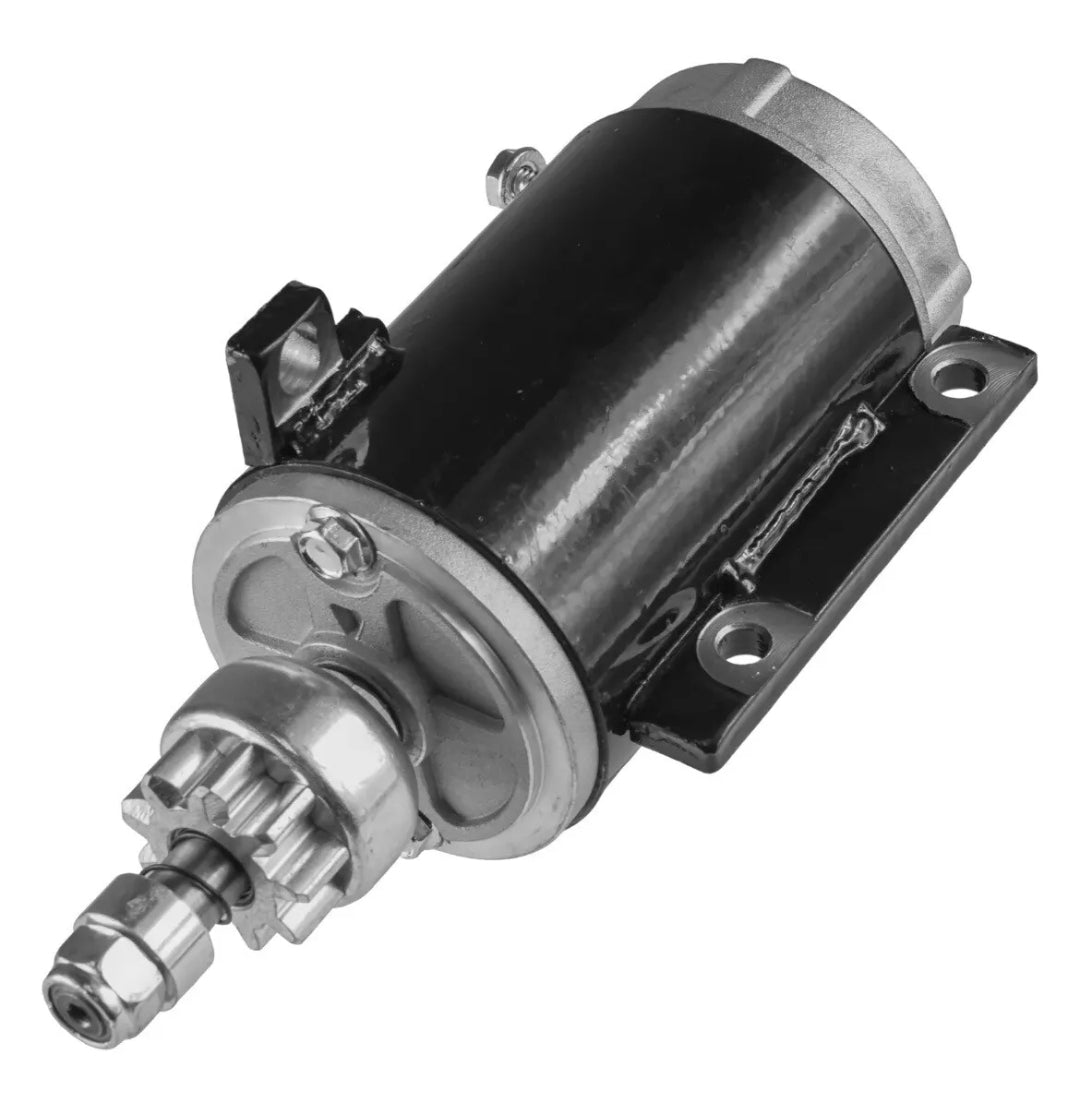

Aftermarket BRP-Compatible Starter Motor - Replaces Part Number: 0778993

Brand-new 12-volt marine starter motor for selected Johnson and Evinrude 40HP, 50HP, 55HP and 60HP two-cylinder two-stroke outboards. This unit uses a 9-tooth drive and replaces the earlier OMC starter family used before the later 0586279 configuration.

Fitment should be established from the engine model code and original starter number, particularly on 40HP and 50HP models produced near the transition between starter designs.

⚙️ Key Features

• 12-volt permanent-magnet direct-drive starter

• 9-tooth starter pinion

• Counter-clockwise rotation under the documented supplier convention

• Designed for earlier two-cylinder 40HP-60HP outboards

• Complete direct-replacement starter assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0778993 → Supersedes 0586280

• 0586280 → Supersedes 0585063

• 0585063 → Replaces earlier 0389275, 0387684 and 0384163 applications

OEM / Related Numbers:

• 0384163 / 384163

• 0387684 / 387684

• 0389275 / 389275

• 0391047 / 391047

• 0585063 / 585063

• 0585280 / 585280

• 0585603 / 585603

• 0586280 / 586280

• 0778993 / 778993

Aftermarket / Verified Equivalents:

• Sierra Marine: 18-5630

• Sierra Marine: 18-5646

• ARCO Marine: 5371

• MES Marine: S2067M

• RECMAR: REC0778993

• DB Electrical: SAB0040

• Prestolite: 46-2122 / 46-2299 / 46-2400 / 46-2439 / 46-976

• Prestolite: MGD4007 / MGD4007A / MGD4113 / MKW4006 / MKW4008

• United Technologies: 1122940-M030SM / 5705340-M030SM / SM1122940 / SM57053 / SMH12B43

🚤 Compatibility

Commonly used on:

• Johnson and Evinrude two-cylinder two-stroke outboards using the earlier 9-tooth starter arrangement

Typically suits:

• Engine models:

• Evinrude E40 and E40 electric-start variants

• Evinrude E50 and E50 electric-start variants

• Evinrude E55

• Selected Evinrude E60 two-cylinder models

• Johnson J35 service applications where the original reference matches

• Johnson J40 and J40 electric-start variants

• Johnson J45 commercial models

• Johnson J48 service applications where the original reference matches

• Johnson J50 and J50 electric-start variants

• Johnson J55

• Selected Johnson J60 two-cylinder models

• Factory Service Applications:

• 40HP-50HP: approximately 1980-1988

• 55HP: selected 1978 models

• 60HP: selected 1985 models

• Extended Replacement-Family Coverage: Selected earlier two-cylinder 40HP-60HP engines where one of the listed OEM references is fitted

• HP Range: 35HP-60HP across the complete cross-reference family; core factory application 40HP-60HP

• Engine Type: Two-cylinder two-stroke outboards

• Model/Serial Note: 40HP and 50HP engines produced from approximately 1989 onward commonly use 0586279 instead.

🔌 Function

The starter converts battery current into mechanical torque and engages the flywheel through its 9-tooth pinion to crank the engine.

Common signs of failure:

• No starter movement after the solenoid closes

• Slow cranking despite correct battery state

• Pinion does not engage or disengage properly

• Starter has intermittent dead spots

• Grinding or chipped pinion teeth

• Excessive current draw or hot battery cables

• Internal corrosion, bearing wear or armature damage

📦 Condition

• Brand-new aftermarket replacement starter motor

• 9-tooth drive configuration

• Supplied in manufacturer or equivalent protective packaging
